VIII. SERVICE AND MAINTENANCE

Fuses

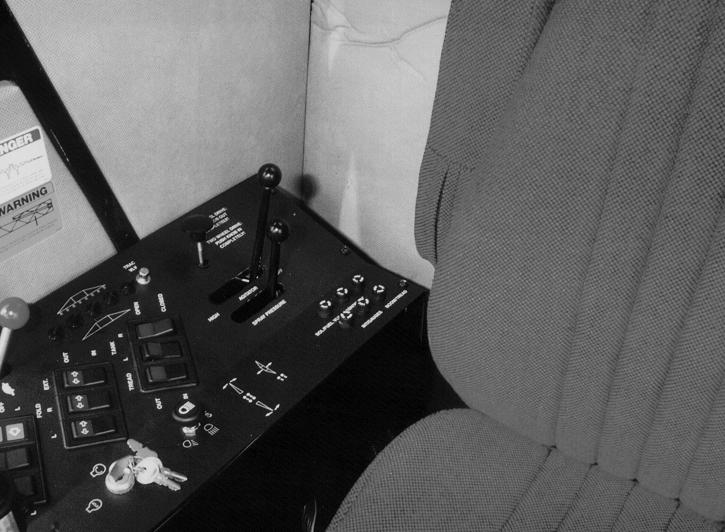

Fuses protect individual lighter duty electrical circuits. They are located toward the rear of the console panel to the right of the operator’s seat (fig. 8.33).

Rinse system, windshield washer (opt), and Traction valve (opt).................................10 AMP

Gauges, AM/FM radio, dome light, and C.B. radio................................................10 AMP

Boom hydraulic controls, tread adjust valve, and Parking brake..........................................20 AMP

Fuel selector switch, boom solution valves, and Seat motor..............................................20 AMP

Hazard/warning lights, turn signal, and Windshield wiper.....................................10 AMP

If a fuse blows, remove it by rotating the fuse cap counterclockwise as you push down. Then pull the fuse straight out (fig. 8.35). Replace each blown fuse with the same amperage fuse only.

Correct fuse location and amperage is shown in figure 8.34. If the fuse continues to blow, determine the cause and correct it.
