V. OPERATING INFORMATION

Hydrostatic System

Hydrostatic Drive

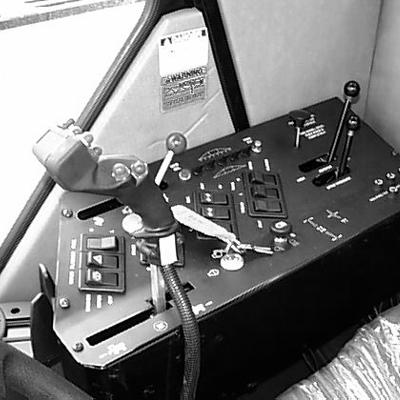

1. Increase engine RPM with the throttle lever (fig. 5.1, item 2) to the maximum recommended engine speed setting.

NOTE:

Never operate the sprayer at anything less than full recommended throttle.

2. To move forward, slowly push the hydrostatic control lever (fig. 5.1, item 1) forward. The farther the control lever is moved, the faster the sprayer will travel. To stop, slowly pull the lever to the “N” (neutral) position.

3. To reverse the machine, slowly pull the hydrostatic control lever back. To stop, slowly push the lever to the “N” (neutral) position.

4. To engage the hydrostatic system in four wheel drive, pull up on the control knob (fig. 5.1, item 3). To return to two wheel drive, push the control knob down.
