VIII. SERVICE AND MAINTENANCE

Circuit Breakers

Mounted In Cab

Circuit breakers handle the functions of the heavier duty electrical circuits on the sprayer. They trip when overloaded and automatically reset themselves after they cool down. They will continue to trip and reset as long as the overload or short exists. If the circuit breaker does not reset, replace it with the same amperage breaker only. Correct circuit breaker location and amperage is shown in figure 8.38.

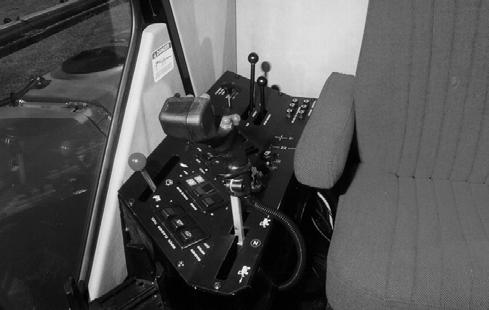

To access the circuit breakers remove the hydrostatic handle (fig. 8.36, item 1), engine throttle knob (fig. 8.36, item 2), VFC lever knobs (fig. 8.36, item 3), four wheel drive knob (fig. 8.36, item 4), and panel screws (fig. 8.36, item 5). The circuit breakers are located toward the rear of the console.If a circuit breaker does not reset and continues to trip, determine the cause and correct it.

Mounted On Engine

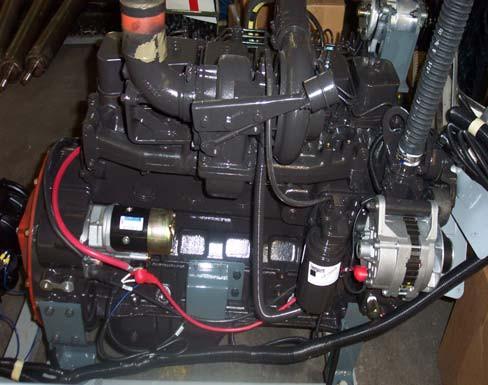

The wire harnesses are protected by circuit breakers mounted on the engine (fig. 5.37). If the breakers do not reset and continue to trip, determine the cause and correct it.
