1 Product description 1.1 Assembly - overview This section comprises an overview of the machine and descriptions of the components shown.
1.1.1

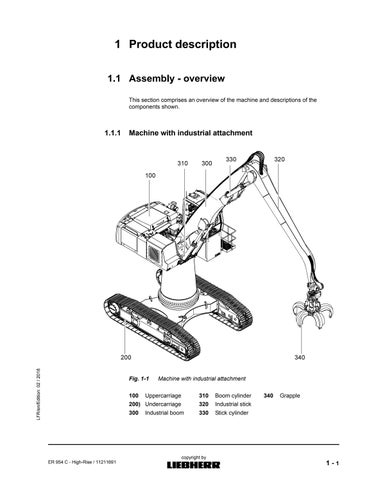

Machine with industrial attachment
Fig. 1-1
Machine with industrial attachment
100 Uppercarriage 200) Undercarriage
310 320
Boom cylinder Industrial stick
300
330
Stick cylinder
Industrial boom
340
Grapple
