Control and operation

Manual control of the travelling movements

Fig. 3-66 Hand levers for manual travel control

When particularly careful and progressive travel movements are required: Insert the hand levers (1 and 2) delivered in the tool box of the machine into the both pedals for travel movements. The travel movements can now be controlled manually.

Note!

When travelling the machine onto or off a low loader, the travel movements must be controlled manually for safety reasons.

The travel brakes

Hydraulic braking

The hydrostatic travel drive of the machine also functions as a service brake.

When the travel pedals are released, the pedals will return automatically to the neutral position. a maximum hydraulic braking of the machine is achieved. the travel movement is stopped.

When the machine is travelling down a slope , automatically acting hydraulic braking valves prevent the machine from running away and the maximum travel speed cannot be exceeded.

Mechanical braking

A negatively acting, hydraulic multi disc brake is integrated in each travel gear. These brakes serve as parking brake.

As soon as a travel pedal is actuated, the brake at the corresponding travel gear is released.

As soon as a travel pedal is returned to neutral position, the mechanical brake at the corresponding travel gear is applied.

Caution!

Disengaging the pedals quickly causes the machine to halt abruptly. Before starting the machine, always fasten the safety belt.

3.4.2Rear motor cable drum with controls (option)

The rear motor cable drum with controls is mounted on the rear of the undercarriage of the machine.

Follow the instructions in the operator's manual of the motor cable drum with controls.

Danger!

Energised power cable, drum and control cabinet! Electric shock, danger to life.

Do not touch components when energised.

Description of the motor cable drum with controls

Description of the controls

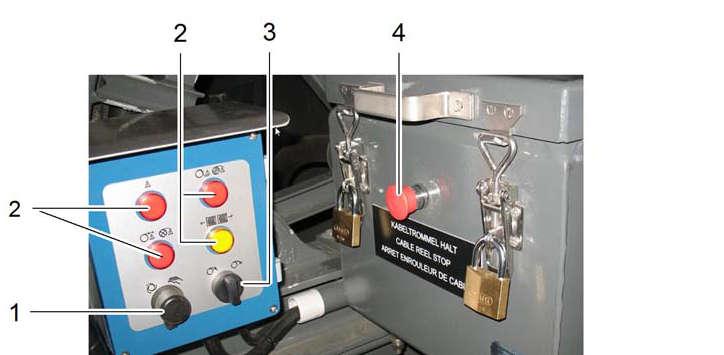

The controls of the motor cable drum are installed in the following locations:

Lock the main circuit breaker of the supply station before carrying out any maintenance work. 1

2

Danger!

3

4 Off switch of motor cable drum

Crushing or tearing off the power cable! Crushing of persons! Damage, injuries, danger to life.

Never remove the key of the switch 1 and the ignition key of the machine.
