Control and operation

Working with the machine

Danger! Wrench of the power cable! Damage.

Do not keep on travelling in initial direction when travelling out of the critical area.

Travel out of the critical area within the 3 minutes.

In manual mode 12:

Note cabinet of the motor cable drum turns on. ll or almost empty: a buzzer starts to sound and the warning light reel almost empty / full 9 turns on. y: the machine is automatically switched off.

This mode is used for maintenance tasks.

3 is locked on manual mode 15 er cable is controlled manually.

To control the independent motor cable drum manually: turn the manual mode key 2 to the right or to the left.

Note

Remove the key in the switch 3 out of the switch when the machine is not in use.

3.4.4Lateral motor cable drum with controls (option)

The lateral motor cable drum with controls is mounted on the left side of the undercarriage of the machine.

Follow the instructions in the operator's manual of the motor cable drum with controls.

Danger!

Energised power cable, drum and control cabinet! Electric shock, danger to life.

Do not touch components when energised. Lock the main circuit breaker of the supply station before carrying out any maintenance work.

Description of the motor cable drum with controls

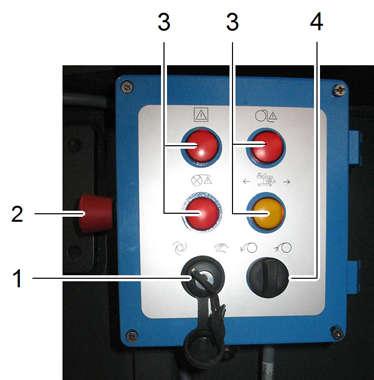

Description of the controls

The controls of the motor cable drum with controls are installed in the following locations:

1 manual operation

Control and operation

3 Indicator lights

2 Off switch of motor cable drum 4 cable

Danger!

Crushing or tearing off the power cable! Crushing of persons! Damage, injuries, danger to life.

Never remove the key of the switch 1 and the ignition key of the machine.

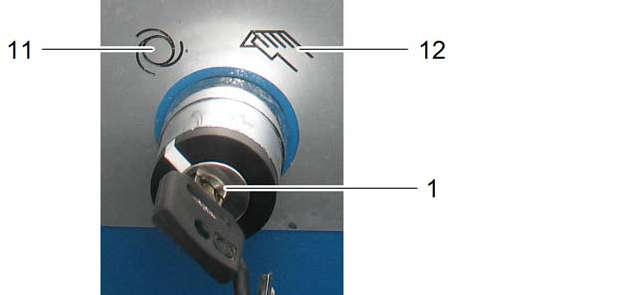

Automatic mode and manual operation

11 Automatic mode

Danger!

Crushing or tearing off the power cable! Damage, injuries, danger to life.

12 Manual operation

Manual operation exclusively for restoring normal tension conditions of the power cable.
