Control and operation

Working with the machine

3.4.14Commutation of control for an additional attachment (option)

Danger!

Risk of accident due to an unintentional movement by an uninformed machine operator!

When the commutation of the control is turned on, the correspondence between the controls and the working movements is changed. When the key is removed from the switch or when the touch is gone out, the machine can be operated only with the usual control system, installed at machine delivery.

It is the responsibility of the owner of the machine to grant an operator authorization to operate the machine with the activated special control system.

Caution!

Check out the functions of the additional controls when starting the machine, especially when a commutation of control is activated.

Standard control

Fig. 3-91 Commutation of standard control for an additional attachment

The additional attachment can be operated alternatively with the left double pedal or with the right joystick. The commutation of control can be activated with the key switch S114 on the rear right control desk.

Turn the key switch S114 to select the joystick position

The additional attachment is now operated with the right joystick (movements to e and f).

The bucket tilt function is now operated with the left double pedal (m-k). The key is locked in the switch S114

Turn the key switch S114 to select the foot pedal position

The additional attachment is now operated with the left double pedal again. The key can be removed from the switch S114

Proportional control

Mini joystick / Joystick

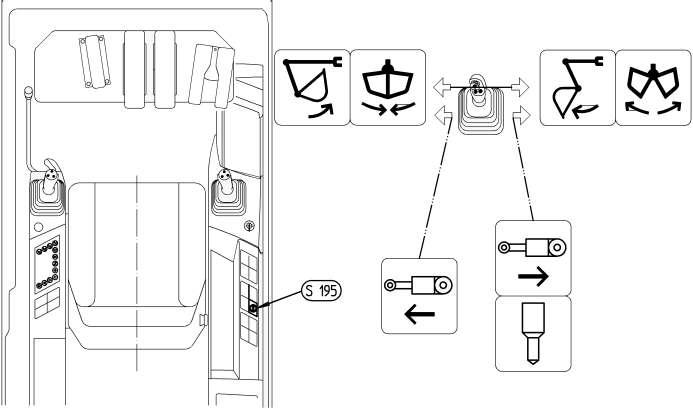

Fig. 3-92 Commutation of proportional control for an additional attachment

The additional attachment can be operated alternatively with the right mini joystick or with the right joystick. The commutation of control can be activated with the key switch S195 on the rear right control desk.

Turn the key switch S195 to select the joystick position.

The additional attachment is now proportionally operated with the right joystick (movements to e and f).

The bucket tilt function is operated with the right mini joystick (movements to X- and X+).

The key is locked in the switch S195

Turn the key switch S195 to select the mini joystick position

The additional attachment is proportionally operated with the right mini joystick.

The key can be removed from the switch S195
