Form No.

906016

1710 After SN20400

Fixed Chamber Round Balers

~

~

~

(Q1

~

©J

~

J I W OPERATOR'S MANUAL

I!J

G E H L COMPANY New Agricultural Equipment G E H L Company (Inc.), hereinafter referred to as G E H L, warrants new G E H L machinery and attach­ ments (the "Equipment") to be free from defects in material and workmanship at the time of delivery to the original purchaser if properly set up and operated in accordance with the recommendations set forth in G E H L'S Operator's Manual.

G E H L'S liability for any defect shall be limited to repair or replacement of the Equipment. G E H L'S obligation shall terminate twelve (12) months after the delivery of the goods to the original retail purchaser or when the Equipment is first put into use, whichever event occu rs first.

This warranty shall not apply to tires which are subject to the warranty of the tire manufacturer. Please contact your G E H L dealer for further information on tire warranties.

This warranty shall not apply to any item of Equipment which shall have been repaired or altered outside the G E H L factory or authorized G E H L dealership or which has been subject to misuse, negligence or accident; neither shall it apply to Equipment which has not been operated in accordance with G E H L'S printed instructions or has been operated beyond the Company's recommended machine rated capacity.

EXCLUSION OF WARRANTIES

Except as otherwise expressly stated herein, G E H L makes no representation or warranty of any kind , express or implied, including merchantability or fitness for particular purpose in respect to the Equipment.

G E H L shall not be liable for incidental or consequential damages for any breach of warranty, including but not limited to inconvenience, rental or replacement equipment, loss of profits or other commercial loss.

No agent, employee or representative of G E H L has any authority to bind G E H L to any affirmation, representation or warranty concerning its machinery and attachments except as specifically set forth herein.

Certain limitations expressed herein are excludable in accordance with provisions of local law. Such provisions shall be deemed struck if such local law is applicable. All other provisions shall continue to apply.

TABLE OF CONTENTS Chapter

Description

Page

1

Inside Front Cover Warranty . . . . . . . . . . . .

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2

2

Specifications

3

4

Checklists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-7 SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 8-14

5

Controls & Safety Equipment

6

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-29

7

Adjustment

8

Lubrication .. . . . . . . . .

34-36

9

Service . . . . . . . . . . . .

37-43

10

Preparing for Field Operation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 44-47

11

Transporting

12

S t o r a g e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

13

Troubleshooting

14

Set-up & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53-55

15

Optional Features & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56-57

16

Decal Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58-59

.. 3-4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-20

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . 30-33

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-52

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61-63 Standard Hardware Torque Data . . . . . . . . . . . . . . . . . . . . .. Inside Back Cover '"

1

CHAPTER 1 INTRODUCTION Your decision to purchase this piece of GEHL® equip­ ment was a good one. Weare sure that your decision was strongly considered and that you are looki~~ for­ ward to many seasons of reliable performance from this machine.

We, as a Company, have invested a great deal of time and effort in developing our lines of agricultural and industrial equipment.

This manual was developed specifically for the machine you have purchased. The information, con­ tained within, was prepared for your assistance in preparing, adjusting, maintaining and servicing your machine. More importantly, this manual provides an operating plan for safe and proper use of your machine.

Major points of safe operation are detailed in the SAFETY chapter of this manual. Refer to the Table of Contents for an outline (by chapters) of this manual.

Use the Index, in the back of the manual, for specific chapter and topic/page number references.

This unit is provided with a Plastic Pouch for ~.turing the Operator's Manual. After using it, please return the Manual to the Pocket and keep it with the unit at all times! Furthermore, if this machine is re-sold, we recommend that this Manual accompany the unit.

Modern machinery has become more sophisticated and with that in mind, GEHL Company asks that you read and understand the contents of this manual COMPLETELY and become familiar with your new machine, BEFORE you attempt to operate It.

I

"OOELNO.

RB171 0

SERIAL NO. (Fill In)

GEHL$ COMPANY WEST BEND, WI 53095 U.S.A.

Typical Model & Serial Number Plate

GEHL Company reserves the right to make changes or improvements in the design or construction of any part without incurring the obligation to install such changes on any unit previously delivered.

Throughout this manual, information is provided which is set in italic type and introduced by the bold word NOTE. BE SURE to read carefully and comply with the message or directive given. Following this information will improve your operating or main­ tenance efficiency, help you to avoid costly break­ downs or unnecessary damage and, extend your machine's life.

The GEHL Company, In cooperation with the American Society of Agricultural Engineers and the Society of Automotive Engineers, has adopted this SAFETY ALERT SYMBOL .

Our wide Dealership network stands by to provide you with any assistance you may require, including genuine GEHL service parts. All parts should be ob­ tained from or ordered through your GEHL Dealer.

Give complete information about the part as well as the model number and serial number of your machine.

Record the serial number (in the space provided on this page) asa handy record for quick reference.

Model and serial numbers for this unit are on a decal l~cated on the right side of the Main Frame, above the Pickup.

"Right" and "Left" are determined from a position standing behind the unit and facing the direction of travel. From this position, the Twinebox will be on the "Right" side.

2

to pinpoint characteristics which, if NOT properly followed, can create a safety hazard. When you see this symbol In this manual or on the unit Itself, you are reminded to BE ALERT! Your personal safety Is Involved!

CHAPTE R 2 SPECIFICATIONS All Dimensions are In Inches (Millimeters) Unless Otherwise Noted Model & Description ...... RB1710 Fixed Chamber Round Baler Power . . .. From PTO and Remote Hydraulics Output of a 540 RPM Tractor of at least 70 hp (52 kw) Overall Height ..... .. ................. 108 (2740) Overall Length ........................ 174 (4420) Overall Width ......... .. ............... 96 (2440) Pickup Width ............ .. ............ 66 (1680) Weight (Approximate) .......... 4365 Ib (1980 kg) Bale Diameter (Nominal) .......... . ..... 72 (1800) Bale Width (Nominal) ... .. ............. 60 (1500) Bale Weight (Hay-Nominal) .. . .... 1500 Ib (680 kg) Pressure Rollers Operating Speed ... . .... 154 RPM Pressure Rollers Drive #60, #60H & #80 Roller Chain Main Drive . ................ #100HK Roller Chain Pickup Drive .................... #60 Roller Chain Standard Features:

20, Heavy Duty Steel, 12 (305) Dia. Pressure Rolls Four-Bar Pickup with 20 Tines per Bar Automatic Reset Clutch on Pickup Drive

Bale Pressure (Density) Gauge Automatic Bale Counter Dual Twine Tubes Wrapping System Four-Ball Twine Box Drawbar Hitch Jack Throat Guide Baffle Adjustable Dual-Position Axles Selectable Features & Accessories

Auto-Electric Twine Tie System Manual-Electric Twine Tie System Automatic Chain Oiler Pickup Gauge Wheel Bale Discharge Bumper Crowder Wheel Kit Set of Two 14 x 8.00 D.C. Wheels Only Set of Two 15 x 10.00 D.C. Wheels Only Set of Two Mounted IlL x 14, 6-ply Implement Tires on 14 x 8.00 Wheels Set of Two Mounted 31 x 13.5 x 15, 6-ply Implement Tires on 15 x 10.00 Wheels

3

4

CHAPTER 3 CHECKLISTS PRE-DELIVERY

i

I :c»

After the Baler has been com:Qletely set-up, the following inspections should be made before delivering it to the Cus­ tomer. Check off each item after prescribed action is taken.

Check that:

o o

Baler was NOT damaged in shipment. Check for such things as dents and loose or mlssing parts; correct or replace components as required.

D The Pickup is operating freely and NO Tines are bent, rubbing andlor missing.

o o

The Pressure Rollers are turning freely.

The Rear Door opens and closes without binding.

I acknowledge that pre-delivery procedures were perfonned on this unit as outlined above.

All Grease Fittings have been properly lubricated and that the Gearbox is filled to the proper level. See Lubrication chapter of this manual.

Dealership Name

8 .! o Allattached.

Guards, Shields and Decals are in place and securely u:: ...

III CD

ii

CD Q CD

~

E CD

-a:

o

o o

Date Checklist Filled-out

All fasteners and Wheel Lug Nuts are properly secured.

All Adjustments are made to comply with settings given in the Adjustment chapter of this manual.

Cylinders, Hoses and Fittings are NOT damaged, leaking or loosely connected.

D The Pickup Lever raises and lowers the Pickup without binding.

o

Dealer Representative's Signature

Tires are properly mounted and inflated to pressure specified in the Service chapter of this manual.

D provided The Serial Number for this unit is recorded in the spaces on this page and on page 2.

Following items are furnished attached to the Baler or in the Baler Twinebox:

D Hitchjack D (2) Gate Cylinder Locks D Hitch Pin and Washers, Nut and Hairpin Cotterpin D (1) Operator's Manual Connect the Baler to a 540 RPM tractor and test·run it while checking that proper operation is exhibited by all components.

Check that:

D The Telescoping PTO Drive turns freely inside the Drive Shield Tubes.

D Hydraulic Hoses and all connections DO NOT leak: under pressure.

D smoothly All Drive Chains and Idler Mechanisms are operating and properly adjusted.

Model Number

Serial Number

DELIVERY The following Checklist is an important reminder of valuable information that MUST be passed on to the Customer at the time the unit is delivered. Check off each item as you explain it to the Customer.

o o

Give Operator's Manual to the Customer and instruct Customer to be sure to read and completely understand its contents BEFORE operating unit.

Direct Customer on how to use the Index of this manual as a quick page number locating guide.

D Explain and review with Customer the SAFETY and Controls & Safety Equipment chapters of this manual.

o

Explain that regular lubrication is required for continued proper operation and long life. ReView with Customer the Lubrication chapter of this manual.

D Explain and review the Service chapter of this manual.

o o

Demonstrate the proper use of the spring-loaded PTO Locking Coupler, the Rear Door Cylinder Locks, the Pickup Height Adjustment Lever, and the Hitchjack.

Explain and review both the Operation and Preparing for Field Operation chapters of this manual. .

D Customer Completely fill out the Owner's Registration, including s signature and, return it to the GEHL

Company.

I acknowledge that above points were reviewed with me at the time of delivery.

Customer's Signature

Date Delivered

(Dealer's File Copy)

5

Intentionally Blank (To be removed with Dealer's File Copy)

6

CHAPTER 3 CHECKLISTS PRE-DELIVERY D The Pickup is operating freely and NO Tines are bent, After the Baler has been completely set-up, the following rubbing and/or missing. inspections should be made before delivering it to the Cus­ tomer. Check off each item after prescribed action is taken.

D The Pressure Rollers are turning freely.

Check that: o Baler was NOT damaged in shipment. Check for such D The Rear Door opens and closes without binding. things as dents and loose or mIssing parts; correct or replace components as required.

I acknowledge that pre-delivery procedures were performed on this unit as outlined above.

D that All Grease Fittings have been properly lubricated and the Gearbox is filled to the proper level. See

Dealership Name

Lubrication chapter of this manual.

D All Guards, Shields and Decals are in place and securely attached.

o o

Date Checklist Filled-out

All fasteners and Wheel Lug Nuts are properly secured.

All Adjustments are made to comply with settings given in the Adjustment chapter of this manual.

D Cylinders, Hoses and Fittings are NOT damaged, leaking or loosely connected.

o o o

Dealer Representative's Signature

The Pickup Lever raises and lowers the Pickup without binding.

Model Nwnber

DELIVERY The following Checklist is an important reminder of valuable information that MUST be passed on to the Customer at the time the unit is delivered. Check off each item as you explain it to the Customer.

o

Tires are properly mounted and inflated to pressure specified in the Service chapter of this manual.

The Serial Number for this unit is recorded in the spaces provided on this page and on page 2.

o

Hitchjack (2) Gate Cylinder Locks

.

Hitch Pin and Washers, Nut and Hairpin Cotterpin (1) Operator's Manual

Connect the Baler to a 540 RPM tractor and test-run it while checking that proper operation is exhibited by all components.

Check that:

o

o

The Telescoping PTO Drive turns freely inside the Drive Shield TUbes.

Hydraulic Hoses and all connections DO NOT leak under pressure.

D All Drive Chains and Idler Mechanisms are operating smoothly and properly adjusted.

Give Operator's Manual to the Customer and instruct Customer to be sure to read and completely understand its contents BEFORE operating unit.

D Direct Customer on how to use the Index of this manual as a quick page number locating guide.

D Explain and review with Customer the SAFETY and Controls & Safety Equipment chapters of this manual.

Following items are furnished attached to the Baler or in the Baler Twinebox:

o o o

Serial Nwnber

o o o

Explain that regular lubrication is required for continued proper operation and long life. ReVIew with Customer the Lubrication chapter of this manual.

Explain and review the Service chapter of this manual.

Demonstrate the proper use of the spring-loaded PTO Locking Coupler, the Rear Door Cylinder Locks, the Pickup Height Adjustment Lever, and the Hitchjack.

D Explain and review both the Operation and Preparing for Field Operation chapters of this manual.

o

Completelr fill out the Owner's Registration, including Customer s signature and, return it to the GEHL Company.

I acknowledge that above points were reviewed with me at the time of delivery.

Customer's Signature Date Delivered

(Pages 5 and 6 Have Been Removed At Peforation)

7

,

•

CHAPTER 4

SAFETY

The above Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! It stresses an attitude of "Heads Up for Safety" and can be found throughout this Operator's Manual and on the machine itself.

BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOW­ ING SAFETY INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE SAFETY PRECAUTIONS. Our Company ALWAYS takes the operator and his/her safety into consideration when designing its machinery and guards exposed moving parts for his/her protection. How­ ever, some areas can NOT be guarded or shielded in order to assure proper operation. In addition, this Operator's Manual and Decals, on the machine, warn offurther danger and should be read and observed closely.

The word DANGER, WARNING or CAUTION, used herein and on the machine itself, signals three degrees of hazard, as follows.

A DANGER

"DANGER" Indicates an Imminently hazard· ous situation which, If not avoided, will result In death or serious Injury.

A

WARNING

"WARNING" Indicates a potentially hazardous situation which, If not avoided, could result In death or serious Injury.

A CAUTION "CAUTION" Indicates a potentially hazardous situation which, If not avoided, may result In minor or moderate Injury. May also alert against unsafe practices.

8

,

•

MANDATORY SAFETY SHUTDOWN PROCEDURE BEFORE unclogging, cleaning, adjusting, lubricating or servicing the unit:

1.

Disengage the tractor PTO.

2.

Shut off the tractor engine, remove the starter key and take it with you.

3.

Wait for all movement to stop.

4.

Remove the Telescoping PTO Drive and ALL power connections from the tractor.

ONL Y when you have taken these precautions can you be sure it is safe to proceed. Failure to follow the above procedure, could lead to death or serious bodily injury.

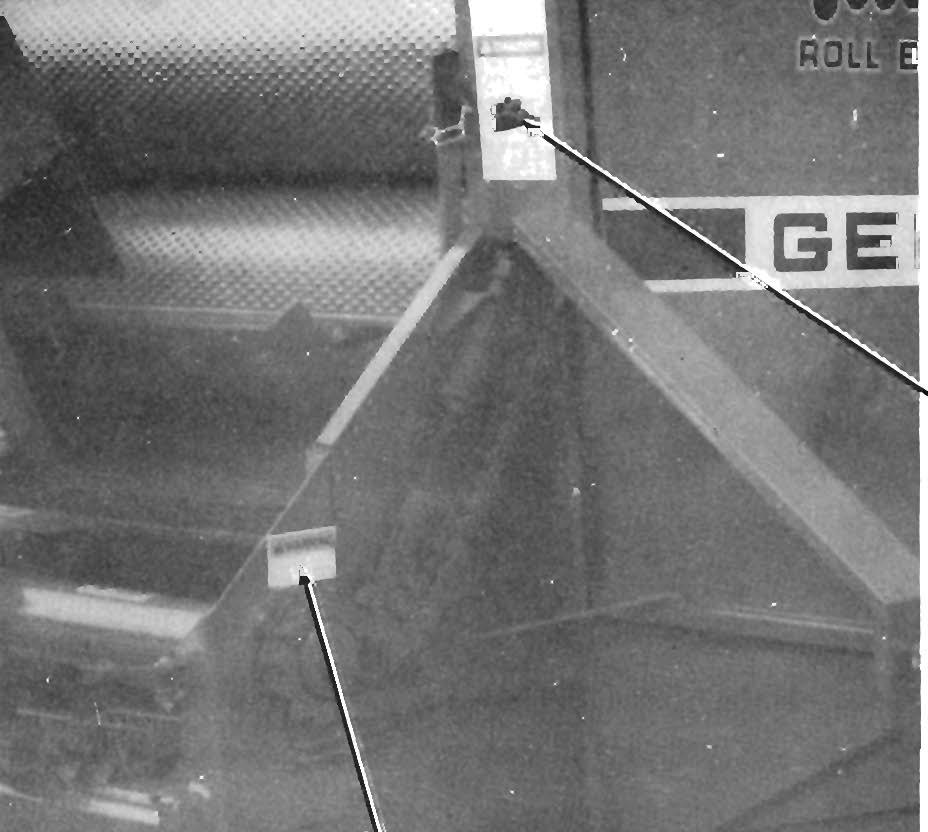

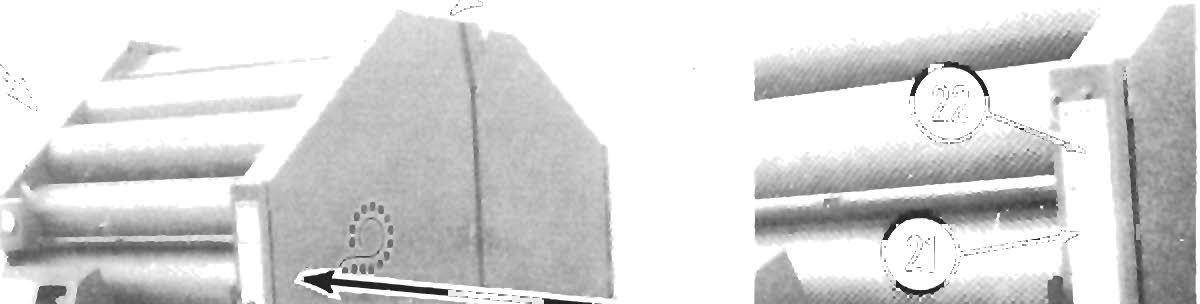

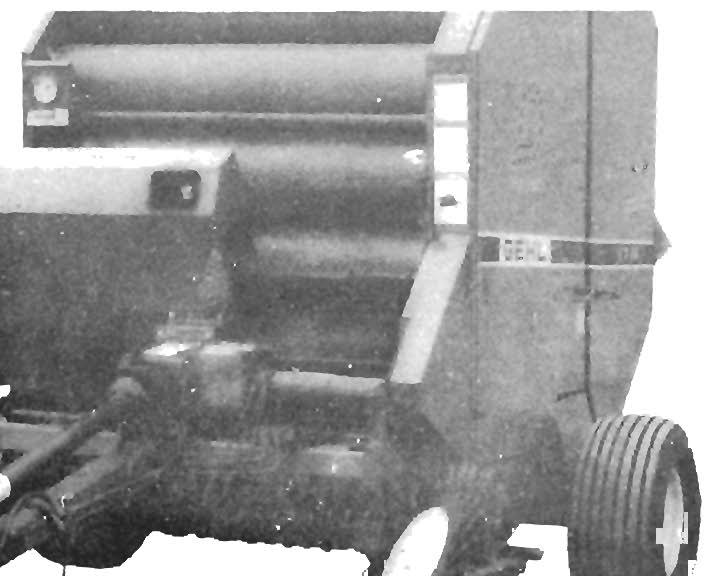

ADDITIONAL SAFETY REMINDERS Some photographs, used in this manual, may show Doors, Guards and Shields open or removed for illustration pur­ poses ONLY. BE SURE that all Doors, Guards and Shields are in their proper operating positions BEFORE starting the tractor engine to operate the unit.

ALWAYS wear safety glasses with side shields when strik­ ing metal against metal. It is further recommended that a softer (non-chipable) material be used to cushion the blow.

Failure to heed could lead to serious injury to the eye(s) or other parts of the body.

ALWAYS follow state and local regulations regarding use of a safety chain and auxiliary lighting when towing farm equipment on public highways. BE SURE to check with local law enforcement agencies for your own particular regulations.

Only a safety chain (NOT an elastic or nylon/plastic tow strap) should be used to retain the connection between the towing and towed machine(s), in the event of separation of the primary attaching system.

Good safety practice dictates that you NEVER tow an implement (without brakes), unless towing vehicle weighs at least one-and-one half (1-1/2) times the weight of the towed implement and its load. For any public highway travel and to be in compliance with this rule, BE SURE that

SAFETY your tractor is heavy enough to counterbalance the weight of the Baler and a full-sized bale.

NEVER tow a Baler on a public highway ata speed greater than 20 mph (32 kmh). Unless otherwise prohibited, use a Slow-moving Vehicle Emblem.

BE SURE that the Telescoping PTO Drive rotates freely inside the Drive Shield Tubes at all times. Balers are provided with two different types of Telescoping Drives; one Drive has Metal Shield Tubes and the other has Plastic Shield Tubes. The Drive with Plastic Shield Tubes MUST be anchored to a hole in a part of the Baler Frame with the Tie-down Chain provided. The Drive with Metal Shield Tubes MUST NOT be anchored.

Bales made with the Round Baler are LARGE, CYLINDRI­ CAL and HEAVY. Serious personal injury or property damage could result if the Bales are NOT carefully and properly handled. NEVER eject or store Bales where they could possibly roll downhill.

Our Company does NOT sell replacement tires. In addition, tire mounting, service or inflation can be dangerous. When­ ever possible, trained personnel should be called to service and/or mount tires, following the tire manufacturer's in­ struction. If you do NOT have such instructions, contact your tire dealer or our Company. In any event, to avoid possible fatal or serious injury, follow the specific directive given in the Service chapter of this manual.

NEVER use your hands to search for hydraulic fluid leaks, use a piece of paper or cardboard. Escaping fluid under pressure can be invisible and can penetrate the skin and cause a serious injury! If any fluid is injected into your skin, see a doctor at once! Injected fluid MUST be surgically removed by a doctor familiar with this type of injury or gangrene may result. .

BE SURE to review and comply with ALL Safety recom­ mendations set forth in the tractor operator's manual.

A DANGER

ROTATING DRIVE LINE DEATH WILL RESULT FROM ENTANGLEMENT KEEP PEOPLE AND CLOTHING WELL CLEAR DO NOT OPERATE WITHOUT: • DRIVE LINE GUARDS • INPUT SHAFT GUARDS • TRACTOR MASTER SHIELD • U·JOINTS LOCKED TO TRACTOR AND IMPLEMENT SHAFTS 091444

9

SAFETY

,

•

AWARNING BEFORE UNCLOGGING, CLEANING, ADJUSTING, LUBRICATING OR SERVICING THE UNIT ALWAYS FOLLOW THE MANDATOR SAFETY SHUT DOWN AS SPECIFIED BY THE OPERATOR'S MANUAL. KEEP ALL GUARDS AND SHIELDS IN PLACE. BE SURE MACHINE IS CLEAR OF PEOPLE, TOOLS, AND OTHER OBJECTS BEFORE STARTING.

A WARNING

DO NOT WEAR LOOSE OR BAGGY CLOTHING AROUND THIS MACHINE AND KEEP HANDS, FEET AND CLOTHING AWAY FROM MOVING AND POWER DRIVEN PARTS. KEEP CHILDREN AND SPECTATORS OFF AND AWAY FROM MACHINE WHILE IT IS OPERATING. KEEP OFF UNIT UNLESS A SPECIFIED OPERATOR'S STATION IS PROVIDED. FAILURE TO HEED COULD RESULT IN DEATH OR SERIOUS INJURY. 093373

THE OWNER IS RESPONSIBLE FOR MAKING INFORMATION AVAILABLE ON THE SAFE USE AND PROPER MAINTENANCE OF THIS MACHINE. DO NOT START, OPERATE OR WORK ON THIS MACHINE UNTIL YOU HAVE CAREFULLY READ AND UNDERSTAND THE CONTENTS OF THIS MANUAL. IF YOU HAVE QUESTIONS ON OPERATION, ADJUSTMENT OR MAINTENANCE OF THIS MACHINE OR NEED AN OPERATOR'S MANUAL, CONTACT YOUR GEHL DEALER OR GEHL COMPANY, WEST BEND, WISCONSIN 53095 MODEL AND SERIAL NUMBERS WILL BE REQUIRED. FAILURE TO HEED COULD RESULT IN DEATH OR SERIOUS INJURY. 093387

10

SAFETY

AOANGER

AWARNING

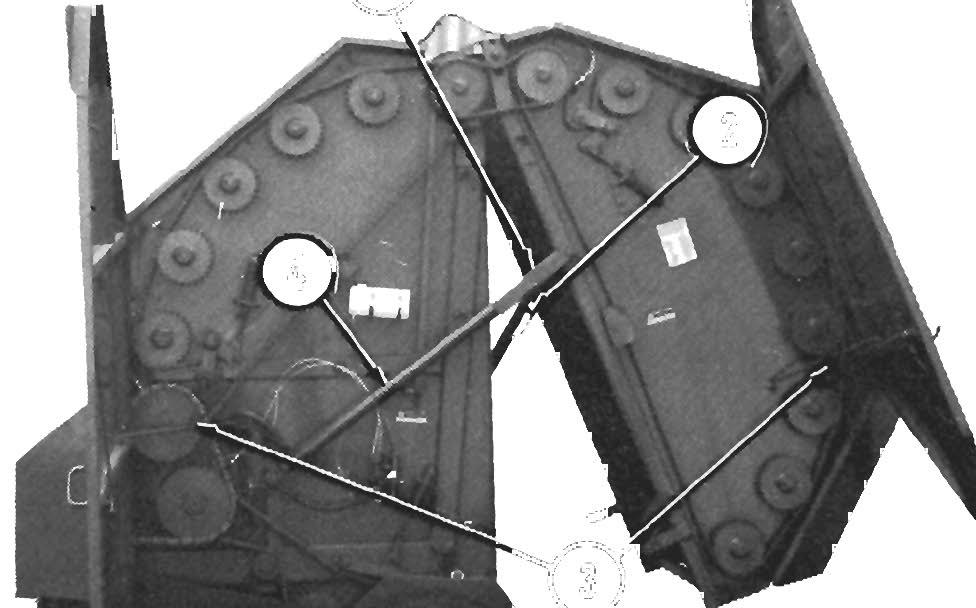

YOU MAY BECOME ENTANGLED IN MOVING BELTS, PICKUP, OR ROLLERS. MATERIAL FEEDS INTO BALER FASTER THAN YOU CAN REACT TO RELEASE IT. NEVER CLEAN OR MANUALLY FEED MATERIAL (TWINE OR CROP) INTO MACHINE. FAILURE TO HEED WILL RESULT IN DEATH OR SERIOUS INJURY. 093462

ROTATING COMPONENTS CAN CATCH/CUT/PINCH HAND. KEEP HANDS OUT. CLOSE OR REPLACE GUARD BEFORE OPERATING MACHINE. FAILURE TO HEED COULD RESULT IN DEATH OR 09336 5 SERIOUS INJURY.

11

,

•

SAFETY

AWARNING

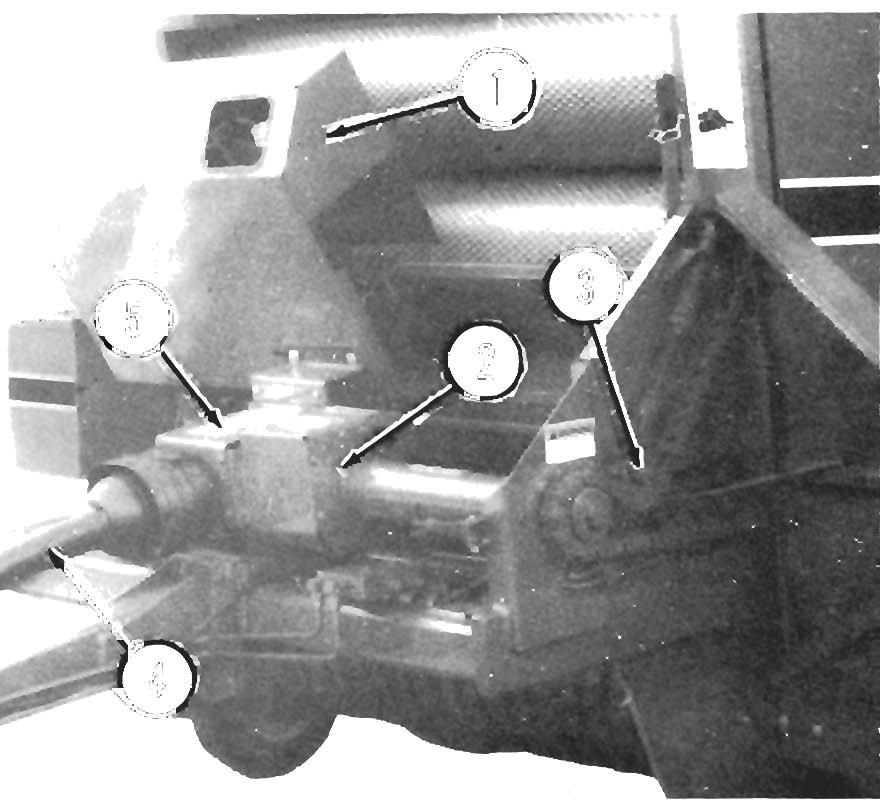

A WARNING THIS IMPLEMENT IS EQUIPPED TO OPERATE WITH 540 RPM TRACTOR MEETING ASAE STANDARD S203. NEVER ATTEMPT TO CONNECT OR OPERATE WITH 1000 RPM PTO TRACTOR. FAILURE TO HEED COULD RESULT IN DEATH OR SERIOUS INJURY.

ROTATING DRIVE LINE DO NOT OPERATE WITHOUT THE FOLLOWING - PROPER DRIVE LINE GUARDS -INPUT SHAFT GUARDS - TRACTOR MASTER SHIELD - U-JOINTS LOCKED TO TRACTOR AND IMPLEMENT SHAFTS FOR YOUR PROTECTION, THIS DRIVE LINE HAS A GUARD THAT ALLOWS THE INTERNAL DRIVE SHAFT TO ROTATE WHILE THE GUARD IS NOT ROTATING. DO NOT POUND BELL TO REMOVE DRIVE TUBE. U-JOINTS MUST BE PROPERLY ATTACHED AND MAINTAINED. FAILURE TO HEED COULD RESULT IN DEATH OR SERIOUS INJURY. 093653

12

SAFETY

AOANGER

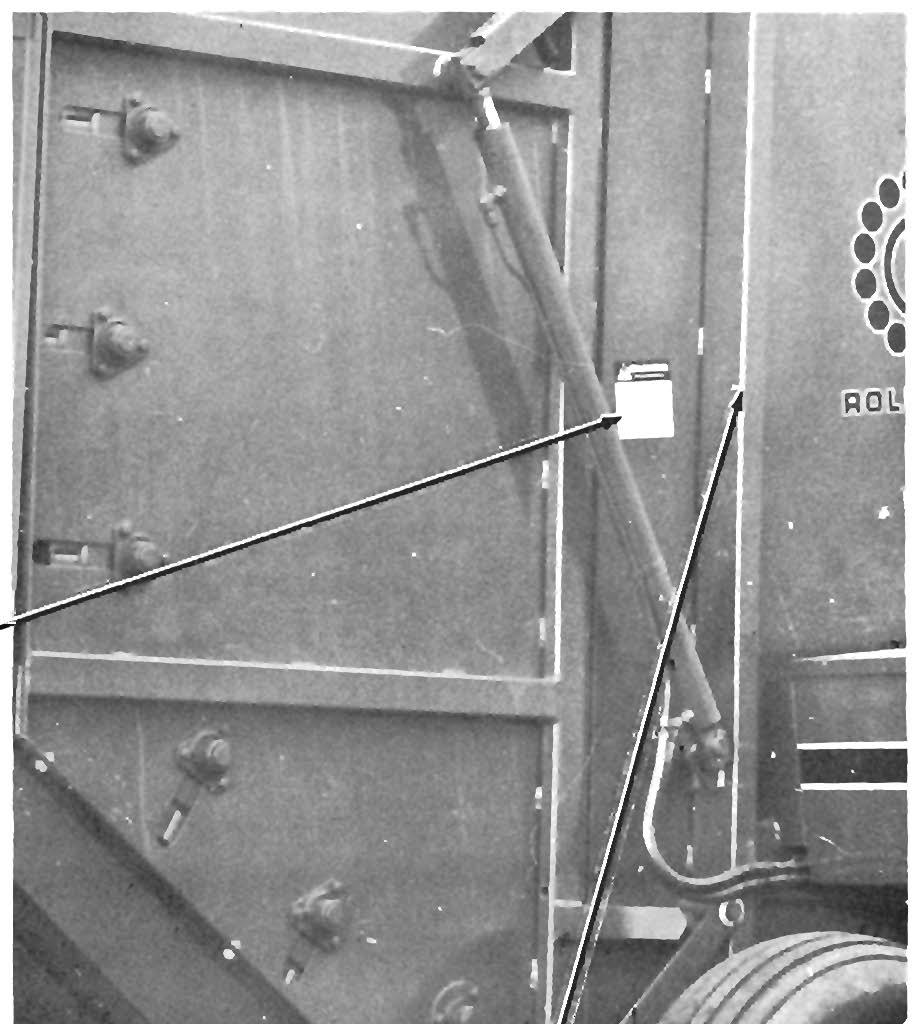

TAIL GATE MOVES FASTER THAN YOU CAN MOVE AWAY. STAY CLEAR OF TAIL GATE WHEN IT IS OPENING OR CLOSING. INSTALL BLOCKS IN GATE CYLINDERS, ALLOWING GATE CYLINDER TO CLOSE AGAINST BLOCKS. BEFORE WORKING UNDER OPEN GATE DISCONNECT HYDRAULIC LINES FROM TRACTOR. FAILURE TO HEED WILL RESULT IN DEATH OR SERIOUS INJURY. 093460

(Not Shown - Decal 093498 is located on Throat Guide Baffle)

AWARNING IMPROPER INSTALLATION, ADJUSTMENT OR USE OF BALER THROAT GUIDE MAY CAUSE FIRE. A BALER THROAT GUIDE IS TO BE USED ONLY WHEN BALING VERY DRY STRAW OR SHORT, DRY GRASS HAYS. READ YOUR OPERATOR'S MANUAL FOR PROPER INTALLATION AND ADJUSTMENT. FAILURE TO HEED COULD RESULT IN DEATH OR SERIOUS INJURY. 093498

13

SAFETY

AWARNING ROTATING COMPONENTS CAN CATCH/CUT/PINCH HAND. KEEP HANDS OUT. CLOSE OR REPLACE GUARD BEFORE OPERATING MACHINE. FAILURE TO HEED COULD RESULT IN DEATH OR SERIOUS INJURY. 093365

14

CHAPTER 5 CONTROLS & SA FETY EQUI PMENT

A WARNING Become familiar with and know how to use ALL of the Safety Devices and Controls on this Baler BEFORE attempting to operate It. Know how to STOP Baler operation BEFORE starting It! Also, read and understand ALL Safety Decals on the Baler, BEFORE operat­ Ing It. Do NOT attempt to operate this equip­ ment unless ALL factory Installed, Guards, Shields and Covers are properly secured In place.

GUARDS & SHIELDS Whenever and wherever possible and without affecting machine operation, Guards, Shields and hinged Covers

have been used on this equipment to protect potentially hazardous areas. In many places , Decals are also provided to warn of potential dangers as well as to display special operating procedures.

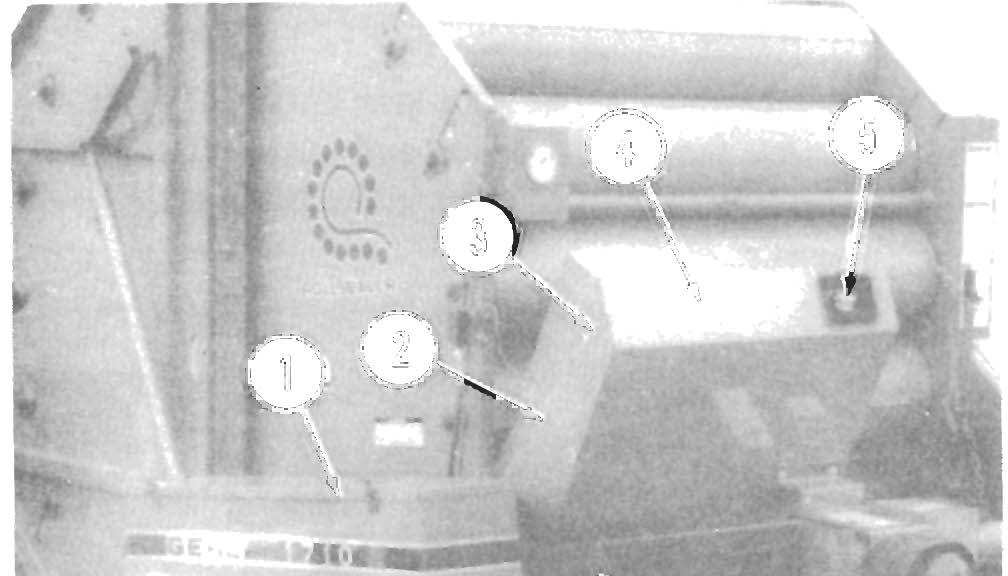

Twine Tie Guard (Fig. 5-1) This bolt-on Guard is provided to cover and protect the Twine Tie mechanism. A hole with a Bushing is provided on the right side of the Guard for feeding twine to the mechanism. Therefore, this guard MUST be secured in place for proper operation of the Baler.

Implement Drive Line Shields (Fig. 5-1) The Telescoping PTO Drive, between the Baler Gear­ box and the tractor PTO shaft, is equipped with Rotat­ ing Shields. The Shields MUST be free to rotate at all times.

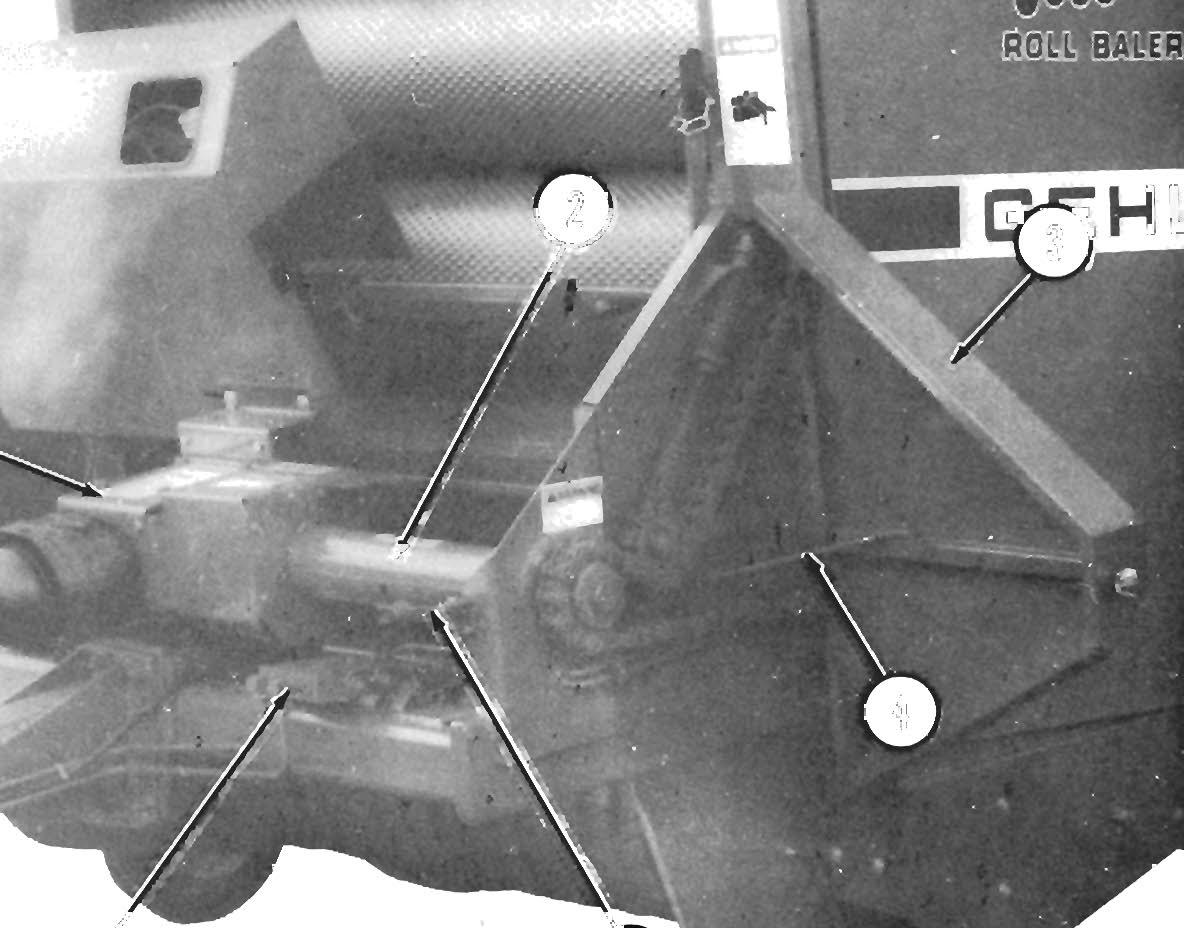

1 • Twine Tie Mechanism Guard 2 • Jackshaft Shield 3 • Hinged Main Drive Shield 4 • Holder Rod

5· Latch 6 • Pressure Control Valve 7 • Telescoping PTO Drive Rotating Shields 8 • Gearbox Shield

Fig. 5-1

15

A WAR NING BE SURE that the PTO Shafts and Connec· tlons are free to rotate Inside the Shields BEFORE starting the tractor engine!

Gearbox & Jackshaft Shields (See Fig. 5·1) The Gearbox and lackshaft Shields are bolted in posi­ tion and MUST remain securely fastened, except for servicing.

Main Drive Shield (See Fig. 5·1) This hinged Shield, which is held closed by a Latch, covers and protects the front section of the Main Drive Chain mechanism. A Holder Rod is provided with the Shield to hold it open while servicing or making ad­ justments inside. BE SURE to keep the Shield closed and latched whenever the Baler is in operation.

Holder Rods are provided on the Doors to hold them open while servicing or making adjustments inside. BE SURE to keep the Side Doors closed and latched when­ ever the Baler is in operation.

Also located on the left side of the Baler are a hinged and Latched Shield (near the bottom front) to cover and protect the Pickup Drive and two bolt-on Shields (along the bottom) which are for service access during maintenance.

Rear Door Dust Panels (See Fig. 5-2) The Baler Rear Door is provided with Dust Panels, which also serve as Shields to protect the Rear Door Rollers. The hinged Upper Dust Panel is secured with two (2) Rubber hook-type Latches to provide for easier access to remove accumulated dust. The Lower Dust Panel is secured with six (6 each) Cap Screws, Nuts and Washers.

A CAUTI ON BEFORE proceeding to perform any work on the Baler and, BEFORE removing or opening any Shields, BE SURE to exercise the MAN· DATORY SAFETY SHUTDOWN PROCEDURE (page 8). Also, BE SURE to reinstall and/or close ALL Shields BEFORE operating the Baler.

1 - Hinged Side Doors 2 - Hinged Upper Dust Panel 3 - Rubber Hook-type Latches 4 - Bolt-on Lower Dust Panel 5 - Bolt-on Lower Shield 6 - Bolt-on Pickup Drive Shield 7 - Hinged Pickup Drive Shield

Fig. 5-2

Left Side Shields & Doors (Figs. 5·2 & 5·3) Two large, hinged Side Doors, with Latch Handles, are provided on the left side of the Baler to cover and protect the Rollers and Rear Door Drive mechanisms.

16

1 - Cylinder Lock In "Engaged" Position (1 each side) 2 - Cylinder Lock Latch Rod (1 each side) 3 • Side Door Holder Rods 4 - Rear Door Cylinder (1 each side)

Fig. 5-3

REAR DOOR CYLI NDER LOCKS (Fig. 5-4 & See Fig. 5-3)

A WARN ING ALWAYS engage the Rear Door Cylinder Locks BEFORE working Inside the Bale Cham· ber or anywhere under the Rear Door when the Door Is open. ALWAYS engage BOTH Locks to make sure the Door Is properly supported.

BE SURE that BOTH Cylinder Locks are fully engaged.

A WA RNIN G BE SURE the Lock Pin Is properly inserted through both "Jack Supporting Position" Hub holes BEFORE disconnecting the Baler from the tractor.

During normal operation, each Cylinder Lock is secured in its "storage" position by a Latch Rod and Spring mechanism. To engage the Cylinder Lock, the Latch Rod MUST be pulled down, to release the Cylinder Lock, BEFORE raising the Rear Door. After the Door is opened completely, check both Locks to see if they are positioned properly and then lower the Door until it is resting on the Cylinder Locks.

1 - Lock Chain 2· Pickup Height Adjustment Lever in "Transport" Position 3 - Pickup Lever Latch Rod 4 - Lock Pin & Chain 5 - HltchJack In "Supporting" Position 6 - HitchJack Storage Hub

Fig. 5-5

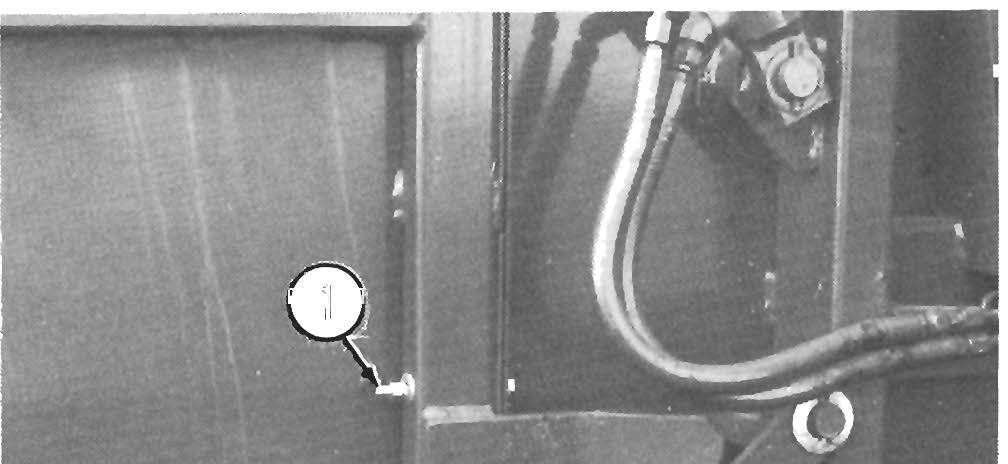

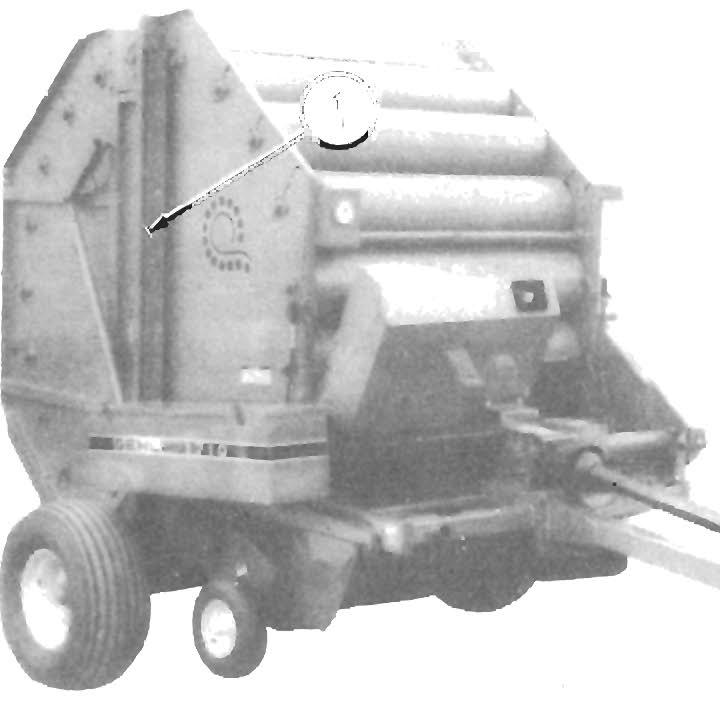

1 - Cylinder Lock In "Storage" Position (1 each side)

Fig. 5-4: Cylinder Lock In "Storage" Position

HITCHJACK (Figs. 5-5 & 5-6) A Hitchjack is furnished with the Baler to support the machine when the tractor is disconnected as well as to facilitate aligning the Hitch Clevis Plate with the trac­ tor drawbar for hookup.

When the Jack is NOT being used to support the Baler, it can be removed and relocated to a "Jack Storage Position" Hub, located on the right front of the Baler Main Frame.

1 - Pickup Height Adjustment Lever In "Operating" Position 2 - Pickup Lever Latch Rod 3 - Lock Pin & Chain 4 - HltchJack "Stored" 5 - Pressure Switch (Used w/Auto-electrlc Tie, Only) 6 - Pressure Gauge

Fig. 5-6

17

PICKUP LEVER/(See Figs. 5-5 & 5-6) A Pickup Lever mechanism is provided on the left side of the Baler for raising and lowering the Pickup to make operating height adjustments.

NOTE: A small Lock Chain is provided on the left side of the Baler to lock the Pickup Lever when it is in the fully raised "transporting" position. BE SURE the Chain is slipped over the end of the Pickup Lever whenever the Baler is being transported to ensure that the Pickup will remain in the raised position.

To lower the Pickup, first remove the Lock Chain (if the Pickup is raised to the transporting position) and then pull out on the Pickup Lever Latch Rod and move the Pickup Lever down to the desired position. Release the Latch Rod to lock the Pickup Lever at the desired setting.

To raise the Pickup, pull out on the Pickup Lever Latch Rod and then move the Pickup Lever up to the desired position. Release the Latch Rod to lock the Pickup Lever at the desired setting. If the Baler is going to be transported, move the Pickup Lever to the top position and secure it with the Lock Chain.

Refer to the Rear Door topic In t he Service chapter of this manual for further directives.

PRESSURE SWITCH - Units w/Auto ­ Electric Twi ne Tie, Only (See Fig. 5-6) On units equipped with an Auto-Electric Twine Tie System, a Pressure Switch is provided to signal the Twine Tie mechanism to begin its cycle when a predetermined baling pressure is reached.

TELESCOPING PTO DRIVE (Fig. 5-7) NOTE: AL WA YS orient and attach the PTO Drive with the CV-joint end coupled to the tractor PTO shaft.

Each end of the Telescoping PTO Drive is provided with a Spring-loaded Locking Device to positively lock the Drive onto the tractor PTO shaft and Baler Input Drive Shaft. Depress the Locking Device, against Spring tension, and slide the Yoke onto the shaft.

Release the Locking Device and move the Yoke ahead or back until the Lock engages into the groove of the shaft.

A WARNI NG

PRESSURE GAUGE (See Fig. 5-6) The Baler is provided with a Pressure Gauge to indi­ cate bale forming pressure. Refer to the Operation chapter in this manual for detailed information regard­ ing the use of the Pressure Gauge.

A CAUTION NEVER allow bale forming pressure to exceed 3200 PSIG. Baling at higher pressures will cause unnecessary strain and premature wear on the Baler and tractor Drive components.

BE SURE that the Telescoping PTO Locking Devices are properly secured to both the trac­ tor PTO shaft and the Baler Input Drive Shaft BEFORE starting the tractor engine. Also, make sure the PTO Drive Shield Tubes are free to rotate.

NOTE:

When transporting the Baler, remove the Telescoping PTO Drive from the Baler and store it in or on the towing vehicle.

PRESSURE CONTROL VALVE (See Fig. 5-1) The Baler is provided with a Pressure Control (Relief) Valve to limit the hydraulic system pressure to 3400 PSIG. This Valve, located on the front of the Baler, will allow the Rear Door to open (and thereby relieve pressure), if too much material is fed into the baler.

A CAUTION If the pressure, as Indicated on the Pressure Gauge, exceeds 3400 PSIG, replacement of the Pressure Control Valve may be required.

18

/.,

---

1 - TelescopIng PTO Drive 2 - CV-Jolnt 3 - Spring-loaded locking DevIce (each end)

Fig. 5-7

SAFETY CHAIN & AUXILIARY LIGHTING (Fig. 5-8)

A CAUTION ALWAYS follow state and local regul ations regarding a safety chain and auxiliary lighting when towing farm equipment on a public high­ way! BE SURE to check with local law enfor­ cement agencies for your own particul ar regulations. Unless otherwise prohibited, use a Slow-moving Vehicle Emblem.

Only a safety chain (NOT an elastic or nylon/plastic tow strap) should be used to retain the connection between the towing and towed machine, in the event of separation of the primary attaching system.

As required or when desired, the Baler should be equipped with a safety chain and auxiliary lighting for transporting the unit on public highways. The chain should be routed as shown in the illustration . Refer to the Optional Features & Accessories Chapter for order­ ing information. If auxiliary lighting is required or desired, it must be purchased locally.

FIRE EXTINGUISHER

A WARNING If a fire should break out: Eject the bale from the Baler IMMEDIATELY, move the Baler up­ wind 30 feet or more (from the ejected bale), shut the tractor engine off and proceed to put the fire out with a fire extinguisher.

There is always the possibility of fire when handling dry forage materials. GEHL Company recommends that, to limit the damage to the Baler and/or tractor in case of a bale fire, at least a five gallon, pressurized water type, fire extinguisher should be mounted on the tractor or Baler.

NOTE: A five gallon extinguisher should be suffi­ cient to put out small fires that are burning the dry material that remains on the Baler, after the bale is ejected. This size extinguisher, however, is insufficient to put out even a small fire in the bale.

A CAUTION The pressurized water fire extinguisher DOES NOT replace the dry chemical fire extin­ guisher on the tractor (If so equipped). NEVER use a water type fire extinguisher on electrical or fuel fires.

A CAUTION To reduce the possibility of a fire, make it a point to keep crop material build-up to a min­ Imum, especially on the Roller ends, the Chain Drives (behind the left Side Doors) and In the Pickup Drive area.

1 • Telescoping PTO Drive Connected to Tractor PTO Shaft 2 • Locking Hitchbolt 3· Drawbar Clevis (Provided) 4· Chain Secured Around Tractor Frame Member 5 • Safety Chain Attached Around Baler Frame

Fig. 5-8

19

NOTES

20

CHAPTER 6 OPE RATI ON wrapped with twine and, by opening the Rear Door, ejected from the Baler.

FUNCTIONAL DESCRIPTIONS

General (Fig. 6-1) Crop material is picked off the ground by the Four­ Tinebar floating Pickup and fed directly in to the Baling Chamber. Chain-driven Rollers, located inside the Baling Chamber, roll and tumble the incoming crop into a round bale. Just before the bale reaches its final size, additional crop is fed into the Baling Chamber creating a bale with a medium density core and a hard outer shell. The hard outer shell helps to reduce set­ tling and provides better weather resistance. Once the proper baling pressure is reached (as indicated by the RED area on the Pressure Gauge) the bale can be

Transmission of Mechanical Power The minimum tractor power required to operate the Baler is 70 hp. The Baler Drawbar is vertically adjus­ table and MUST be properly connected to the tractor per details in the Preparing For Field Operations chap­ ter. Mechanical power is transmitted from the tractor PTO, through a Telescoping PTO Driveline, a Right­ angle Drive Gearbox, a Rubber Coupling, a Jackshaft, to the Main Drive Sprockets and Chain. The power is then transmitted by Chains and Sprockets to the (20) Rollers and the Pickup Assembly.

8 • Pickup Clutch 9· Pickup 10· Main Drive Chain 11 • Lower Double Sprocket 12 • Upper Double Sprocket 13· Front Rollers Upper Drive Chain 14 • Automatic Chain Oller (Accessory)

1 - Rear Door Connector Drive Chain 2 • Rear Door Rollers Drive Chain 3· Rear Door Cylinder Lock (each side) 4 • Roller Sprocket (1 of 20) 5 • Rear Door Hydraulic Cylinder (each side) 6 • Front Rollers Lower Drive Chain 7· Pickup Drive Chain

Fig. 6-1

21

Density Control (Fig. 6-2)

Twine Tie Systems

Bale density is monitored by a Hydraulic Pressure Gauge which is located on the right front of the Baler.

As the bale increases in size, it exerts more and more pressure on the Rear Door. The Rear Door is held closed by hydraulic pressure, supplied by the tractor to the Rear Door Cylinders. Since the Pressure Gauge is tapped directly into Rear Door hydraulic system, the Gauge indicates the amount of pressure required to keep the Door closed. Therefore, the Pressure Gauge is used as a guide to regulate bale density and, also, to indicate when to wrap and eject the bale.

The Manual-Electric and Auto-Electric Twine Tie Sys­ tems share many of the same components with the main exception being the Control Box, Switches and inter­ related wiring.

NOTE:

On units equipped with an Auto-Electric Twine Tie system, a Pressure Switch is also tapped into the Rear Door hydraulic system and is therefore regulated by the amount of pressure exerted on the Rear Door Cylinders. Refer to the Twine Tie Systems Functional Description later in this chapter.

B---:----­

In the manual system, control of the Electric Actuator (which, in turn, moves the Twine Tubes from side to side) is performed by the operator by toggling a Switch on the remote mounted Control Box. This feature is also available on the Auto-Electric system but, only while in MANUAL operating mode. In the Auto­ Electric Tie system (when operating in the "AUTO" mode) the entire wrapping and twine cutting operation is controlled automatically.

Also included only in the Auto-Electric system is a Pressure Switch which activates the bale wrapping sequence when hydraulic pressure on the Rear Door Cylinders reaches a predetermined value (the Pressure Switch also activates an Alarm which signals the operator that the wrapping cycle has begun). In the Manual-Electric system, the operator must watch the Pressure Gauge and when it is at the required pressure, the operator must manually start the wrapping cycle.

(Refer to the Density Control topic earlier in this chap­ ter for additional information regarding the Pressure Gauge.)

Manual-Electric Control The Manual-Electric Twine Tie System Control Box is provided with a single Switch which functions as fol­ lows: Extend/Retract Switch on Control Box

A. B. C. D.

Starting pressure (1000 to 2400 PSIG or more) Bale forming pressure (1000 PSIG minimum) Final pressure in dry brittle materials (3000 PSIG maximum) Final pressure in normal damp materials (3200 PSIG maximum)

NOTE:

GREEN Area = 1000 to 2000 PSIG RED Area = 2600 to 3200 PSIG

This Switch is a three-position, momentary contact, toggle-type Switch which returns to the "off" position when released. This Switch is provided to allow the operator to extend and retract the Electric Actuator, as necessary, for wrapping the bale with twine.

Move the Toggle to the right (and hold it there) to extend the Actuator Rod which, in turn, will move the Twine Tubes to the left; move the Toggle to the left (and hold it there) to retract the Actuator Rod which, in turn, will move the Twine Tubes to the right.

Auto-Electric Control (Fig. 6-3) Fig. 6-2: Pressure Gauge

Transmission of Hydraulic Power Hydraulic fluid pressure MUST BE provided by the tractor hydraulics system. The tractor's auxiliary con­ trol valve and remote control circuit are used to ac­ tivate the Rear Door Cylinders (for raising and closing the Rear Door) and for holding the Rear Door closed during baling.

22

The Auto-Electric Twine Tie System Control Box is provided with various components which function as follows: Auto/Off/Manual Switch AUTO position - provides automatic operation of the wrapping System when the RECYCLE Button is pressed.

OFF position - disconnects electrical power to the Control Box (turns the Auto-Electric Twine Tie Sys­ tem "Off") MANUAL position - provides for manual operation of the Actuator (enables the EXTEND/RETRACT Switch) End-wrap Control Turn the Knob on this Control clockwise to increase the number of twine wraps on the bale ends or counterclockwise to decrease the number of twine wraps on the bale ends.

Center-wrap Control Turn the Knob on this Control counterclockwise to increase the number of twine wraps across the bale or clockwise to decrease the number of twine wraps across the bale.

Extend/Retract Switch This Switch is enabled ONLY when the AUTO/OFF/MANUAL Switch is in the MANUAL position and is a momentary contact, toggle-type Switch which returns to the "off" position when released. This Switch is provided to allow the operator to manually extend and retract the Electric Actuator, when desired, and thereby override automatic control of the Actuator.

If the manual override is used and/or the automatic cycle is interrupted, the Actuator will return automat­ ically to the fully extended position (and continue to cycle) when the RECYCLE Button is pushed.

Recycle (Pushbutton) Switch This Switch is a momentary contact, pushbutton-type Switch which "starts" the wrapping cycle when pressed and returns to a "deactivated" position when released.

If it is desired to wrap the bale BEFORE the Bale Size Sensor Switch activates the automatic cycle, push and release the RECYCLE Switch Button; this will activate the System and automatically execute one wrapping cycle.

Horn The Horn is provided to inform the operator that the bale has reached a predetermined size (determined by the setting of the Bale Pressure Sensor Switch) and that the wrapping cycle is about to begin. The Horn con­ tinues to sound until the Twine Tubes are in position and ready to feed twine into the bale chamber.

Circuit Breaker

1 - Auto/Off/Manual Switch 2 - End-wrap Knob 3 - Center-wrap Knob 4 - Tailgate Indicator 5 - In Cycle Indicator 6 - Extend/Retract Switch 7 - Power Harness Connection 8 - Circuit Breaker (Pushbutton) 9 - Baler Harness Connection 10 - Recycle (Pushbutton) Switch

Fig. 6·3: AutO-Electric Twine Tie Control Box Tailgate Indicator This Indicator is NOT in use on RB 1710 model Balers.

In Cycle Indicator This Indicator will be "on" during the entire wrapping cycle and "off" all other times.

A Pushbutton-type (resetable) Circuit Breaker is provided for protection of the Electric Actuator and Control Box wiring. Do NOT attempt to override the Breaker circuit by holding down on the Pushbutton.

AL WAYS determine and correct the cause of the Breaker trip when resetting is required.

BALING TIPS The following information provides guidelines for using the Baler to get the most out of your crop and investment.

Preparing The Material For Baling The material, to be baled, can be prepared in a number of different ways, depending on the operator's preference and available equipment. Except for windrow size, a general rule to follow is to prepare the material the same way as you would for rectangular baling.

23

The most desirable bales result when the material is properly cut and conditioned and then formed into even, full, Pickup-width windrows.

Cutting the Crop Cut the crop as long as possible. Excessively dry, short, slippery and/or thin crops, as are sometimes encountered in certain grasses and straw, can be suc­ cessfully baled, providing that the material is of suffi­ cient length to hold the bale together. However, when baling crops such as these, difficulties in building Gauge pressure above 2500 PSIG and in wrapping the bale with tw ine at the end of baling cycle, may be experienced, regardless of cut crop length. Refer to the Baling topic, later in this chapter, for more details.

BALING

NOTE:

To avoid damaging the Baler Drive Line, slow tractor RPM to 1400 or less BEFORE engaging PTO. Then, engage PTO slowly. In addition, NEVER disengage PTO quickly with a full bale in the Chamber.

The mass of a rotating bale can cause a complete Drive Line reversal. When using a tractor equipped with a PTO brake mechanism, BE SURE to slow-down the engine speed BEFORE disengaging the PTO.

Use the following procedure as a guide for proper baling techniques.

1.

Conditi oning the Crop Over-conditioning the crop is NOT advisable, par­ ticularly if the bales are going to be stored outside, because excessive shattering of the stems will invite moisture absorption, which can lead to spoilage.

Under-co'n ditioning can also cause spoilage, par­ ticularly when baling cane-type crops and other heavy­ stemmed materials.

After transporting the Baler to the field. adjust the Pickup height according to crop conditions and ground contour. Refer to the Pickup Height and Pickup Flotation topics in the Adjustments chapter of this manual. for details.

NOTE: The Pickup Assembly MUST be carried up off of the ground at all times. Operating with the Pickup too low to the ground, will result in excessive Tine wear or breakage and possible damage to the Pickup Strip­ pers and Headers, Cams and Cam Bearings.

2.

Move the Baler into position with respect to the windrow. Start the PTO, bring the tractor RPM up to the desired operating speed and begin baling.

Windrowing the Crop

3.

Bales of consistently uniform size and density can best be produced by starting with windrows of proper size.

Windrows should be reasonably even in height and width. Windrows with high center crowns result in more material in the center of the bale, producing a bale with loose ends and making it more difficult to wrap the bale with twine.

Bale the driest crops first (usually the outside of the field) traveling in the same direction that the rake or windrower traveled so that the crop is picked up in a head-first position.

4.

When baling hay in full, Pickup-width windrows. the average operating speed of the tractor should be approximately 4 to 6 mph. At this speed, the Pickup will gather the windrow into the Baler with the least amount of crop agitation.

5.

When baling narrow windrows (30" or less). start forming the bale by driving down the center for approximately the first quarter of the bale. For the next quarter of the bale. weave back and forth across the windrow. so the crop is distributed evenly across the entire width of the Bale Cham­ ber. Discontinue the weaving pattern for the last one half of the bale and concentrate on feeding the material. alternately, into the sides of the Pickup. The bales that are formed in this manner, are more uniform than bales that are formed by continuously weaving, during the entire baling cycle.

NOTE: Proper conditioning can best be ac­ complished using either a self-propelled windrower or pUll-type mower conditioner.

If full, Pickup-width windrows (48"-66") cannot be produced. the crop should be formed into windrows of 30" or less. Windrows between 30" and 48" wide should be avoided because. as the Baler operator cros­ ses the windrow from side to side to crowd material into the ends of the Pickup. the center is being con­ tinuously fed and as a result, the bale will be barrel­ shaped with lower density at the ends and higher density at the center.

NOTE:

If windrows are generally wider than the Pickup width (greater than 66''), installation of a Crow­ der Wheels Kit is recommended. Refer to the Optional Features &Accessories chapterfor additional informa­ tion.

24

Unplugging

A DAN G ER DO NOT attempt to unplug the Pickup area while the PTO Is engaged. In addition, NEVER attempt to manually clear debris or foreign matter from any other part of the Baler, while It is running. Failure to heed, could result In death or serious bodily Injuryl ALWAYS exer­ cise the MANDATORY SAFETY SHUTDOWN PROCEDURE (page 8) BEFORE attempting to unplug the Pickup or manually clear debris from It! If plugging occurs between the Pickup and Baling

Chamber and/or the Pickup Drive Clutch is slipping, STOP forward travel IMMEDIATELY and disengage the PTO. Then, reduce engine RPM and re-engage the PTO. This will normally clear the Pickup. If NOT, repeat this sequence, as necessary, to clear the plug. If repeating this sequence, several times, does NOT clear the plug, open the gate and eject the bale, because the ratchet clutch will NOT drive pick-up backwards. If the plug still does NOT clear, exercise the MAN­ DATORY SAFETY SHUTDOWN PROCEDURE (page 8) BEFORE leaving the tractor to remove the plug by hand.

When resuming Baler operation, adjust the ground travel speed; a slower speed may be required in heavy crops. In some conditions, it may also be necessary to remove one or both of the Springs on the Hay Hold­ down, to improve feeding. If plugging continues, check all of the Pickup Strippers to make sure that they are parallel and evenly spaced. Also, check the angle of the Baler to make sure that the Twinebox is parallel to the ground. If desired or as required, readjust the Hitch Plate to change the Baler angle so that the Twinebox is parallel to the ground or angled slightly to the rear. (Refer to the Preparing for Field Operation chapter for more details.)

NOTE:

Do NOT allow any stones or other debris to enter the Baler or damage to internal parts may result.

If a foreign object is seen entering the Baler, IMMEDI­ A TEL Y disengage the PTO to stop the Baler, open the Rear Door approximately 8" (or just enough to allow the object to pass through) and then slowly re-engage the PTO. After the object falls out, close the Rear Door and resume baling.

Using The Pressure Gauge For Density Control (See Fig. 6-2) In order to produce dense, uniform, 72-inch diameter bales, a minimum of 1000 PSIG of pressure MUST be maintained on the Rear Door, throughout the entire baling cycle. A Pressure Gauge is provided on the Baler to monitor the amount of pressure being applied to the Rear Door. Watch the Gauge as you are baling and maintain the pressure at 1000 to 2400 PSIG, (in the GREEN area or above), during the entire baling cycle.

As the bale starts reaching its final size and density, the pressure will increase from its previous (more sta­ bilized) indication. When the Gauge Indicator reaches 2600 to 3200 PSIG, (the RED area), the bale is formed and ready for wrapping with twine.

NOTE: In some dry and/or brittle materials, it may NOT be possible to reach the final bale pressure (the RED area on the Pressure Gauge).

A CAUTION NEVER allow the baling pressure to exceed 3200 PSIG (above the RED area on the Pres­ sure Gauge). Baling at too high a pressure places excessive strain on the entire Baler and can cause Drive Chain failure.

Wrapping Bale With Twine (Fig. 6-4 & See Fig. 6-2) The bale can be wrapped with twine any time after the mass of material in the Bale Chamber starts rolling.

Usually, the bale should be wrapped only after the Pressure Gauge Indicator is in the RED area (2600 to 3200 PSIG). Refer to "Using The Pressure Gauge For Density Control" topic above, for details regarding baling pressures.

NOTE: The following procedure is the MANUAL sequence which is accomplished automatically by the Auto-Electric Tie system and activated automatically by a Pressure Switch. The entire process of wrapping the bale with twine is done from the tractor seat.

The position of the Needle on the Hydraulic Pressure Gauge can be used as a fairly accurate guide for deter­ mining when to stop baling and start wrapping the bale with twine. When the desired pressure is reached, stop Baler forward travel. Then, using the Toggle Switch on the Control Box, activate the Actuator to position the Twine Tubes so they are centered and vertical.

25

NOTE: By moving the Twine Tubes to the middle of the Baler, appropriate lengths of twine are brought out for starting to wrap a new bale.

Next, drive forward again to take in a small amount of material to help start feeding the twine into the Baler.

A DANGER NEVER attempt to manually feed twine or material into the Baler. Material feeds into the Baler faster than you can react to release It. Also, NEVER attempt to clear debris or any­ thing else from the Baler while it Is running.

Failure to heed can result in death or serious Injury. ALWAYS exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE (page 8) BEFORE attempting to manually clear debris from the Baler!

When the twine can be seen moving into the Twine Tubes, stop Baler forward travel. Allow the twine to make at least one full wrap in this location and then move the Twine Tubes to the left side.

NOTE:

Normally, the bale can be adequately tied with two wraps of twine on the left side, several wraps across the center of the bale and two wraps on the right side. If the material being baled is slippery, it will help to place two wraps of twine on the center of the bale before moving to the left side in order to prevent the twine from sliding off the end of the bale.

Ejecting The Bale (Without Accessory Bale Bumper)

A WARNING Bales made with the Round Baler are LARGE, CYLINDRICAL and HEAVY! Serious personal injury or property damage could result if the Bales are NOT carefully and properly handledl NEVER eject or store Bales where they could possibly roll downhill!

The following procedure should be followed, in the sequence given, for ejecting a bale from a Baler that is NOT equipped with an accessory Bale Bumper:

1.

Back-up Baler a minimum of 15 feet. This provides for pull-ahead clearance, after the bale is ejected, so the Rear Door will close without hitting the bale.

2.

The PTO MUST be left engaged while ejecting the bale. However, if desired, the PTO may be operated at a slower speed.

NOTE:

Moving the Twine Tube all the way to the left engages and locks-open the Twine Cutoff Jaws.

A DAN GER BE SURE everyone is clear of the Rear Door BEFORE attempting to open or close It.

1 - Electric Actuator 2· Dual Twine Tubes Swung All the Way to the Right 3 • Cutoff Mechanism 4· Twine Box

3.

Activate the tractor hydraulics control lever and fully extend the Door Cylinders to open the Rear Door.

4.

After the bale is discharged, by the rotating Rollers, pull the Baler ahead, about 10 feet, to provide clearance between the Rear Door and the ejected bale.

S.

Activate the tractor hydraulics control lever and retract the Door Cylinders to close the Rear Door.

After the Door has closed, continue to activate the control lever, to build up pressure, until the Pressure Gauge reading is in the GREEN area or above.

Fig. 6-4 Next, gradually (in steps) move the Twine Arm (from left to right) to place wraps in several positions across the bale. When the Twine Arm reaches the right side, pause to allow two wraps of twine to be placed on the right side of the bale. Then, fully retract the Actuator to trip the Cutoff Jaws and cut the twine.

26

Ej ecting Th e Bale (With Accessory Bale Bumper)

A WA RNING Bales made with the Round Baler are LARGE, CYLINDRICAL and HEAVY! Serious personal Injury or property damage could result If the Bales are NOT carefully and properly handled!

NEVER eject or store Bales where they could possibly roll downhill!

The following procedure should be followed, in the sequence given, for ejecting a bale from a Baler that is equipped with the accessory Bale Bumper:

NOTE:

With the accessory B3.le Bumper installed, the Baler does NOT have to be moved, to provide for pUI/-ahead clearance after the bale is ejected. The Bumper causes the ejected bale to rol/ away from the Baler, about 10 feet on level ground, which is far enough to allow the Rear Door to close, without strik­ ing the ejected bale.

1.

The PTO MUST be left engaged while ejecting the bale. However, if desired, the PTO may be operated at a slower speed.

A DANG ER

DIFFICULT BALING CONDITIONS It is sometimes difficult to form bales when the crop is exceptionally short, slick and/or dry. Oats, straw and corn stalks are some examples. Use the following methods to help overcome difficult bale forming problems:

Material Preparation - Cut the material as long as possible. The longer the material, the easier it is for the bale to form and stay together after it is ejected.

- Prepare heavy, tight, even windrows. Fluffy, uneven windrows can cause feeding problems, requiring reduced ground speed until the bale is rolling.

- Rake several smaller windrows into a full Pickup­ width size windrow.

Operating Characteristics - Increase the ground speed, to maintain a constant flow of feed into the Baling Chamber.

- After the bale begins to rotate in the Bale Chamber, reduce PTO speed. This will reduce the bale tum­ bling action and therefore, cut down on material loss.

BE SURE everyone Is clear of the Rear Door BEFORE attempting to open or close It.

- Use more wraps of twine, than used in normal bale wrapping, but, do NOT wrap too close to the bale ends. Move the twine Guide Rod(s) in, toward the center hole(s), if the twine is slipping off the end(s) of the bale.

2.

THROAT GUIDE BAFFLE (Fig. 6-5)

Activate the tractor hydraulics control lever and fully extend the Door Cylinders to open the Rear Door.

3.

The bale is discharged, by the rotating Rollers, onto the Bale Bumper, which causes the bale to roll away from the Baler about 10 feet (3 meters) on level ground.

4.

After the bale has been ejected, activate the trac­ tor hydraulics control lever and retract the Door Cylinders, to close the Rear Door. After the Door has closed, continue to activate the control lever, to build up Rear Door pressure, until the Pressure Gauge reading is in the GREEN area or above.

For improved performance when baling dry short materials, like straw and grass hays, use the Throat Guide Baffle, supplied with the Baler. The Baffle is stored against the vertical channel in the center of the Baler right side.

When installed, the Baffle prevents crop material from falling back out of the Bale Chamber and onto the rear of the Pickup assembly. This helps to prevent plugging at the rear of the Pickup area. Adjust the Throat Guide Baffle for 1/16" clearance to the Roller outside diameter.

27

NOTE: ONL Y use the Throat Guide Baffle when baling very dry straw or short, dry and grassy hay. The Baffle prevents the bale from bulging out of the throat area and possibly plugging the area at the rear of the Pickup. The Throat Guide Baffle MUST be removed when baling normal materials, to prevent material build-up, which can cause driveline loading and pos­ sible fire.

BALE HANDLING & STORAGE

A WA RNI NG Bales made with the Round Baler are LARGE , CYLINDRICAL and HEAVY! Serious personal Injury or property damage could result If the Bales are NOT carefully and properly handled!

NEVER eject or store Bales where they could possibly roll downhill!

Because the bales made with the Baler are cylindrical and very heavy, special care MUST be exercised when ejecting and storing them, to keep them from starting to roll. When the bale is moved, make sure the original (flat) bottom of the bale remains at the bottom, to help prevent rolling.

When moving a bale to a storage area, observe the following recommendations, to minimize crop loss:

1.

Select a well-drained area, with complete ex­ posure to the sunlight, for storing the bale. Do NOT store the bale on plastic sheeting, or a similar material, because it will hold pockets of water.

2.

If possible, place the ends of the bale in a north

1 - Throat Guide Baffle In "Stored" Position

Fig. 6-5

A WARNING ALWAYS use BOTH Rear Door Cylinder Locks when Installing, removing or checking the Throat Guide Baffle. Failure to heed, could result In death or serious Injury!

and south direction, so that the sun can dry-out the cylindrical surface of the bale, as it travels from east to west.

3.

Where space allows, set several bales in a row with their ends pushed tightly together, to form a long cylinder. Make sure that you do NOT form a water dam, by using to many bales in a row, without skipping a space. Also, make sure to maintain a clear path for the water to travel away from the bales.

4.

Maintain enough distance between rows so that one row does NOT overshadow the other and cut down its exposure to full sunlight.

A WARNING Improper Installation, adjustment or use of the Throat Guide Baffle may cause a fire which could result In machine damage and death or serious Injury.

Refer to the "Preparing for Field Operation" Chapter for procedures to properly install the Throat Guide Baffle.

28

OVERLOAD PROTECTION Rub ber Coupler The Drive Line is protected from high shock loads by a Rubber Coupler on the Output Shaft of the Gearbox.

The Coupler functions as a cushioning shock absorber.

In general, keep the PTO running at all times while baling. Since the Baler runs with NO pressure on the material until the bale becomes full-size, there is NO need to stop the Baler. Continuously running the PTO while baling, as opposed to stopping and starting, also helps to reduce parts wear and early failure.

NOTE: To avoid damaging the Baler Drive Line, slow tractor RPM to 1400 or less BEFORE engaging PTO. Then, engage PTO slowly. In addition, NEVER disengage the PTO quickly with a full bale in the Chamber. The mass of a rotating bale may cause a complete Drive Line reversal. When using a tractor equipped with a PTO brake mechanism, BE SURE to slow-down the engine speed BEFORE disengaging the PTO. Pickup Clutch (See Fig. 6-1) Overload protection to the Pickup Drive is provided by the ratchet-type Pickup Clutch. The Clutch is designed to slip when the Pickup becomes plugged.

29

CHAPTE R 7

ADJUSTM ENTS The Baler has been designed and factory adjusted to function properly under most field operating condi­ tions. However, due to the wide range of operating conditions encountered, some additional readjust­ ments may be required.

A CAUTION BEFORE proceeding to perform any adjust· ments on this unit, exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE (page 8).

PICKUP HEIGHT (Fig. 7-1) NOTE:

The Baler Pickup should ALWAYS be run as high above the ground as possible while still being able to pick up all of the crop.

A Pickup Lever mechanism is provided on the left side of the Baler for raising and lowering the Pickup to make operating height adjustments.

NOTE:

A small Chain is provided on the left side of the Baler to lock the Pickup Lever when it is in the fully raised "transport" position. BE SURE the Chain is slipped over the end of the Pickup Lever whenever the Baler is being transported to ensure that the Pickup will remain in the raised position.

1 - Lock Chain 2 - Pickup Height Adjustment Lever 3 - Pickup Lever Latch Rod

Fig. 7-1

30

To raise or lower the Pickup, pull out on the Pickup Lever Latch Rod and then move the Pick up Lever over the hole in the Side Sheet, nearest to the desired posi­ tion. Release the Latch Rod while making sure the end of the Rod engages into the hole to lock the Pickup Lever at the desired setting. If the Baler is going to be transported, move the Pickup Lever to the top position and secure it with the Lock Chain.

PICKUP FLOTATIO N (Figs. 7-2 & 7-3) NOTE: Proper flotation is determined with the Pick­ up in the "Iowered" position and with the Ora wba r Hitch Plate adjusted so that the Twinebox is parallel with the ground.

The Baler is provided with a tension adjustable, float­ ing Pickup. For normal operating conditions on rela­ tively smooth ground , the recomm e nded Pickup Flotation Spring tension is approximately 30 pounds (14 kilograms) of lift required at th e cross pipe on the Hay Hold-down.

For extremely rocky or rough groun d conditions, in­ crease Pickup Flotation Spring ten sion to allow the Pickup to float easier. To increase Spring tension, proceed as follows:

NOTE:

Measure the length of the Springs, BEFORE making any adjustments, so that the Pickup can later be restored to the initial setting. Also, make sure to adjust BOTH Springs equally.

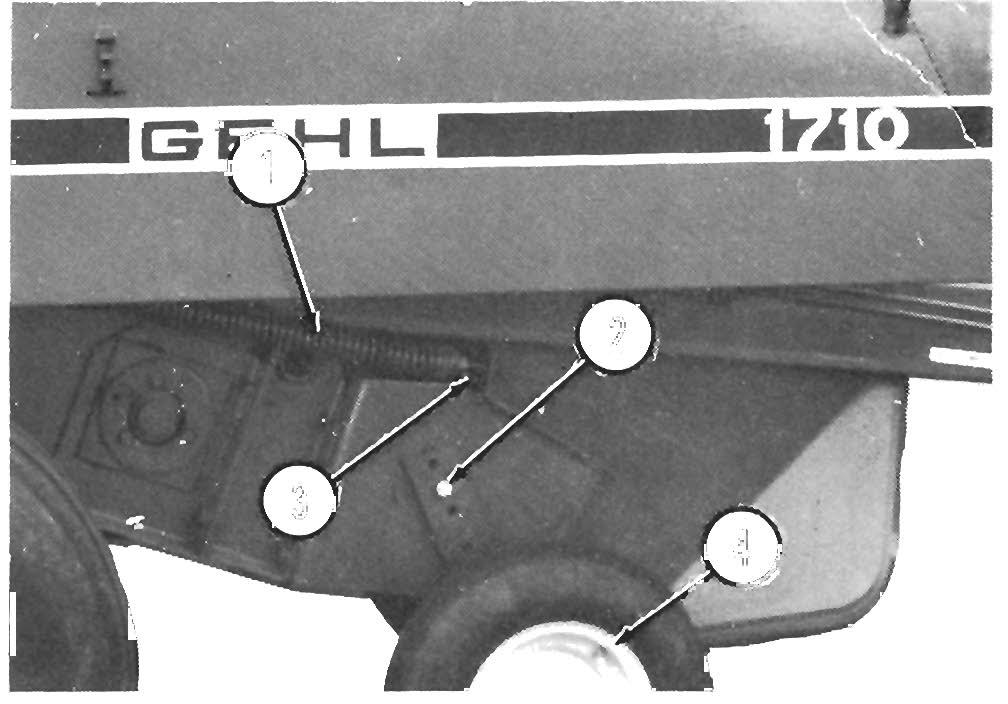

1 - Pickup Flotation Spring (Right Side) 2 - 1/2" x 1-3/4" Cap Screw, Lock & Plain Washers (1 of 2) • Accessory Gauge Wheel Mounting 3·1/2" Tap Bolt & Hex Nut 4 • Accessory Gauge Wheel

Fig. 7-2

)

On right side of Pickup, loosen the 1/2" Nut and turn the 1/2" Hex Tap Bolt clockwise to lengthen the Spring. After the proper adjustment is made, resecure the Tap Bolt with the 1/2" Nut. On left side of Pickup, turn the Lock Nut, located on the Spring mounting 3/8" Eye Bolt, counter-clockwise (as viewed from the bottom of the Baler) to lengthen the Spring.

NOTE: The Lock Nut and 318" Eye Bolt, on the left side of the Pickup, have left hand threads.

1 - 1/4" (6 mm) Deflection 2· Pickup Flotation Spring (Left Side) 3· Pickup Drive Chain Idler Sprocket 4 • 3/S" Eye Bolt & Lock Nut

Fig. 7-3

DRIVE CHAIN TENSION

Main, Front Lower, Front Upper & Rear Door Rollers Drive Chains (Fig. 7-4) The Baler Main Drive, Front Lower Drive, Front Upper Drive and Rear Door Rollers Drive Chains are provided with adjustable, spring-loaded Chain Ten­ sioners and Idler Sprockets. Proper Chain tension is obtained when the distance between the Chain Ten­ sioner Mounting Bracket and the Spring Guide or Jam Nut Washer is 1-3/8" (35 mm) as shown.

To adjust, loosen the Jam Nut and then, using a wrench, turn the Spring Guide in or out, until the proper dis­ tance is obtained. BE SURE to retighten the Jam Nut against the Spring Guide, after making the adjustment.

NOTE: Check for proper Chain tension on a daily basis. DO NOT operate the Baler with less than 112" (13 mm) of clearance between the Chain Tensioner Mounting Bracket and the Spring Guide or Jam Nut Washer or Chain failure will result.

c

D

A - Front Upper Rollers Drive Chain Tensloner B • Rear Door Rollers Drive Chain Tensioner C· Main Drive Chain Tensloner D • Front Lower Rollers Drive Chain Tensioner 1 • 1-3/S" (35 mm)

Fig. 7-4: Drive Chain Tensioners

Pickup Drive & Rear Door Connector Drive Chains (Fig. 7-5 & See Fig. 7-3) The Baler Pickup Drive and Rear Door Connector Drive Chains are provided with adjustable Idler Sprockets for setting proper Chain tensions. Proper Chain tension is determined when 1/4" (6 mm) of deflection is present on the strand of Chain opposite the Idler Sprocket.

Chain tension can be adjusted by loosening the Idler Sprocket mounting hardware and then sliding the Sprocket up or down in the guide until the proper setting is obtained. BE SURE to retighten the Idler Sprocket mounting hardware after adjusting the Chain tension.

31

i'

t 1 • Rear Door Connector Drive Chain Idler Sprocket 2 • 1/4" (6 mm) Deflection

Fig. 7-5

GAUGE WHEEL HEIGHT (See Fig.7-2) NOTE: The accessory Gauge Wheel height should be adjusted so that the Pickup Tines are a minimum

1 • Crosstube Assembly 2· Clamp Bar Attaching Hardware (2 of 6 Bolts) 3 • Twine Mounting Plate 4· Center of Clamp Jaw Pivot Rod 5 • Twine Knife 6· Twine Arm 7· Actuator

Fig. 7-6

of 1" (25 mm) from the ground. Normal ground clearance, for most crop conditions, requires that the Gauge Wheel be adjusted so that the Pickup Tines are 1-112" to 2-112" (38 to 64 mm) above the ground.

3.

To adjust the accessory Gauge Wheel height, remove the (2) 1/2 x 1-3/4" Cap Screws, Lock and Plain Washers securing the Spindle Assembly to the Pickup Right Side Assembly. Three sets of holes are provided in the Spindle Assembly to obtain proper Pickup Tine ground clearance.

Latch Position

TWINE TIE SYSTEM Twine Placement (Figs. 7-6 & 7-7) To adjust twine placement on the right hand side of the Baler: 1.

Loosen the hardware attaching the Twine Mount­ ing Plate to the Crosstube assembly.

2.

Slide the assembly right or left to obtain the desired position.

NOTE:

The twine placement on the right hand side can be predetermined by measuring the distance be­ tween the right inside edge of the bale chamber and the center of the Clamp Jaw Pivot Rod.

3.

Retighten the Twine Mounting Plate attaching, hardware.

Place the Twine Arm to the desired position and retighten the Adjustment Bracket hardware.

Clamp Jaws (Figs. 7-6 & 7-7) To properly adjust the Clamp Jaw Latch position, fully extend the Actuator. Then, adjust the Spring Slide Rod so that the Clamp Jaw Pivot Rod rotates below the Catch on the Trip assembly. When this position is obtained, tighten the Jam Nuts.

Latch Tension To adjust the Clamp Jaw Latch tension, rotate the Locknut on the Clamp Jaw Pivot Rod. The tighter the Spring is compressed, the greater the tension on the twine.

NOTE: The following information applies only to a Baler which is equipped with an Auto-Electric TwIne TIe system.

Delay Switch Position (See Fig. 7-7) Stroke the Actuator to move the Twine Arm to within 6 to 8" of the Cutoff Trip Arm. Then, with the Delay Switch Clamping hardware loose, rotate the Switch assembly clockwise until the Roller causes the Switch contacts to just transfer (click). Then, tighten the Clamping hardware.

To adjust twine placement on the left hand side of the Baler:

Twine Tube "Pause" Placement (Fig. 7-8)

1.

Completely extend the Actuator.

2.

Loosen the hardware on the Actuator Adjustment Bracket.

NOTE: If Control Box does NOT have an external Adjustment Knob (as shown), dealer MUST be con­ tacted to perform the following adjustment.

32

J.

5 - Clamp Jaw Pivot Rod (Holding Position)

1 - Actuator (Retracted) 2 - Twine Arm 3 - Actuator Adjustment Bracket 4 - Trip Arm Assembly

6 - Trip AssemblyNuts on End of Spring Slide Rod

7 - Auto-Delay Switch

Fig. 7·7 With tractor engine running, push the "Recycle" But.. ton and observe where or at what position the Twine Arm pauses. If the pause is before the Clamp Jaws are at least halfway open, turn the Adjustment Knob clock­ wise about 10'. Test this adjustment by recycling the system. Continue to readjust, as necessary.

TWINE TENSION This unit is provided with a Twine Tensioner Assembly for increasing or decreasing Twine Tension. After the first few bales have been tied and the twine cut, it may be necessary to adjust the Twine Tensioner so that 18" (457 mm) of twine extends from each of the Twine Delivery Tubes. A Wing Nut and Spring mechanism on the Twine Tensioner is provided to increase or decrease the amount of tension on the twine. Turning the Wing Nut clockwise, which increases twine ten­ sion, will result in shortening the amount of twine extending from the Tubes; turning the Wing Nut counterclockwise, which decreases twine tension, will result in lengthening the am<?unt of twine.

WHEEL AXLE POSITIONING

1 - Recycle Button 2 - "Pause" Adjustment

The 1710 Baler is provided with dual-position Wheel Axles for making track width adjustments. Refer to the Dual-position Wheel Axle topic in the Preparing for Field Operation chapter for adjustment details.

Fig. 7·8

33

CHAPTER 8 LUBRICATION GENERAL INFORMATION

A CAUTION NEVER attempt to lubricate the Baler when any part of It Is In motion. ALWAYS, BE SURE to exercise the MANDATORY SAFETY SHUT· DOWN PROCEDURE (page 8) BEFORE proceeding to lubricate the Baler.

In addition to the Roller Chains, apply oil or foaming aerosol lubricant to the Telescoping PTO Drive Shields.

NOTE:

At the end of the harvesting season, coat all of the Roller Chains (and any other unpainted, exposed metal) with oil before placing the Baler into storage.

SEALED BEARINGS Sealed Bearings are lubricated for life and relubrica­ tion is NOT required, NOR should it be attempted.

GEARBOX

GREASING

NOTE:

General

On a routine basis after every 100 hours of operation, check the fluid level in the Baler Gearbox.

The level should be maintained, with a sufficient amount of SAE 90 Gear Lube, so that it just starts to run out of the Inspection Plug opening at the back of the Gearbox. Add fluid, as necessary, through the Gearbox Inspection Plug opening.

The Gearbox should be checked occasionally for oil drips and dust accumulation around the Seals which would indicate that the Seals are leaking. Oil which is tan in color and foams excessively indicates that it has water present in it. However, unless rust spots are visible inside the Gearbox, the fluid does NOT require replacement.

NOTE:

ON an annual basis, drain, flush out and refill the Gearbox with new SAE 90 Gear Lube. Do NOT overfill the Gearbox; only fill to the bottom of the Inspection Plug opening.

ROLLER CHAINS & PTO DRIVE SHIELDS Lubricate all Roller Chains every 6 to 8 hours of opera­ tion using a good grade of foaming aerosol lubricant, such as NAPA Chain and Cable Lubricant. This type of lubricant increases the life of the Chain 3 to 4 times over those lubricated at 8 hour intervals with new or used motor oil. The recommended method is to spray the entire length of Chain on the center of the Rollers.

It is better to lubricate Chains when they are warm (after use, rather than before).

NOTE: For Balers equipped with the accessory Automatic Chain Oiler, fill Oil Reservoir Tank as often as required with a lightweight oil (SAE 10 or equivalent). Usually, a full Tank should provide ade­ quate lubrication for producing 100 or more bales.

34

NOTE: Use an SAE mUlti-purpose, Lithium base grease for all locations.

Clean, inspect and repack the Wheel Bearings at least once a year.

Grease Fittings NOTE:

Grease all Fittings at the intervals of opera­ tion listed. Also grease all Fittings before and after storing the Baler and as otherwise listed.

Wipe dirt from the Fitting, before greasing it, to prevent any dirt from being forced into the Bearings or pivots. Replace any missing or defective fittings, when noted. To minimize dirt build-up, avoid excessive greasing.

Grease Fitting Locations Grease Every 8 hours (or Daily) Telescoping PTO Drive Crosses (4 Places) 2 Pickup Tine Bar Spider Assemblies (8 Places - 4 Each Side) 3 Pickup Pivot (1 each side)

Grease Every 40 hours (or Weekly) 4 Telescoping PTO Drive Shield (2 Places)

Grease Every 100 hours (or Annually) 5 Rear Door Pivot (1 each side) 6 Twine Tie Pivots (2 Places) 7 Idler Pivot Brackets (4 Places)

Lubrication (Continued)

Front Master

Weasler Telescoping PTO Drive with Metal Shield Tubes

35

Lubrication (Continued)

1 Rear Master

36

CHAPTER 9 SE RVICE GENER AL INFO RMATION

A CAUTION BEFORE starting to do ANY Service routines on this unit, exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE (page 8).

The Bearing can be removed from the Shaft by loosen­ ing the Set Screw and then tapping on a punch, which is placed in the drift pin hole, to loosen the Collar.

Install Bearings with self-locking Collars in the fol­ lowing manner:

1.

Place the Bearing and Collar on the Shaft with the cam surfaces next to each other. Tighten the bolts on the Bearing Retainers.

2.

Mate the cam, of the Lock Collar, with the cam, of the Bearing inner ring.

3.

Press the Lock Collar against the Bearing's wide inner ring cam and turn it, in the direction of Shaft rotation, until it tightly engages. Tighten the Collar further, by tapping on a punch inserted in the drift pin hole.

NOTE:

The following information is also referredto in the Troubleshooting chapterofthis manual. It should be understood that all services, detailed in this chap­ ter, are Owner-Operator responsibilities. Where indi­ cated, certain service routines should only be carried-out by (or under the direction of) an authorized GEHL Dealer or GEHL Company representative.

Sealed Ball Beari ng Replacement (Fig. 9-1)

NOTE: To avoid damaging the Lock Collar, do NOT overtighten it.

Sealed Ball Bearings are used on ·various Shafts on the Baler. This type of Bearing is generally retained with a Self-locking Eccentric Collar. The Lock Collar has a counterbored recess, which is eccentric with the Collar bore. This eccentric recess engages or mates with an eccentric end of the Bearing inner ring, when the Bear­ ing is assembled on the Shaft. The Bearing is engaged, on the inner ring cam, by the Collar. This assembly grips the Shaft tightly with a positive binding action that increases with use. The Collar Set Screw provides supplementary locking.

4.

Tighten the Set Screw in the Lock Collar.

Gib Key The Gib Key, a tapered key with a tang on the thick end, is a combination locking device and hub retainer.

The Gib Key will lock the hub in place and retain it from turning. The hub MUST have a matching tapered keyway for use with the Gib Key.

Removal (Fig. 9-2) 1.

Remove paint from the Shaft on both sides of the hub.

2.

Loosen the Set Screws.

3.

Drive hub away from Key head, using a large punch or drift. Make sure that Gib Key does NOT move with hub.

4.

Pull Key, using a pinch bar or tapered punch.

5.

Slide hub from Shaft.

Installation (Figs. 9·3 & 9·4) 6.

Align Sheave or Sprocket and place Key in keyway.

7.

Reseat Key with a lead-headed hammer (or rub­ ber mallet), without moving Hub on Shaft.

1 - Bearing 2 - Setscrew 3 - Wide Inner Ring Cam 4 - Eccentric Self-locking Coliar

5 - Drift Pin Hole 6 - Counterbored Recess

Fig. 9·1

NOTE:

The Key does NOT have to be driven ex­ tremely hard, in order to hold.

37

Fig. 9-2 When installing a new Gib Key into the Sprocket hub, it may be necessary to file the Gib Key to obtain a good Key length engagement. When doing this, BE SURE to file the bottom side of the Key, NOT the tapered top side.

When filing, use a hand file and use a smooth even motion to take enough material off. Do NOT use any type of power grinder on the Gib Key or a poor fit can result.

A Gib Key has a taper of 0.0104 in/in. To check taper, when filing, put two marks on the Key, 1 inch apart, and use a caliper to measure the taper.

1 - File evenly on this side 2 - Sprocket 3 - 1/16" minimum gap on all keys 4 - Gib Key 5 - Shaft 6 - Sprocket Hub 7 - 1/2" maximum or flush with end of Shaft

Fig. 9-4: Proper Glb Key Installation Detail

DRIVE CHAINS (Fig. 9-5) The RB1710 Baler has a total of six roller-type Drive Chains including: - Main Drive Chain, #100HK of 78 Links with (1) Spring Clip-type Connecting Link (Slip-fit).

- Front Upper Drive Chain, #80 of 184 Links with (1) Spring Clip-type Connecting Link and (1) Offset Link.

- Rear Door Connector Drive Chain, #60H of 69 Links with (1) Spring Clip-type Connecting Link (Slip-fit) and (1) Offset Link.

- Rear Door Rollers Drive Chain, #60 of 290 Links with (1) Spring Clip-type Connecting Link (Slip-fit) and (1) Offset Link.

Fig. 9-3

38

- Front Lower Drive Chain, #80 of 127 Links with (1) Spring Clip-type Connecting Link and (1) Offset Link.

- Pickup Drive Chain, #60 of 79 Links with (1) Spring Clip-type Connecting Link (Slip-fit) and (1) Offset Link.

7-1/2" to 7-3/4" (maximum), for a #80 Chain, it should be 10" to 10-5/16" (maximum) and for a #100HK Chain, it should be 12-1/2" to 12-7/8" (maximum). If the distance measured is greater than the "maximum", replace the Chain.

NOTE:

Replace the Drive Chain when the Chain Tensioner for that particular Chain only has 112" (13 mm) of adjustment remaining. Do NOT shorten the Chain by removing a Link (or Links).

Chain Removal & Installation All six Drive Chains on the Baler are provided with Spring Clip-type Connecting Links to aid in Chain removal and installation.

NOTE: BEFORE attempting to remove the Spring Clip-type Connecting Link from a Drive Chain, to remove the Chain for service, release the tension on the Chain by loosening its Chain Tensioner. Also, BE SURE to adjust the Chain for proper tension, after installing a cleaned and re-oiled (or a new) Chain.

Refer to the Adjustments chapter in this manual, for details.

GEARBOX (Fig. 9-6) 1 • Front Upper Drive Chain 2· Rear Door Connector Drive Chain 3· Rear Door Rollers Drive Chain 4 • Front Lower Drive Chain 5 • Pickup Drive Chain 6 • Pickup Clutch & Sprocket 7· Main Drive Chain

Fig. 9-5

The Gearbox can be removed from the Baler for taking it to a GEHL Dealer for internal component service.

NOTE: Internal Gearbox component repairs and/or replacements should only be attempted by (or under the direction of) an authorized GEHL equipment dealer.

Sprocket wear is most often caused by an excessively worn Drive Chain. Factors such as operating condi­ tions (dirt and temperature), amount of power trans­ mitted, operating speed of the chain and lubrication (or lack of it) influence the life of the Chain.

To effectively lubricate the Chain joints, lubricant should be delivered to the spaces between the side bars.

It is also essential, that an adequate lubricant film be retained between the rollers, bushings and pins to maintain a flexible Chain. If a Chain becomes stiff, remove it and soak it in a solvent to loosen dirt and corrosion from the joints. Then, wash the Chain in clean solvent and soak it overnight in oil so the oil can penetrate between all joints.

A Chain which has worn 3% (1.03 times its original length), should be removed and replaced. To determine the amount of wear on a particular Chain, an easy check is to measure 10 Links of the Chain in a straight line, from the center of one pin to the center of the 10th following pin. For a #60 Chain, the distance should be

1 • Twine Tie Guard 2· 4" Clamp 3· Main Drive Chain Tensioner 4· Telescoping PTO Drive 5· Gearbox Shield

Fig. 9-6

39

Removing Gearbox To remove the Gearbox from the Baler, proceed as follows:

1.

Release the Chain tension and then uncouple the Main Drive Chain. Refer to the Drive Chains topic in the Adjustments chapter and in this chap­ ter, for detailed instructions on Drive Chain removal.

2.

Remove the PTO from the Gearbox Shield.

3.

Loosen the 4" Clamp on the Jackshaft Shield.

4.

Remove the hardware securing the Twine Tie Guard to the Gearbox Shield. Then, remove (4) 5/16-18 x 3/4" Flanged Head Locking Cap Screws and the Gearbox Shield.

5.

Remove the (3) 5/8 x 2-1/2" Cap Screws and Lock Nuts securing the Splined Coupler (Gearbox side of the Rubber Coupler Assembly) to the Rubber Coupler Ring.

NOTE: Do NOT lose any of the Shims when remov­ ing the Gearbox mounting Bolts in step 6. The Shims are used to obtain proper alignment between the Gear­ box Output Shaft and Jackshaft. Refer to the Jackshaft Alignment topic later in this chapter for more details.

6.

Coupler not only provides a means of connecting the Gearbox Output Shaft to the Jack shaft, but it also provides cushioning from high shock loads due to en­ gaging and disengaging the PTO.

NOTE: The Jackshaft and Gearbox Output Shaft MUSTbe maintained in proper alignment at ALL times.

Anytime the Jackshaft or Gearbox has been removed, proper alignment MUSTbe re-established during reas­ sembly.

Jackshaft Alignment (Fig. 9-7) When installing the J ackshaft, maintain a distance of 4-1/8" (lOS mm) between the end of the Jackshaft and the Bearing Support Plate as shown in the illustration.

Check for parallel alignment (within 1/32" vertically and horizontally) between the Jackshaft and the Gear­ box Output Shaft (it may be necessary to Shim and/or to twist the Gearbox, in order to obtain parallel align­ ment). Once aligned and BEFORE tightening the (6) Coupler bolts, measure the total runout of the Jack­ shaft.

NOTE:

When measuring for total runout, the Main Drive Chain MUST be disconnected and the Gearbox Input Shaft MUST be rotated by hand in order to obtain accurate results.

Remove the (4) Grade 8 Cap Screws and Lock Washers located at the bottom of the Gearbox and then remove the Gearbox, all Shims and the (4) 3/8" thick Spacer Bars. Remove the Splined Coupler from the Gearbox Output Shaft (Coupler has a sliding fit on Shaft).

Installing Gearbox 7.

To install the Gearbox, reverse the steps for "Removing Gearbox" and take into account the following noted information.

NOTE: Refer to the "Main Drive Jackshaft & Rub­ ber Coupler" topic, next in this chapter, to obtain proper alignment between the Gearbox Output Shaft and the Main Drive Jackshaft. Also, BE SURE to properly adjust the Main Drive Chain tension following the details in the Adjustments chapter.

8.

Fill Gearbox to the proper level with SAE 90 Gear Lube. Refer to the Lubrication chapter for additional details.

MAIN DRIVE JACKSHAFT & RUBBER COUPLER Power, from the Baler Gearbox, is transmitted to the Main Drive Chain and Sprockets through the Rubber Coupler and Main Drive Jackshaft. The Rubber

40

1 • Measure Total Runout* Here * [0.027" (0. 7mm) maximum] 2 • 9" (229 mm) 3 • 4·1/8" (105 mm) 4 • Bearing Support Plate 5 • Main Drive Jackshaft 6 • Rubber Coupler

Fig. 9·7

Mount a dial indicator in a manner which will allow the indicator pickup to rest on the Jackshaft, 9" (229 mm) in from the Bearing Support Plate, as shown.

Slowly rotate the Jackshaft while observing the in­ dicator needle. The total runout MUST NOT exceed 0.027". After tightening the (6) Coupler bolts, recheck the runout.

NOTE: Often, the runout can be reduced by loosen­ ing (3) of the Coupler Bolts 1/2 turn and then tapping on the Jackshaft in the proper direction. BE SURE to retighten the (3) Coupler Bolts, after the Jackshaft is within the 0.027" (maximum) runout limit.

PICKUP ASSEMBLY The Pickup should be inspected on a routine basis every 100 hours of operation. The following areas should be inspected:

Pickup Clutch (See Fig. 9-5) Included in the ratchet-type Pickup Clutch are (16) spring-loaded Cams which provide a preset torque out­ put of approximately 442 ft-Ib (600 Nm). The Clutch is NOT adjustable. If the Clutch does slip while baling (because of a Pickup overload), reduce the PTO speed (and therefore the Pickup Drive Speed) and usually, the Baler will unplug itself and the Clutch will stop slipping.

NOTE: If the Clutch continues to slip or if it be­ comes jammed, it is recommended that the Baler be taken to an authorized GEHL dealer for removal, repair and/or replacement.

Pickup Tines (Fig. 9-8) Check for broken or bent Tines. Straighten bent Tines, if possible. Replace a broken Tine as follows:

1.

Loosen the (4) 5/16 x 3/4 Cap Screws securing the Stripper(s) nearest to the broken Tine and remove the Stripper(s).

2.

Remove and retain the 5/16 x 2 Flange Head Cap Screw and Lock Nut securing the Tine Holder to the Tine Bar.

3.

Remove the Tine Holder and broken Tine.

4.

Install the new Tine in reverse order of removal.

Tighten Tine Holder Flanged Lock Nut to 18 ft-Ib.

1 • Tine Bar 2·5/16" Flanged Lock Nut (18 ft·lb Torque) 3· Tine 4 • 5/16 x 2" Flanged Head Cap Screw 5 • Tine Holder 6· M12/1.25 Metric Lock Nut (55 ft·lb Torque) 7· Special Hardened Washer (As Required) 8 • M12/1.25 Metric Hex Head Cap Screw 9 • Cam Bearing

Fig. 9·8: Tine & Tine Bar Detail

Pickup Cam Bearings (See Fig. 9-8) Check that the Lock Nuts on the Pickup Cam Bearings are tightly secured. The M12 (metric fine thread) Lock Nuts MUST BE torqued to 55 ft-Ib. If a Cam Bearing is removed or replaced, BE SURE that the Special Hardened Washers are installed between the Cam Bearing and Tine Bar.

Pickup Drive Shaft & Spiders (Fig. 9-9) Check the Gib Keys securing the Pickup Spiders to the Pickup Drive Shaft. The Gib Keys MUST be tight and properly installed, to avoid severely damaging the Pickup, if the Key(s) should come out during opera­ tion. Refer to the Gib Key topic at the beginning of this chapter, for proper installation procedures.

41

- Rear Door Cylinders, Control (Relief) Valve and Hydraulic Hoses and Fittings for external leaks.

Tighten or replace Hoses and Fittings, as necessary.

NOTE: If the Baler hydrauliC system does NOT hold a Gauge pressure of 1000 to 2000 PSIG for 20 seconds, or more, with cool oil, an internal malfunction is likely and the Baler should be taken into your Gehl dealer for testing and repair.

A CAUTION Hydraulic System testing and repair should only be attempted by (or under the direction of) an authorized GEHL equipment dealer.

1 • Gib Key 2 • Pickup Spider (Right) 3 • Pickup Drive Shaft 4 • Pickup Spider (Left)

Fig . 9-9: Pickup Drive Shaft Detail

REAR DOOR (Fig. 9-10) The Rear Door should be inspected on a routine basis every 100 hours of operation.

Check the: - Rear Door Pivots for adequate lubrication and ease of operation . The Door should open and close smoothly with out any binding.

- Cylinders and Cylinder Locks for proper operation.

The Cylinders should extend and retract smoothly, without any binding and the Cylinder Locks should engage and disengage, without any restrictions or binding.

A WARNING Do NOT test for hydraulic fluid leaks with your bare hands; use a piece of cardboard or wood fortesting. Escaping fluid under pressure can be Invisible and can penetrate the skin which will cause a serious Injuryl If escaping fluid Is Injected Into your skin, see a doctor at once.

Injected fluid MUST be surgically removed by a doctor familiar with this type of Injury or gangrene may result. Remove all pressure from the Hoses, using the tractor hydraulic controls, BEFORE attempting to service the Baler Rear Door hydraulic system.

42

1 • Rear Door Pivot (1 each side) 2· Cylinder Lock In "Engaged" Position (1 each side)

Fig . 9-10

PTO DRIVE LINE NOTE: Repair of the PTO Drive Shafts, Joints and/or the Center Bearing should only be attempted by (or under the direction of an authorized GEHL equipment dealer.

Check that the PTO Shields rotate freely on the PTO Shafts. Properly lubricate per details in Lubrication chapter.

TIRES & WH EELS The Tires should be inflated to the appropriate pressure listed in the Tire Pressures table. The Baler Wheel Lug Nuts should be torqued to 90 ft-Ib.

A CAUTION GEHL Company does NOT sell replacement Tires. In addition, Tire mounting, repair and replacements should ONLY be attempted by a qualified tire manufacturer's representative or by properly trained personnel following the tire manufacturer's instruction. If you do NOT have such Instructions, contact your tire dealer or the GEHL Company.

TIRE PRESSURES Size & Description

Inflation Pressure PSIG

kPa

11 L x 14 6-ply

?4

168

31 x 13.5 x 15 6-ply

30

210

Gauge Wheel (accessory)

20

140

A WARNING Inflating or servicing tires can be dangerous.

Whenever possible, trained personnel should be called to service and/or mount tires. In addition, do NOT place fingers on tire bead during Inflation; serious injury or amputation could result! In any event, to avoid possible fatal or serious Injury, follow the safety precautions below: • BE SURE the Rim Is clean and free of rust.

Lubricate both the tire beads and rim flan­ ges with a soap solution. Do NOT use 011 or grease.

• Use a Clip-on tire chuck with a remote hose and gauge which allows you to stand clear of the tire while inflating It. • NEVER Inflate beyond 35 PSI (240 kPa) to seat the beads. If beads have NOT seated by the time the pressure reaches 35 PSI, deflate the assembly, reposition the tire on the rim, re-Iubricate both p~uts and re­ Inflate It. Inflation pressure bey\ond 35 PSI with unseated beads may break the bead or rim with explosive force sufficient to cause fatal or serious injury.

• After seating the beads, adjust the Infla­ tion pressure to the recommended operat­ Ing pressure listed.

• Do NOT weld, braze, or otherwise attempt to repair and use a damaged rim.

43

CHAPTER 10 PREPARING FO R FIELD OP ERATION TRACTOR & DRAWBAR REQUIRE­ MENTS Tractor The tractor, used to operate an RB1710 Baler, MUST have: - a minimum of 70 PTO hp - a 540 RPM PTO

To reverse the Hitch Plate, remove the mounting hardware and remount the Hitch Plate, as shown. When properly adjusted and attached to the tractor, the Baler Twinebox should be parallel with the ground or angled slightly to the rear.

i' CD~ ~- \- - - · - 1 ---

- PTO and hitch dimensions conforming to the ASAE Standard

~~~

CD

' 0 \ 0

- a remote hydraulic output capable of powering a double-acting cylinder - a minimum 60" (1524 mm) clearance between the insides of the tires (front & rear) - an upright exhaust system (to help prevent a pos­ sible fire caused from sparks blowing into the windrow)

A WARNING Because dry material usually Is being processed, the tractor should also be equipped with Spark Arrestors to prevent starting fires.

1 - 14" (335 mm) - 540RPM 2 - 6-12" (150-305 mm) 3 - 13-17" (330-430 mm) 4 - Hitch Plate

Fig. 10-1: Drawbar Hitch Plate in "Low" Mounting Position

~CD__,:__ I I

Drawbar Connection (Figs. 10-1 & 10-2) Adjust the tractor drawbar to meet the ASAE Standard draw bar dimensions shown.

A CAUTION The minimum distance, from the tractor PTO to the center of the hitch pin, MUST be 14" (355 mm) for 540 RPM to avoid damage to the Telescoping PTO Drive Shaft, when making sharp turns.

The Hitch Plate, bolted to the end of the Baler Draw­ bar, is reversible to enable attaching the Baler to a tractor equipped with either, a "low" drawbar [13-17" (330-430 mm) from the ground] or a "high" drawbar [17-21" (430-533 mm) from the ground].

44

1 - 14" (335 mm) - 540RPM 2 - 6-12" (150-305 mm) 3 - 17-21" (430-533 mm) 4 - Hitch Plate

Fig. 10-2: Drawbar Hitch Plate In "High" Mounting Position

ATTACHMENT TO TRACTOR NOTE:

If the tractor is equipped with a 3-point hitch, raise the lower arms to their maximum height (or remove them) to avoid interference with the Telescop­ ing PTO Drive on the Baler.

A CAUTION

A CAUTION

NEVER connect a 540 RPM Baler to a 1000 RPM tractor PTO. Check the RPM Warning Decal on the PTO Shield BEFORE connecting the Baler to the tractor.

The maximum Joint angle, whether In opera­ tion or not, MUST NOT exceed 80 degrees.

Any angle greater than 80 degrees will result In damage to the Joint.

Attach the Baler Drawbar to the tractor drawbar using a 3/4" or 7/8" diameter locking hitchpin that has a positive retaining device. To prevent crop material from catching on the hitchpin, it is recommended that the hitchpin be installed with the head-end down. After the connection is made, remove the Hitchjack and secure it to the "Storage Hub" on the side of the Baler Drawbar.

NOTE:

Drawbar Flap (Fig. 10-3) If the Baler Drawbar is catching and bunching-up the windrow below the hitch, order and install Drawbar Flap (420-34054) to help eliminate the problem.

AL WA YS orient and attach the PTO Drive with the CV end coupled to the tractor PTO shaft.

PTO Drives are provided with Spring-loaded Locking Devices on each end to positively lock the Drive con­ nections onto the tractor PTO shaft and the Baler Drive Input Shaft. Depress the Locking Device, against the Spring tension, and slide the Yoke onto its respective Drive Shaft. Release the Locking Device and move the Yoke ahead or back until the Lock engages into the groove of its respective shaft.

A WARNING BEFORE starting the tractor engine, BE SURE that the PTO Yokes are positively engaged onto their respective shafts and that the Baler Drawbar Is securely connected to the tractor drawbar with a locking hltchpln. Also, BE SURE the tractor PTO shield Is In place and properly secured and that the Telescoping PTO Drive Shields are rotating freely.

1 - Drawbar Flap (420-34054)

Fig. 10-3

Telescoping PTO Drive (Fig. 10-4) The Baler is equipped with a Wide-angle Constant Velocity PTO Drive Shaft. This constant velocity capability while cornering, results in a smooth, quiet running drive line, without power fluctuations.

A CAUTION Maximum Joint angle, In continuous opera­ tion, Is limited to 35 degrees. Wide-angie con­ stant velocity joints are NOT designed for use as angled-gearboxes. Any continuous opera­ tion at angles greater than 35 degrees, WILL result In shortening Joint life.

A

A 35' (maximum) In continuous operation 80' (maximum) at any time

Fig. 10-4: PTO Constant Velocity Joint

45

HYDRAULIC CONNECTIONS NOTE: The tractor MUST have a remote hydraulic output capable of operating the Rear Door, double-ac­ ting, HydrauliC Cylinders. If the Baler is equipped with an optional HydrauliC Twine Wrapping System, the tractor MUST have an additional remote hydraulic output, to operate the Twine Wrapping, double-acting, Hydraulic Cylinder.

Install the appropriate quick-disconnect fittings, to match your tractor connections, onto the Baler Hydraulic Hoses . The quick-disconnect fittings are to be purchased local~; they are NOT provided with the Baler. Use Loctite ,or equivalent pipe sealing com­ pound, on the fitting threads.

Connect the Hoses to the proper tractor hydraulic out­ lets, start the tractor and operate the remote control valve(s), to extend and retract the Cylinder(s) several times, to purge the air out of the system.

NOTE:

To help feed twine through the Twine Tubes, position them so they are in a vertical position.

AI/ow about 12-18" of twine to extend from the Tubes before starting to bale. After the first bale has been tied and the twine cut, the twine (extending from the Tubes) will be held by the Clamp Jaws. The Jaws should provide an 18" tail of twine for starting to wrap the next bale.

Third & Fourth Twine Ball Routing Pull the end of the twine from the center of the third ball, through the Rear and Center Guides on the Twinebox Cover, through the Upper Guide in the Twinebox side and out to the Twine Tensioner, if used.

From there, route the twine the same as for the first ball, except route the twine through the other Twine Tube.

TWI NE ROUTING (Figs. 10-5 & 10-6) To thread the Baler with twine, proceed as follows: Place up to four balls of twine in the Twinebox and tie the ends, if desired, for continuous feeding.

NOTE: ALWAYS tie the outside twine end of the first bal/ to the inside twine end of the next bal/, when placing twine bal/s in the Twinebox for continuous feeding.

First & Second Twine Ball Routing Pull the end of the twine from the center of the first ball through the Front Guide on the Twinebox Cover, through the Lower Guide in the Twinebox Side and out to the Twine Tensioner, if used. From there, route the twine through the bushing in the side of the Twine Tie Guard and over to the Glass Guide on top of the Twine Tubes.

1 - Twine Box 2 - Twine (From Twine Box) 3 - Bushing 4 - Twine Tie Guard 5 - Glass Guide 6 - 18" Tall of Twine

Fig. 10-6

THROAT GUIDE BAFFLE (Fig. 10-9) For improved performance when baling dry, short materials, like straws and grass hays, install the Throat Guide Baffle, supplied with the RB 1710 Baler. The Baffle is stored on the right side of the Baler behind the Pressure Gauge.

1 - Twine Guides

Fig. 10-5

When installed, the Baffle prevents bale material from falling back out of the Bale Chamber, onto the rear of the Pickup Assembly. This will help prevent plugging at the rear of the Pickup area.

Adjust the Throat Guide Baffle for 1/16 inch clearance to the Roller outside diameter, as shown.

46

A CAUTION ONLY use the Throat Guide Baffle when baling very dry straw or short, dry grass hays. The Throat Guide Baffle MUST be removed when baling damp to normally moist materials to prevent material build-up which can cause drive line loading and possible fire. Also, BE SURE to use BOTH Rear Door Cylinder Locks when Installing, removing or checking the Baffle. Improper Installation, adjustment or lise of the Throat Guide Baffle may cause a fire! Failure to heed, can result In personal Injury or machine damage.

To install the Throat Guide Baffle, proceed as follows: 1.

Raise the Rear Door and engage BOTH Cylinder Locks. BE SURE that the Door is properly sup­ ported and that BOTH Cylinder Locks are in engaged.

2.

Position the Baffle so that there is 1/16" clearance between the edge of the Baffle Angle and the weld seam on the outside diameter of the 20th Roller (the 20th Roller is located just above the Baling Chamber Throat).

3.

Once the proper positioning is obtained, secure the Baffle with the (4) 3/8 x 3/4 Tapping Screws provided. Holes are provided in the Baling Cham­ ber Side Sheets for mounting the Throat Guide Baffle.

4.

Test run the Baler, very slowly, to check for any rubbing. Repeat Steps 1 thru 3, above, if there is any indication of rubbing.

5.

Raise the Rear Door, disengage the Cylinder Locks and lower the Rear Door.

DUAL-POSITION WHEEL AXLES (Fig. 10-8) The RB1710 Baler is provided with dual-position Wheel Axles for making tread width adjustments.

When the Baler is equipped with standard size tires (IlL x 14, 6-ply Implement Tires), the Axles should be installed with the 3/4-10 x 6-1/2" Bolts going through the inner mounting holes in the Axle Shafts.

When the Baler is equipped with wide, flotation tires (31 x 13.5 xIS, 6-ply Implement Tires) or when a wider tread width is desired (for hillside baling, as an example), the Axles may be installed with the 3/4-10 x 6-1/2" Bolts going through the outer mounting holes in the Axle Shafts.

1 - Baffle Angle 2 • Roller 3·1/16"

Fig. 10-7: Throat Guide Baffle Detail (TypiCal)

1 • Outer Mounting Hole (For Wide Tires) 2· Inner Mounting Hole (For Standard Tires) 3 • Axle Shaft (1 each side of Baler) 4·3/4·10 x 6·1/2" Cap Screw, Nut & Lock Washer (1 each side of Baler)

Fig. 10-8: Dual-Position Axle

47

CHAPTE R 11 TRANS PORTING SMV EMBLEM & REFLECTORS (Fig. 11-1) The Baler is provided with a Slow-moving Vehicle (SMV) Emblem Mounting Bracket on the left side of the Rear Door Upper Dust Panel. Red Reflector Strips are also provided on each rear corner of the Baler.

NOTE: Purchase the SMV Emblem locally. Also, because of variations in safety laws for different states and localities, it may be necessary to display the SMV Emblem in a different location. Your GEHL Dealer can assist you in relocating the Mounting Bracket, as necessary.

Fig. 11-2: Accessory Safety Chain (Installed)

A CAU TION ALWAYS follow state and local regulations regarding use of a safety chain and auxiliary lighting when towing arm equipment on public highways. ONLY a safety chain (NOT an elastic or nylon/plastic tow strap) should be used to retain the connection between the towing and towed machine, in the event of separation of the primary attaching system.

BE SURE to check with local law enforcement agencies for your own particular regulations.

Unless otherwise prohibited, use a Slow­ moving Vehicle Emblem.

1 - SMV Emblem Mounting Bracket 2 • Red Reflector (2 Places)

Fig. 11-1

SAFETY CHAIN & AUXILIARY LIGHTING (Fig. 11-2)

PICKUP (Fig. 11-3) Anytime the Baler is to be transported, BE SURE to raise the Picbp to the maximum height (transport position) using the Pickup Adjustment Lever. Secure the Pickup Lever using the Lock Chain provided.

As required or when desired, the Baler can be equipped with a safety chain for operation on public highways.

The safety chain should be attached to the tractor and Baler as shown. When attached in this manner, the safety chain shoulq have the following characteristics: - Chain is sufficiently slack to allow turns and move­ ments of either the tractor or the farm implement, without placing tension on chain.

- Chain is of sufficient strength to hold the decoupled implement (and its load) and tow it to the shoulder.

1 • Pickup Lever Secured with Lock Chain 2 • Pickup Lever Latch Rod

Fig. 11-1

48

CHAPTER 12 STORAGE The following items are recommended for off-season storage of the Baler: 1.

Remove all cropmaterial and debris from behind the Sprockets, Sheaves, ends of the Rollers, Pick­ up, ... etc.

2.

Wash entire machine and repaint any areas, where the paint has been worn-off, to help prevent rusting.

3.

Grease all Fittings and make sure the Telescoping PTO Drive is completely greased. Also, apply a light coat of grease to the Twine Knife and PTO Shaft Coupler Splines ..

4.

Hydraulic Cylinders should be fully retracted and exposed Cylinder Rods should be coated with grease.

5.

Repack the Wheel Bearings.

6.

Clean and then apply motor oil or aerosol spray lubricant to all Roller Chains. Also, apply a little lubricant to the Telescoping Drive Shields and Guard Door Hinges.

7.

If possible, store the unit inside a shed where it is not exposed to weather nor livestock.

8.

Reorder and replace any required parts so that the Baler will be ready to operate at the start of the next baling season.

NOTE:

Before starting-up next season, go over the Checklists in Chapter 3 at the front of this manual.

49

CHAPTER 13 TROUBLESHOOTING NOTE: This Troubleshooting guide presents problems, causes and suggested remedies beyond the extent of loose, worn or missing parts and It was developed with the understanding that the machine is In otherwise good operating condition. Refer to the Index at the back of this manual for Chapter and Topic page references. For additional assistance, BE SURE to contact you local GEHL dealer.

MISCELLANEOUS PROBLEMS PROBLEM

CAUSE

REMEDY

Automatic Chain Oiler over-oiling.

Sticky Check Valve.

Remove and clean Check Valve.

Automatic Chain Oiler under-oiling.

Dirty Screen.

Remove and clean Screen.

Oil too heavy.

Replace with 1O-W oil or lighter.

Lack of lubrication.

Refer to the Lubrication chapter.

Chains and/or Sprockets misaligned.

Realign the Sprockets. Refer to the Service chapter.

Drive Chains overheating.

MATERIAL PICKUP

Pickup is NOT completely cleaning material off the field.

Windrow too heavy, with wet "slugs".

Reduce windrow height, utilize full Pickup width and/or reduce ground speed.

Windrow too light.

Increase ground speed or increase windrow size by combining windrows.

Pickup set too high off of the ground.

Readjust Pickup to lower the setting.

Refer to Adjustments chapter.

Broken or missing Pickup Tines.

Straighten or replace Tines. Refer to Service chapter.

Pickup set too low to the ground.

Readjust Pickup to raise the setting.

Refer to Adjustments chapter.

Pickup mechanism jammed.

Exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE and remove jam.

Pickup Drive mechanism worn.

Replace worn or damaged parts.

Refer to Service chapter.

Pickup Tines pulling oncoming material.

Pickup speed too fast for ground speed.

Slow from 540 RPM and/or increase ground speed.

Pickup Tines running over oncoming material.

Pickup speed too slow for ground speed.

Decrease ground speed and/or increase PTO to 540 RPM maximum.

Pickup NOT running or running too slow.

50

BALE FILLING PROBLEM Bale stops building pressure.

Gauge Pressure reading drops suddenly.

CAUSE

REMEDY

Rear Door opening prematurely.

Maintain Gauge pressure in green area or above during entire baling cycle.

Windrow too dry & light.

See Operation chapter.

Leaky HydrauliC Line or Cylinder.

Correct leak; order and install Cylinder Seal Kit, if necessary.

Too much system back pressure.

Hydraulic Hose Couplers mismatched or tractor hydraulic system faulty.

Malfunctioning Valve.

Refer to the Service chapter.

WRAPPING & EJECTING BALE Material passes thru the Baler.

Baler is overfilled.

Wrap and eject bale when gauge reading is in RED area or before.

Gauge reading NOT maintained above 1000 PSIG (GREEN area on Gauge).

Activate tractor hydrauliC system to maintain 1000 PSIG or higher during entire baling cycle.

End wrap comes off finished bale after ejecting.

Wrapping too close to bale end(s).

Adjust Twine Tie Placement. Refer to Adjustments chapter.

End of bale flares out.

Wrapping too far in from bale end(s).

Adjust Twine Tie Placement. Refer to Adjustments chapter.

Poor bale wrap.

NOT enough wraps.

Use 6 to 8 spiral wraps.

Twine Delivery Tube movement "jerky" or too rapid during wrapping.

Reduce Twine tension or binding.

Insufficient number of end wraps.

Make about three wraps on each end.

Twine is excessively kinky, poorly made or wet.

Replace twine.

Baler NOT level when hitched to tractor.

Adjust hitch. Refer to Preparing For Field Operation chapter.

Rear of Baler pOinted uphill.

Eject bale crosswa.ys on hill or on level ground.

Transporting bale in the Baler for a long distance with the PTO NOT running.

Leave PTO running at 540 RPM during transport.

Bale will NOT eject.

51

BALE APPEARANCE PROBLEM

CAUSE

Bale density on the end(s) is loose or the bale is barrel-shaped.

Improper placement of material along edge of bale .

REMEDY Rerake material into a proper width windrow or pull baler in a weaving fashion.

AUTO·ELECTRIC TWINE WRAPPING SYSTEM Circuit Breaker trips-out repeatedly.

Short circuit in wiring.

Check for faulty Pressure Switch or a short circuit in the wiring for this Switch and replace faulty Switch or repair the wiring, as necessary.

Bent or damaged Linkages.

Check the Twine Tubes and Linkages for bent or damaged parts which may be overloading the Actuator.

Automatic "start" feature does NOT work.

Faulty Pressure Switch or wiring.

Using a jumper wire, connect the ORANGE Wire to ground; if the System "starts", the Switch is faulty.

Automatic "start" feature activating prematurely.

Pressure Switch Wiring damaged or shorting.

Repair Pressure Switch Wiring.

Auto-Electric Twine Tie System functions erratically.

Poor ground connection(s).

Check wiring to battery and tractor grounding for power circuit.

Corroded connections.

Clean all Terminals and Connectors.

Brown wire shorted out.

Make sure that the Brown wire is NOT pinched and/or that the Brown wire is connected to the Normally Open Terminal on the Twine Delay Switch.

I

No response from Center Twine Wrap Knob.

52

CHAPTER 14 SET- UP & ASSEMBLY SHIPPING HARDWA RE (Figs. 14-1 & 14-2) NOTE: The RB 171 0 Baler is shipped from the fac­

WHEELS & TIRES

tory with the Rear Door bolted closed. BE SURE to remove the (2) Shipping Bolts (one on each side of the Baler, as shown), BEFORE attempting to open the Rear Door for the first time.

For transportation purposes, the RB 171 0 Baler may have been shipped from the factory without the Wheels and Tires mounted. If so, install the Wheels and Tires and tighten the Lug Nuts to 90 ft-Ib (124 Nm). Inflate the Tires to the pressure as listed in the Tire Pressures chart in the Service chapter.

NOTE:

TWINE TIE SYSTEM

Some units may also be shipped with a Door Lock Bracket arrangement on the Door Handles of the two Large Hinged Doors on the left side of the Baler. These brackets are used to keep the Doors closed during shipment and should also be removed and discarded.

Manual-Electric-controlled Tie System

Power Cable Routing Make the Power Cable connection to the Plug on the Electric Actuator and route the tractor end connection along the Hydraulic Lines on the left side of the Draw­ bar, over the top of the Hitch Clevis and up toward the back end of the tractor. Install two (2) Nylon Tie Straps to secure the Power Cable to one of the Hydraulic Lines.

Tractor Control Box Installation A Bracket is provided for attaching the Receptacle onto the tractor. The Bracket should be located on the rear of the tractor in a position which prevents the Cable from being caught by the PTO. 1 • Shipping Bolt (Installed)

Fig. 14·1: Rear Door Shipping Bolt (Right Side)

Appropriate hardware and mounting brackets are provided for attaching the Control Box to a non-sup­ portive member (such as the cab or a fender) on the tractor. BE SURE to locate the Control Box within convenient reach. Make the Red (+) 12-volt and White (-) 12-volt tractor battery/ground connections for powering the Control Box.

Auto-Electric-controlled Tie System

Control Box (Fig. 14-3) 1.

If NOT already preassembled, install and secure (3) Magnets (067040) to the bottom of the Mount­ ing Bracket (088345) using (6 each) #10-24 x 1/2 Round Head Machine Screws, Lock Washers and Nuts.

2.

Secure the Control Box (088340) to the Mounting Bracket (088345) using the (2) M8-1.25 Nuts provided.

3.

Set Control Box and Bracket Assembly aside.

1 • Shipping Bolt (Installed)

Fig. 14·2: Rear Door Shipping Bolt (Left Side)

53

2.

If Baler Harness is NOT already so equipped, cut the Ring Terminal Connec tor off the Brown Wire.

Then, install the Spade Terminal on the Harness Brown Wire. Then, connect the Brown Wire of the Harness to the Brown Wire from the Delay Switch.

NOTE: The lengths of the Orange and Blue Wires are designed to match the requirements of several different models of Balers. Do NOT cutoff and attempt to splice together either wire. Form a loop with the excess Wire and anchor it around existing mounting brackets, when applicable.

3.

1 • Magnets (3)

2 • Mounting Bracket 3· #10·24 x 1/2 RHMS, L & N (1 each of 6) 4 • Control Box 5 • M8·1.25 N (2)

Route the tractor end connection along the Hydraulic Lines on the left side of the Drawbar, over the top of the Hitch Clevis and up toward the back end of the tractor. Install two (2) Nylon Tie Straps to secure the Power Cable to one of the Hydraulic Lines.

Fig. 14·3

Baler to Tractor Wiring Harness Routing & Connections (Fig. 14-4) 1.

54

On the Baler end of Harness, connect the Harness Plug (Red and Yellow Wires) to the Plug from the Electric Actuator. Connect the Green Wire of the Harness to the Green Wire from the Delay Switch and anchor them to a hole in the Twine Mounting Plate with a #8-32 x 1/2 Round Head Machine Screw, Internal-Tooth Lock Washer and #8-32 Nut, making sure a good ground is made with the Plate.

Tractor Power Harness NOTE: Some recent production tractors have "ac­ cessory power" terminals readily available in the cab or console to simplify electrically-powered accessory wiring.

Depending on the tractor provisions, properly and securely attach the RED Wire of the Power Harness (088341) to the positive (+) side of the tractor battery and the BLACK Wire to the battery's negative (-) side.

1 • Delay Switch Green (Ground) Wire· Connected to Com. Terminal & Anchored to Plate (along with Green Wire from Harness) with a #8·32 x 1/2 Round Head MachIne Screw, Internal Tooth Lock Washer & Nut Brown Wire· Connected to N.O. TermInal and to Brown WIre from Harness

2 • Actuator Power Plug 3 • Orange & Blue Wires Routed from Harness to Pressure Switch· Only Orange Wire Is Used, Blue Wire is Capped 4 • ElectrIc Actuator 5 • Orange WIre 6 • Pressure Switch

Fig. 14·4

55

CHAPTER 15 OPTIONAL FEATURES & AC CESSORIES GENERAL INFORMATION

BALE DISCHARGE BUMPER (Fig. 15-2)

The following Optional Features & Accessories are available for installation on a Baler to increase is capabilities. Set-up and assembly information for all Kits, except the Twine Tie Mechanisms, are provided in separate instructions packaged with each Kit of parts.

The Bale Bumper (803643) is designed to roll the discharged bale back away from the Baler about 10 feet (3 meters) on level ground. This usually provides enough clearance to close the Rear Door without having to move the tractor forward. Installation in­ structions and mounting hardware are provided with the Bale Bumper.

AUTO-ELECTRIC TIE SYSTEM The Auto-Electric Wrap System .(805435) includes a tractor-mounted Control Unit, remotely mounted Sen­ sors, Power and interconnecting Cables, mounting Brackets and attaching hardware. Details for adapta­ tion and operation of the system are included in a appropriate section of this manual. The Auto-Electric Wrap System is designed to enable automatic and uniform wrapping of the bale with twine ..

AUTOMATIC CHAiN OILER (Fig. 15-1) The Automatic Chain Oiler (803642) provides a squirt of lubrication to all of the Drive Chains (except for the Pickup Drive Chain, as noted below) every time the Rear Door opens to discharge a bale. In this way, the Chains are oiled in direct proportion to the number of bales produced. Installation details are included with the Chain Oiler Kit.

NOTE:

The Pickup Drive Chain does NOT get oiled by the Automatic Chain Oiler and MUST be manually oiled every 8 hours (or daily) . Refer to the Drive Chains topic in the Lubrication chapter of this manual.

Fig. 15-1: Automatic Chain Oller (Installed)

56

1 • Bale Discharge Bumper (Installed)

Fig. 15·2

CROWDER WHEELS KIT (Fig. 15-3) The Crowder Wheels Kit (805423) is available for expanding the Pickup width of either model Baler to enable taking in a wider swath of material. The Kit contains (2) Crowder Wheels, Mounts and attaching hardware. Installation, operation and adjustments details are provided with the Kit of parts.

Fig. 15-3: Crowder Wheels (Installed)

NOTE: The optional Crowder Wheels Kit cannot be installed at the same time as the optional Gauge Wheel Kit because of interference with the right side mounting brackets.

GAUGE WHEEL (Fig. 15-4) The Gauge Wheel (803636) allows the Baler Pickup to better follow the contour of the ground and, thereby, reduces the possibility of the Pickup Tines contacting the ground. Installation instructions are provided with the Gauge Wheel.

NOTE:

AFTER installing (or removing) the Gauge Wheel, BE SURE Pickup flotation is reset so that approximately 30 Ibs (14 kgs) of force is required to lift the Pickup at the Hay Hold-down Cross Pipe BEFORE operating the Baler or damage to the Pickup may result. Refer to the Pickup Flotation topic in the Adjust­ ments chapter of this manual.

MANUAL-ELECTRIC TWINE TIE KIT The Manual-Electric Twine Tie Kit (805028) is avail­ able for manual control of the Twine Tie mechanism.

It contains a Control Box, Wiring and mounting hardware. Installation details are provided in the Set­ up & Assembly chapter.

SAFETY CHAIN (Fig. 15-5) NOTE: If the Baler is going to be transported on a public highway, ~ Safety Chain Kit should be obtained and installed following the details in the "Controls & Safety Equipment" and "Transporting" Chapters.

The recommended Safety Chain for use with this Baler can be obtained in Kit 803320.

Fig. 15-5: Safety Chain (Installed) Fig. 15-4: Gauge Wheel (Detail)

57

CHAPTE R 16 DECAL LOCATIONS GENERAL INFORMATION

PAINT NOTICE Use this list to order paInt for refinIshing:

Decal Locations infonnation is provided to assist in the proper selection and application ofnew decals, in the eventthe original decal(s) become(s) damaged or the machine is repainted. Refer to the listing for the illustration reference number, part number, description and quantity ofeach decal provided in the Kit Refer to the appropriate illustration(s) for replacement location(s).

NOTE:

Refer to the SAFETY Chapter in the Operator's Manual for the specific information provided on all of the various Safety Decals furnished in the Decal Kit(s).

To ensure proper selection for correct replacement decal(s), compare all ofthe various closeup location photographs to your machine BEFORE starting to refinish the unit. Then, circle each pictured decal (applicable to your machine) while checking-off its part number in the listing. After you have verified all of the decal needed for replacement, set aside unneeded decals for disposal.

NEW DECAL APPLICATION Surfaces MUST be free from dirt, dust, grease and other foreign material before applying the new decal. To apply a solid­ fonned decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and align­ ment Slowly peel off the other portion of the backing paper while applying hand pressure to smooth-out the decal surface.

A CAUTION ALWAYS read and abide by the Safety Rules and Information shown on Decals. If Decal(s) become(s) damaged, unreadable or If the unit Is repainted, the Decal(s) MUST be replaced.

If repaInting, MAKE SURE ALL Decals which apply to your machine are properly affixed to your unit In their proper locatIons.

901225 901226 610239 610240

One Gallon Blaze Paint One Gallon MaIze PaInt 6 (12oz Spray Cans) Blaze Paint 6 (12oz Spray Cans) MaIze PaInt

The Decal Set Number for the RB17lO is 117575. The Set includes the following: Ref. Part No. Number 1 2 3 4 6 7 8 9 10 11 12 13 14 15 16 17 18 19

060148 060510 060511 061201 065982 067493 080124 080247 082643 083353 083354 083444 083626 084156 090909 090910 091444 093020 093365

20 21

093366 093367

22 23 24 25 26· 27 28

093373 093460 093462 093466 093498 093653 094132

5

Description & Quantity Decal- General Operation Decal- Jack Storage Pos~ion Decal- Jack Lifting Pos~ion Decal ~ GEHL 2-7/8" High Decal - Check Roller Chain Idlers Strip - Red Reflector (2 Places) Decal- GEHL 4-112" High Decal- NO STEP (3 Places) Decal-1710 (2 Places) Decal - Roll Baler - Right Side Decal - Roll Baler - Left Side Decal- Welger System Decal - Chain Adjustment Decal- Operating Instructions Decal - Striping 4-112" x 92" Decal- Striping 2-7/8" x 71" DANGER - Rotating Drive Line Decal- Lubrication Symbol (4 Places) WARNING - Close or Replace Guard (4 Places) IMPORTANT - Operator's Manual Location WARNING - Operator's Responsibil~ & Read Manual WARNING - General Safety Precautions WARNING - Stay Clear of Gate (3 Places) DANGER - Do NOT Hand Feed WARNING - 540 RPM Operation Only WARNING - Throat Guide Baffle WARNING - Rotating Drive Line Decal- GEHL 24 x 3-7/8" High

• NOT SHOWN - Decal is located on Throat Guide Baffle which is stored bo~ed to the Baler right side Vertical Channel.

58

59

NOTES

60

INDEX Page

Page

A Adjustrnents .................................. 30 Auto-Electric Control. . . . . . . . . . . . . . . . . . . . . . . .. 22 Installing ................................. 53 Auto-Electric Tie System. . . . . . . . . . . . . . . . . . . . .. 56 See also Twine Tie System Automatic Chain Oiler . . . . . . . . . . . . . . . . . . . . . . .. 56 Refilling Reservoir . . . . . . . . . . . . . . . . . . . . . . . .. 34 Auxiliary Lighting .......................... 19,48 Axles See Wheel Axles

B Bale Discharge Bumper ....................... 56 Baler Attaching to Tractor. . . . . . . . . . . . . . . . . . . . . . .. 44 Baling Density Control. . . . . . . . . . . . . . . . . . . . . . . . . . .. 25 Difficult Conditions . . . . . . . . . . . . . . . . . . . . . . .. 27 Ejecting Bale ... . . . . . . . . . . . . . . . . . . . . . . . . . .. 26 Handling & Storage ........................ 28 Overload Protection . . . . . . . . . . . . . . . . . . . . . . .. 29 Throat Guide Baffle ........................ 27 Tips ...................................... 23 Unplugging ............................... 25 Wrapping Bale with Twine. . . . . . . . . . . . . . . . .. 25 Bearings Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 34 Replacing ................................. 37 C Chain, Drive See Drive Chains Chain, Safety See Safety Chain Checklists ..................................... 5 Circuit Breaker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 23 Control Pickup Height Lever ........................ 18 Controls & Safety Equipment ................... 15 Crop Preparation ............................. 23 Crowder Wheel Kit ........................... 56 Cylinder Locks ................................ 17

D

Decals Applying .................................. 58 Locations .................................. 58 Ordering Information ....................... 58 See also Safety Decals Drawbar Flap ................................. 45 Drawbar Requirements See Tractor Drive Chains Lubrication ................................ 34 Servicing .................................. 38 Tension Adjustments ....................... 31 F

Fire Extinguisher ............................. 19 Functional Descriptions Mechanical Power .......................... 21 Density Control ............................ 22 Hydraulic Power ........................... 23 Twine Tie Systems ......................... 24 G Gauge Wheel Function .................................. 57 Height Adjustment ......................... 32 Gauge, Pressure See Pressure Gauge Gearbox Lubrication ................................ 34 Removing/Installing ........................ 39 Gib Key Servicing ................................... 37 Grease Fittings Greasing .................................. 34 Guards & Shields Drive Line ................................. 15 Gearbox ................................... 16 Jackshaft .................................. 16 Left Side .................................. 16 Main Drive ................................ 16 Rear Door Dust Panels ...................... 16 Twine Tie Mechanism ...................... 15

61

IN DEX (Continued) Page H Hitchjack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 17 Horn ........................................ 23

Hydraulic Hose Connections. . . . . . . . . . . . . . . . . .. 46 Indicator In Cycle .................................. 23 Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 23 Introduction ................................... 2

J lackshaft, Main Drive Servicing ................................. 40 L

Lubrication .................................. 34 M MANDATORY SAFETY SHUTDOWN

Page PTO See PTO Drive Line

PTO Drive Line Connecting ............................. 18,45 Repair ................................... . 42 PTO Drive Shields Lubrication .... .. .......................... 34 R

Rear Door Cylinder Locks .............................. 17 Inspecting ...... . .......................... 42 Reflector Strips. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 48, See also Decals Rubber Coupler See also Overload Protection Servicing ............... ..... .............. 40

PROCEDURE ............................ 8

S

Manual-Electric Control ...................... 22 Installing ................................. 53 Manual-Electric Twine Tie Kit. . . . . . . . . . . . . . . .. 57 See also Twine Tie System

Safety ........................................ 8 Safety Decals .. . .............................. 9 Safety Chain ........................... 19,48,57 Service ...................................... 37 Setup & Assembly .... .. ............... . ...... 53

o Operation .................................... 21 Optional Features & Accessories ..... . . . . . . . . .. 56 Overload Protection .......................... 29 P

Paint Ordering Information. . . . . . . . . . . . . . . . . . . . . .. 58 Pickup Flotation Adjusting ........................ 30 Height Adjusting ......................... 18,30 Transport Position ......................... 48 Pickup Assembly Servicing ....................... . ......... 41 Pickup Clutch

See also Overload Protection Servicing ................................. 41 Power Cable (Manual-Electric) Routing ........ 53 Preparing for Field Operation . . . . . . . . . . . . . . . . .. 44 Preparing Material for Baling . . . . . . . . . . . . . . . . .. 23 Pressure Gauge .......................... 18,22,25

62

Shields See Guards & Shields

SMV (Slow-Moving Vehicle) Emblem .... . .. 19,48 Specifications ................................. 3 Storage ..... .. .. . ....................... . .... 49 Switches Auto/Off/Manual ........................... 22 Center-Wrap ............................... 23 End-Wrap ... . ............ ... . . ............ 23 ExtendlRetract .......... .. .............. 22,23 Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 18 Recycle ................................... 23 Twine System Delay Adjusting .............. 32 Switch, Pressure ............................. 18 T

Telescoping PTO Drive See PTO Drive Line Throat Guide Baffle. . . . . . . . . . . . . . . . . . . . . . . . . .. 27 Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 46

IN DEX (Continued) Page

Page

Tines See Pickup Assembly Tires & Wheels Installing ................................. 53 Servicing ................................. 43 Tire Pressures ............................. 43 Torque Specifications Standard Hardware. .... .. . .. Inside Back Cover Wheel Lug Nuts ........................... 53 Tractor Requirements .............................. 44 Tractor Power Harness Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 54 Tractor Requirements See also Specifications - Chapter 2 Transporting ................................. 48 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 50 Twine Routing ................................... 46 Tension Adjustment . . . . . . . . . . . . . . . . . . . . . . .. 33 Twine Clamp Jaws Adjusting ................................. 32

Twine Placement Adjusting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 32 Twine Tie System Delay Switch Adjusting ..................... 32 "Pause" Adjusting .......................... 32 Installing .................................. 53

U Unplugging .................................. 25

V Valve - Pressure Control ...................... 18 W

Warranty ..................... Inside Front Cover Wheel Axles Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 47 Positioning ................................ 33 Wheel Bearings - Repack . . . . . . . . . . . . . . . . . . . . .. 34 Wheels See Tires & Wheels See also Gauge Wheel Wiring Harness (Auto-Electric) Routing ......... 54 Wrapping Bale with Twine See Baling

63

NOTES

64

TORQUE SPECIFICATIONS FOR STANDARD MACHINE HA RDWARE All Torque Values are In Ft-Lbs except when marked with an * which are In-Lbs. (Multiply In-Lb value* by 0.113 or Ft-Lb value by 1.355 to obtain metric Nm value.)

Bolt Size

Dry

GradeS

GradeS

Grade 2 Lub.

Dry

Lub.

Dry

Lub.

NOTE: These torque values are to be used for all GEHL hardware excluding: Locknuts, Self-tapping Screws, Thread Forming Screws and Sheet Metal Screws. Unless otherwise specified, all torque values must meet this specification.

BOLT GRADE IDENTIFICATIONS

Grade 2

Grade 5

Grade 8

FARM EQUIPMENT GEHL COMPANY

906016/1 P191

WEST BEND, WISCONSIN 53095 U.S.A.

©Gehl Company 1991

Printed In U.S.A.
