519 Telehandler INNER BOOM

Step 26

Step 28

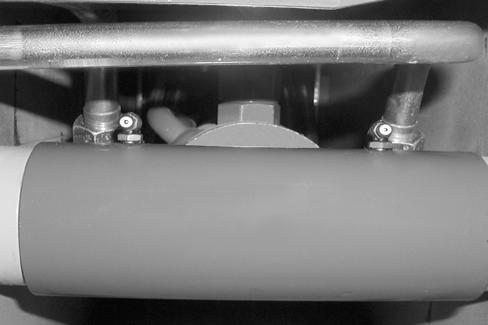

Raise the boom enough to access the tilt cylinder and auxiliary hydraulic line connectors. Remove the caps and plugs from the hydraulic connectors. Connect the hydraulic lines and tighten.

Step 27

With the main boom lowered and the inner boom fully retracted from the back of the machine, install the top left wear pad and bolts. Tighten the bolts.

Remove the caps and plugs from the extend cylinder hydraulic lines. Install the hydraulic lines to the extend cylinder.

NOTE: Do not tighten.

Step 29

Install the hydraulic lines mounting block and tighten the nuts (1). Connect the hydraulic hoses (2) and tighten.
