519 Telehandler SLAVE CYLINDER

STEP 6

Step 8

Step 7

STEP

STEP

Step 11

Start the engine. Move the machine to an open area and park on a level surface. Apply the parking brake. Raise and lower the boom several times until all air is removed from the system. Cycle the tilt circuit back and forth. This will aid in removing air from the circuit.

Step 12

Lower the boom and shut off the engine. Check for leaks. Correct any le akage found. Check the hydraulic fluid level. If ne cessary, fill to the correct level with the specified fluid.

Template Name: OML_2_colRac 0-00000

Template Date: 1997_02_12

Template Name: OML_2_col907871

Template Date: 1994_04_22

519 Telehandler LIFT CYLINDER

Lift Cylinder Removal

BEFORE cleaning, lubricating or servicing this equipment, refer to the MANDATORY SAFETY SHUTDOWN PROCEDURE in Section 100 (Personal Safety Information And Decal Locations).

STEP 1

Fully retract and lower the telescoping boom onto a support stand. Stop the engine.

STEP 2

Move the boom travel joystick in all directions several times to relieve pressure from the hydraulic system.

NOTE: See Section 605 of this Service Manual for the repair of this cylinder.

STEP 3

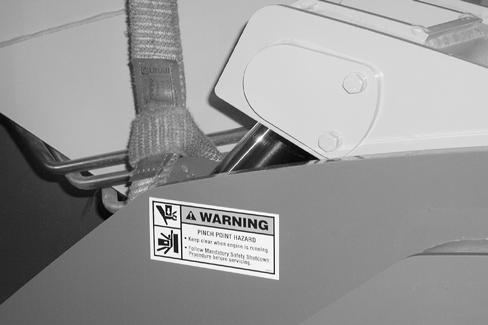

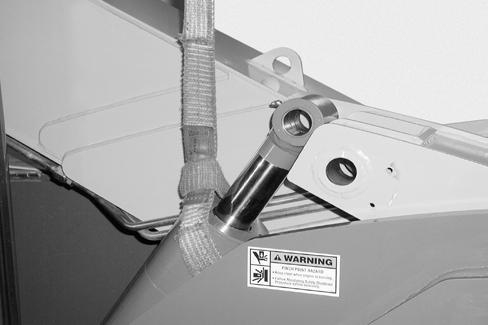

Using a chain hoist and lifting strap, position the lifting strap to support the weight of the lift cylinder when the upper pivot pin is removed. Apply upward force to remove slack in the lifting strap.

STEP 4

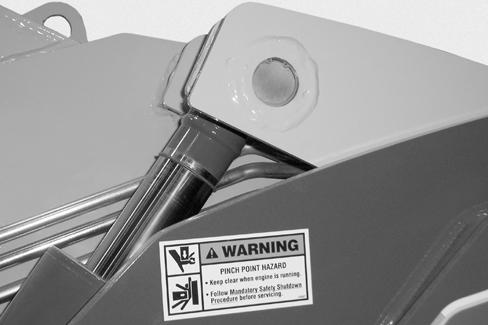

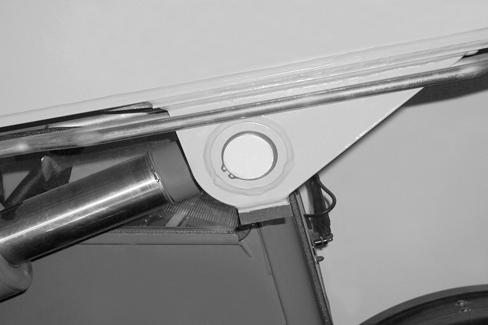

Remove the snap ring from both sides of the upper pivot pin.

STEP 5

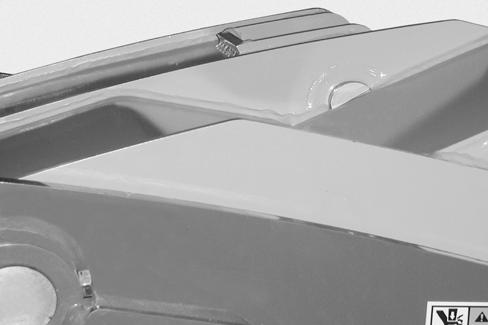

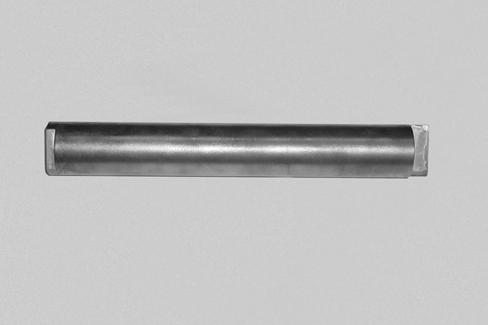

Remove the upper pivot pin.

Template Name: OML_2_col

Template Date: 1994_04_22
