519 Telehandler ENGINE

STEP 18

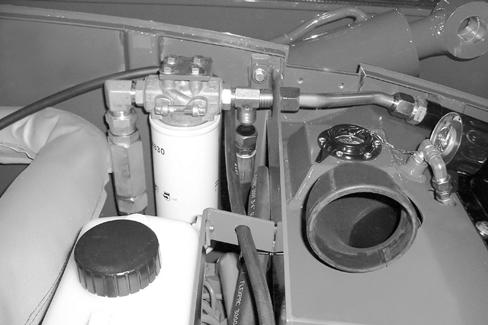

Loosen the hydraulic oil fill cap (1) to relieve residual pressure in the system. Remove the hydraulic hose (2) from the oil cooler. Install a cap and plug on the fittings.

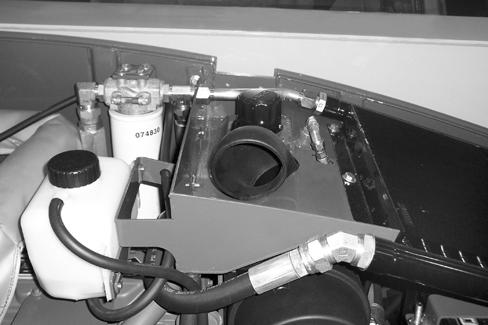

Disconnect the tube (1) from the oil filter. Cap and plug the fittings. Disconnect the hydraulic tank breather line (2).

Template Name: OML_2_col907871

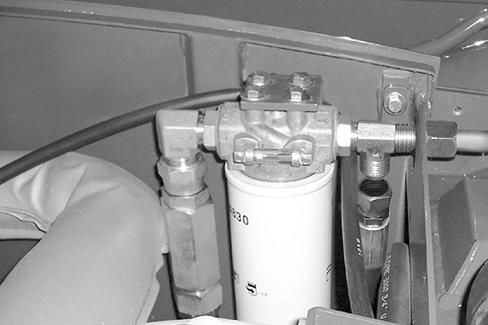

Remove the hydraulic filter (1). Remove the cooler mounting bolt (2). With the help of an assistant, remove the hydraulic cooler. Install a cap on the hydraulic reservoir fill fitti ng and a plug in the line from Step 24.
