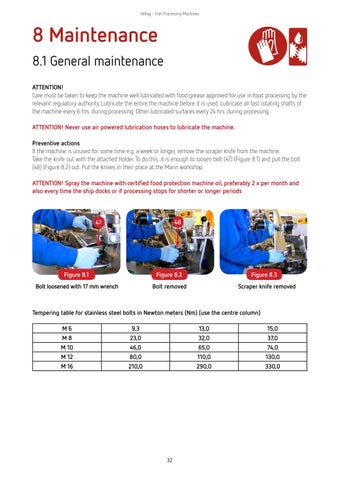

8 Maintenance 8.1 General maintenance ATTENTION! Care must be taken to keep the machine well lubricated with food grease approved for use in food processing by the relevant regulatory authority. Lubricate the entire the machine before it is used. Lubricate all fast rotating shafts of the machine every 6 hrs. during processing. Other lubricated surfaces every 24 hrs. during processing. ATTENTION! Never use air powered lubrication hoses to lubricate the machine. Preventive actions If the machine is unused for some time e.g. a week or longer, remove the scraper knife from the machine. Take the knife out with the attached holder. To do this, it is enough to loosen bolt (47) (Figure 8.1) and pull the bolt (48) (Figure 8.2) out. Put the knives in their place at the Marin workshop. ATTENTION! Spray the machine with certified food protection machine oil, preferably 2 x per month and also every time the ship docks or if processing stops for shorter or longer periods
48
47
Figure 8.1
Figure 8.2
Bolt loosened with 17 mm wrench
Bolt removed
Figure 8.3 Scraper knife removed
Tempering table for stainless steel bolts in Newton meters (Nm) (use the centre column) M6
9,3
13,0
15,0
M8
23,0
32,0
37,0
M 10
46,0
65,0
74,0
M 12
80,0
110,0
130,0
M 16
210,0
290,0
330,0
