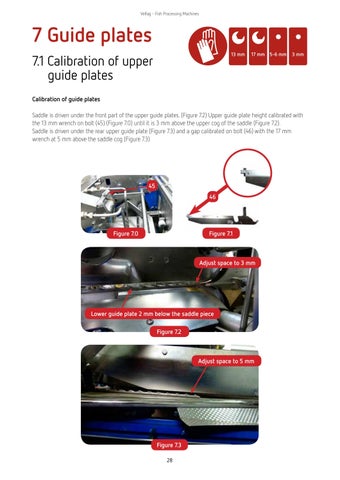

7 Guide plates 13 mm
7.1 Calibration of upper guide plates
17 mm 5-6 mm
3 mm
Calibration of guide plates Saddle is driven under the front part of the upper guide plates. (Figure 7.2) Upper guide plate height calibrated with the 13 mm wrench on bolt (45) (Figure 7.0) until it is 3 mm above the upper cog of the saddle (Figure 7.2). Saddle is driven under the rear upper guide plate (Figure 7.3) and a gap calibrated on bolt (46) with the 17 mm wrench at 5 mm above the saddle cog (Figure 7.3)
45 46
Figure 7.0
Figure 7.1
Adjust space to 3 mm
Lower guide plate 2 mm below the saddle piece Figure 7.2
Adjust space to 5 mm
Figure 7.3 28
