519 Teleshandler

Step 30

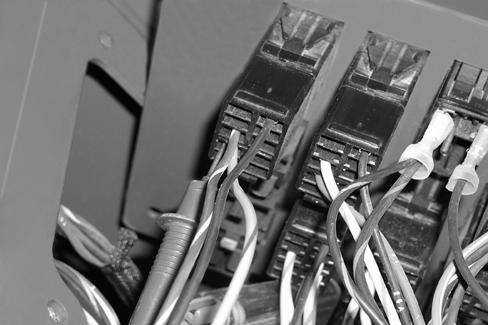

Connect the positive (+) test lead to the relay terminal (tan/red wire) of the park brake switch. With the key switch and park brake switch in the ON position, the multimeter should read 12 to 13 volts.

If there is no voltage, replace the park brake switch.

If there is 12 to 13 volts, but no voltage at Step 24, replace the tan/red wire between the switch and the relay.

Step 31

Move the park brake switch to the OFF position. The multimeter should read 0 volts.

If there is 12 to 13 volts, replace the park brake switch.
