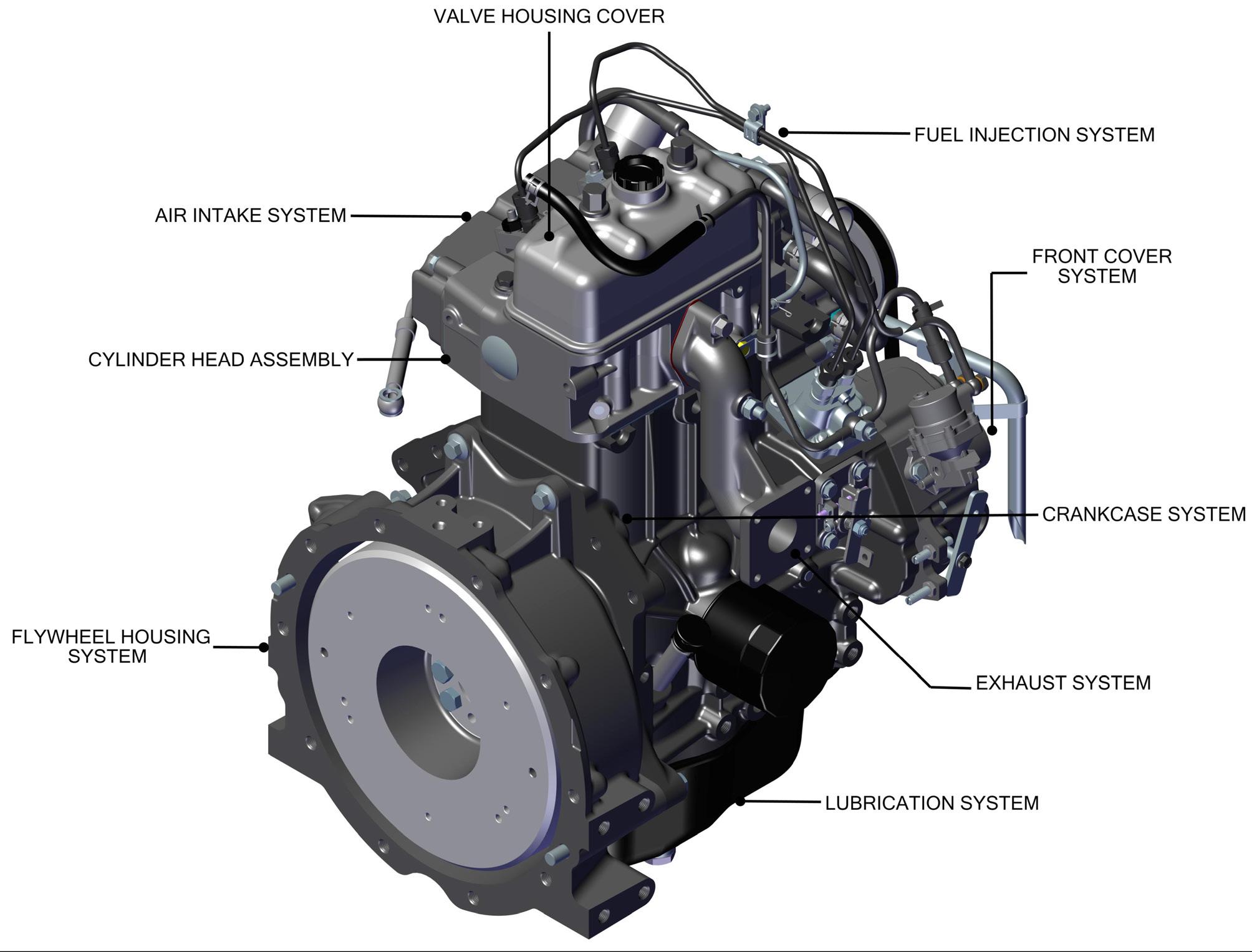

Engine Sub Assemblies

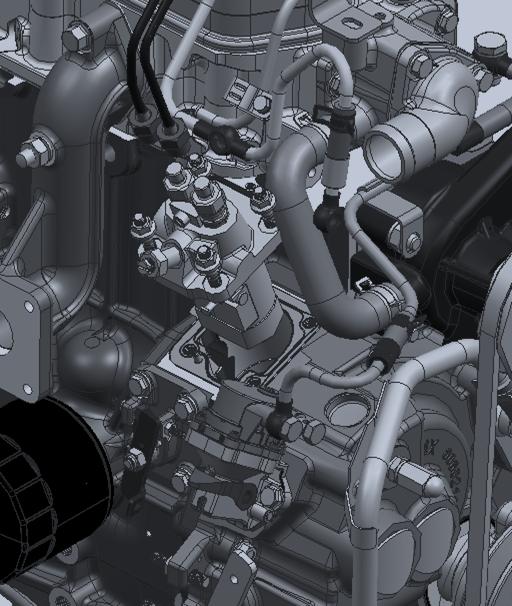

Recommended Fip Removal Instruction

CAUTION:- ⚠

Fip May Get Damaged If Not Followed The Fip Removal Instruction

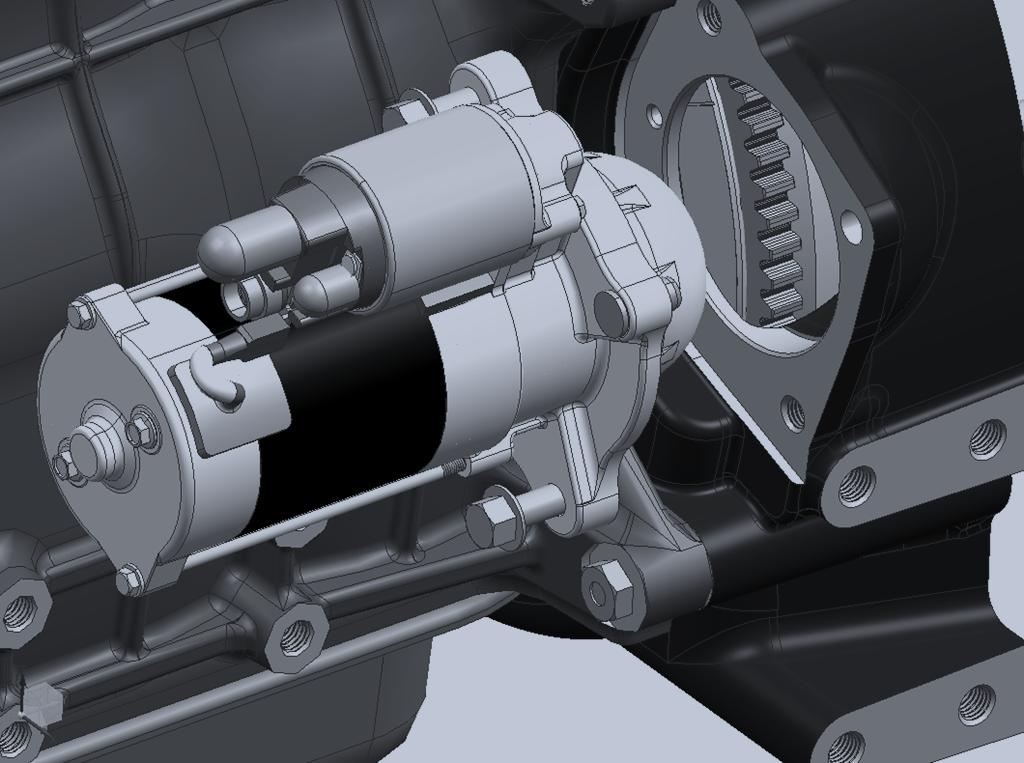

1.Remove starter motor.

2.Match line on flywheel by rotating flywheel to hole on flywheel housing (see Fig. no.1). (rotate flywheel in anti clockwise direction viewing from driver seat position)

3.Remove fuel line and HPP pipes from FIP

4.Remove mounting nuts of FIP to crankcase

5.Push Pull to stop lever towards front so as that it is in between the front and rear pull to stop screws.

6.Remove FIP from its position with out altering position of pull to stop lever by slightly inserting a thin screw driver wedge, at bottom of the FIP flange
