SPEED SHIFTER ASSEMBLY & MOUNTING

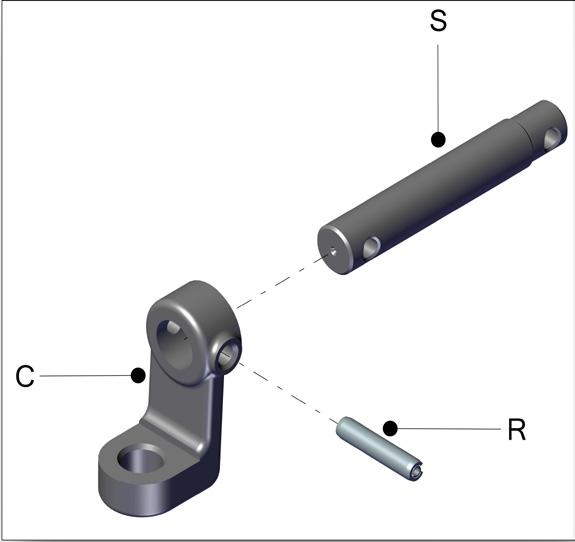

Assemble outer cam Link (C) and shaft speed shifting (S) locking it with roll pin (R) NOTEEnsure free rotation of shaft

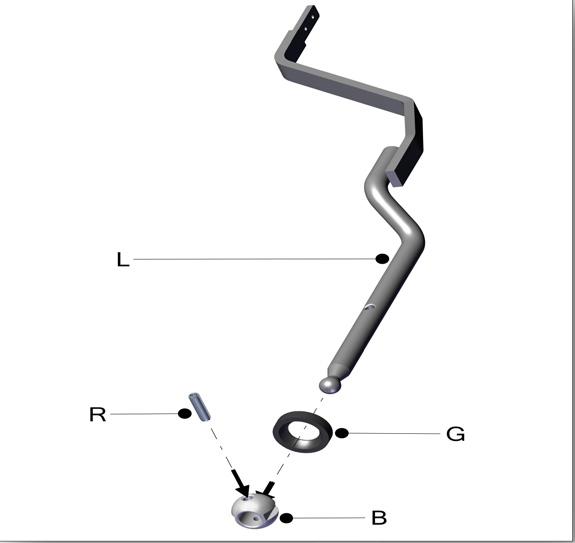

Take upper Gear shifter on lever and then assemble the ball pivot (B) on lever (L) and lock both with roll pin (R).

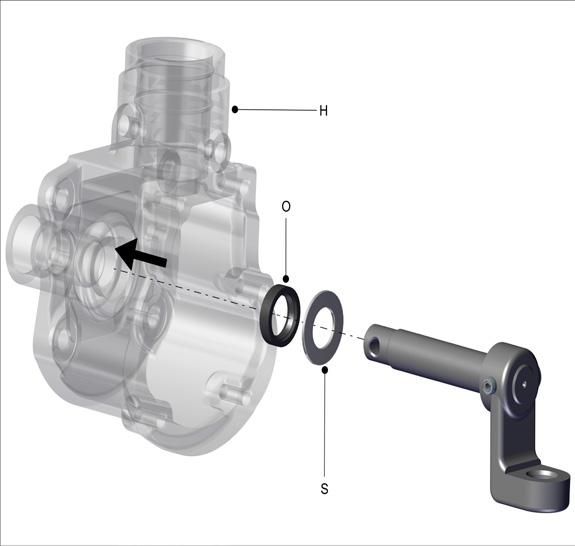

Take speed shifter housing (H) and (S) in housing (Hpress oil seal (O) in it.Insert the shaft gate shifter with spacer stopper ).

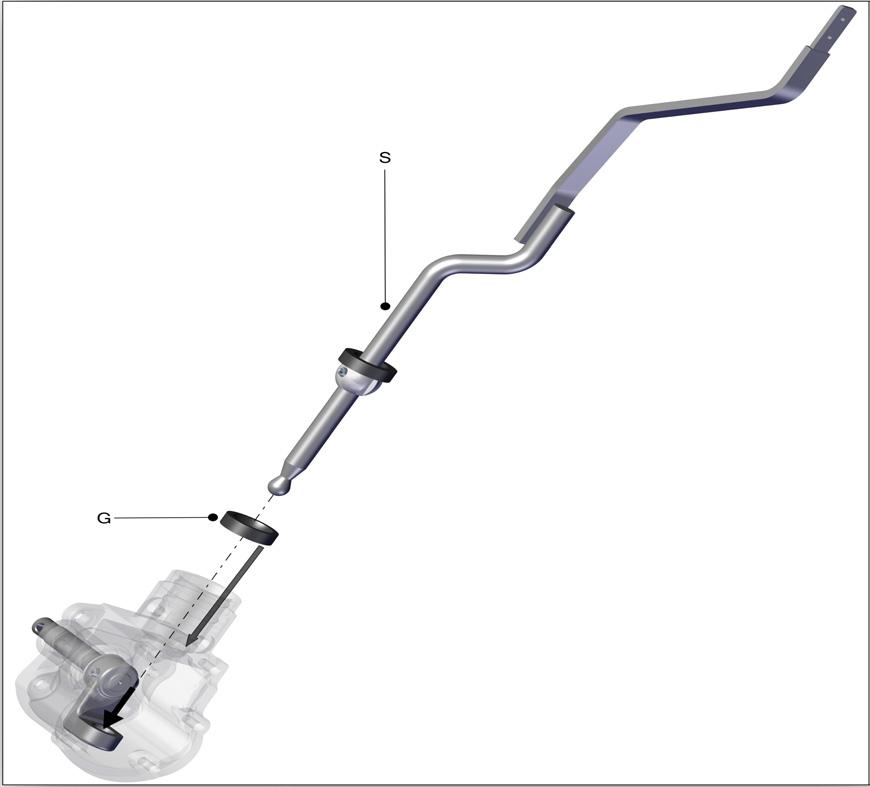

Insert

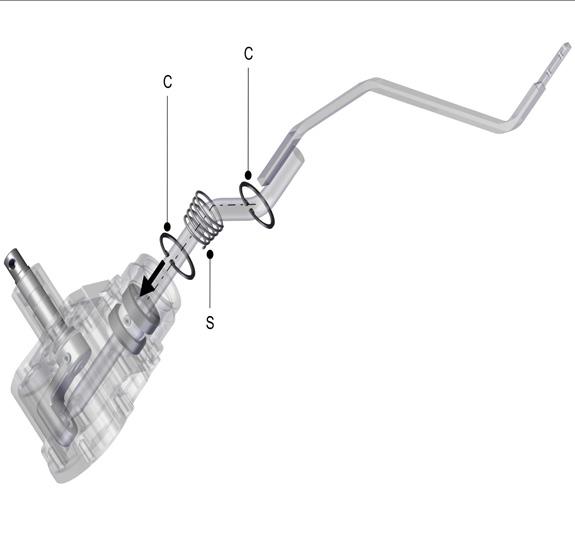

Insert Circlip internal (C) with straight circlip plier. Insert Conical spring (S). Insert the Circlip Internal (C) in dropbox

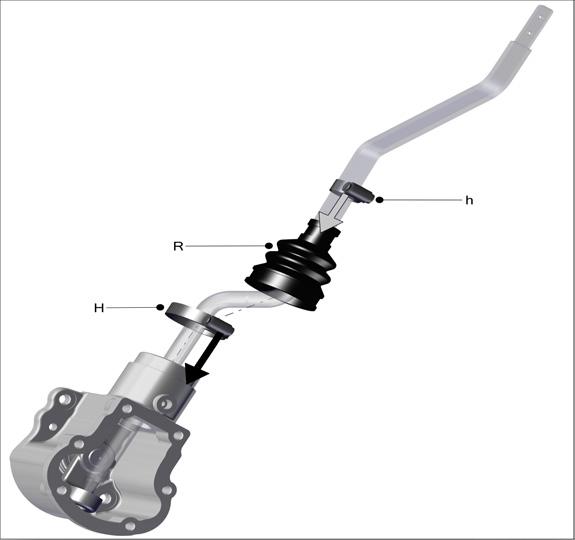

Cover dropbox upper open end & shifter lever with rubber boot(R). Fix it with hose clip (h) on lever & on dropbox with hose clip (H).
Insert the spring bias (S) on shaft and Fit cam link inner (L) with roll pin (R)
