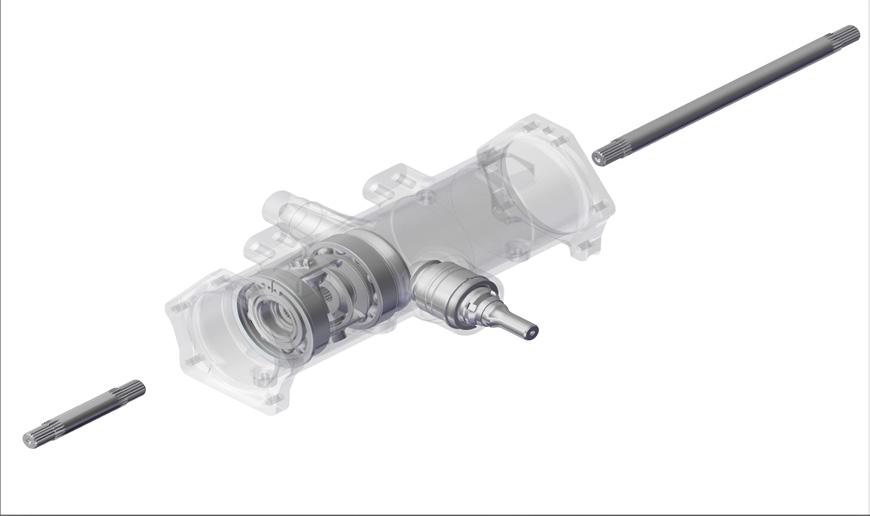

BEAM HOUSING ASSEMBLY

Take diff case (17) & insert bevel gear RH (B) & LH (A) with thrust washers (C).

Insert 2 bevel pinion (12) with Pinion Thrust Washers (13) in differential case

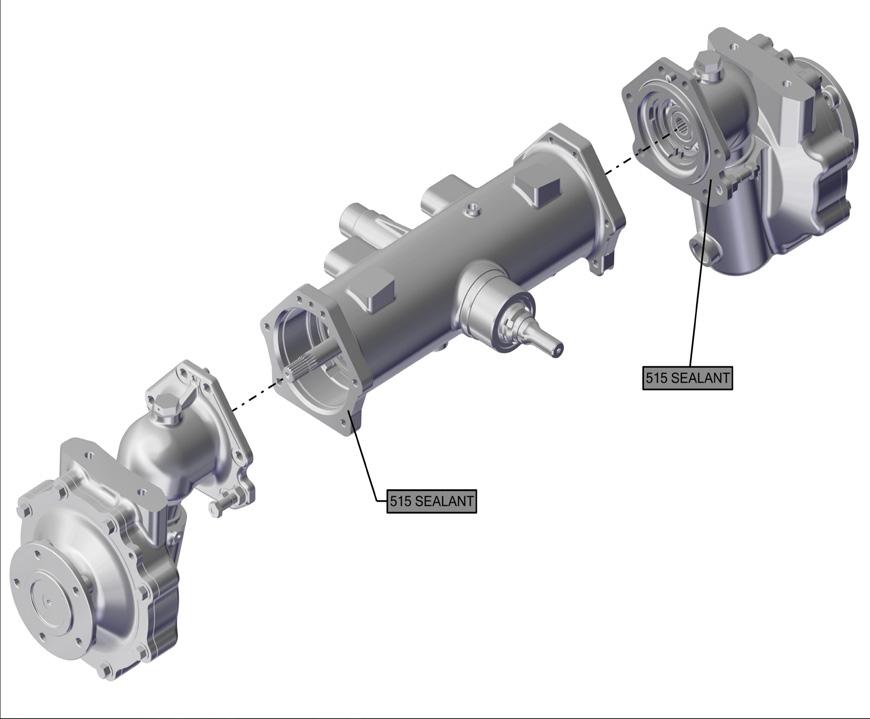

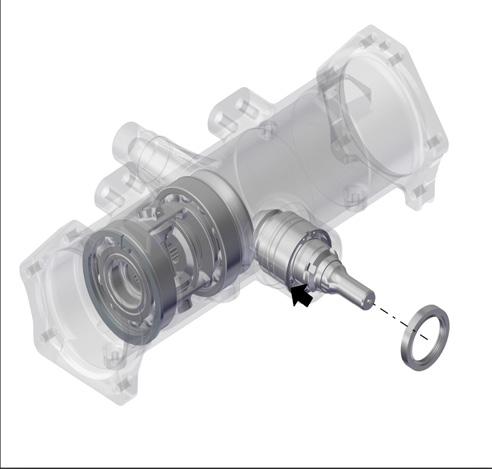

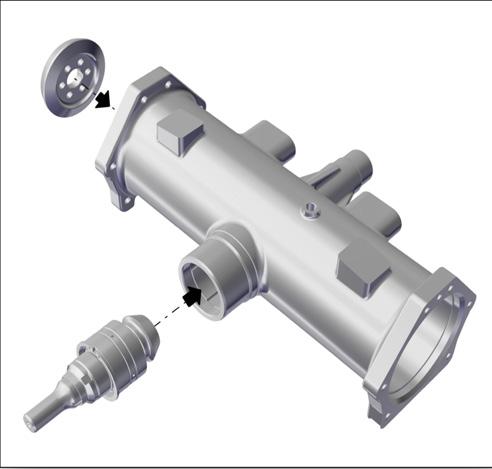

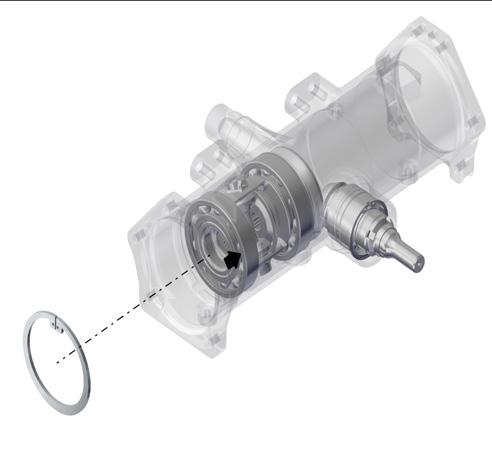

Apply 515 sealant on side housing & dock complete sub assembly to the beam housing (For LH & RH)

Insert bevel pinion shaft (16) through both pinion. Press roll pin (11) after aligning Diff Case and shaft holes by Dolly for roll pin pressing

Apply sealant 638 on ring gear and Insert ring gear (9)on Differential Case

Mount the bolt (8) & apply torque 118-125 Nm Insert

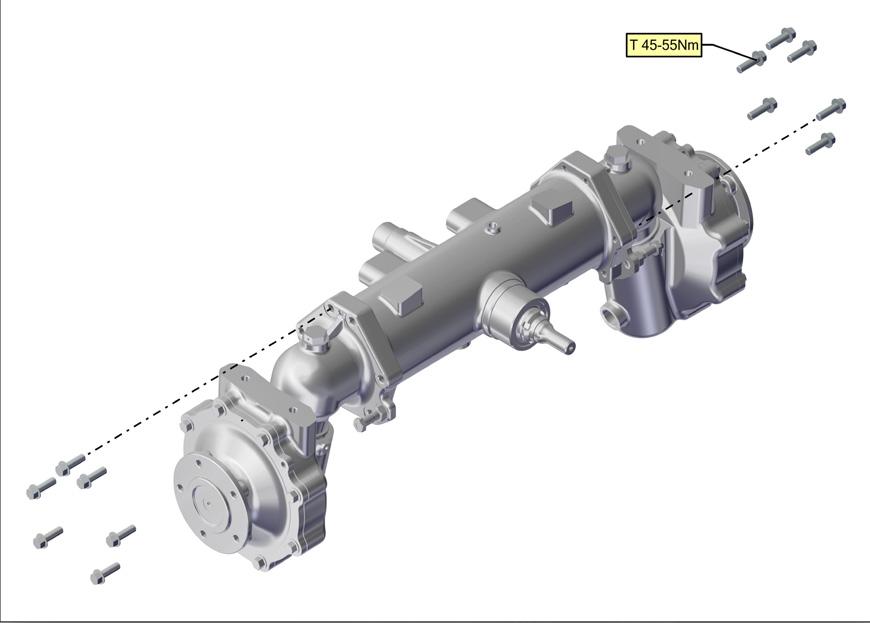

1.Mount Bolt & apply Torque.

2.Apply Torque 45-55 NM

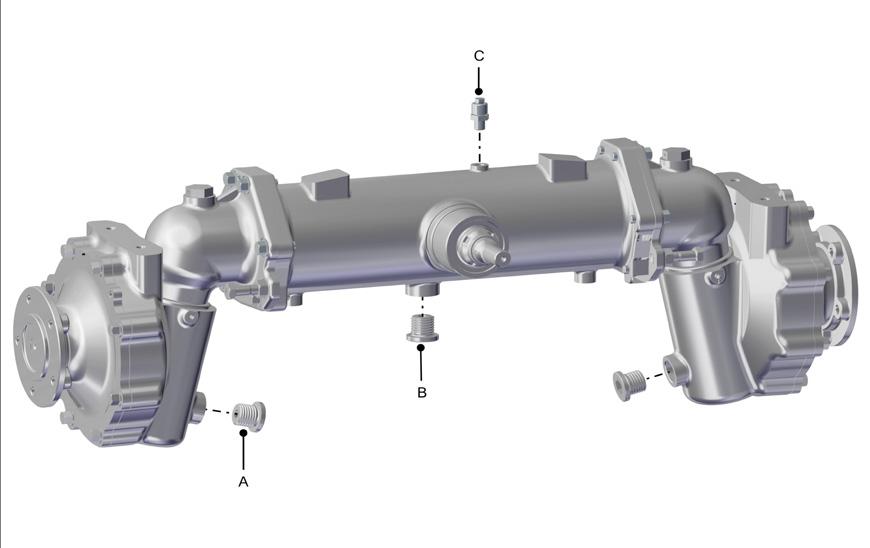

1.Mount breather on beam Housing.

2.Apply Torque 95-110 NM.

3.Mount Drain plug in beam housing with Torque 50-55 NM.

4.Mount Drain plug of Swivel Housing LH & RH Apply Torque 50-55 NM.
