Locate the batteries the right - hand side the ma chine. Remove the four screws (R) with the relevant washers and nuts. Remove the battery cover (S) .

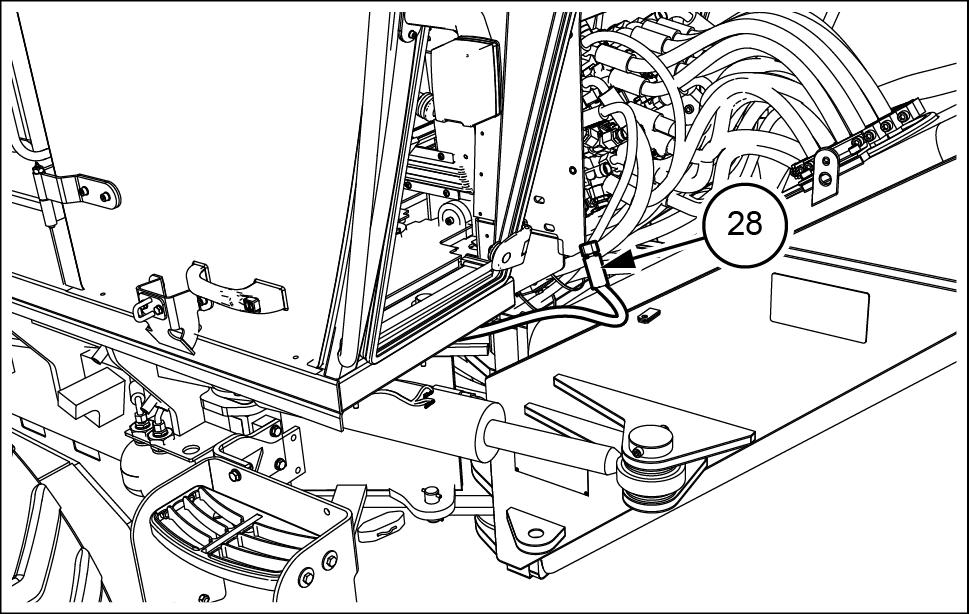

34. Pass the hydraulic hose (28) under the cab from the front right - hand side. Move the hose (28) through the right - hand side the engine compartment the blade control valve (2) . NOTE: this operation requires two people.

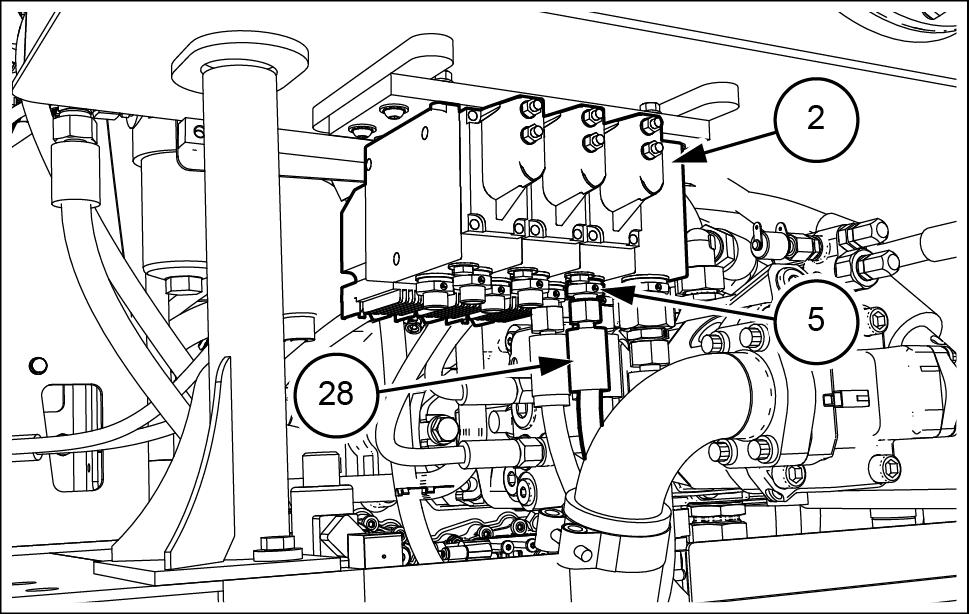

35. Connect the hose (28) the fitting (5) installed the blade control valve (2) , shown in figure .

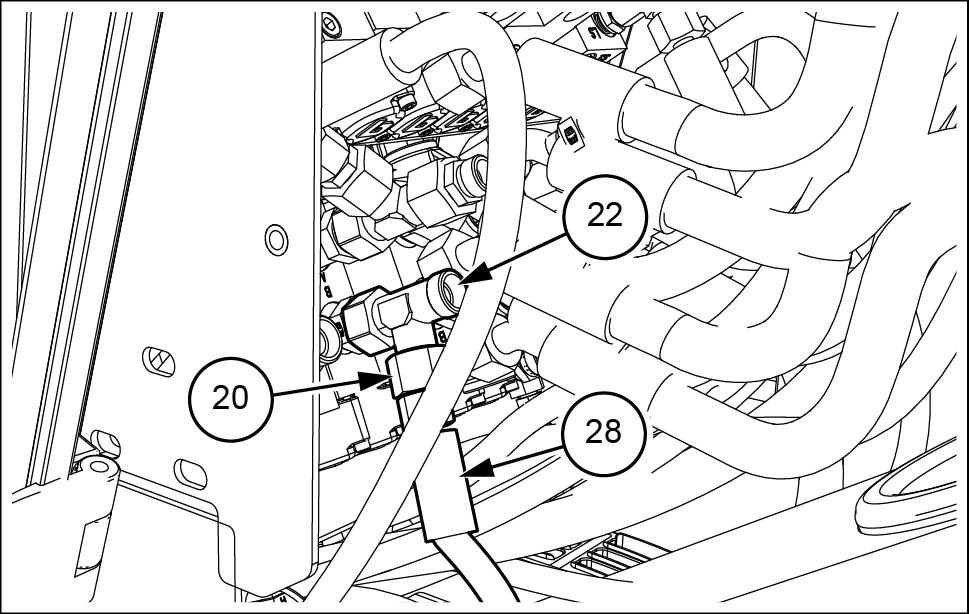

36. Connect the loose end the hose (28) the fitting (20) installed the socket tee (22) the port “B” the lower control valve.
