Remove the bolts (N) with the relevant washers and nuts. Remove the bolt (P) with the relevant washer . Remove the cover assembly (Q) the front frame.

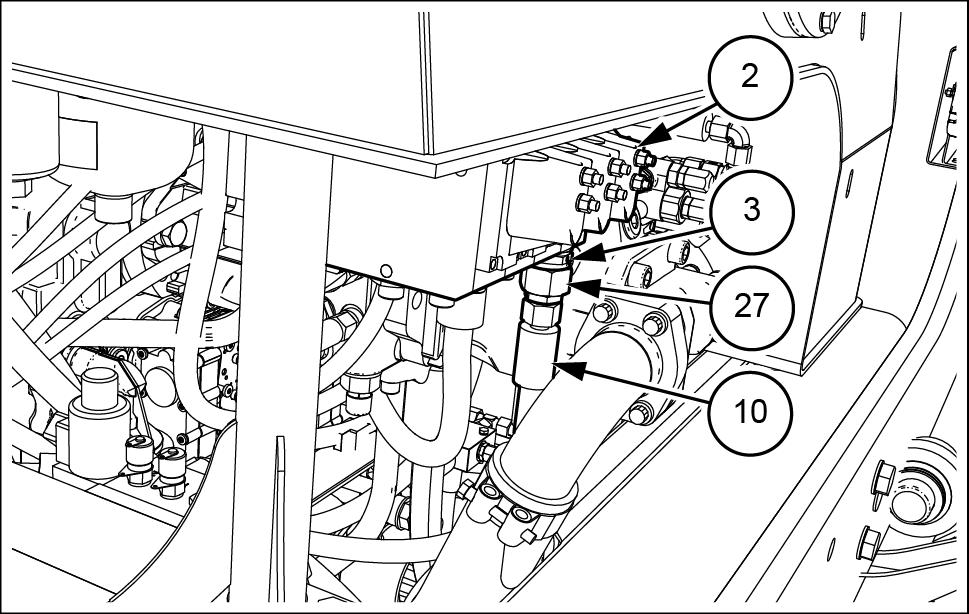

16. Install the fitting (27) the rear fitting (3) (port “P”) installed the blade control valve (2) . 17. Connect the hydraulic hose (10) the fitting (27) .

18. Locate the block valve the right - hand side the machine.

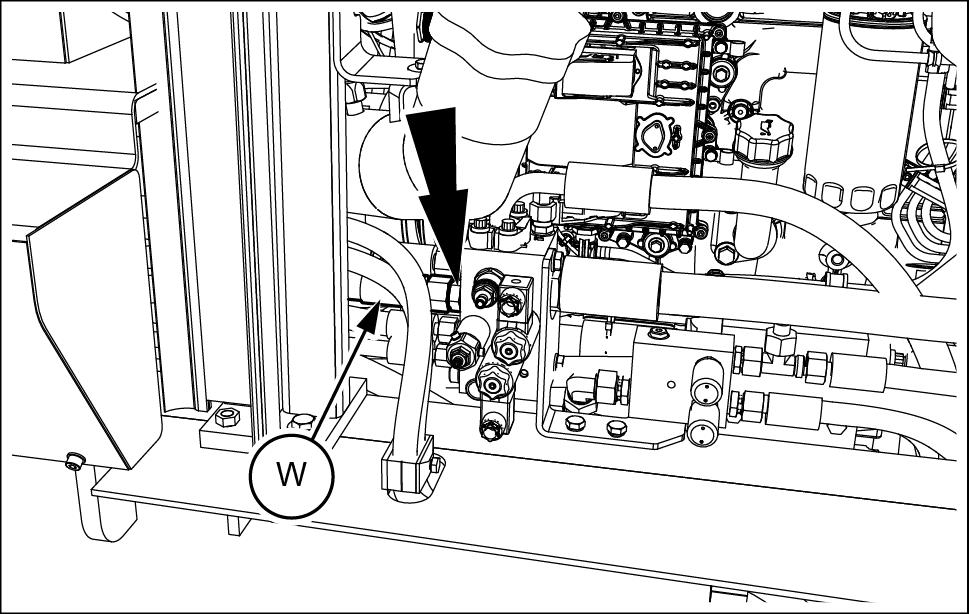

Disconnect the hose (W) from the fitting installed the port “S2” the block valve.

19. Install the socket tee (22) the fitting installed the port “S2” the block valve. NOTE: for clarity , figure does not show the brake hoses.

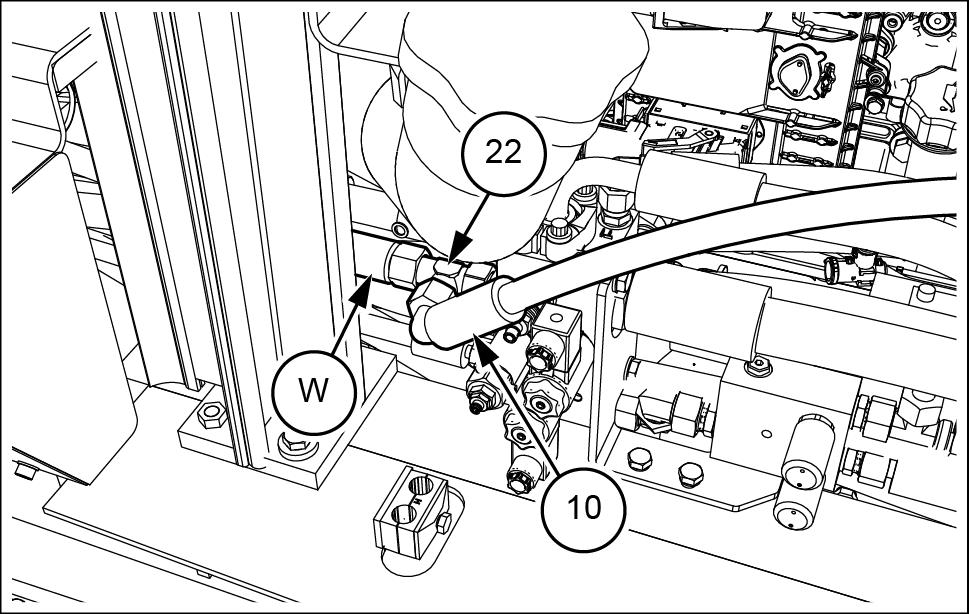

20. Connect the loose end the hose (10) and the hose (W) the socket (22) , shown figure . NOTE: for clarity , figure does not show the brake hoses.

LEIL16GRD0029AB 12

LEIL16GRD0030AB 13

LEIL16GRD0031AB 14

LEIL16GRD0032AB 15
