Remove the six bolts (T) . Remove the cover (U) the top the front frame.

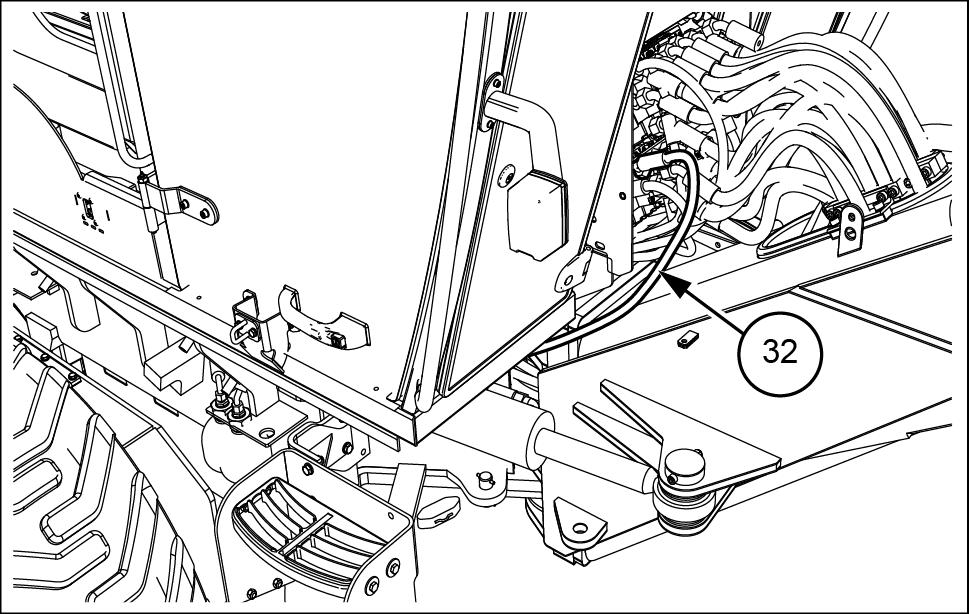

21. Pass the hydraulic hose (32) under the cab from the front right - hand side. Move the hose (32) through the right - hand side the engine compartment the blade control valve (2) . NOTE: this operation requires two people.

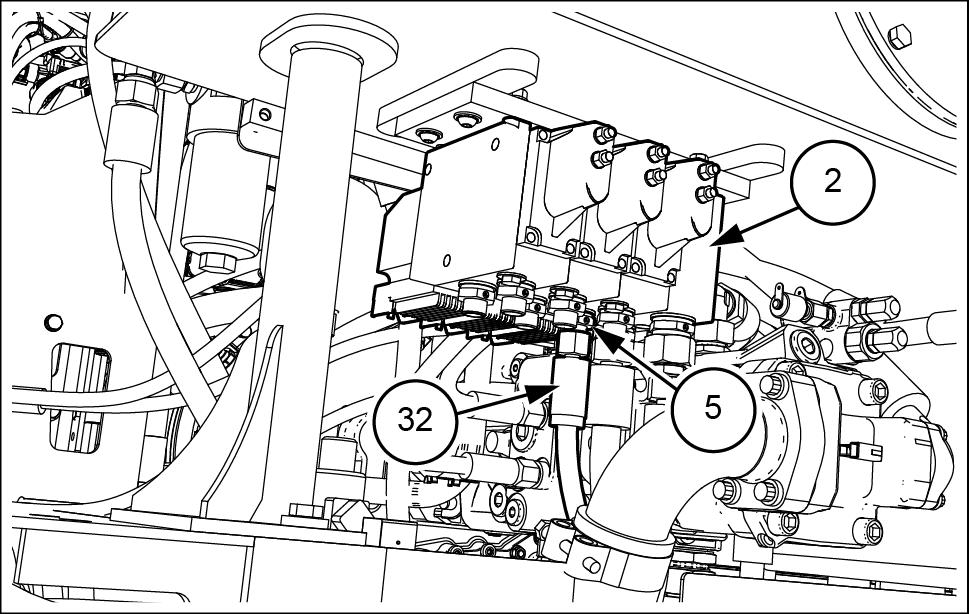

22. Connect the hose (32) the fitting (5) installed the blade control valve (2) , shown in figure .

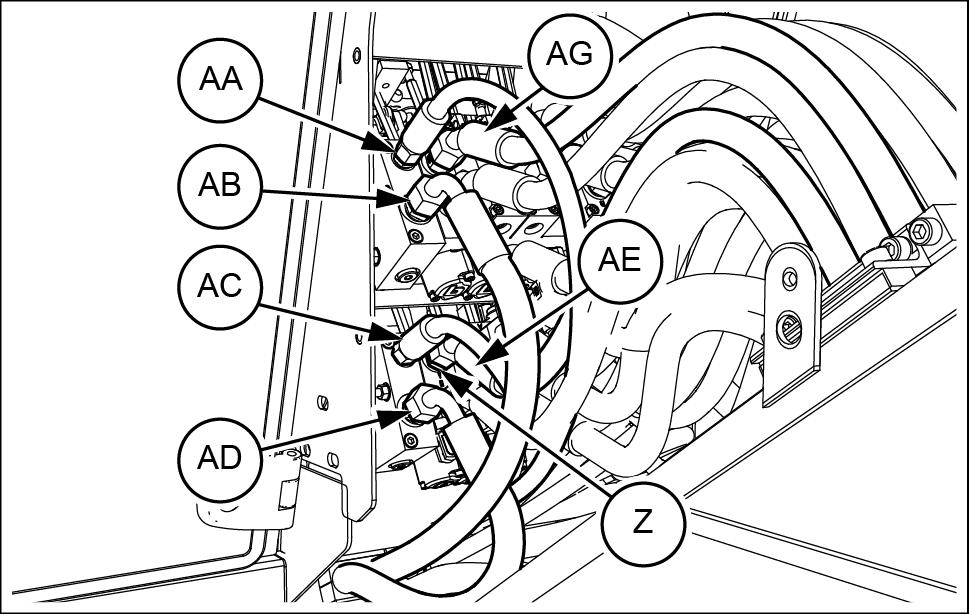

23. Disconnect the hoses (AA) , (AB) and (AG) from the upper control valve the front the cab. 24. Disconnect the hoses (AC) , (AD) and (AE) from the lower control valve the front the cab.

Remove the fitting (Z) from the port “A” the lower control valve. NOTE: the removal the hoses (AA) , (AB) , (AC) , (AD) , (AE) and (AG) is necessary in order gain access install and tighten the hydraulic hoses and fittings installed.

LEIL16GRD0033AB 16

LEIL16GRD0034AB 17

LEIL16GRD0035AB 18
