Disconnect the negative terminal the battery

from CNH Leica Geosystems Moldboard 800C 836C 836C AWD 856C 856C AWD F156.8A Motor Instructions Manual

Loosen the mounting bolts (L) and remove the cover (M) the hydraulic lines.

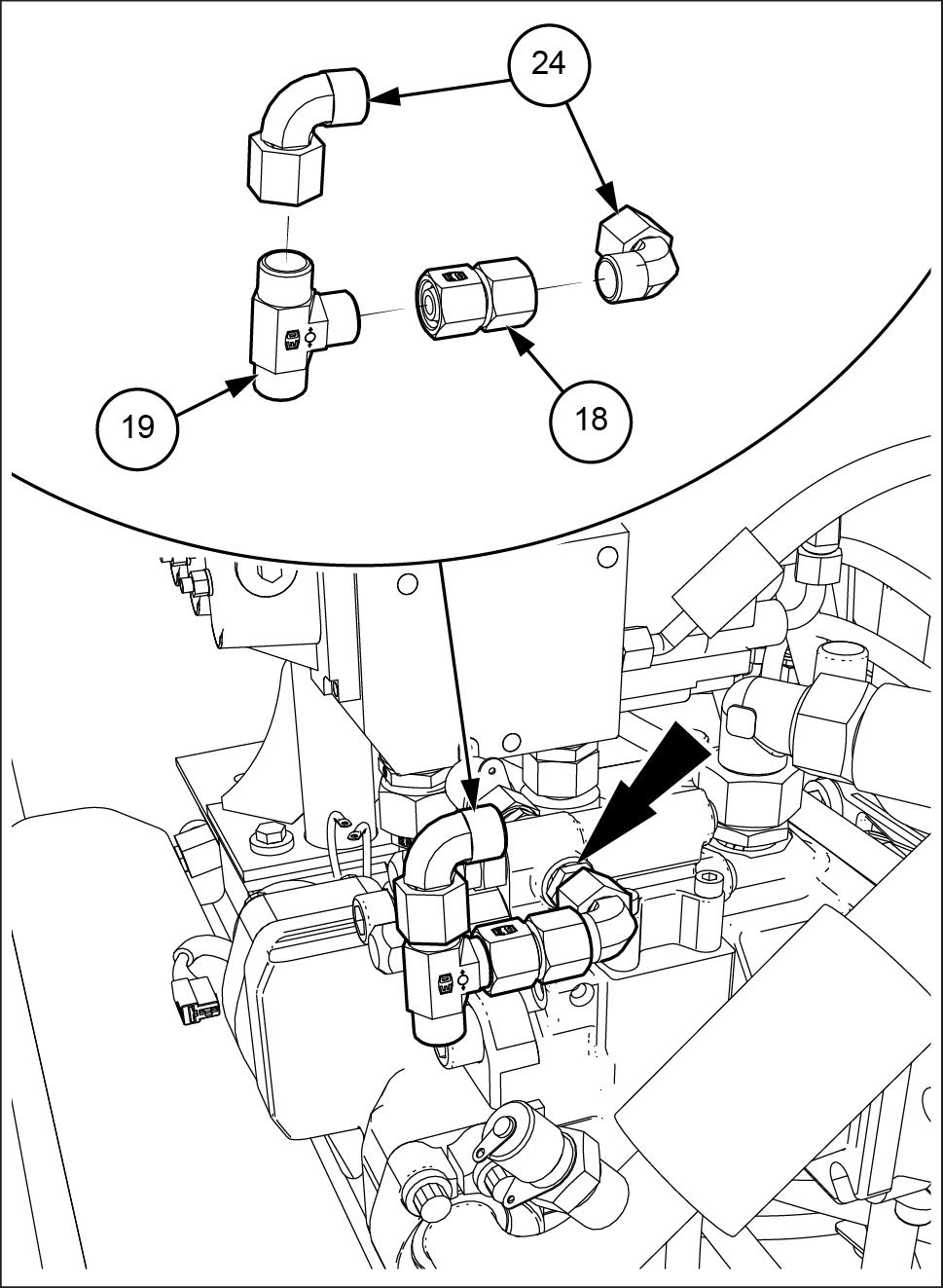

1 Pre - assemble the two ° elbows (24) , the fitting (18) and the shuttle valve (19) , shown in figure 9. 12. Install the assembly the two ° elbows (24) , the fitting (18) and the shuttle valve (19) the port “X” the hydraulic pump.

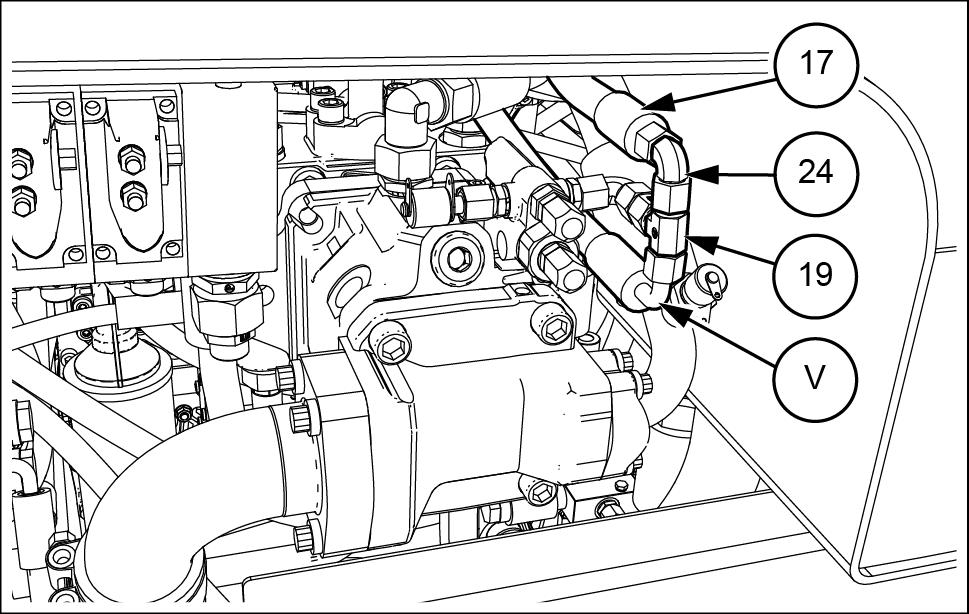

13. Connect the loose end the hose (17) the upper ° elbow (24) installed the hydraulic pump. NOTE: route the hose (17) the right - hand side the engine compartment. 14. Connect the hose (V) the shuttle valve (19) installed the hydraulic pump.

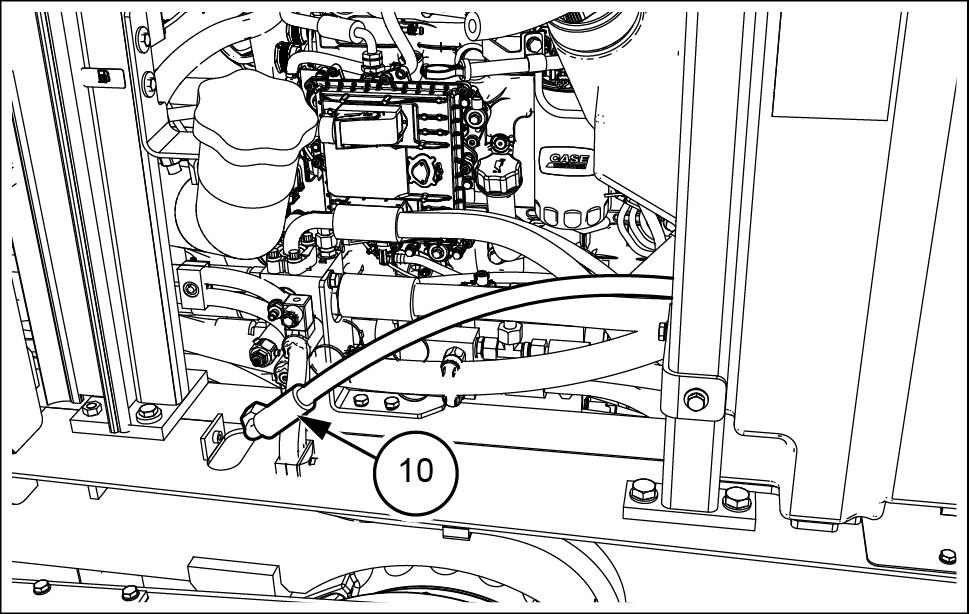

15. Pass the hydraulic hose (10) through the engine compartment: from the left - hand side the machine the blade control valve (2) the rear . NOTE: this operation requires two people.

LEIL16GRD0026BB 9

LEIL16GRD0027AB 10

LEIL16GRD0028AB 11
