Remove the side panels (K) from the cab floor
from CNH Leica Geosystems Moldboard 800C 836C 836C AWD 856C 856C AWD F156.8A Motor Instructions Manual

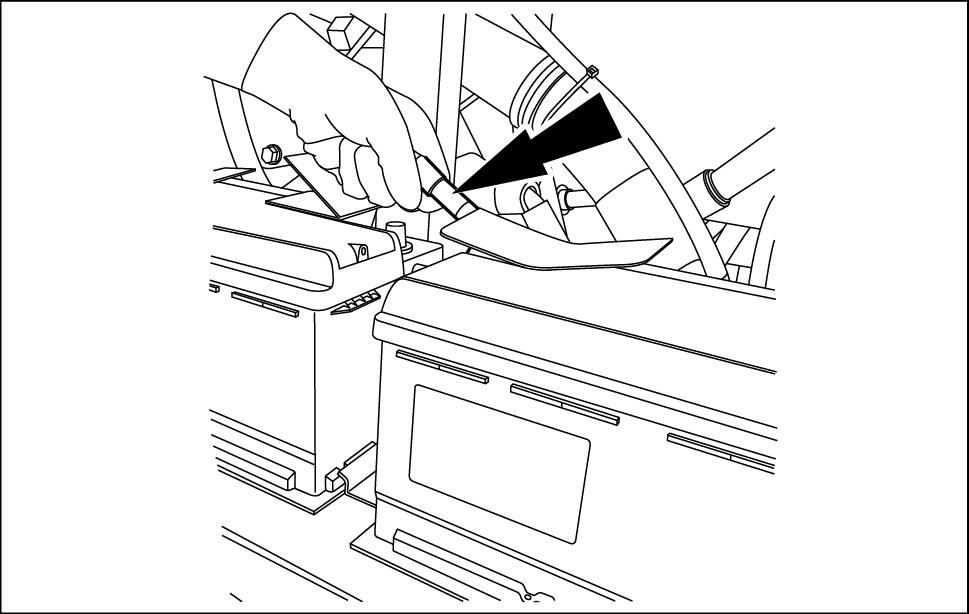

18. Remove the jumper cable between the batteries. 19. Disconnect the positive terminal the battery . 20. Insulate the battery terminals.

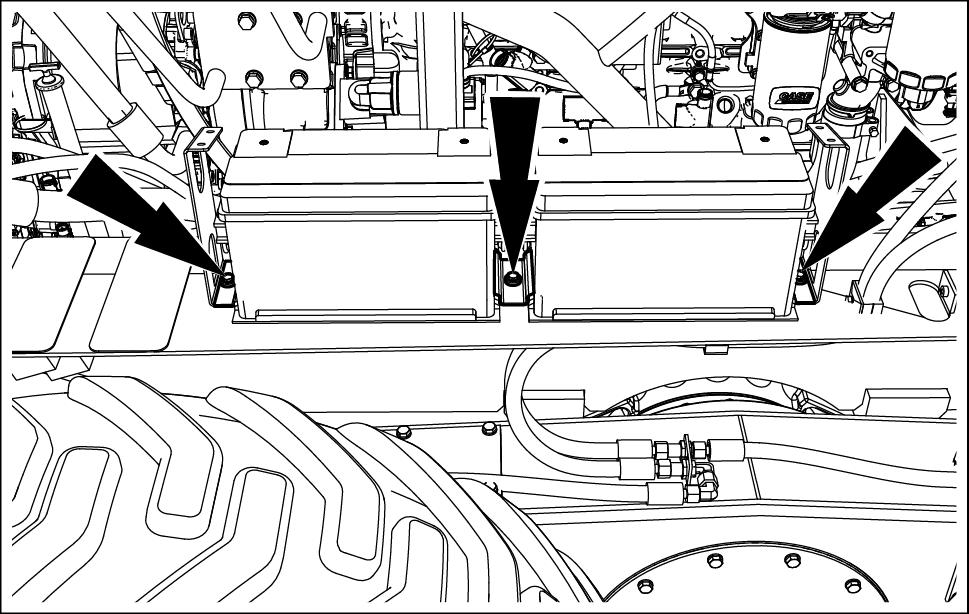

21. Remove the three screws with the relevant washers and nuts. Remove the three battery holders. 22. Remove the batteries from the machine.
LEIL16GRD0010AB 14
LEIL16GRD0013AB 15
