TILLER HANDLE

I 1. POWER TILT SWITCH

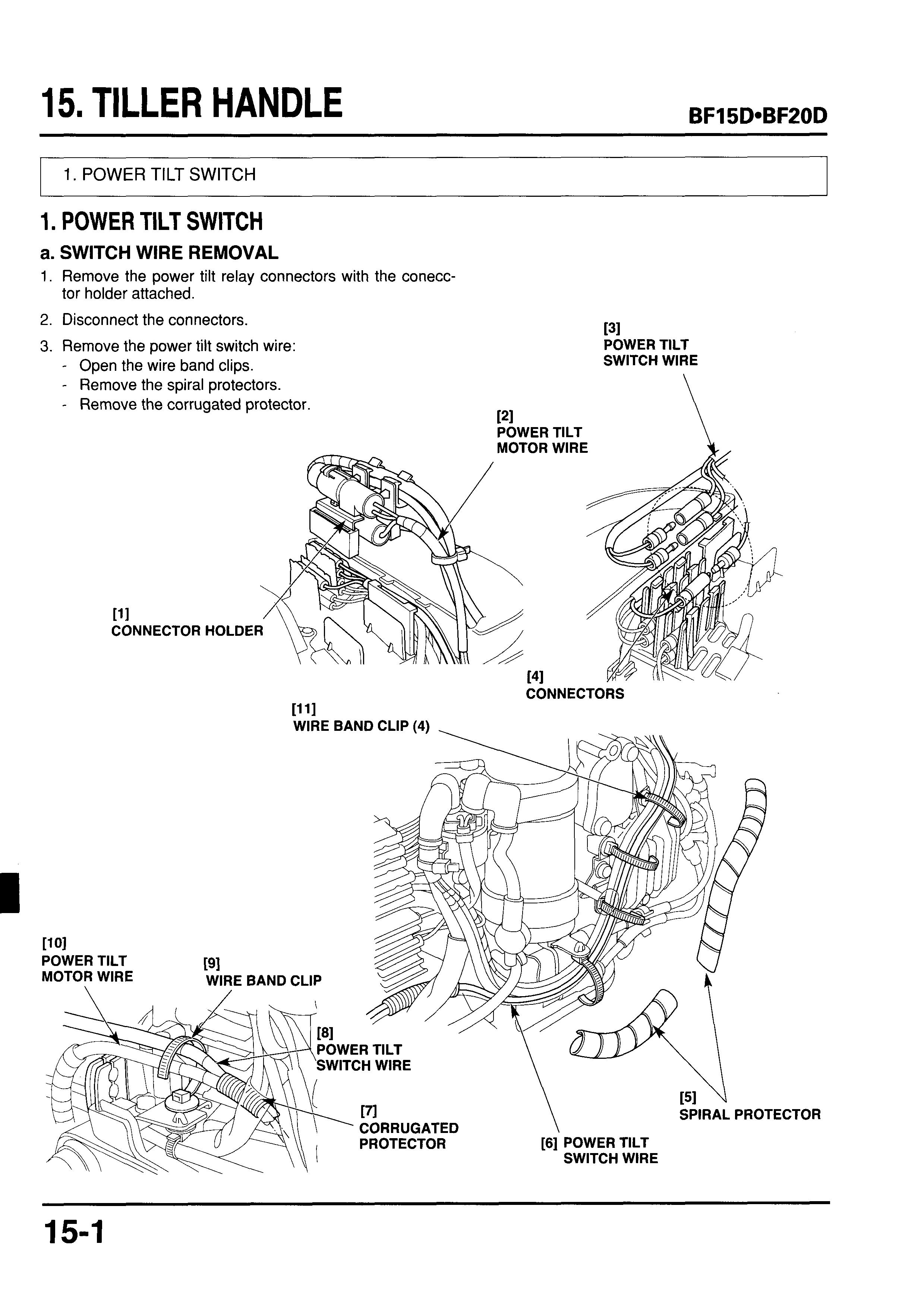

1. POWER TILT SWITCH a. SWITCH WIRE REMOVAL

1. Remove the power tilt relay connectors with the conecctor holder attached.

2. Disconnect the connectors.

3. Remove the power tilt switch wire:

- Open the wire band clips.

- Remove the spiral protectors.

- Remove the corrugated protector.

a. INSPECTION

The power tilt switch test can be performed with the switch Check for continuity between the terminals according to the table below.

installed on the tiller handle.

There should be continuity between 0-0.

1x1 Light green White/black Light blue

I up 1-0

b. REPLACEMENT

1) Remove the spiral protector, then pull out the switch wires

2) Remove the 4 x 10 mm self-tapping screws and starter

3) Remove the power tilt switch from the starter switch hous- tacking care not to damage. switch housing. ing.

4) Install a new power tilt switch.

5) Install the starter switch housing and tighten the 4 x 10

6) Route the switch wire over the pivot bolt as shown.

7) Lap the spiral protector around the throttle cable and mm self-tapping screws. switch wires as shown.

Switch Wire Installation

Route the power tilt motor wire and secure the wires with the wire band and wire band clips. Cover the motor and switch wires with the corrugated protector as shown. Route the power tilt motor wire along the main wire harness as shown and wrap the wires with the upper and lower spiral protectors as shown.

Secure the wires with the wire band clips. If the wire band clip cut, replace with new one. After securing the wire, cut the end as projected length shown.

MAIN

SIDE

171 ABOUT 15 mm (0.6 in) i15 mm (0.6in)

4) Connect the power tilt switch wire connectors to the starter cable and power tilt relay wire and set them to the holders.

5) Install the power tilt motor wire connectors with the connector holder attached to the starter case B.

6) Install the left engine under cover and engine cover.

BLUE [3] POWER TILT RELAY WIRE CONNECTOR WIRE

161 r

WHITWBLACK WIRE CONNECTOR LIGHT GREEN WIRE CONNECTOR

PI STARTER ' CABLE \ t51

POWER TILT

POWER TILT RELAY WIRE SWITCH WIRE

STARTER CABLE
