5. ENGINE COVERS

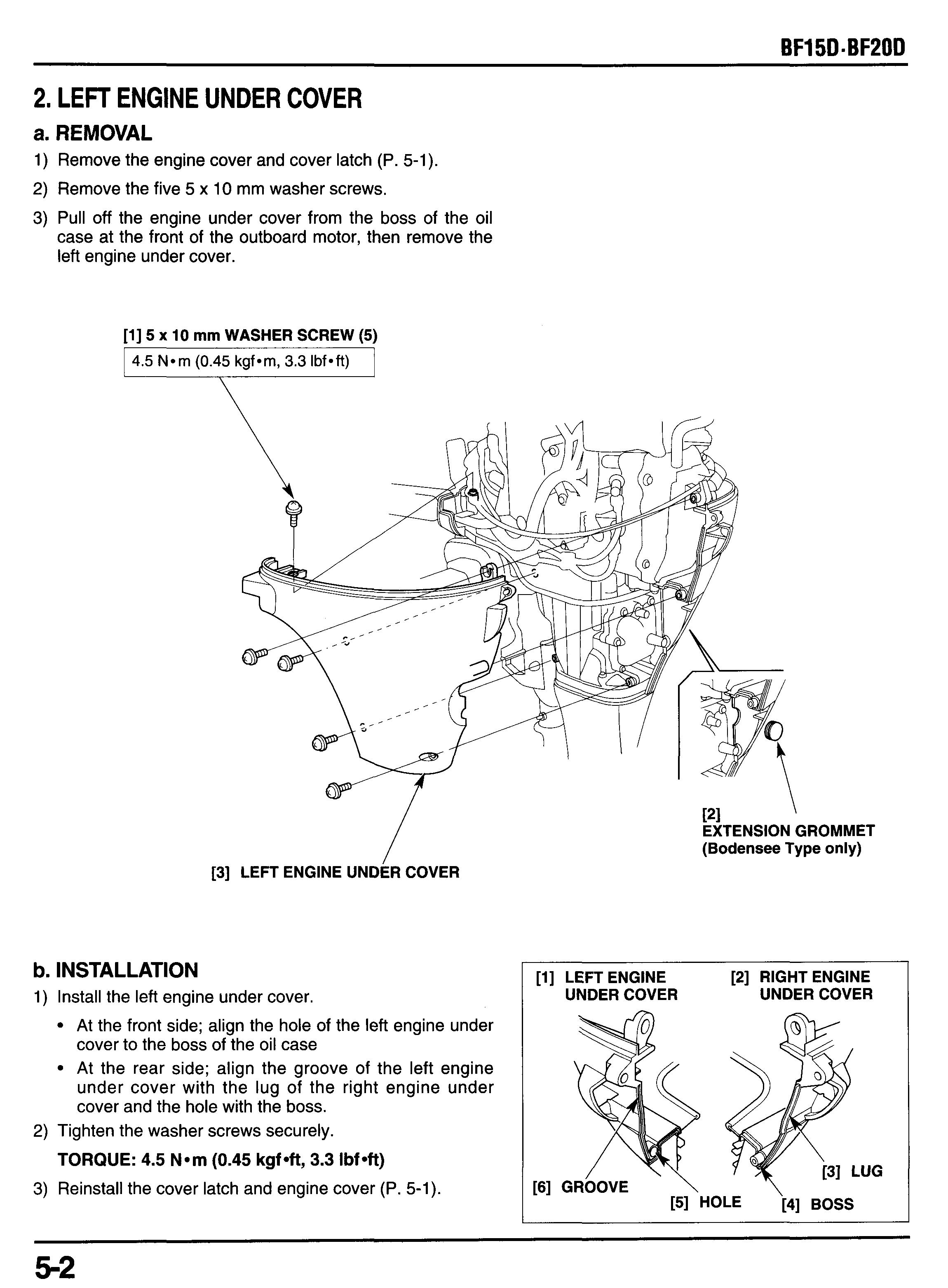

2. LEFT ENGINE UNDER COVER

a. REMOVAL

1) Remove the engine cover and cover latch (P. 5-1).

2) Remove the five 5 x 10 mm washer screws.

3) Pull off the engine under cover from the boss of the oil case at the front of the outboard motor, then remove the left engine under cover.

111 5 x 10 mm WASHER SCREW (5)

4.5 N*m (0.45kgf-m, 3.3Ibfoft) 1 / /

b. INSTALLATION

1) Install the left engine under cover.

At the front side; align the hole of the left engine under cover to the boss of the oil case

At the rear side; align the groove of the left engine under cover with the lug of the right engine under cover and the hole with the boss.

2) Tighten the washer screws securely.

TORQUE: 4.5 N*m (0.45 kgfoft, 3.3 Ibfoft)

3) Reinstall the cover latch and engine cover (P. 5-1).

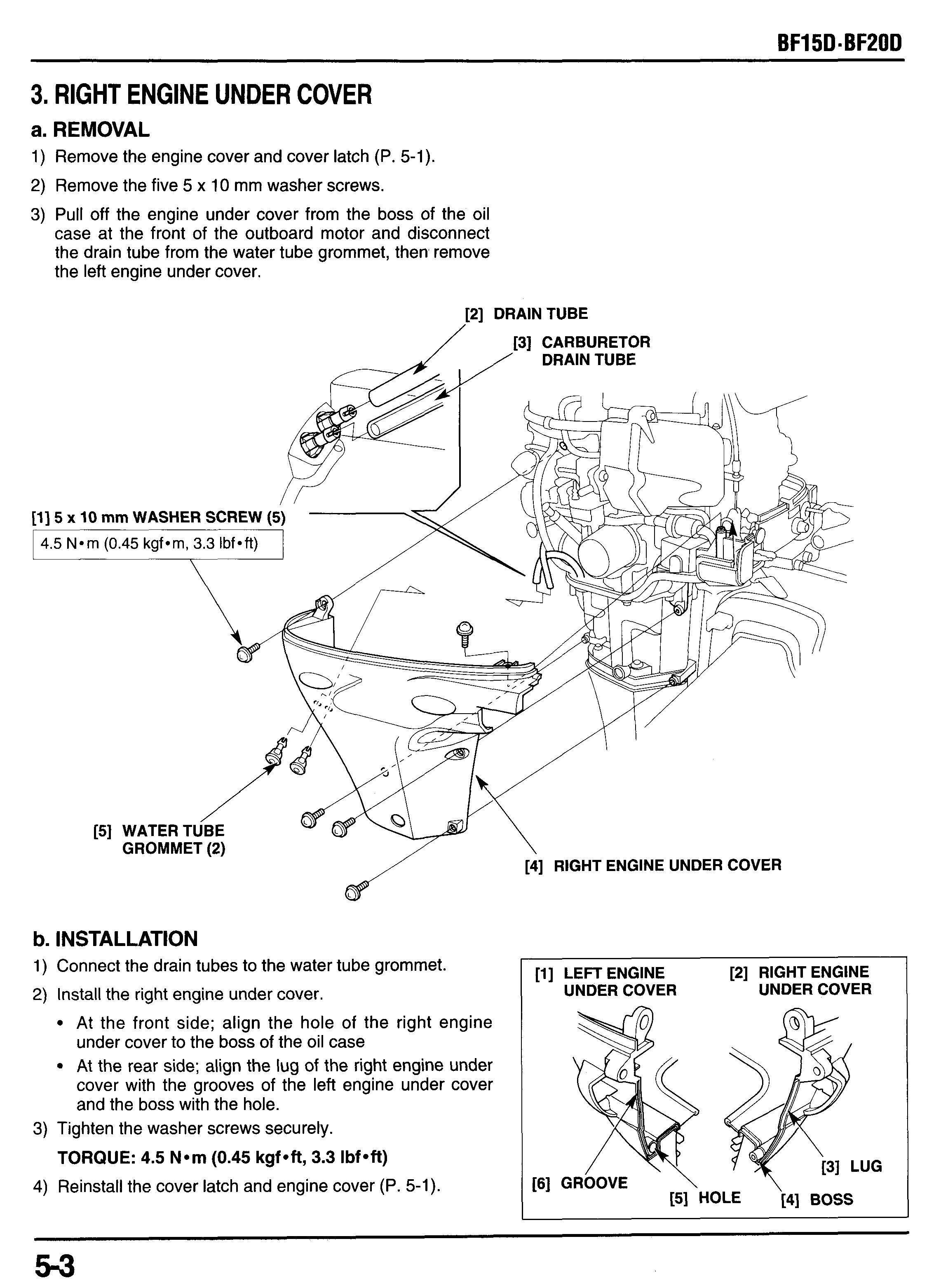

3. RIGHT ENGINE UNDER COVER

a. REMOVAL

1) Remove the engine cover and cover latch (P. 5-1).

2) Remove the five 5 x 10 mm washer screws.

3) Pull off the engine under cover from the boss of the oil case at the front of the outboard motor and disconnect the drain tube from the water tube grommet, then remove the left engine under cover.

b. INSTALLATION

1) Connect the drain tubes to the water tube grommet.

2) Install the right engine under cover.

At the front side; align the hole of the right engine under cover to the boss of the oil case

At the rear side; align the lug of the right engine under cover with the grooves of the left engine under cover and the boss with the hole.

3) Tighten the washer screws securely.

4) Reinstall the cover latch and engine cover (P. 5-1).

[l]

LEFT ENGINE
