9. APPENDIX

9.1. HAND SIGNALS

USAGE OF HAND SIGNALS

Do not begin operation until signals are clearly understood. If non-standard signals are going to be used, be sure that you and your signal person agree on them beforehand.

The operator shall respond only to operating signals from the appointed signal person, but shall obey a stop signal at any time from anybody. A signal person must be fully qualified by training and experience. A signal person must be in a sufficiently lighted area so as to be clearly visible to the operator during night time operations.

While Operating Use Hand Signals

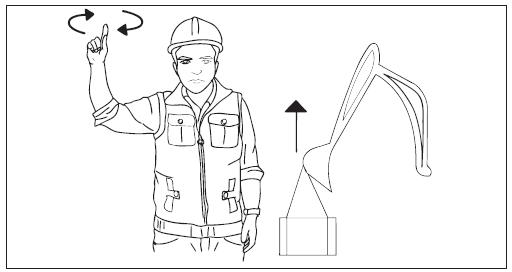

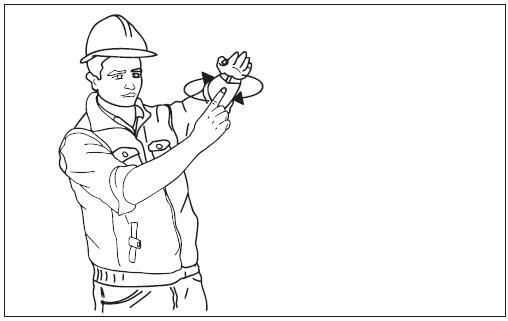

RAISE LOAD VERTICALLY

Turn your face to the operator. With either forearm vertical, index finger pointing up, move hand in small horizontal circle.

LOWER LOAD VERTICALLY

Turn your face to the operator. With either arm extended downward, index finger pointing down, move hand in small horizontal circle.

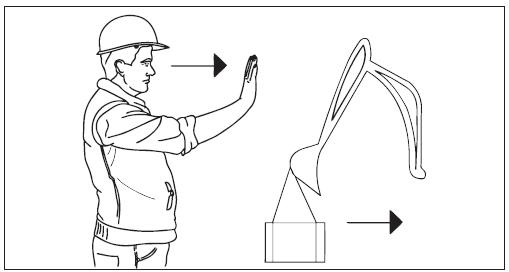

MOVE LOAD IN HORIZONTALLY

Turn your face to the operator. With either arm extended, hand raised and open toward direction of movement, move hand in direction of required movement.

MOVE LOAD OUT HORIZONTALLY

Turn your face to the operator. With either arm extended, hand raised and open toward direction of movement, move hand in direction of required movement.

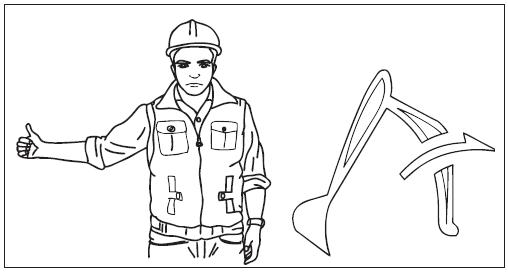

Raise The Boom

Turn your face to the operator. With either arm extended horizontally, fingers closed, point thumb upward.

Lower The Boom

Turn your face to the operator. With either arm extended horizontally, fingers closed, point thumb downward.

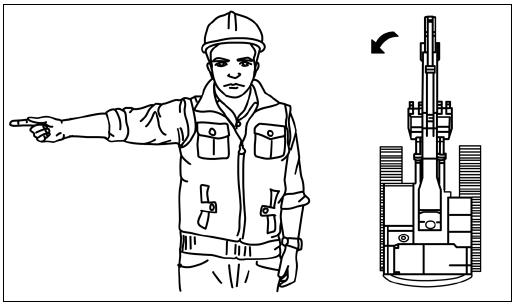

Swing To Left

Turn your face to the operator. With either arm extended horizontally, point with index finger to direction of swing rotation.

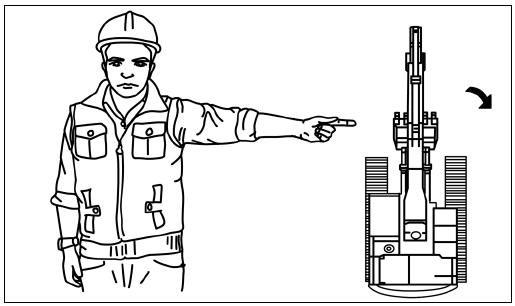

Swing To Right

Turn your face to the operator. With either arm extended horizontally, point with index finger to direction of swing rotation.

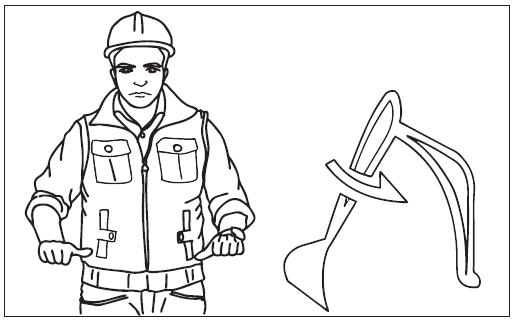

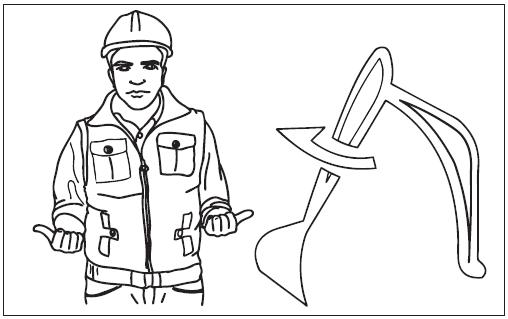

“ARM” INWARD

Turn your face to the operator. With both hands clenched, point thumbs inward.

“ARM” OUTWARD

Turn your face to the operator. With both hands clenched, point thumbs outward.

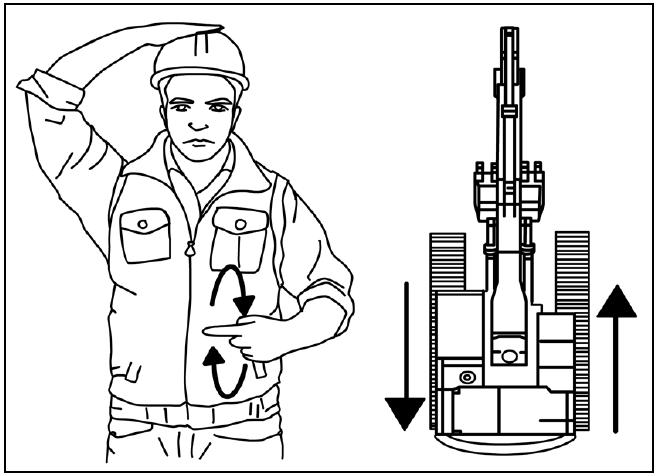

Counter Rotate To Left

Turn your face to the operator. Place your right hand on head. Move your left hand in vertical circle indicating forward rotation of other wheel.

Counter Rotate To Right

Turn your face to the operator. Place your left hand on head. Move your right hand in vertical circle indicating forward rotation of other wheel.

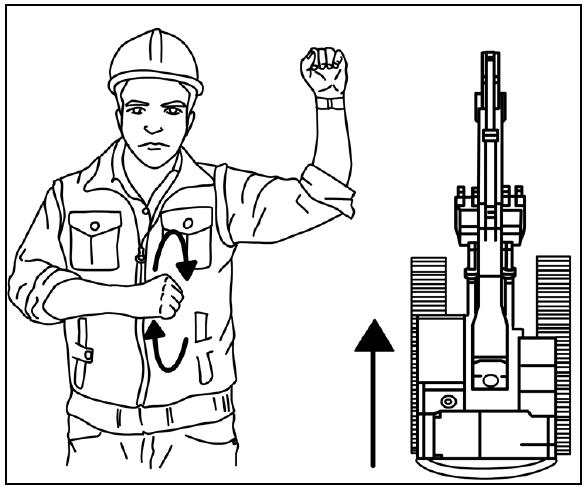

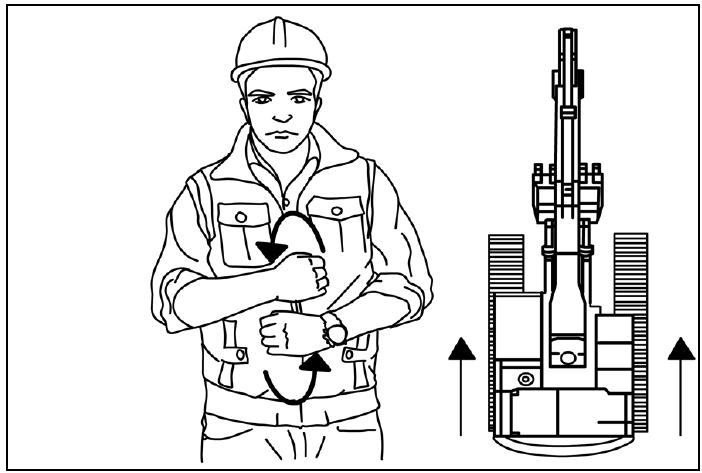

Travel To Forward

Turn your face to the operator. Move fists in vertical circle about each other in direction of wheel rotation

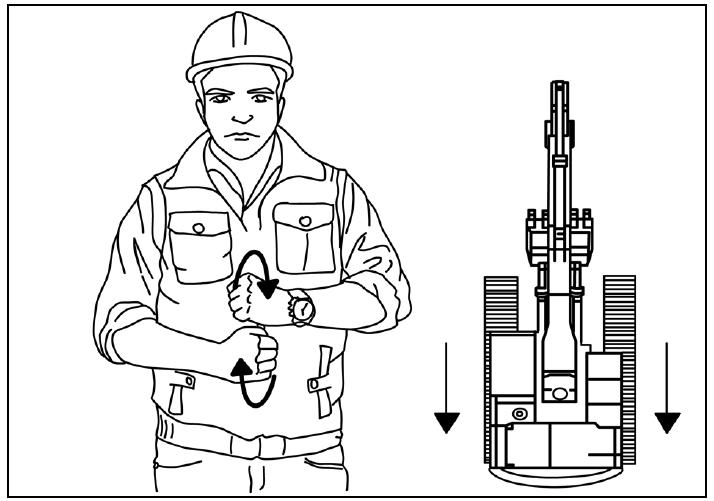

Travel To Backward

Turn your face to the operator. Move fists in vertical circle about each other in direction of wheel rotation.

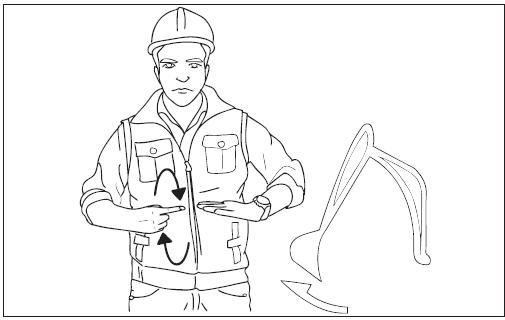

Close Bucket

Turn your face to the operator. Hold one hand closed and stationary. Rotate other hand in small vertical circle with index finger pointing horizontally at closed hand.

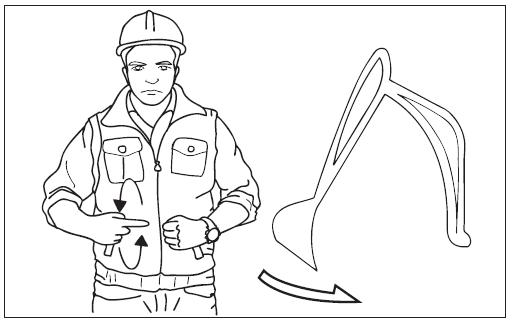

Open Bucket

Turn your face to the operator. Hold one hand closed and stationary. Rotate other hand in small vertical circle with index finger pointing horizontally at open hand.

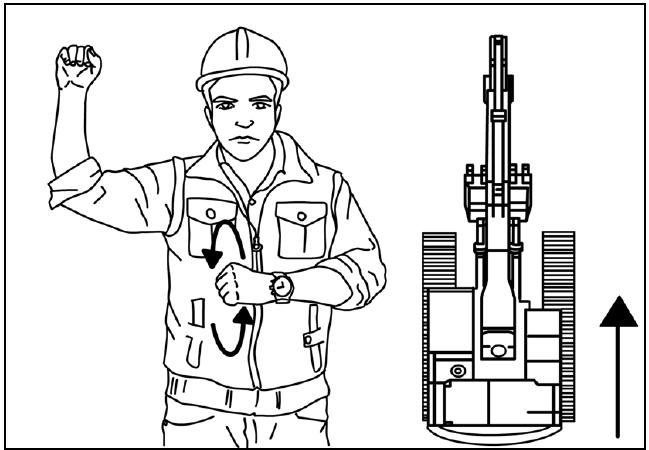

Turn To Left

Turn your face to the operator. Raise forearm with closed fist indicating inside of turn. Move other fist in vertical circle indicating direction of wheel rotation.

Turn To Right

Turn your face to the operator. Raise forearm with closed fist indicating inside of turn. Move other fist in vertical circle indicating direction of wheel rotation.

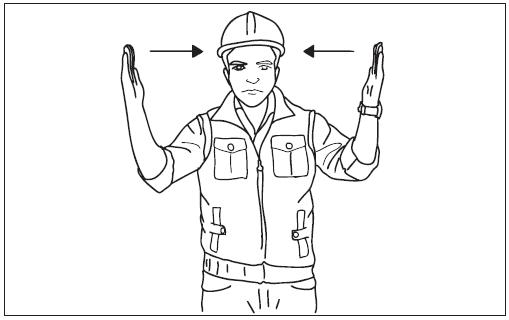

This Far To Go

Turn your face to the operator.With hands raised and open inward, move hands laterally, indicating distance to go.

Move Slowly

Turn your face to the operator. Place one hand motionless in front of hand giving motion signal. (Raise load slowly as shown.)

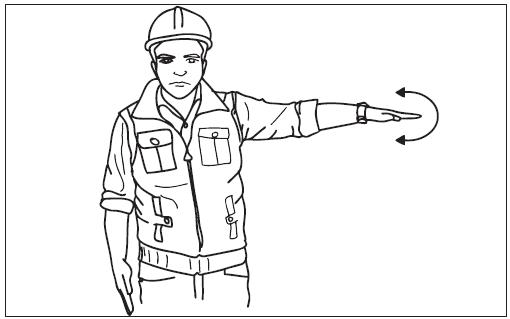

Turn your face to the operator. With either arm extended laterally, hand open downward, move arm back and forth.

Emergency Stop

Turn your face to the operator. With either arm extended laterally, hands open downward, move arms back and forth.

Stop Engine

Turn your face to the operator. Draw thumb or index finger across throat.
