Moving the insertion marker (M

58

H

If required, a designation for the order can be entered. No designation is required for the evaluation of the order data. • Select the data field and enter the designation.

ISOBUS Terminal:

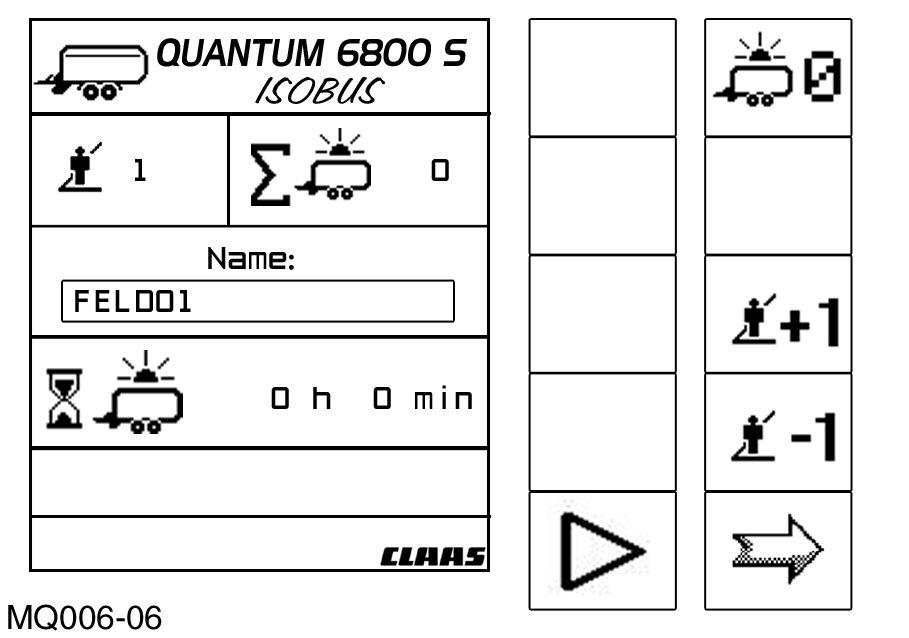

• See the Operator's Manual of the terminal in question. (Fig. 58)

CLAAS Communicator:

• “Terminal” button, see page 25. Turn the “Terminal” button until the data field (H) appears with a border around it.

CLAAS Communicator

M

CLAAS Communicator B 59

60

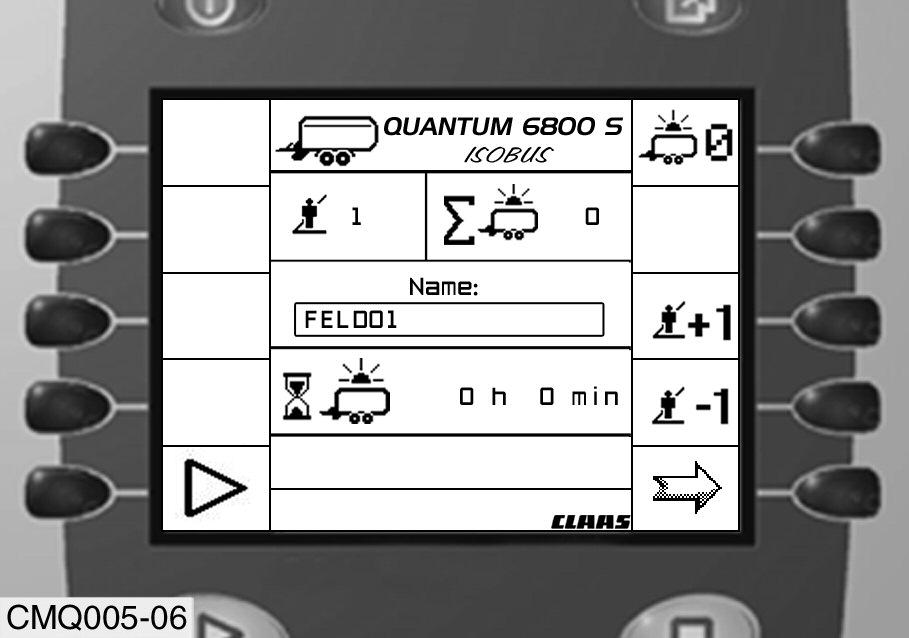

• Push the “Terminal” button, the displays change to the menu “Data input” . (Fig. 59)

Moving the insertion marker (M)

• Turn the “Terminal” button until the desired direction arrow (B) is highlighted. move to the right move to the left • Press the “Terminal” button so many times until the insertion marker is at the desired location. 1x pressing = Move the insertion marker one character to the right or to the left. (Fig. 60)
