Floor conveyor control

M

M1

M1

M1 7

8 11.2.3 Floor conveyor control

The off / on switching of the floor conveyor drive takes place in automatic mode via the torque threshold value of the PTO shaft or via the sensor of the Metal Top (cover plate).

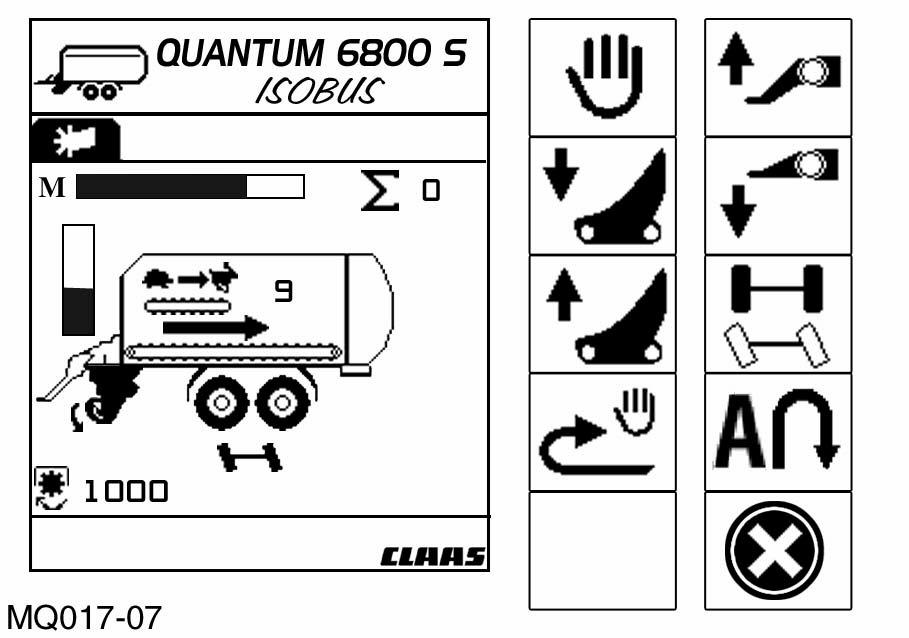

Torque display (M)

– The black bar shows the current torque of the

PTO shaft in percentage of the maximum permissible torque. – The vertical mark (M1) indicates the threshold value at which the floor conveyor is automatically switched on and off. The floor conveyor is switched on and off accordingly in order to achieve a good fill level. – Falling below the threshold value (M1) = floor conveyor drive on (Fig. 8). Symbol appears in the data field. – Clear falling below the threshold value (M1) = floor conveyor drive off (Fig. 9). The setting is stored in the “Setting” menu. • Changing the settings, see page 52. (Fig. 7, 8, 9)

9
