Headland – Lifting / lowering pickup
from CLAAS QUANTUM 6800 S P QUANTUM 5800 S P QUANTUM 5700 Supplement to Operator's manual-PDF DOWNLOAD
4
5
6
• Switch on the PTO shaft at idle speed. • Then increase the PTO shaft speed.
Observe the maximum PTO shaft speed – see Operator's Manual of the Machine Section
Specifications. The machine is thus ready for loading. (Fig. 1, 2, 3, 4)

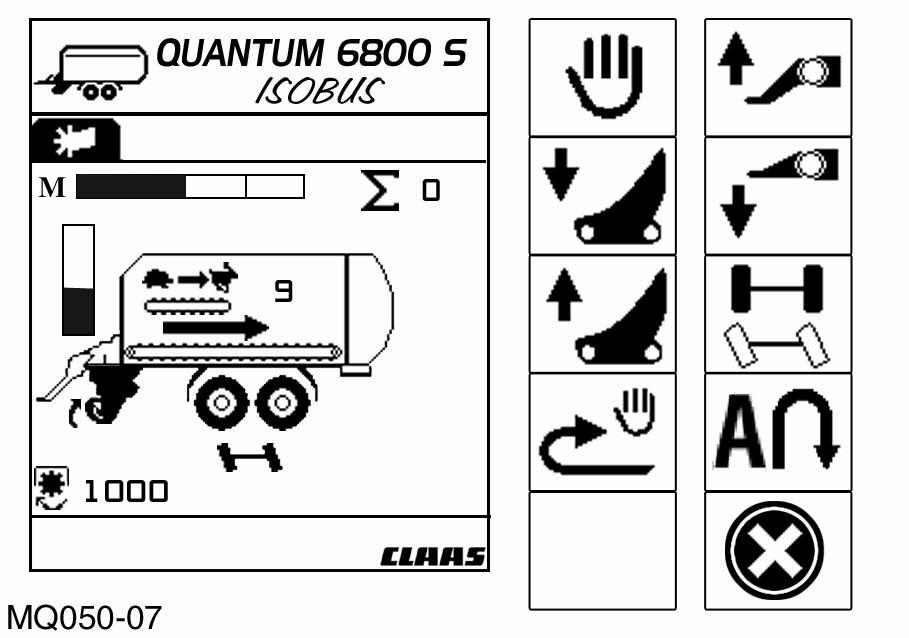

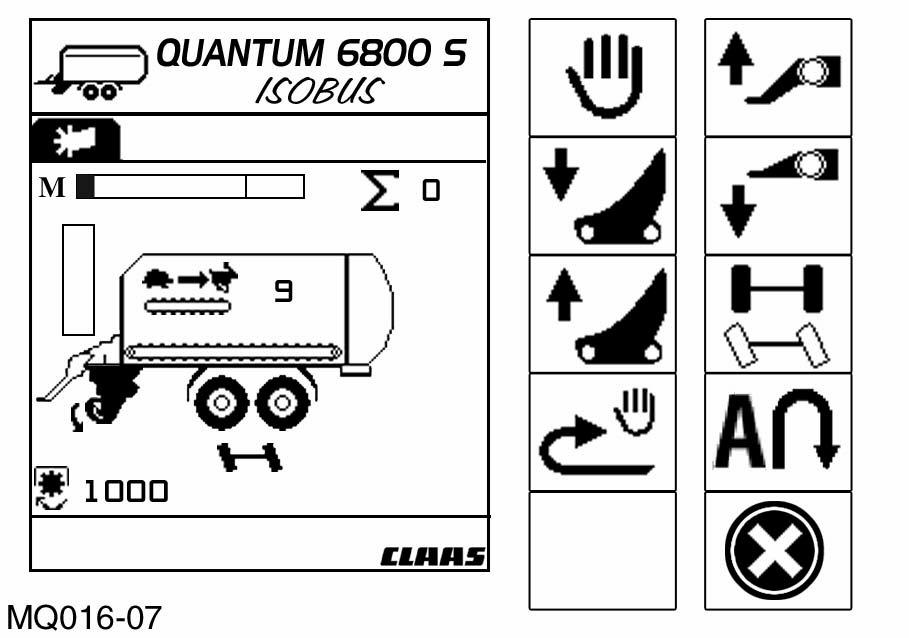

11.2.2 Headland – Lifting / lowering pickup Lifting the pickup
Actuate “Soft Key” in order to lift the pickup up. Symbol appears in the data field. – The pickup drive remains switched on.
Lowering the pickup
Danger!
The hydraulic cylinder for the knife frame is briefly pressurised to compensate for leaks. There is a danger of squashing by moving machine components. – Actuate the “Soft Key” in order to end the procedure!
Note!
If the front wagon is adjusted during use, the front wagon is completely lowered again loading mode.
Actuate the “Soft Key” again in order to lower the pickup into the working position (float position).
– The knife frame is pulled closed briefly. (Fig. 5, 6)
