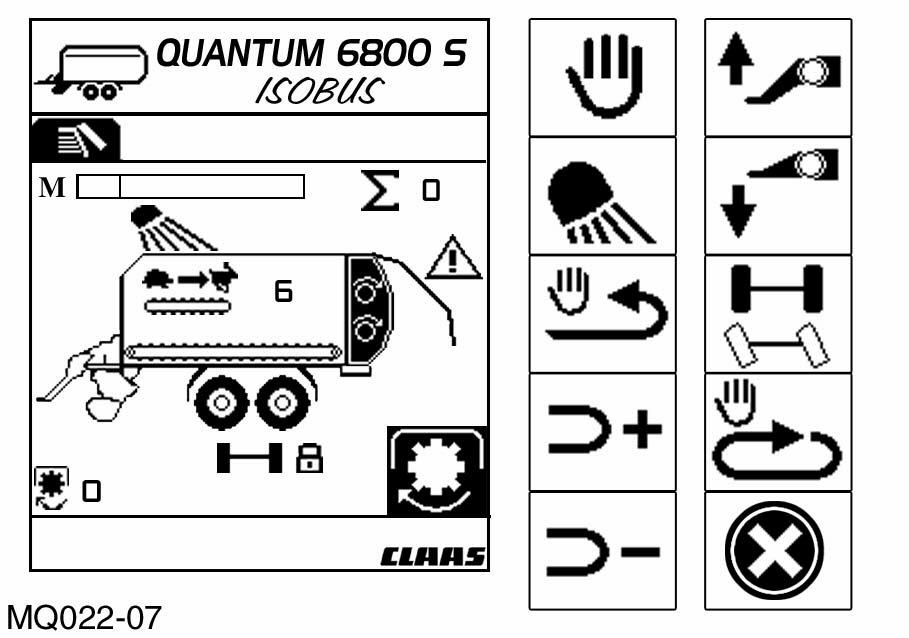

– The message “Switch on PTO shaft” (symbol
“PTO shaft switch on”) flashes.
• Switch on the PTO shaft at idle speed. • Then increase the PTO shaft speed.
Observe the maximum PTO shaft speed – see Operator's Manual of the Machine Section
Specifications. The unloading of the machine is thus started. (Fig. 25, 26, 27, 28)
11.3.2 Floor conveyor control
Automatic switching off / on of the floor conveyor drive via the torque threshold value of the PTO shaft is not available at the present.

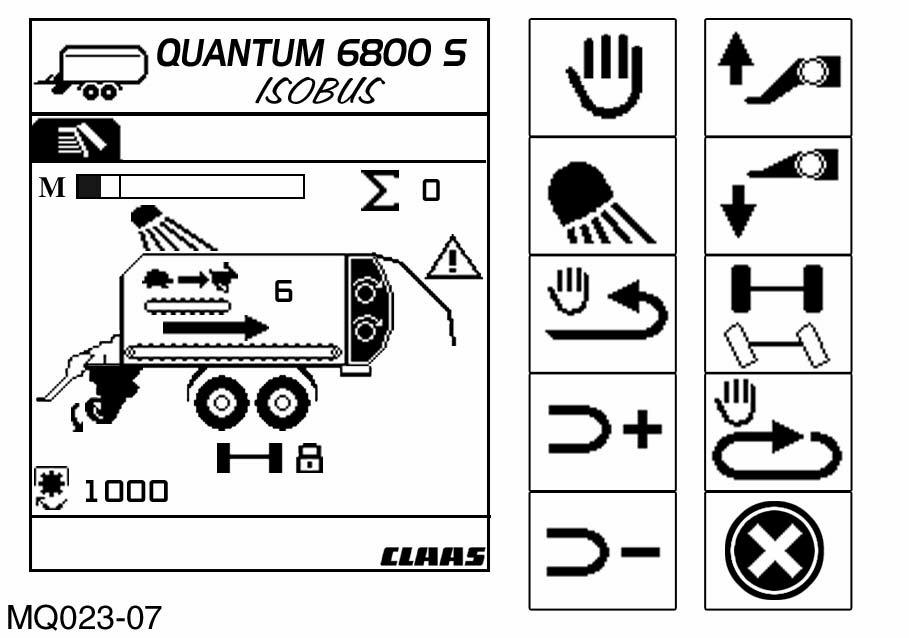

Torque display (M) (informative)
– The black bar shows the current torque of the
PTO shaft in percentage of the maximum permissible torque. – In order not to overload the metering drum drive and to avoid blockages, the vertical marking (M2) should not be exceeded. – Adjust the floor conveyor speed manually to suit or – switch the floor conveyor drive off / on. (Fig. 29)
