End of loading operation
from CLAAS QUANTUM 6800 S P QUANTUM 5800 S P QUANTUM 5700 Supplement to Operator's manual-PDF DOWNLOAD
9
10
11

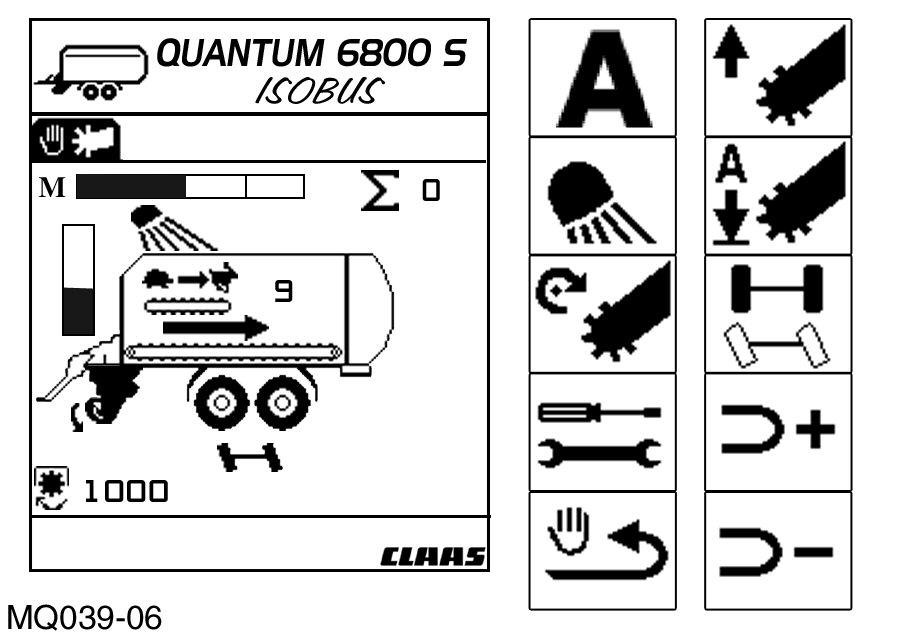

Actuate the “Soft Key”
– in order to reverse the floor conveyor drive. Symbol appears. – The floor conveyor runs at the set reversing speed as long as the “Soft Key” is depressed (inching function). – Release “Soft Key” , floor conveyor continues to run in the normal direction. (Fig. 9, 10)

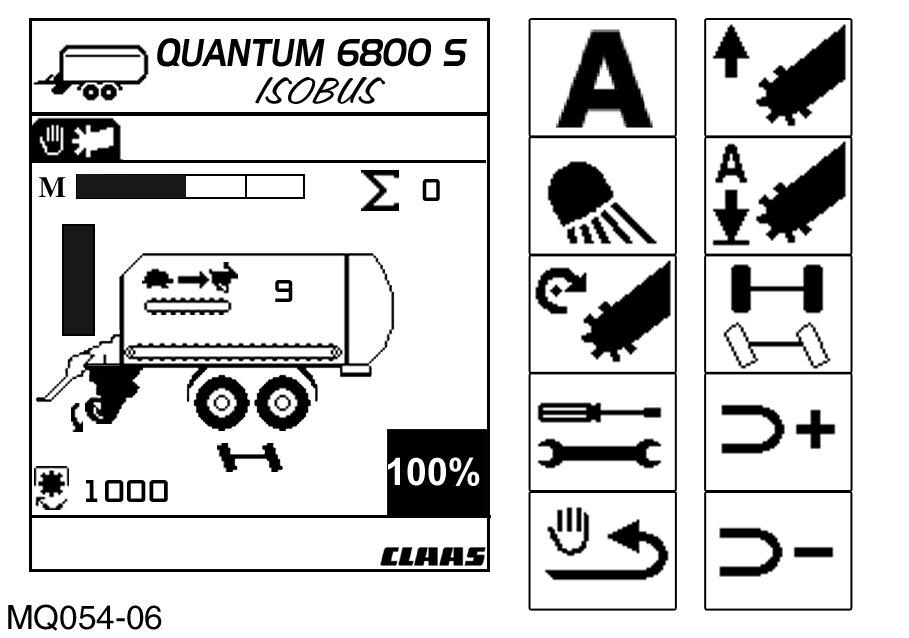

10.13.4 End of loading operation
In addition to the filling level display (optional equipment), the machine is equipped with a switch which shows the full load. – The floor conveyor gradually moves the crop to the back. – In the end the crop is pressed against the metering drums. – The metering drums are thus pushed slightly backwards. – The switch contact is made. – The message “Wagon full” is displayed in the data field. – The floor conveyor drive is switched off. • Disengage the PTO shaft (Fig. 11)
