Calling up the menu “Manual unloading”
from CLAAS QUANTUM 6800 S P QUANTUM 5800 S P QUANTUM 5700 Supplement to Operator's manual-PDF DOWNLOAD
13
14
15 10.14.1 Calling up the menu “Manual unloading”
Actuate the “Soft Key”

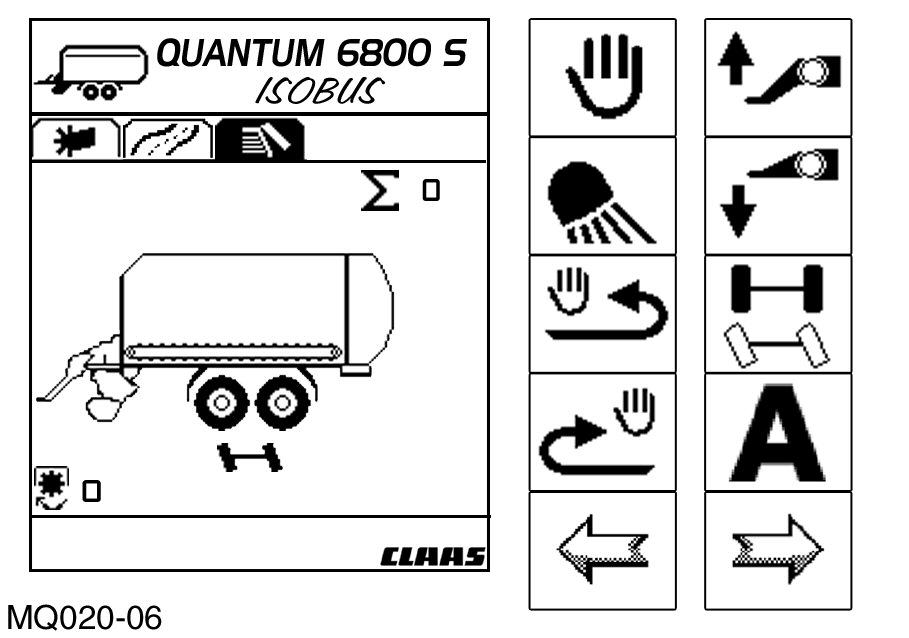

– to call up the “Unloading” start menu. – The display changes to the start menu “Unloading” . The “Unloading” menu is active – the symbol
“Unloading” is shown inverted in the menu bar (Fig. 14). (Fig. 13, 14)
Actuate the “Soft Key” (Fig. 14)

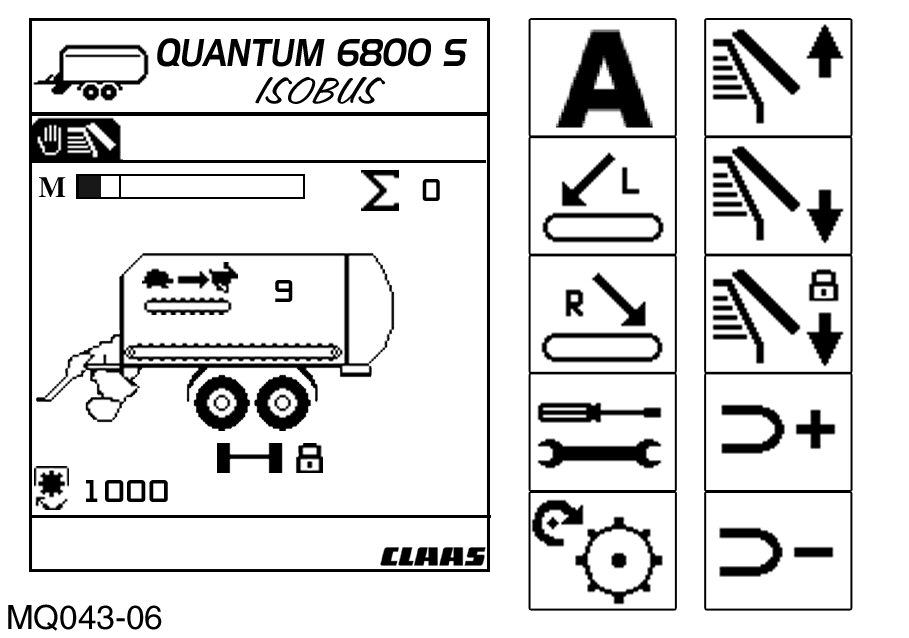

– to call up the “Manual Unloading” menu. – The display changes to the menu “Manual
Unloading” (Fig. 15). The “Manual Unloading” menu is active – the symbol “Manual Unloading” is shown inverted in the menu bar. • If necessary, switch on the PTO shaft at idle tractor engine speed. • Then increase the PTO shaft speed.
Observe the maximum PTO shaft speed – see Operator's Manual of the Machine Section
Specifications. Actuate the “Soft Key”
– to leave the menu “Manual Unloading” and to return to the “Auto Unloading” menu. – For further information see Automatic mode
“Unloading” , page 85. Menu “Setup”
– For further information see Menu “Setup” , page 50. (Fig. 14, 15)
