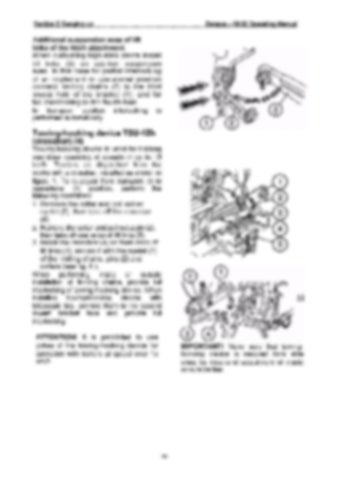

Section E Ganging up
Belarus – 90/92 Operating Manual
Additional suspension axes of lift links of the hitch attachment When cultivating high-stalk plants install lift links (3) on addition suspension axes. In this case for partial interlocking of an implement in operational position connect limiting chains (2) to the third lowest hole of the bracket (1), and for full interlocking to the fourth hole. In transport position interlocking is performed automatically.
Towing-hooking device TSU-1Zh (crossbar) (4) Towing-hooking device is used for hitching machines operating at speeds of up to 15 km/h. Tractors as dispatched from the works with a crossbar, installed as shown in figure 1. To re-adjust from transport (I) to operational (II) position, perform the following operations: 1. Remove the cotter and pull out an eyelet (3), then take off the crossbar (4). 2. Remove the cotter and pull out a pin (2), then take off rear ends of lift links (5). 3. Install the crossbar (4) on front ends of lift links (1), secure it with the eyelet (3) of the limiting chains, pins (2) and cotters (see fig. II ). When performing inside or outside installation of limiting chains, provide full interlocking of towing-hooking device. When installing towing-hooking device with telescopic ties, connect them to the second lowest bracket hole and provide full interlocking. ATTENTION! It is prohibited to use yokes of the towing-hooking device for operation with trailers at speed over 15 km/h.
IMPORTANT! Make sure that towinghooking device is secured from side sway by means of adjustment of inside or outside ties.
49
