Installation of doubled rear wheels

Installation of doubled rear wheels

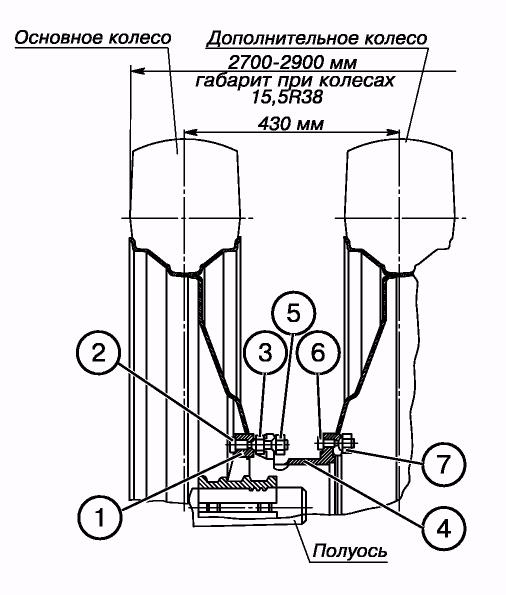

To increase the cross-country ability on tractors, by the use of additional spacers, may be mounted the doubled rear wheels with dimension type 15,5R38. To mount an additional wheel, dismount main wheel, press out short bolts from hub (1) and press in long bolts (2), which are in spacer set. Mount the main wheel on bolts (2) and secure with nuts (3). Then put spacer (4) on the same bolts and secure it with nuts (5). Then mount additional wheel on bolts (6) of spacer and secure with nuts (7). The tightening torque of rear wheel nuts 300…350 N•m (30…35 kgf•m).

ATTENTION! Do not allow use doubled wheels to increase the drawbar tractive effort.
