Starter and instruments switch
30, 32. Pedals of brakes; 31. Connecting rod of brake pedals; 33. Lever of switching of gears; 34. Dog of switch of PTO from independent drive to synchronous drive; 35. Pedal of control of fuel submission; 36. Pedal of control of clutch; 37. Lever of switch of lowering reducer. It has two positions: rear – “direct gear”, forward – “lowering gear”; 38. Cover of mechanism of adjustment of height of position of steering wheel.
Important! Before starting tractor operation, study purpose and functions of controls and instruments.
Instruments and switches
Starter and instruments switch

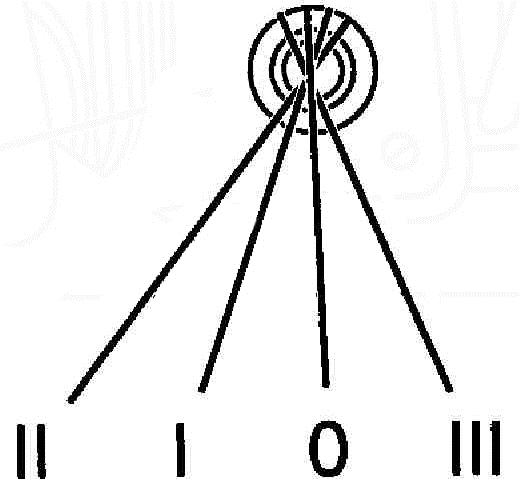

Switch (1) has four positions: • 0 — «it is switched off» • I — «Instruments are included» • II — «Starter is included» (unstable) • III — «Feed of radio receiver» (turn of key counter-clockwise)
