Belarus MTZ 90 92 Operating Maintenance Manual - PDF DOWNLOAD

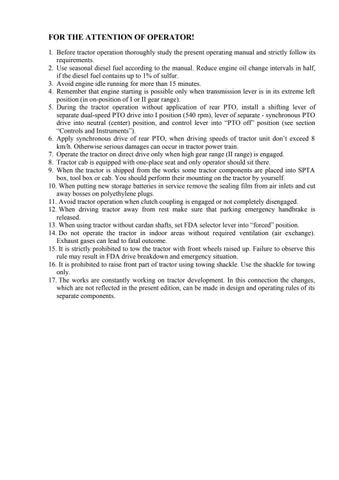

FOR THE ATTENTION OF OPERATOR! 1. Before tractor operation thoroughly study the present operating manual and strictly follow its requirements.

2. Use seasonal diesel fuel according to the manual. Reduce engine oil change intervals in half, if the diesel fuel contains up to 1% of sulfur.

3. Avoid engine idle running for more than 15 minutes.

4. Remember that engine starting is possible only when transmission lever is in its extreme left position (in on-position of I or II gear range).

5. During the tractor operation without application of rear PTO, install a shifting lever of separate dual-speed PTO drive into I position (540 rpm), lever of separate - synchronous PTO drive into neutral (center) position, and control lever into “PTO off” position (see section “Controls and Instruments”).

6. Apply synchronous drive of rear PTO, when driving speeds of tractor unit don’t exceed 8 km/h. Otherwise serious damages can occur in tractor power train.

7. Operate the tractor on direct drive only when high gear range (II range) is engaged.

8. Tractor cab is equipped with one-place seat and only operator should sit there.

9. When the tractor is shipped from the works some tractor components are placed into SPTA box, tool box or cab. You should perform their mounting on the tractor by yourself.

10. When putting new storage batteries in service remove the sealing film from air inlets and cut away bosses on polyethylene plugs.

11. Avoid tractor operation when clutch coupling is engaged or not completely disengaged.

12. When driving tractor away from rest make sure that parking emergency handbrake is released.

13. When using tractor without cardan shafts, set FDA selector lever into “forced” position.

14. Do not operate the tractor in indoor areas without required ventilation (air exchange).

Exhaust gases can lead to fatal outcome.

15. It is strictly prohibited to tow the tractor with front wheels raised up. Failure to observe this rule may result in FDA drive breakdown and emergency situation.

16. It is prohibited to raise front part of tractor using towing shackle. Use the shackle for towing only.

17. The works are constantly working on tractor development. In this connection the changes, which are not reflected in the present edition, can be made in design and operating rules of its separate components.
