DESIGN & FABRICATION OF INDOOR INFRASTRUCTURE FOR LIVING SYSTEMS ARCH 484 POMPIDOU 2 JESPER BRAUN

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

TABLE OF CONTENTS Pattern 01..................................................................................................4-5 Pattern 02..................................................................................................6-7 Pattern 03..................................................................................................8-9 MEW Pattern I...........................................................................................10-11 MEW Pattern II..........................................................................................12-13 Space In Lawrence...................................................................................14-15 IMAGE: Caption Caption

2D Pattern Studies...................................................................................16-17 Inspiration + Design.................................................................................18-19 Model Photos............................................................................................20-21 Exploring 3-Dimensionality......................................................................22-23 Elevations & Plans.....................................................................................24-25 Digital Renders..........................................................................................26-27 Water Systems..........................................................................................28-29 Drainage Systems.....................................................................................30-31 Lighting Systems.......................................................................................32-33 Sunlight Analysis.......................................................................................34-35 Plant Species & Distribution......................................................................36-37 PVC Module Construction.........................................................................38-39 Openings & Plant Installation....................................................................40-41 PVC Scaffold within Space........................................................................42-43 VR Image Captures....................................................................................44-45 Design Variations......................................................................................46-47 Conclusions...............................................................................................48

JESPER BRAUN I was born in Portland, Oregon, and I’m a four year architecture student attending the University of Oregon.

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

IMAGE: Spiral Aloe Detail Spiral Aloe

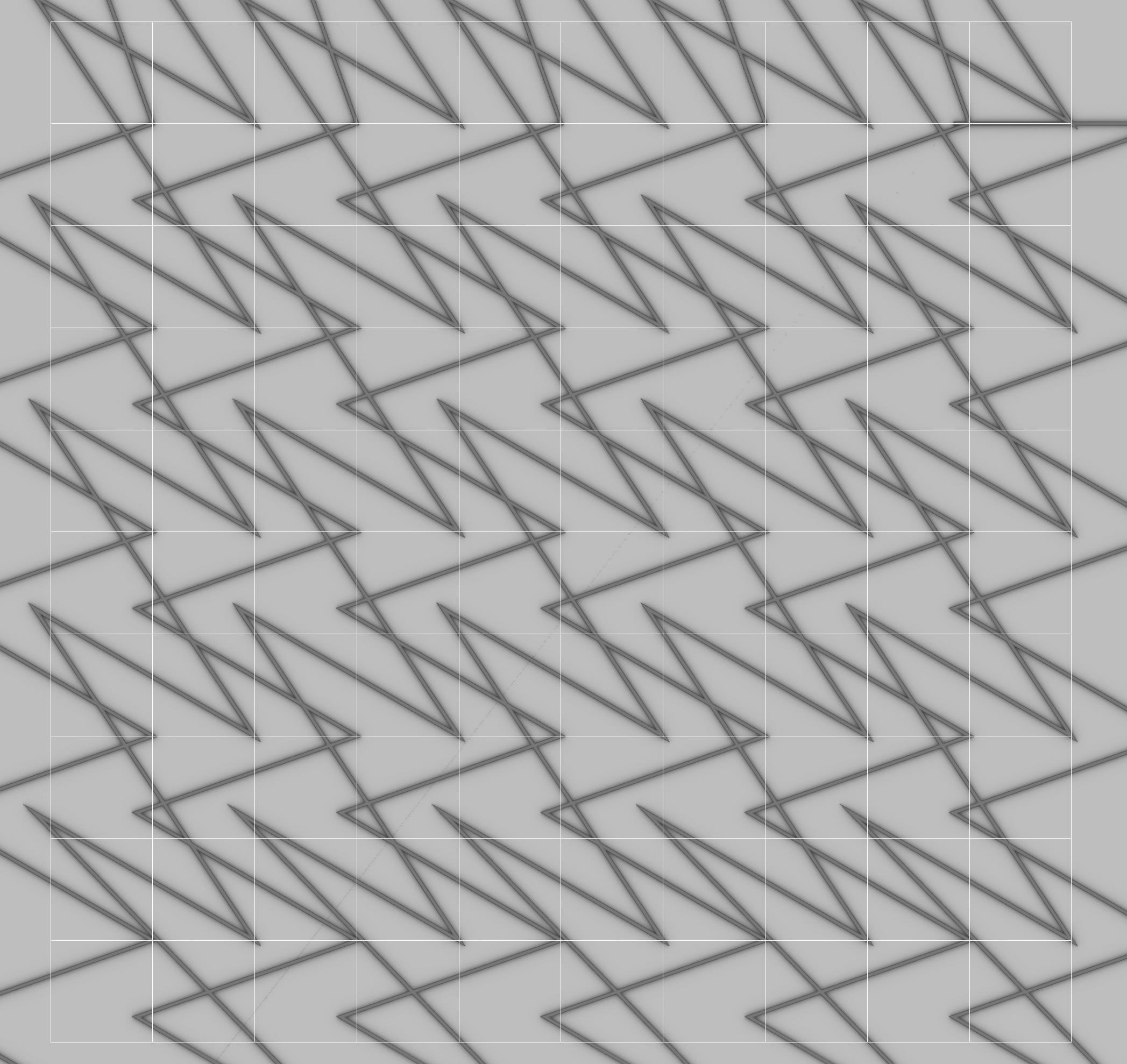

PATTERN 01

SPIRAL ALOE

In this pattern the aim was to emulate the sharp edges of the aloe plant, while also creating a clear & repetitive pattern (similar to the aloe plant).

The speed for this print was F600.

1 mm x 1 mm

1 mm x 1 mm

JESPER BRAUN

5

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

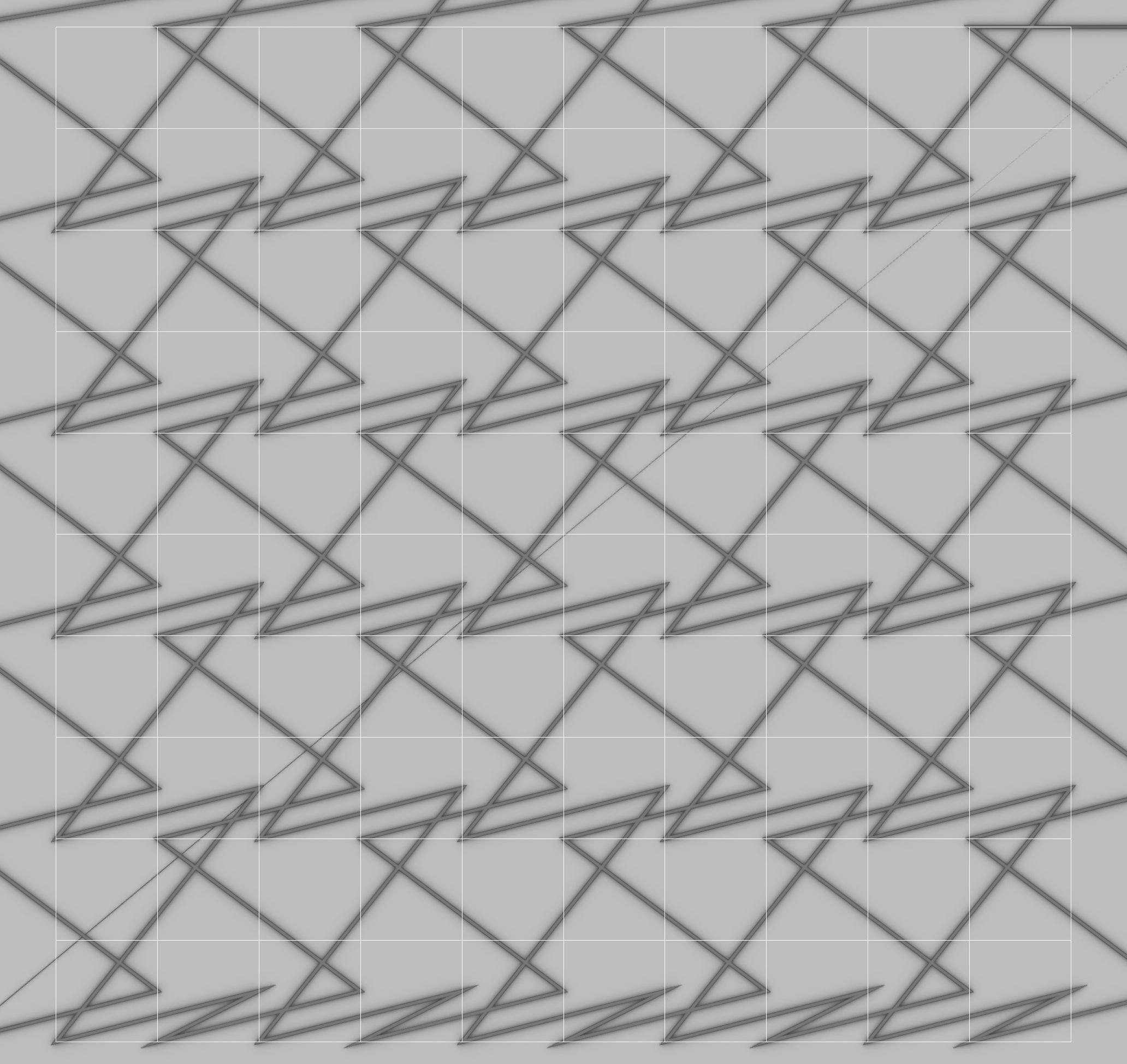

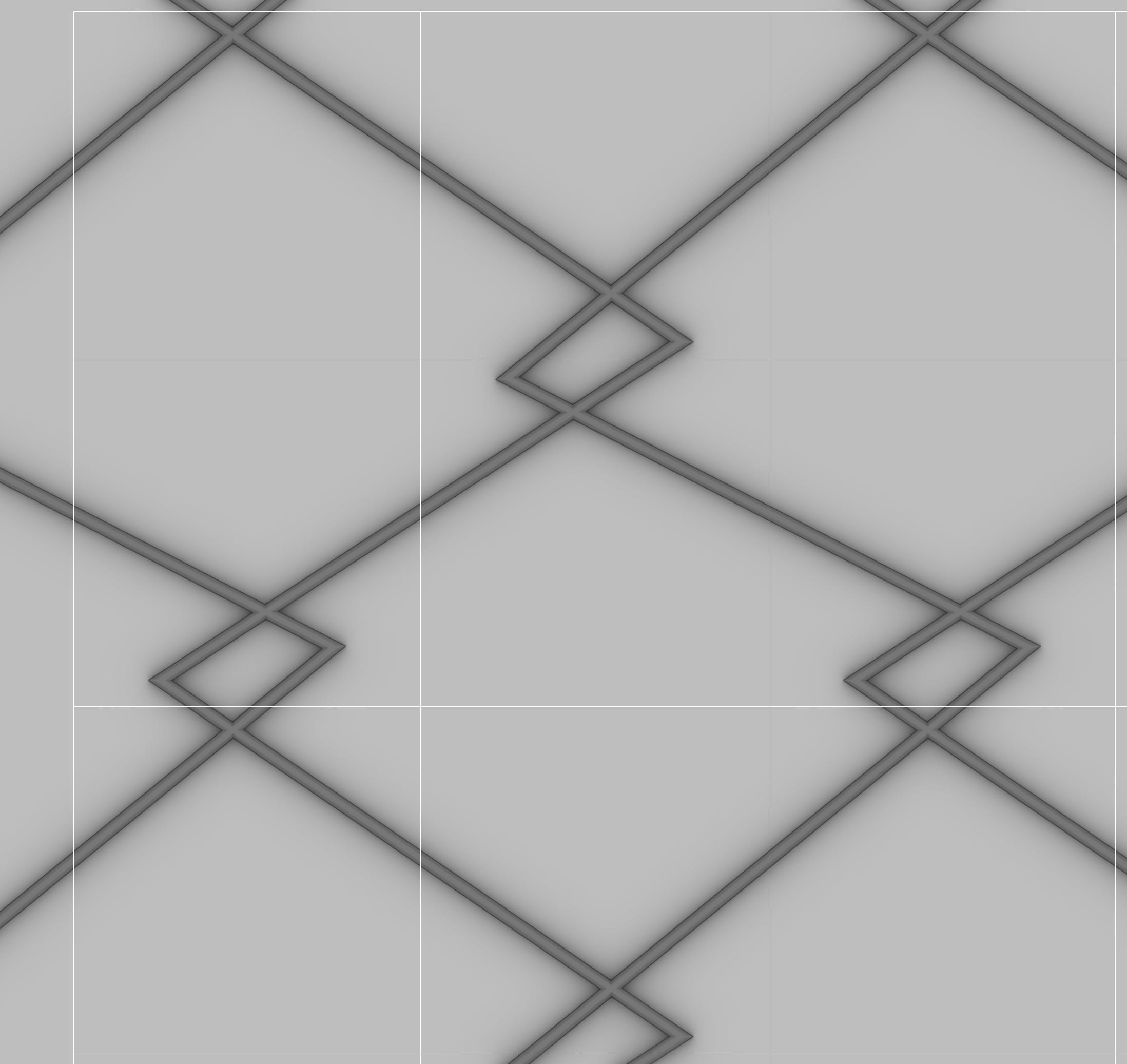

IMAGE: Snake Scales Detail Snake Scales

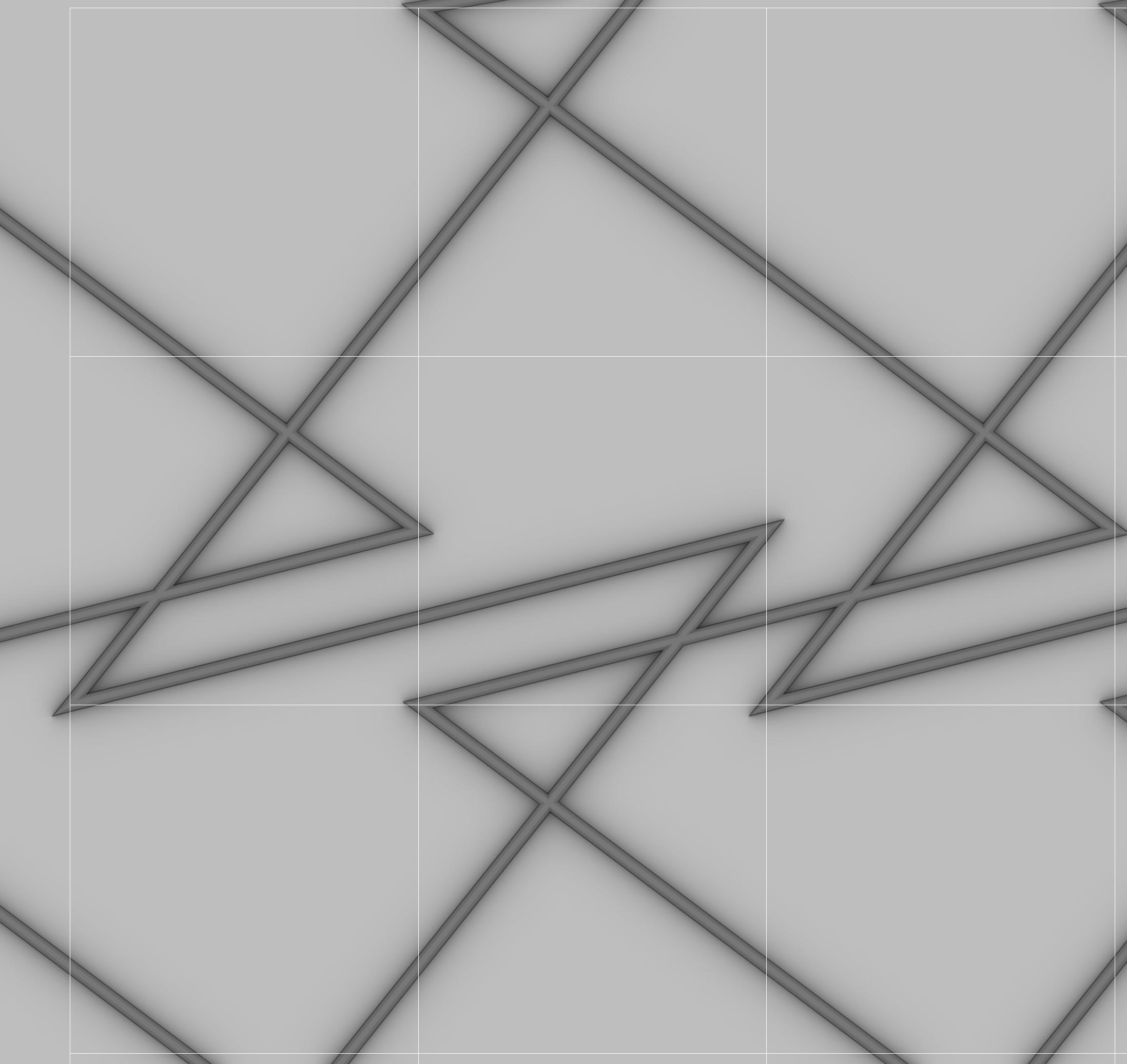

PATTERN 02 SNAKE SCALES

In this pattern the aim was to simulate the repetitive, diamond-shaped pattern that snake scales create.

The speed for this print was F600.

1 mm x 1 mm

1 mm x 1 mm

JESPER BRAUN

7

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

IMAGE: Melianthus Major Detail Melianthus Major

PATTERN 03 MELIANTHUS MAJOR

In this pattern the aim was to create a pattern inspired by the Melianthus Major plant, by creating lines of jagged edges.

The speed for this print was F600.

1 mm x 1 mm

1 mm x 1 mm

JESPER BRAUN

9

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

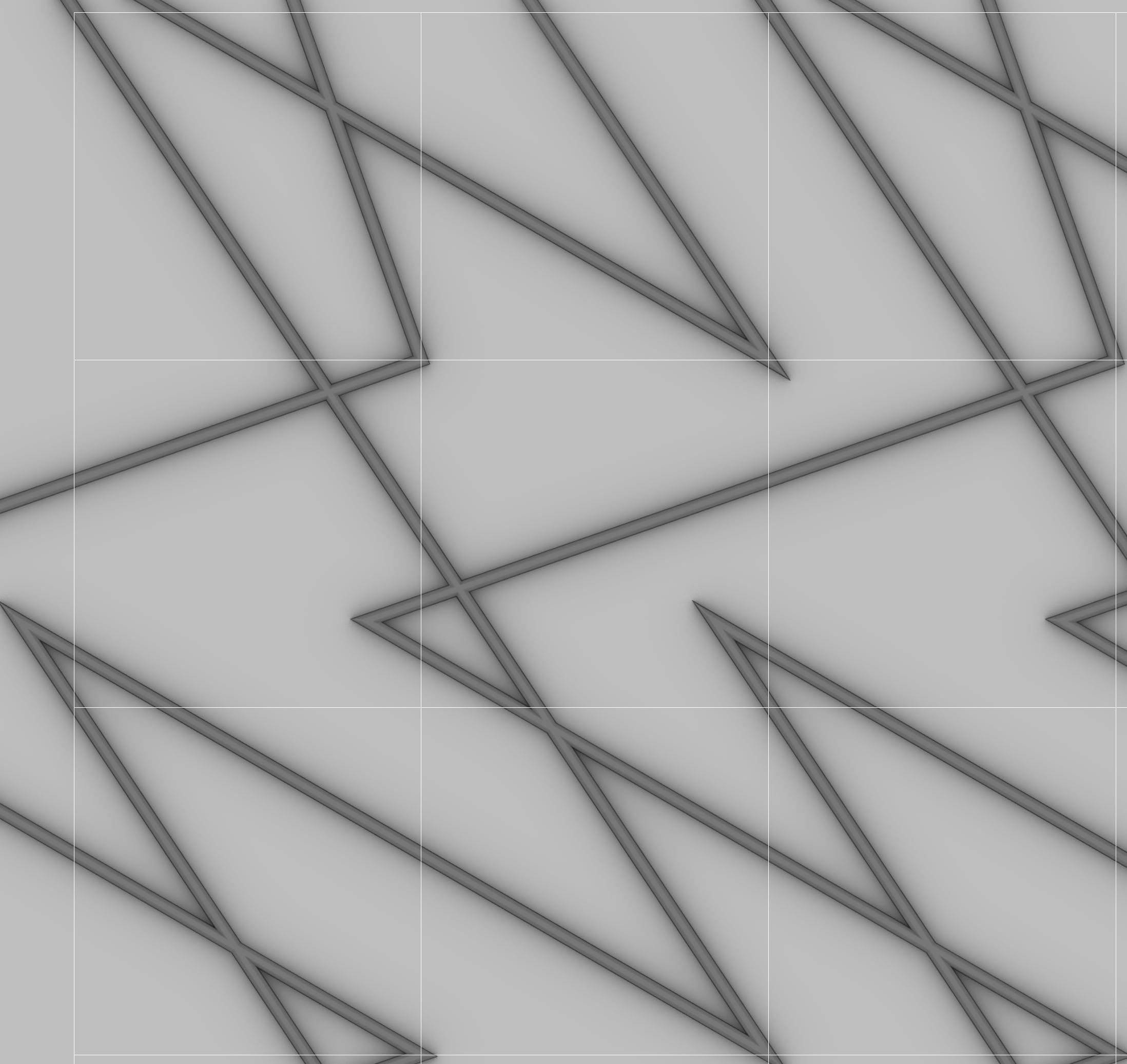

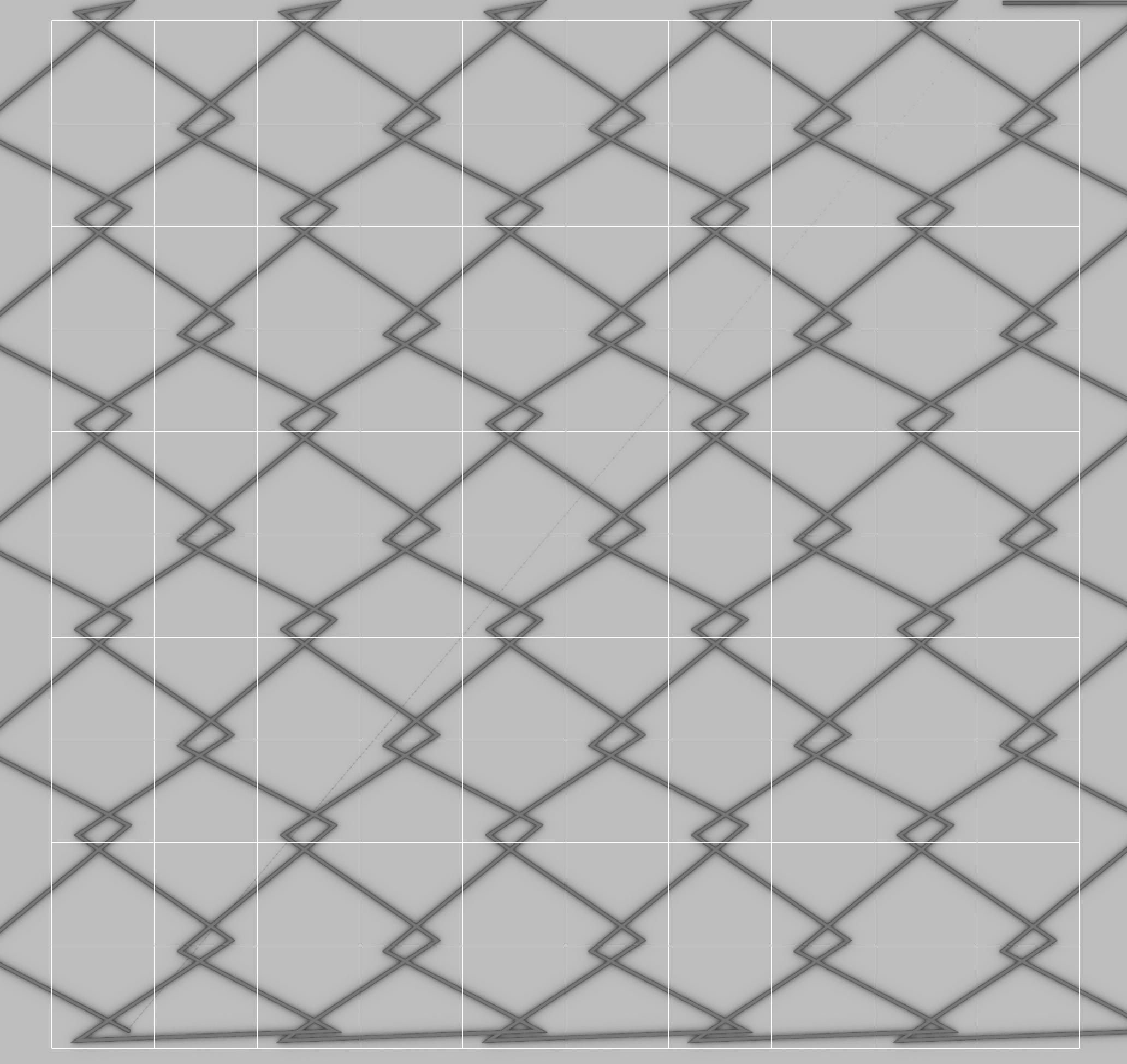

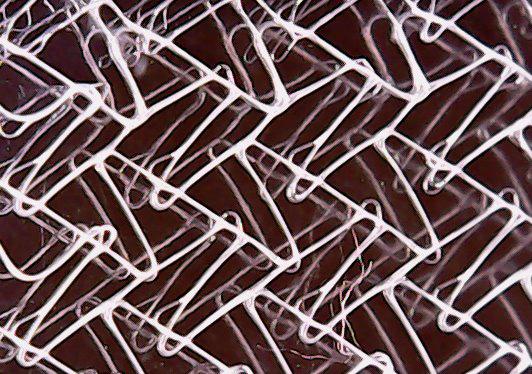

IMAGE: MEW pattern 1 detail MEW pattern 2 detail

MEW PATTERNS I

Melt electrowriting (MEW) is a relatively new biofabrication approach (proofof-principle in 2008) that combines electrospinning with 3D printing, using high voltage to precisely deposit molten polymer into fibers with diameters in the micrometer range.

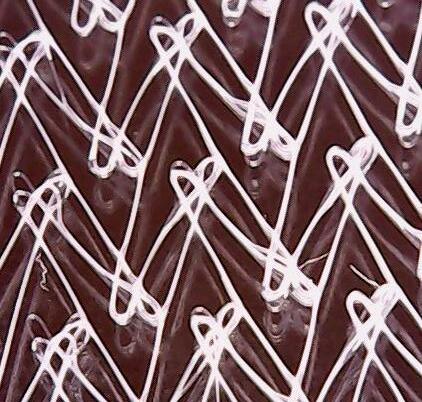

These are pictures taken by a microscope of 3 different patterns that I chose to have printed.

JESPER BRAUN

11

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

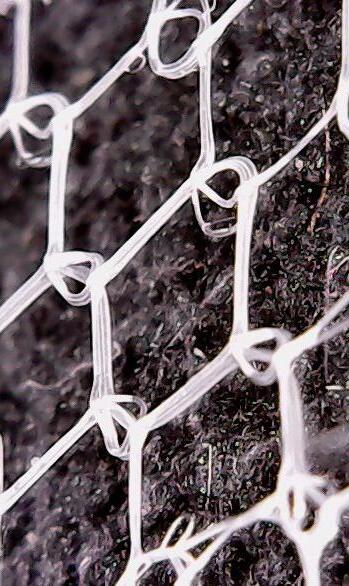

IMAGE: MEW pattern 1 detail MEW pattern 2 detail

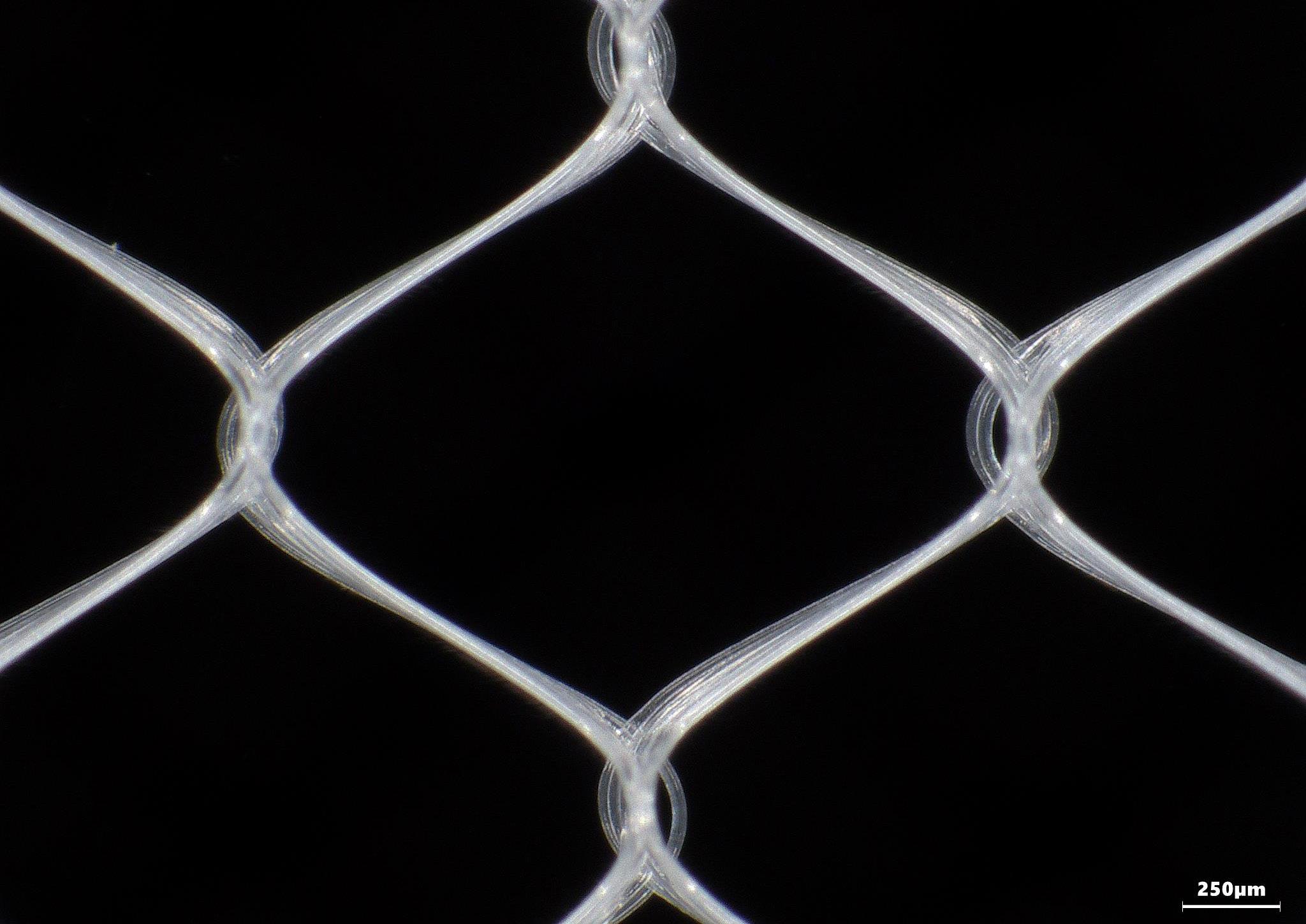

MEW PATTERNS II

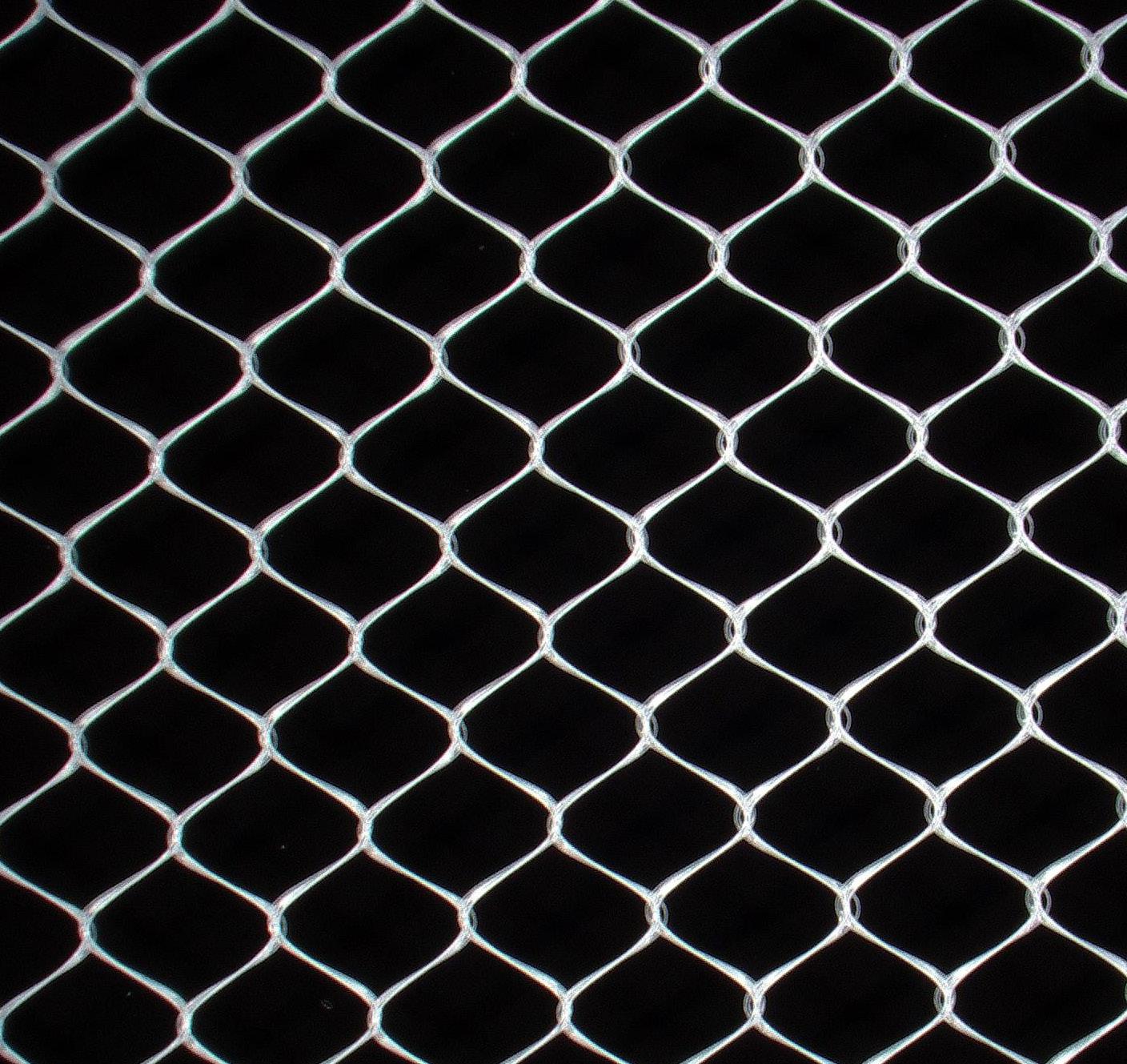

These microscope photos are from the second stage of MEW printing. My second choice design ended up beind printed, instead of my first, because my first choice didn’t have enough overlap between fibers & it fell apart.

This pattern was inspired by the pattern that snake scales create. Although I don’t use this pattern direcly, the form is similar to the pattern I choose, & it helped inform my design.

JESPER BRAUN

13

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

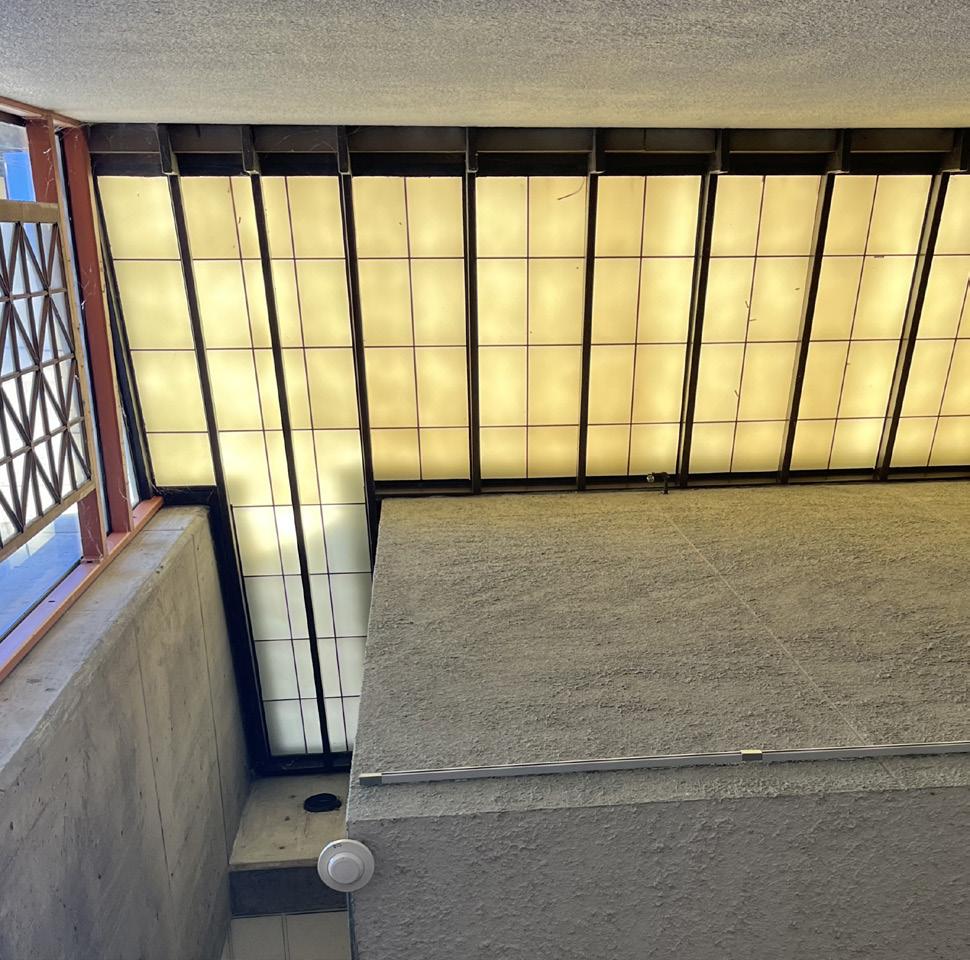

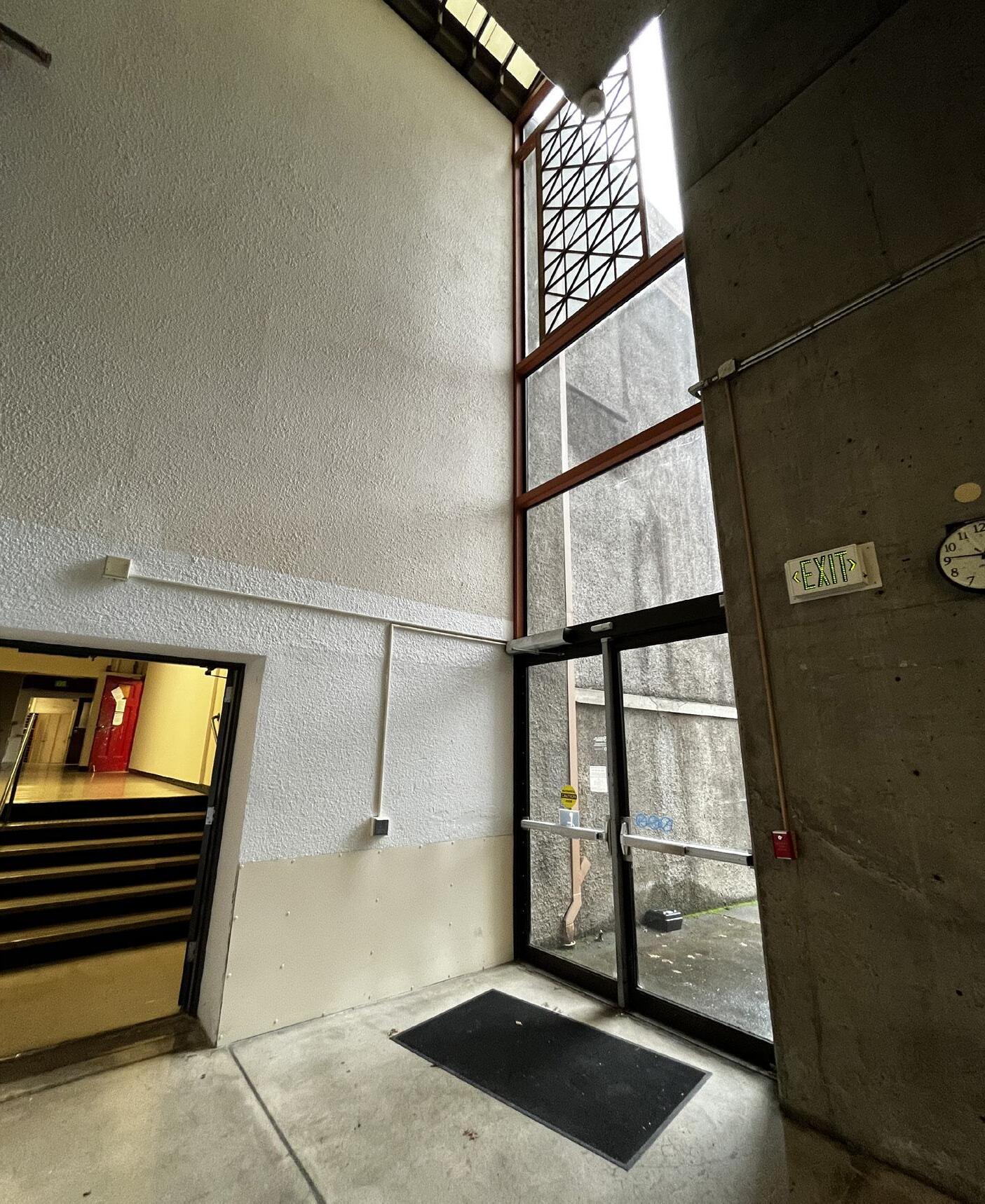

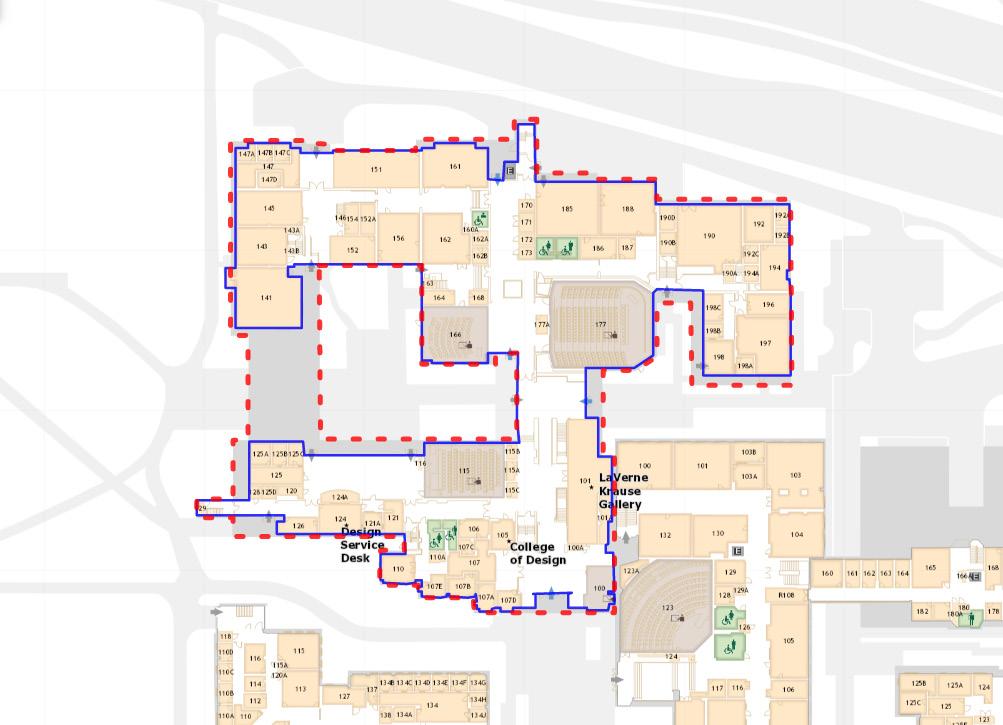

IMAGE: Lawrence Plan Photo of skylight

SPACE IN LAWRENCE LIDAR SCAN

I decided to choose a space in Lawrence on the first floor, adjacent to a North entrance. I chose this space due to it’s access to natural, diffused light and its impressive verticality (30’ tall).

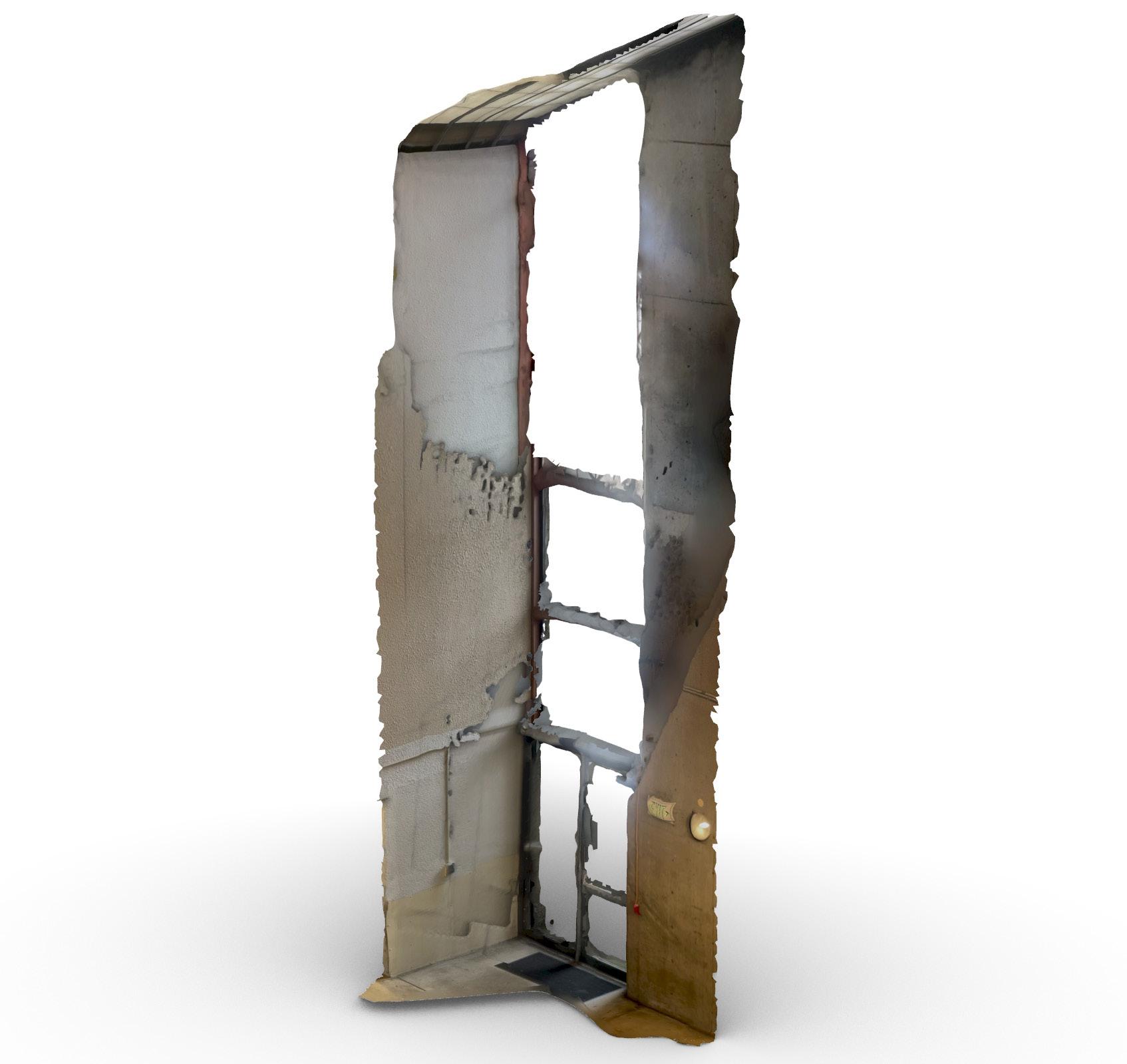

The image to the right is a lidar scan of this space, and the images on the right page is a photo & plan of the space.

N JESPER BRAUN

15

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

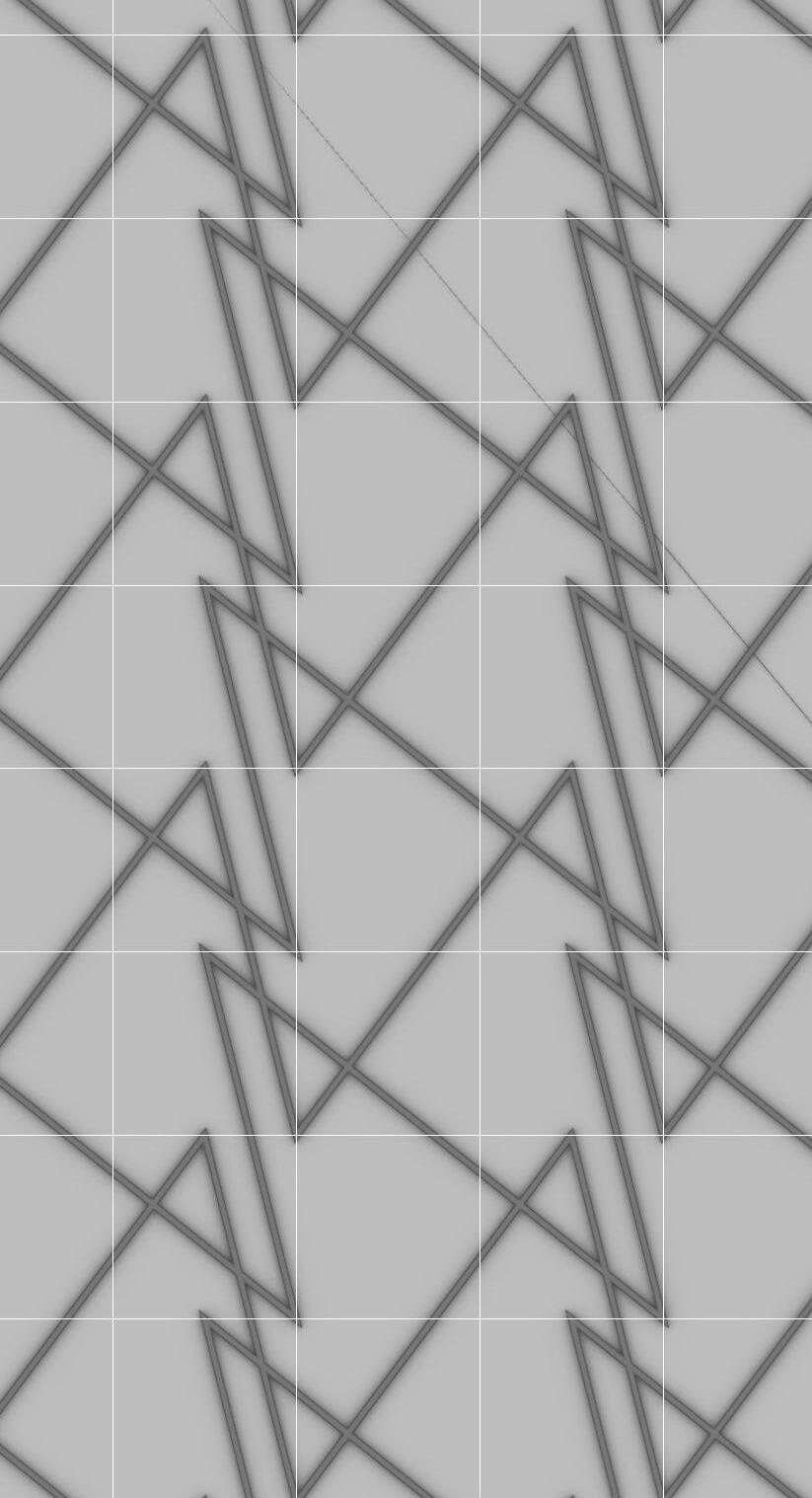

2D PATTERN STUDIES

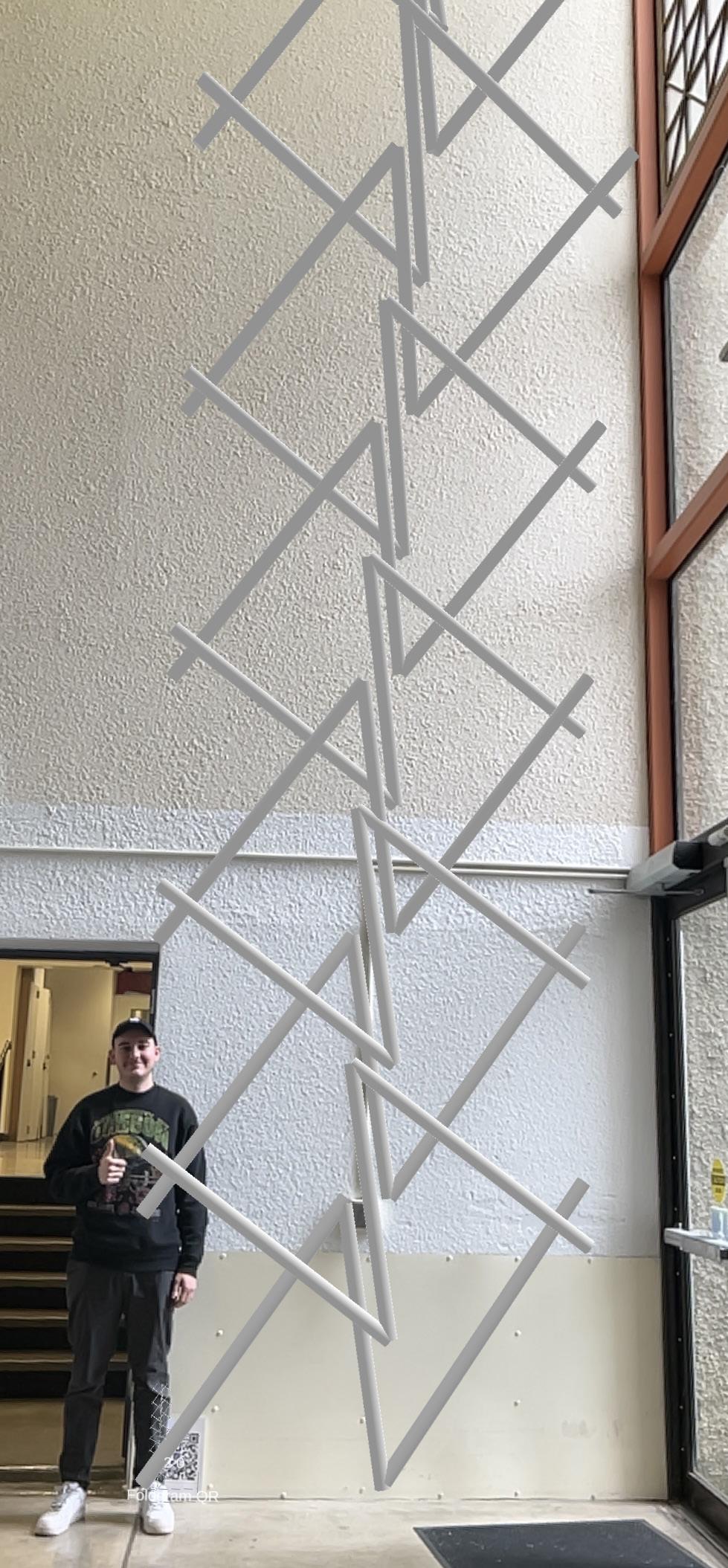

After deciding on my space, I decided to explore different patterns within a 6’x20’ frame. I created a 2’x2’ module with 4 points on each side, in order to facilitate creating patterns with 1-3 repeatable & connecting modules.

6’

The image below shows an example of this 2’x2’ module, and how a pipe might connect between the points.

These patterns were created by mirroring, rotating, and copying both single modules and groups of modules.

20’

2’

2’

Module 1

Module 2

Module 3

Module 4

Module 5

Module 6

JESPER BRAUN

17

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

6’

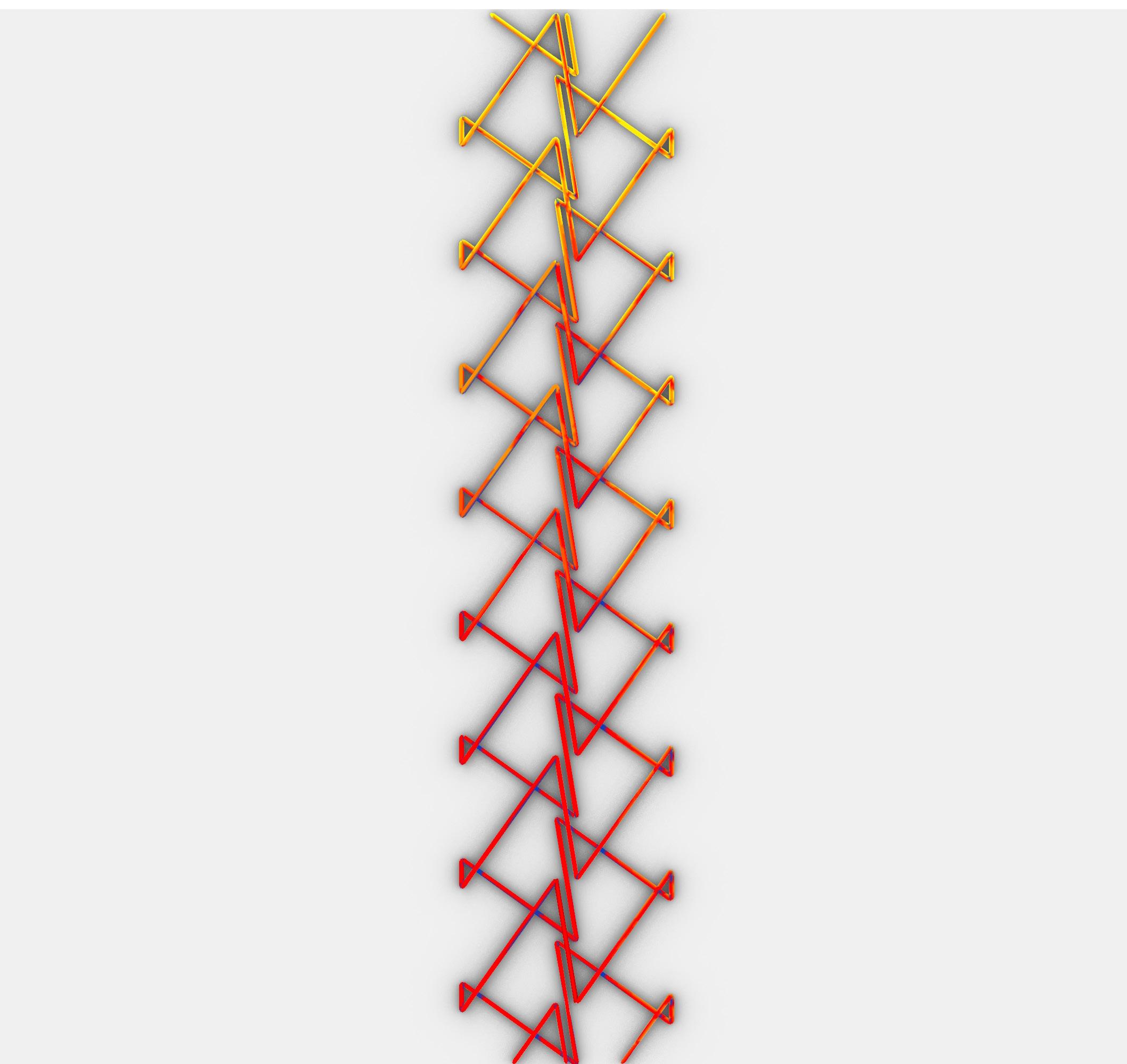

INSPIRATION + DESIGN For my scaffold design I decided to choose pattern 05, which was inspired by jagged plant leaves.

I rotated the pattern 90° so that the jagged edge runs vertically up the wall, whichs complements the verticality of the space.

Opportunity for Trellising

I then corrected all of the angles to make them 45°, to adjust to PVC pipe joints.

I then broke the pattern down into 2 columns of Z-shaped components designed to stack on top each other.

Pockets for Plants

=

+ 30’ 3” Bottom Pipes

3” Top Pipes 45° Angles only

1 mm x 1 mm

JESPER BRAUN

19

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

MODEL PHOTOS

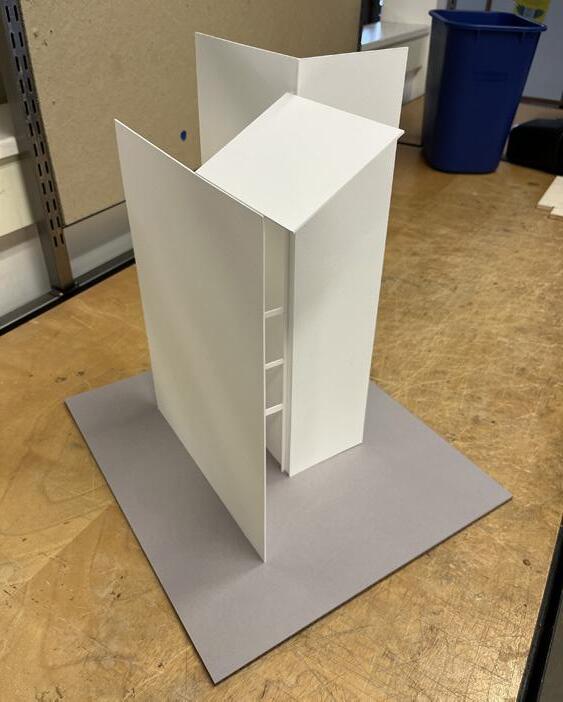

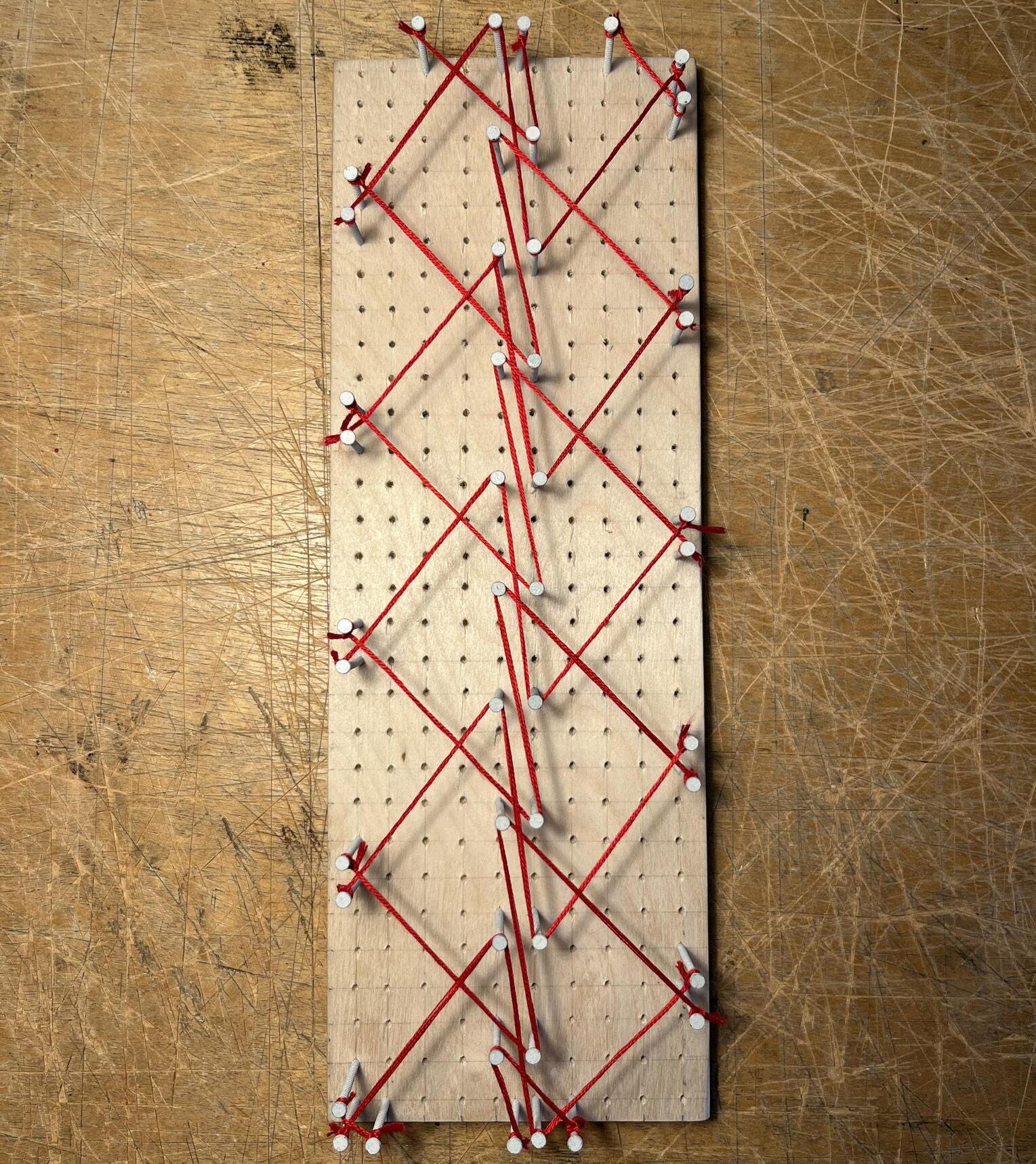

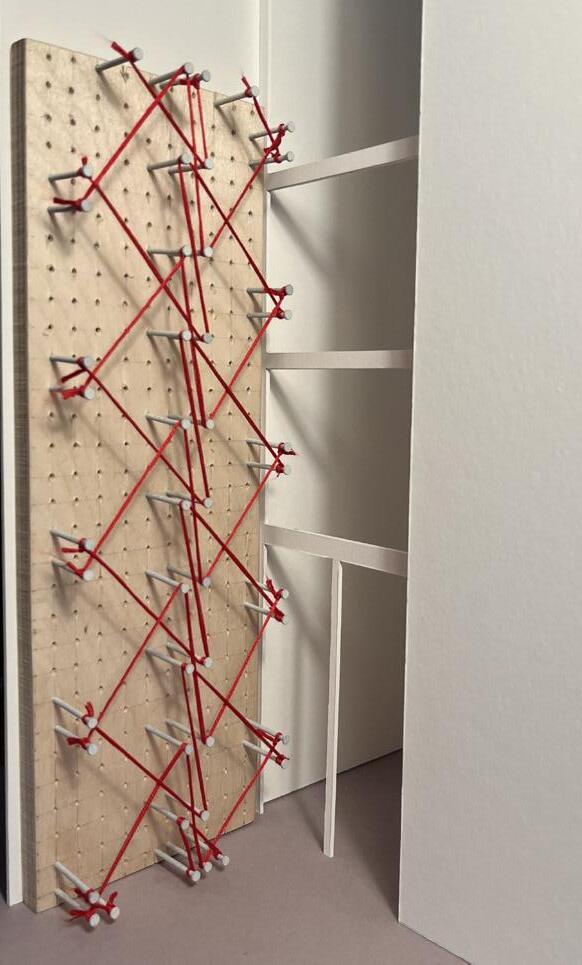

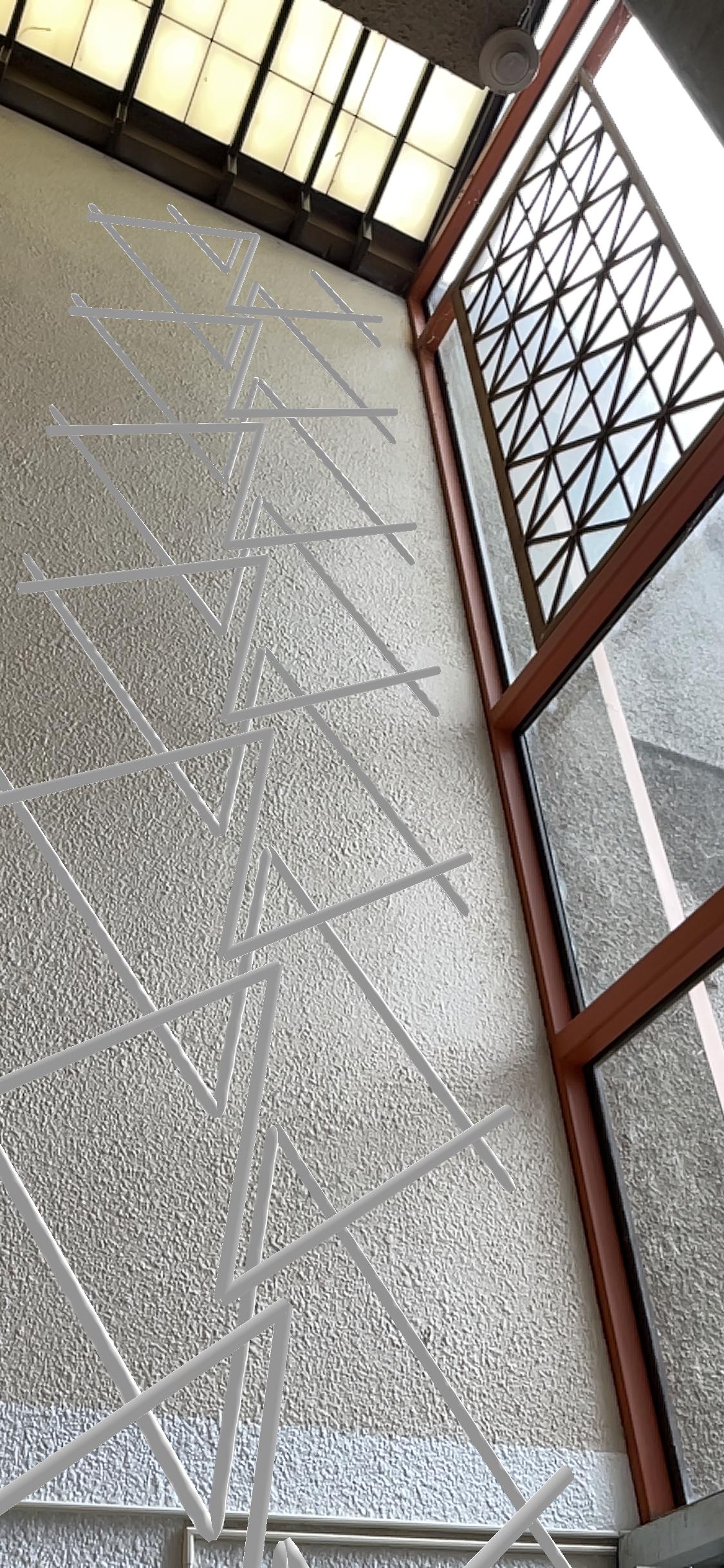

These photos show my design within a simple physical model of my space. I used thread to weave the pattern through nails attached to a wooden board.

JESPER BRAUN

21

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

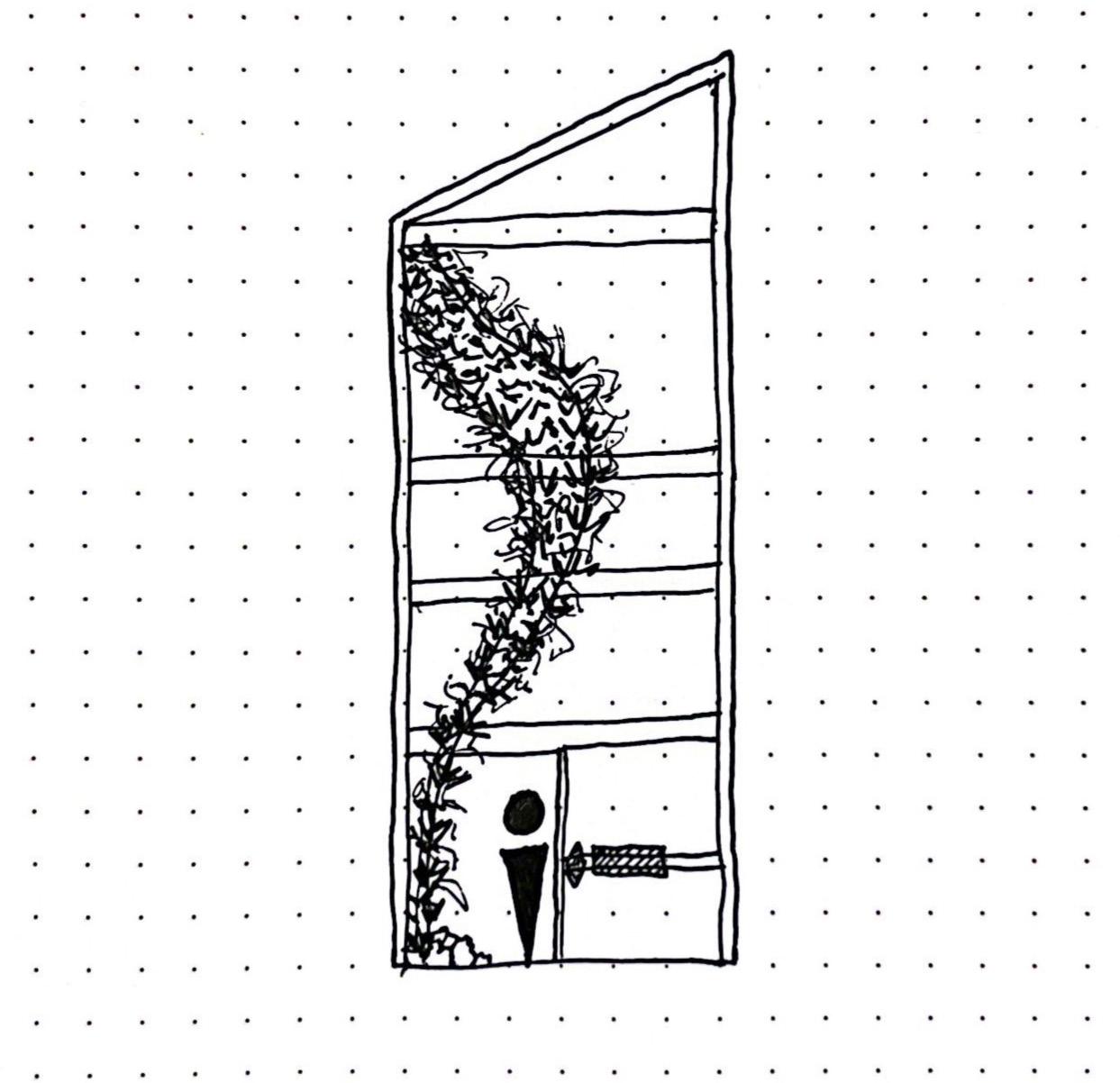

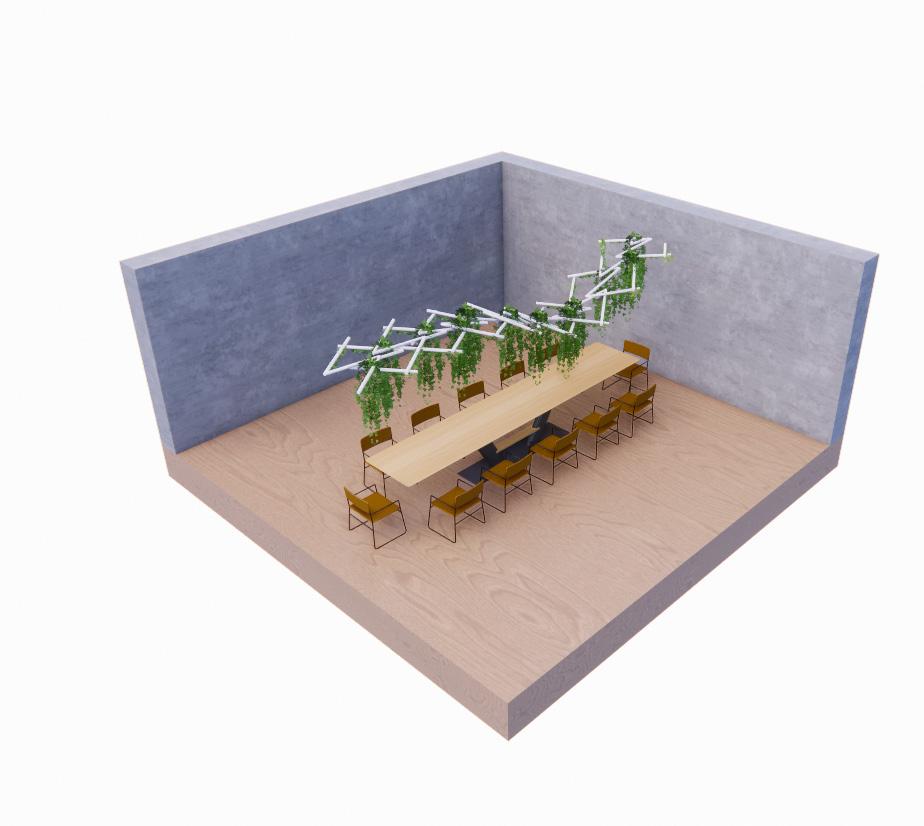

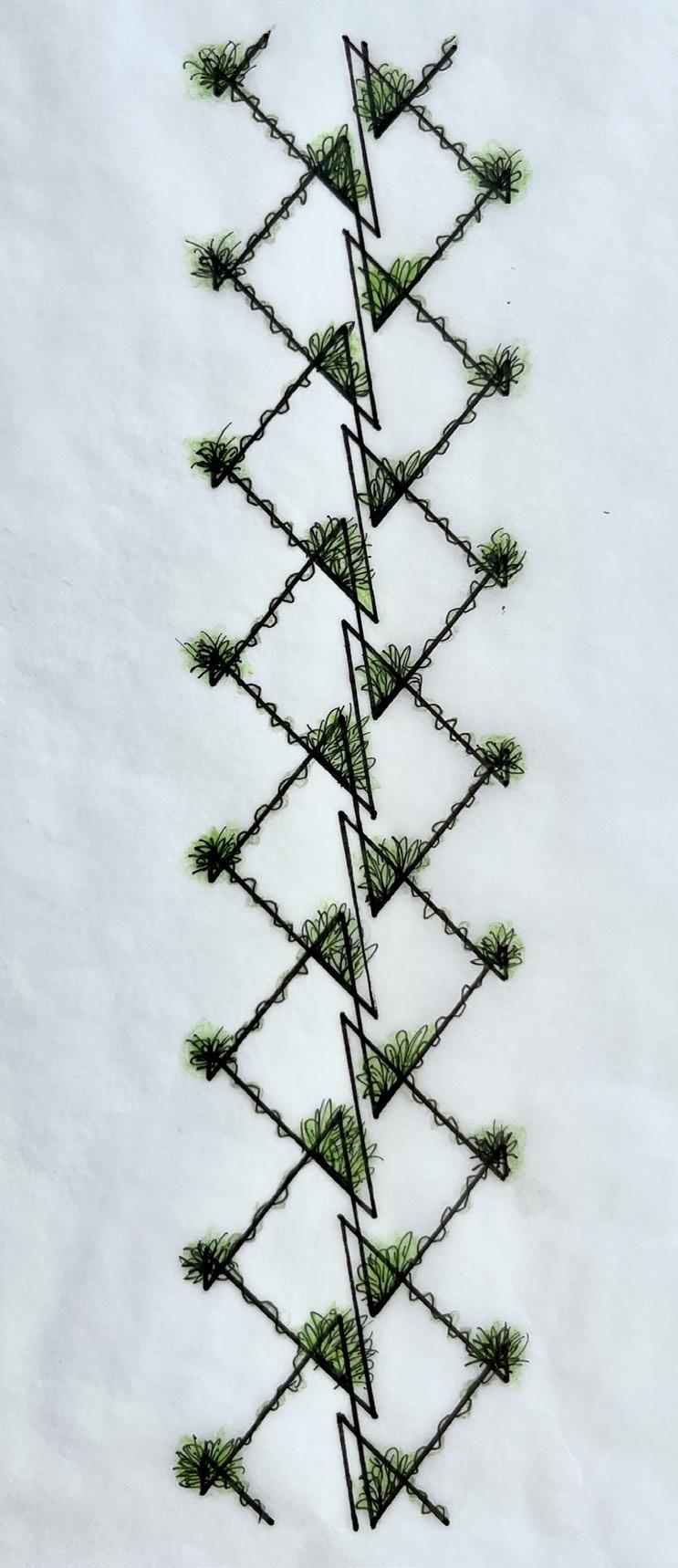

EXPLORING THREE DIMENSIONALITY These sketches show when I began to think more 3-dimensionally about my scaffold, & I envisioned different ways that it could come off the wall & create a unique spatial experience. w

JESPER BRAUN

23

POMPIDOU 2 STUDIO

82”

POMPIDOU 2 STUDIO

96”

ELEVATIONS & PLANS 1’

Elevation & plan drawings showing how my design connects to existing water, electrical, and drainage lines.

6’

Connection to Sprinkler

6’

1’

Connection to Gutter

1’

36’

1’

The second elevation shows my lighting rail system, and how it builds off of the an existing lighting rail.

4’

The plan show the drainage line leading to the sewer line.

Plant Lighting

30’

4’

30’

17.75’

24”

Plan A - 1’ = 1/6”

82”

96”

Water Pump for Recirculation

Elevation A - 1’ = 1/6”

Elevation B - 1’ = 1/6”

JESPER BRAUN

25

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

IMAGE: Building systems front view Model perspective

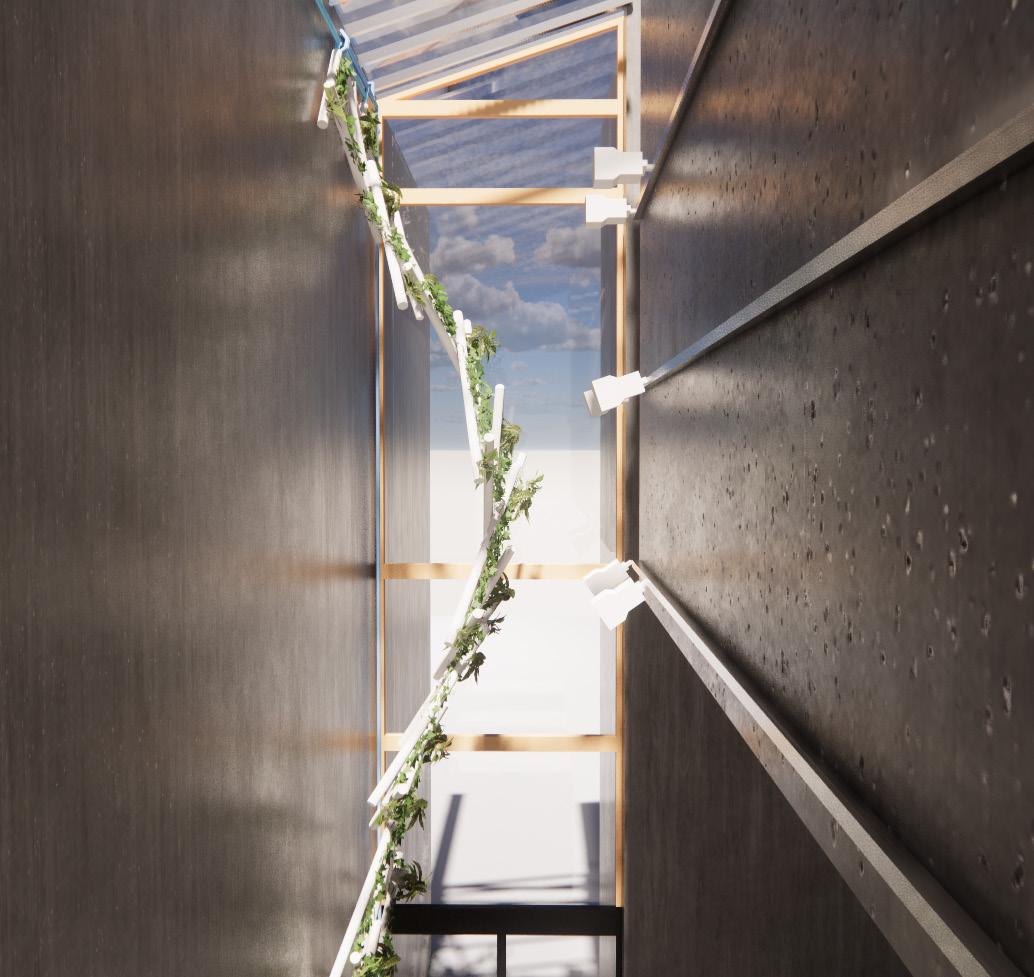

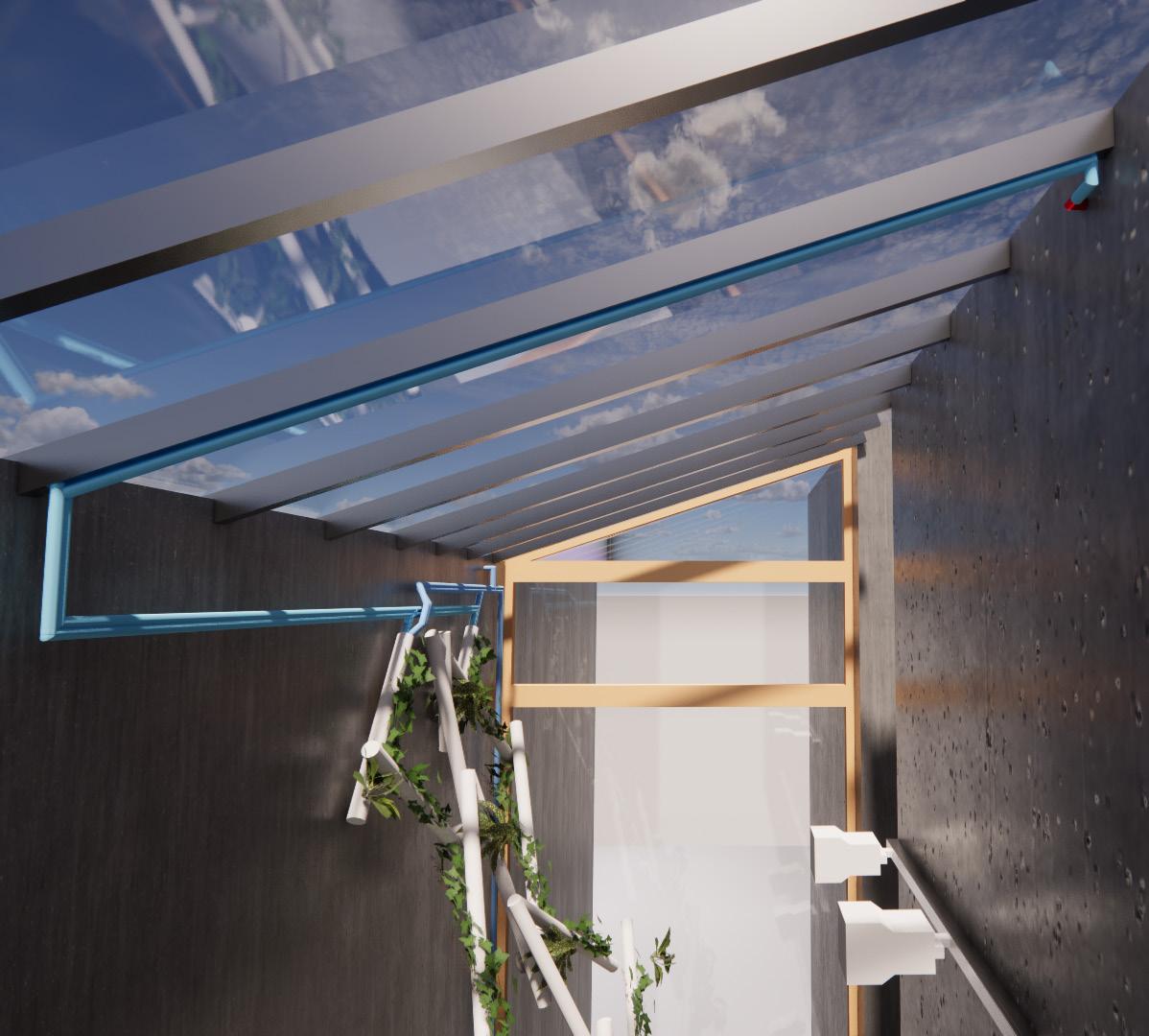

DIGITAL RENDERS

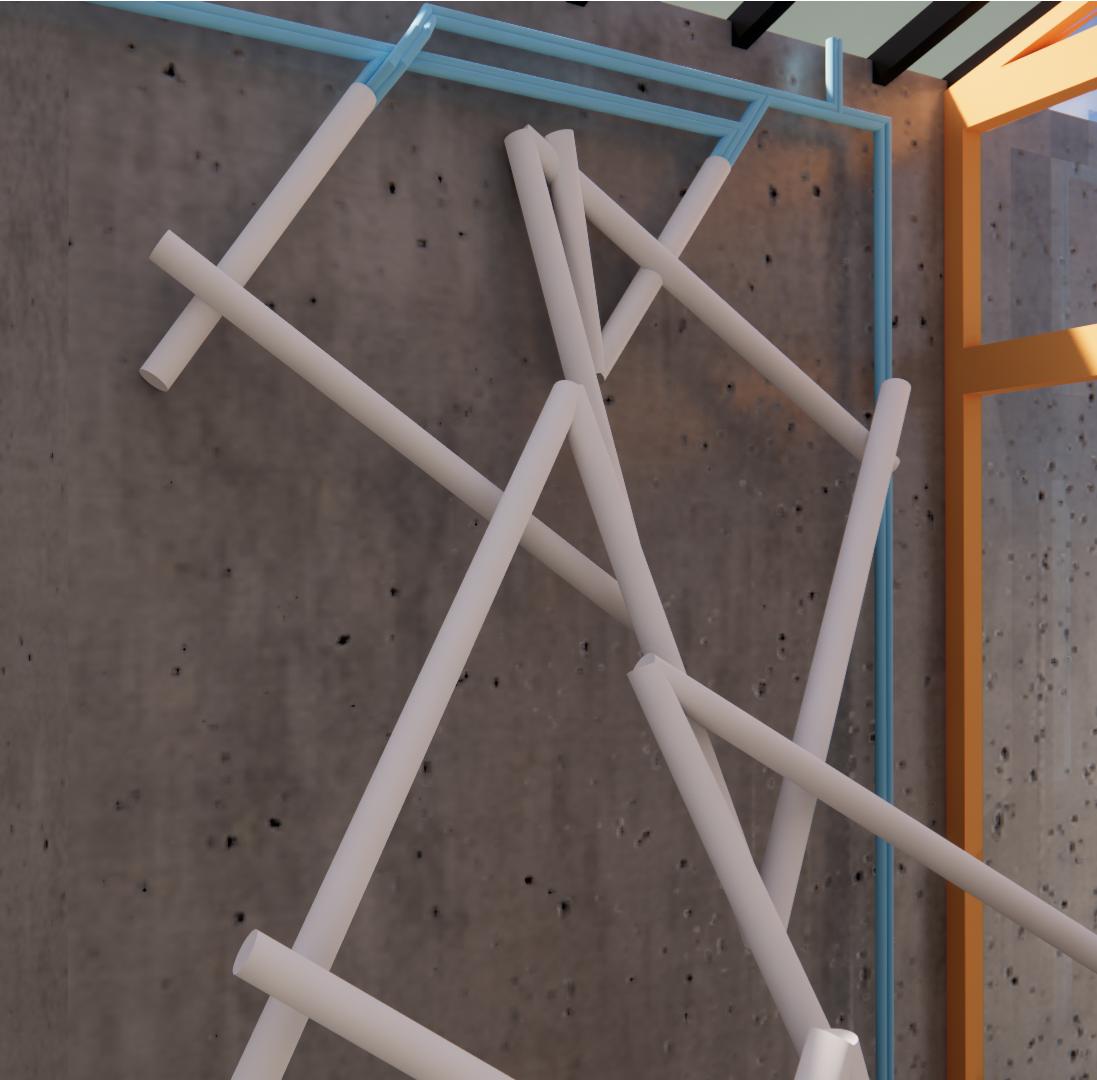

These axons show the existing & new building system, and how they interact with each other. The main water supply for the scaffold will come from rainwater, because I have attached to an existing gutter that runs behind my wall.

I have also connected the sprinker line, as a backup for when rainwater can’t supply sufficient water. This water is brought from the opposite wall, and runs across the skylight mullion to reach my scaffold.

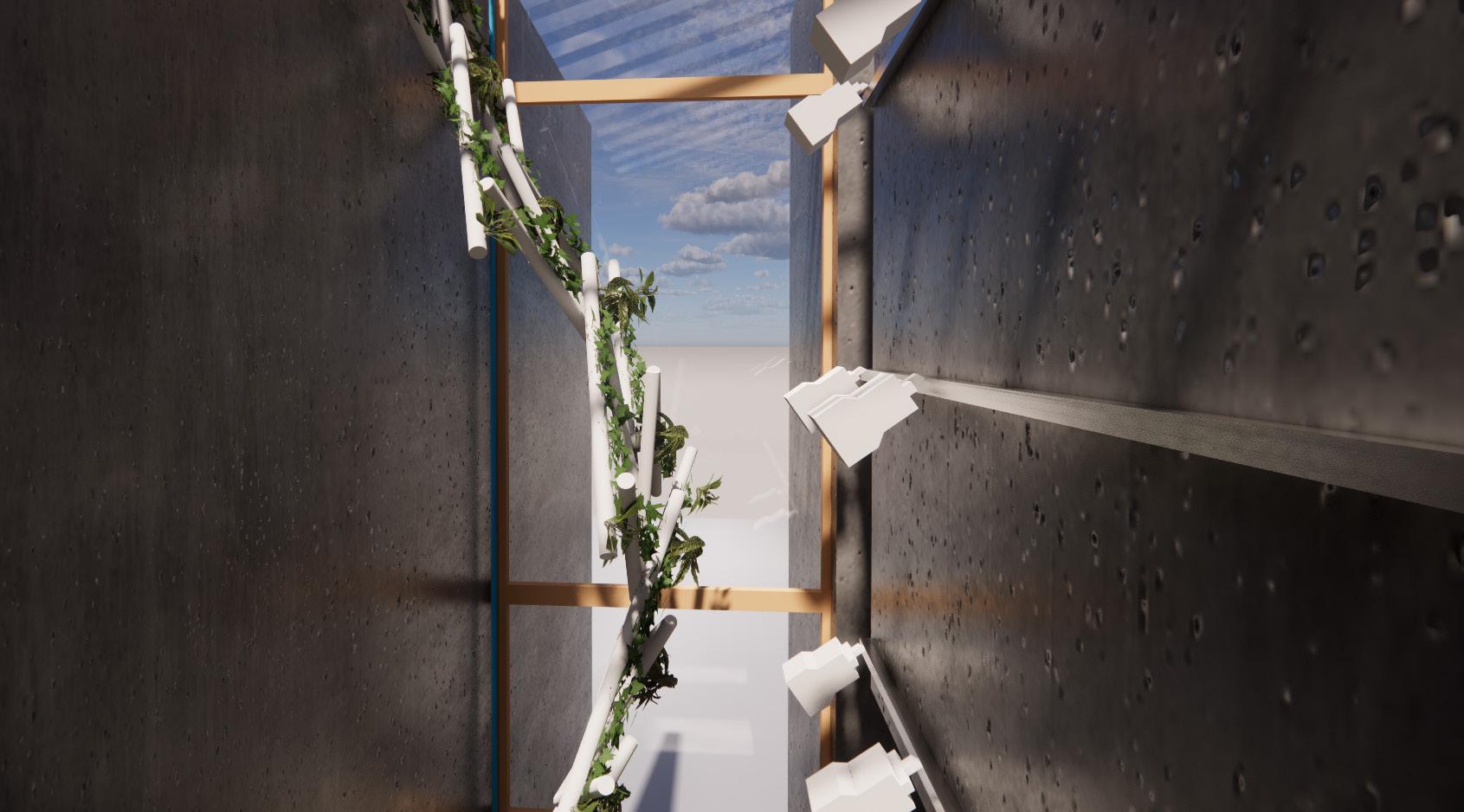

The second large image shows the lighting condition, and how there are grow lights that can provide supplemental light.

JESPER BRAUN

27

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

IMAGE: Water systems perspective Water flow elevation

WATER SYSTEMS These images shows how the different water systems interact with each other, as well as showing how the water will flow within the scaffold.

Existing Sprinkler Head

Connection to Sprinkler Line

Connection to Rain water

JESPER BRAUN

29

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

IMAGE: Water systems perspective Water flow elevation

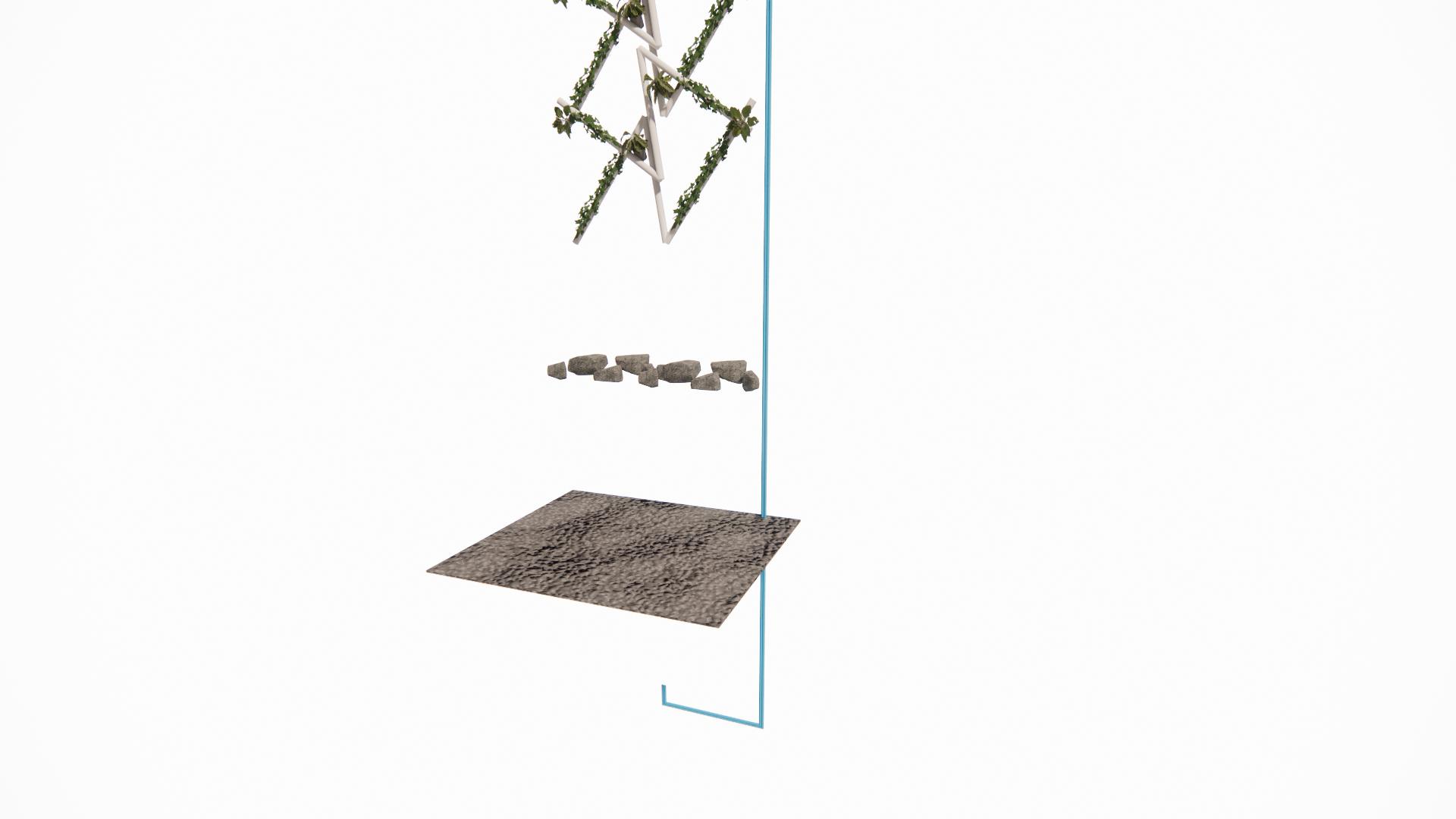

DRAINAGE SYSTEMS These images shows how the drainage systems operate, and how they tie into the existing building infrastructure.

Scaffold design

Large rocks

Porous stone floor

recirculation line Drainage to sewer line

JESPER BRAUN

31

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

IMAGE: Water systems perspective Water flow elevation

LIGHTING SYSTEM

These images show how my lighting system works. There was one existing light rail, so I decided to add two more higher up the wall to supply light to the upper part of the scaffold.

82”

New Light Rails

1’

96”

36’

4’

4’

30’

17.75’

Existing Light Rail

JESPER BRAUN

33

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

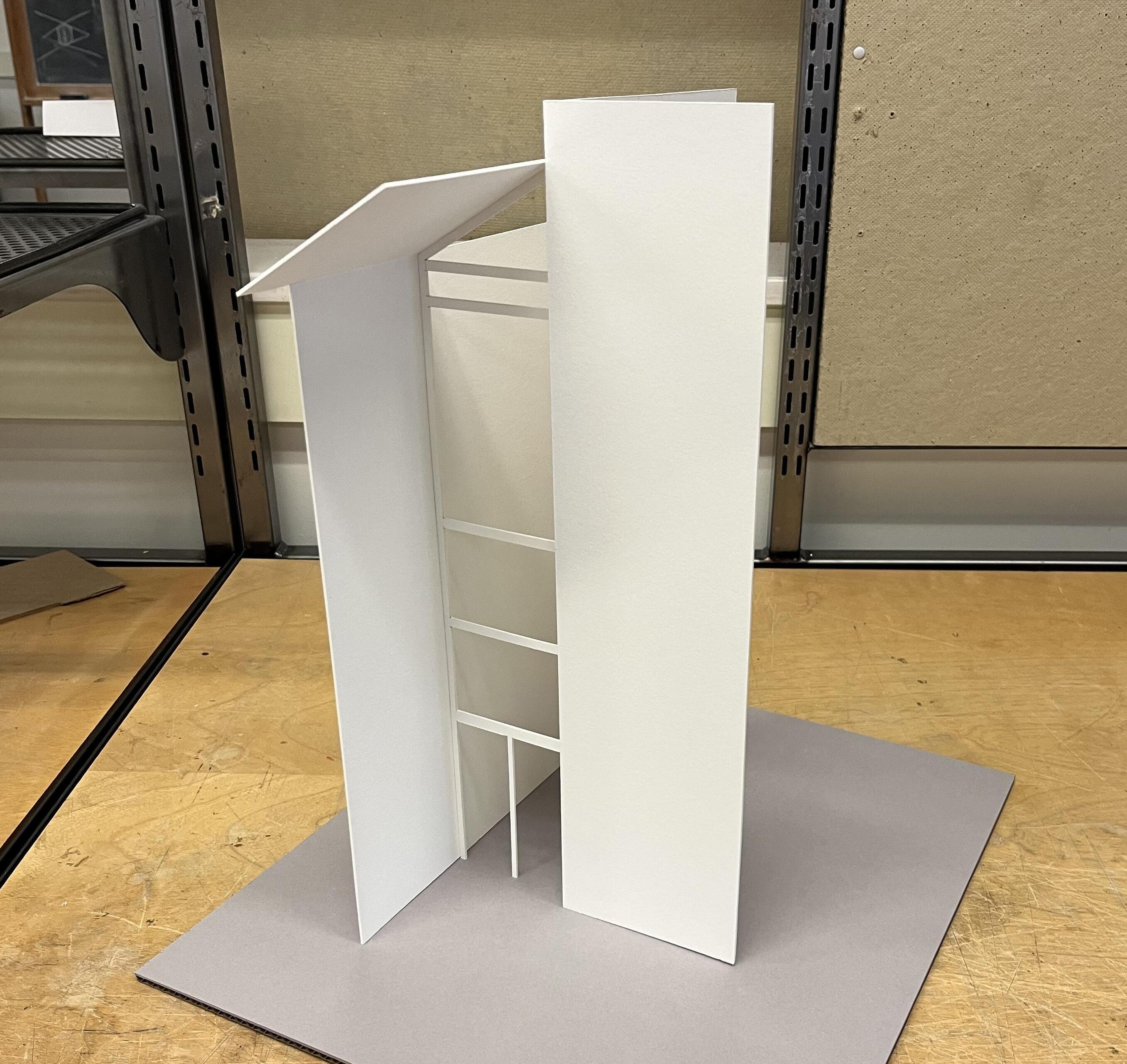

IMAGE: Digital Solar Analysis Physical Solar Analysis

SUNLIGHT ANALYSIS

These rendering show a digital analysis & physical analysis of sunlight in my space.

After running several analyses, I was able to determine that the scaffold will need supplemental lighting during the late winter and early spring months.

1’

11’

LOW

Digital sunlight analysis - Spring months (March - June)

HIGH

500-800 lux

Physical sunlight analysis - 2/9/22 1pm, partly cloudy

800-1100 lux

1100-1400 lux JESPER BRAUN

35

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

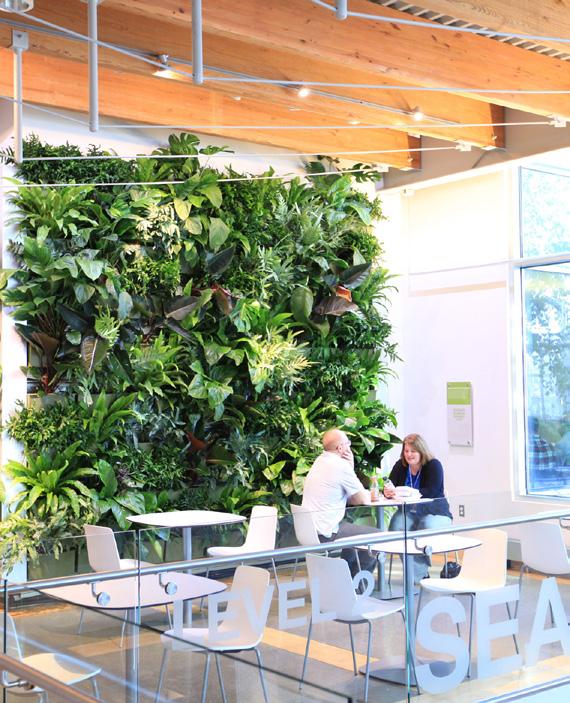

IMAGE: Living wall system Ivy trellis

PLANT SPECIES & DISTRIBUTION I’ve decided to use the species Philodendron Cordatum, Scindapsus Aureum, and Hedera Helix Baltica.

All of these species are relatively low-light species, which is ideal due to my location’s adjacency to a large North window.

I was imagining that the baltic ivy would run up the sides of my pattern, and that the other two species would be placed within pockets running up the design.

Silver Satin Pothos 75-150 footcandles

Heart Leaf Philodendron 50-150 footcandles

Pockets of Growth Baltic Ivy 200 footcandles

11’

6’

1’ JESPER BRAUN

37

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

IMAGE: Living wall system Ivy trellis

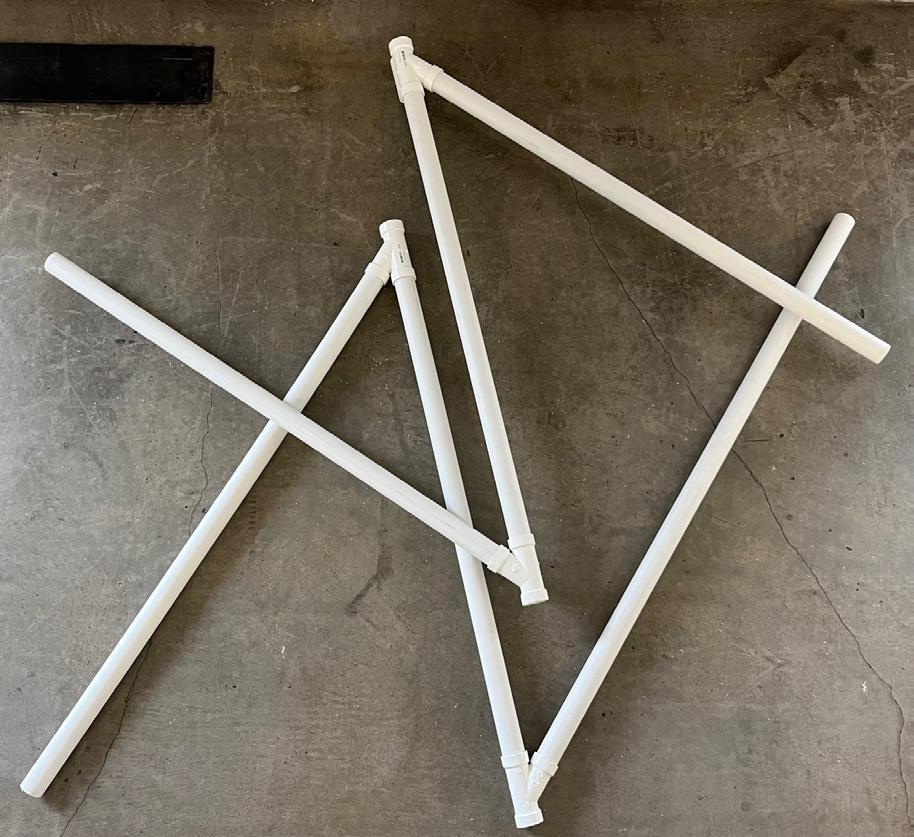

PVC MODULE CONSTRUCTION

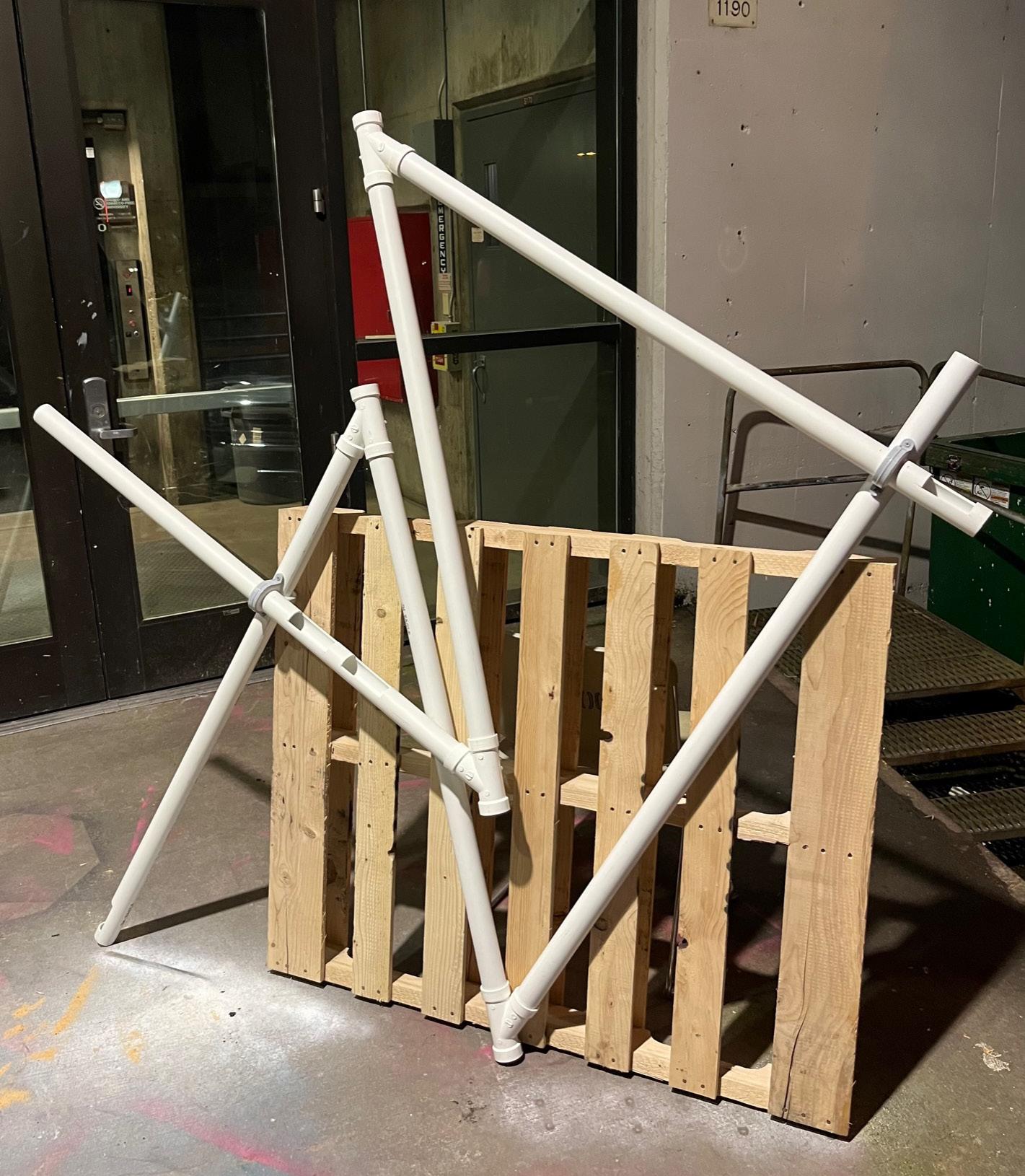

I created a 1:1 scale model of a section of my living wall system. For this model I used 2” diameter pipe, however in reality I would need at least 3” diameter pipe.

Above view of PVC scaffold

Selected Module

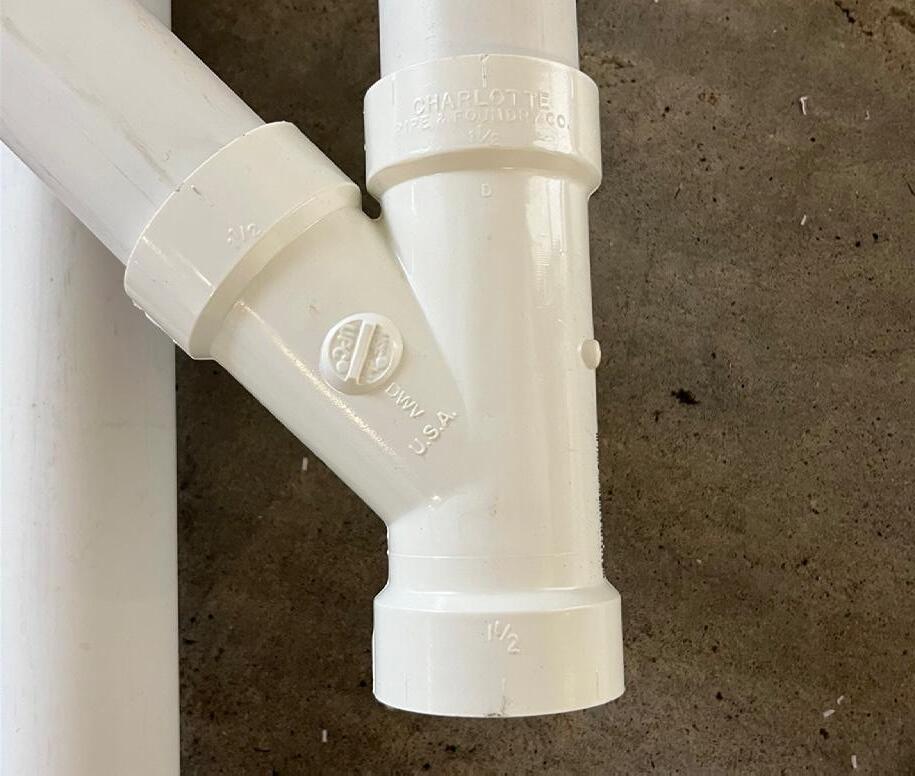

PVC Y-joint

PVC scaffold with openings & attachments

JESPER BRAUN

39

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

IMAGE: Living wall system Ivy trellis

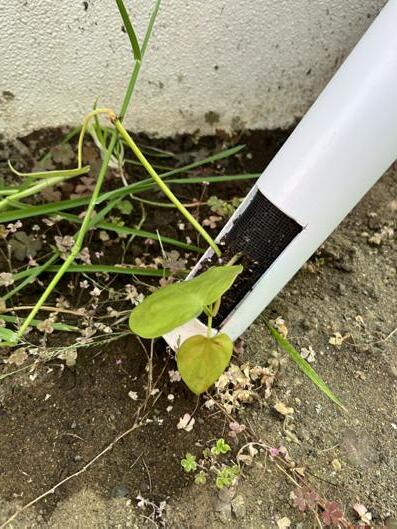

OPENINGS & PLANT INSTALLATION

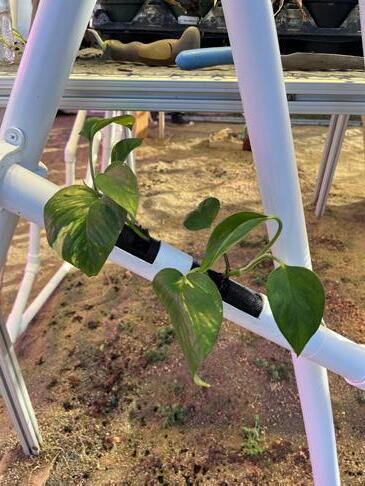

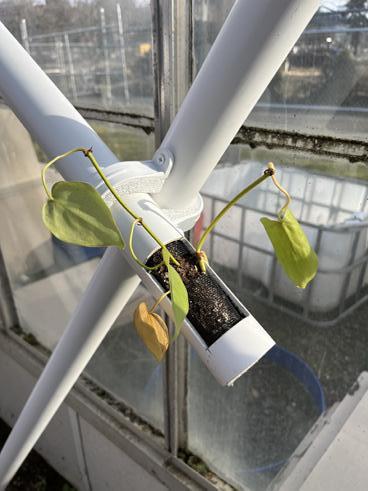

This drawing is showing where the openings are located on my scaffold, and which species will be located within which pockets.

Heart Shaped Philodrendron

Opening Locations

Pothos

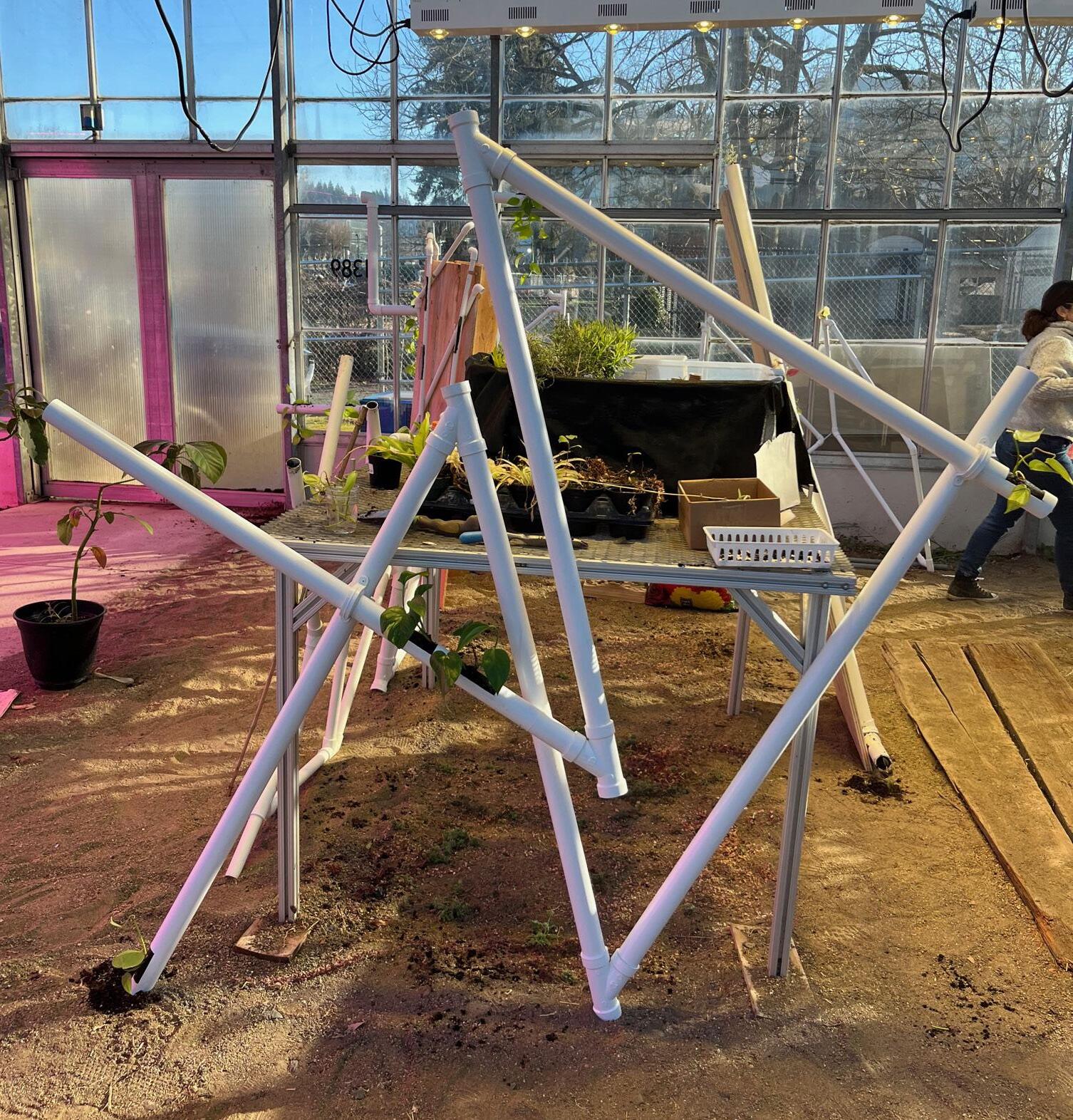

Scaffold at greenhouse

JESPER BRAUN

41

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

IMAGE: Living wall system Ivy trellis

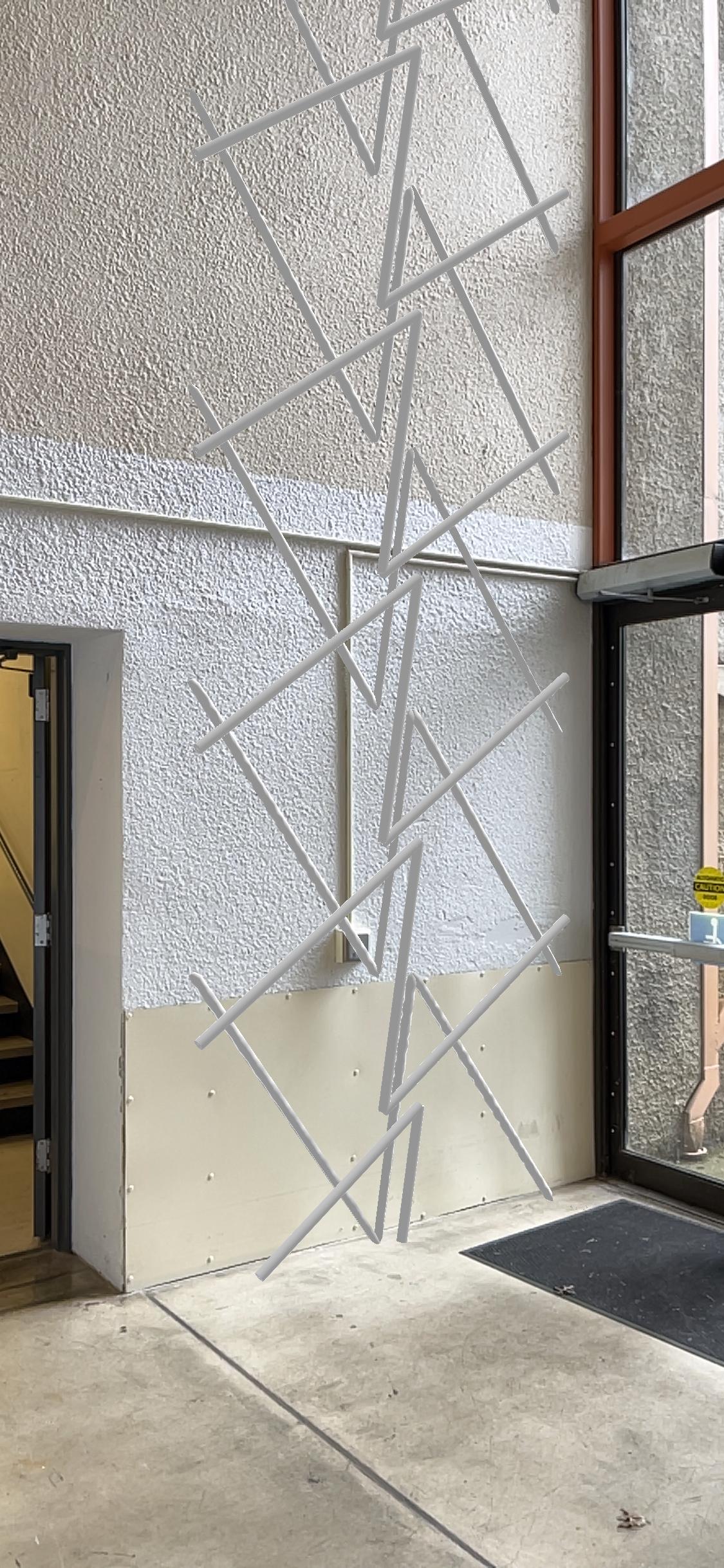

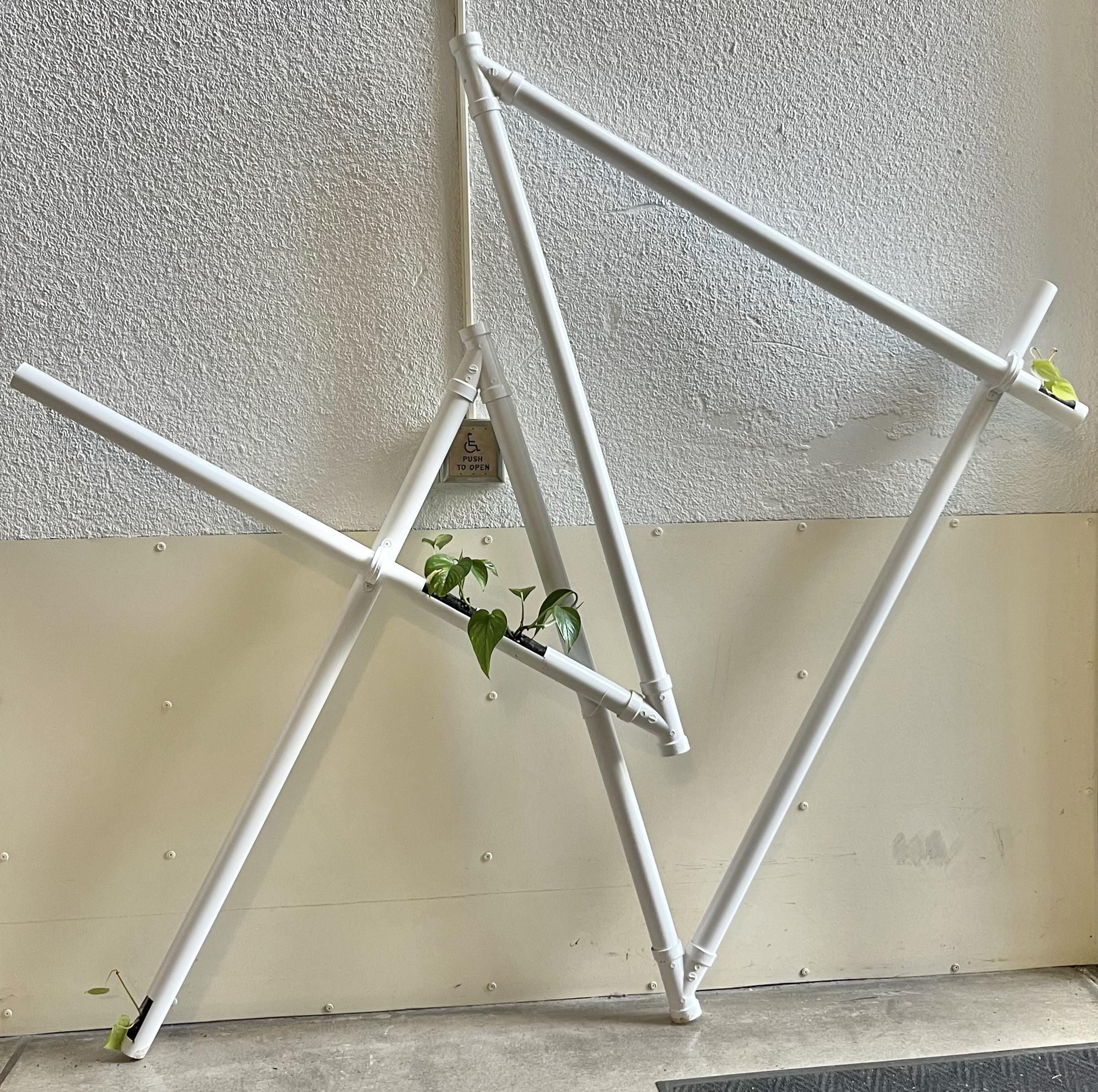

PVC SCAFFOLD WITHIN SPACE These photos show my scaffold against my wall after it was taken out of the greenhouse. The right image has fake ivy added to help visualize what my scaffold would look like with ivy.

Scaffold in designated space

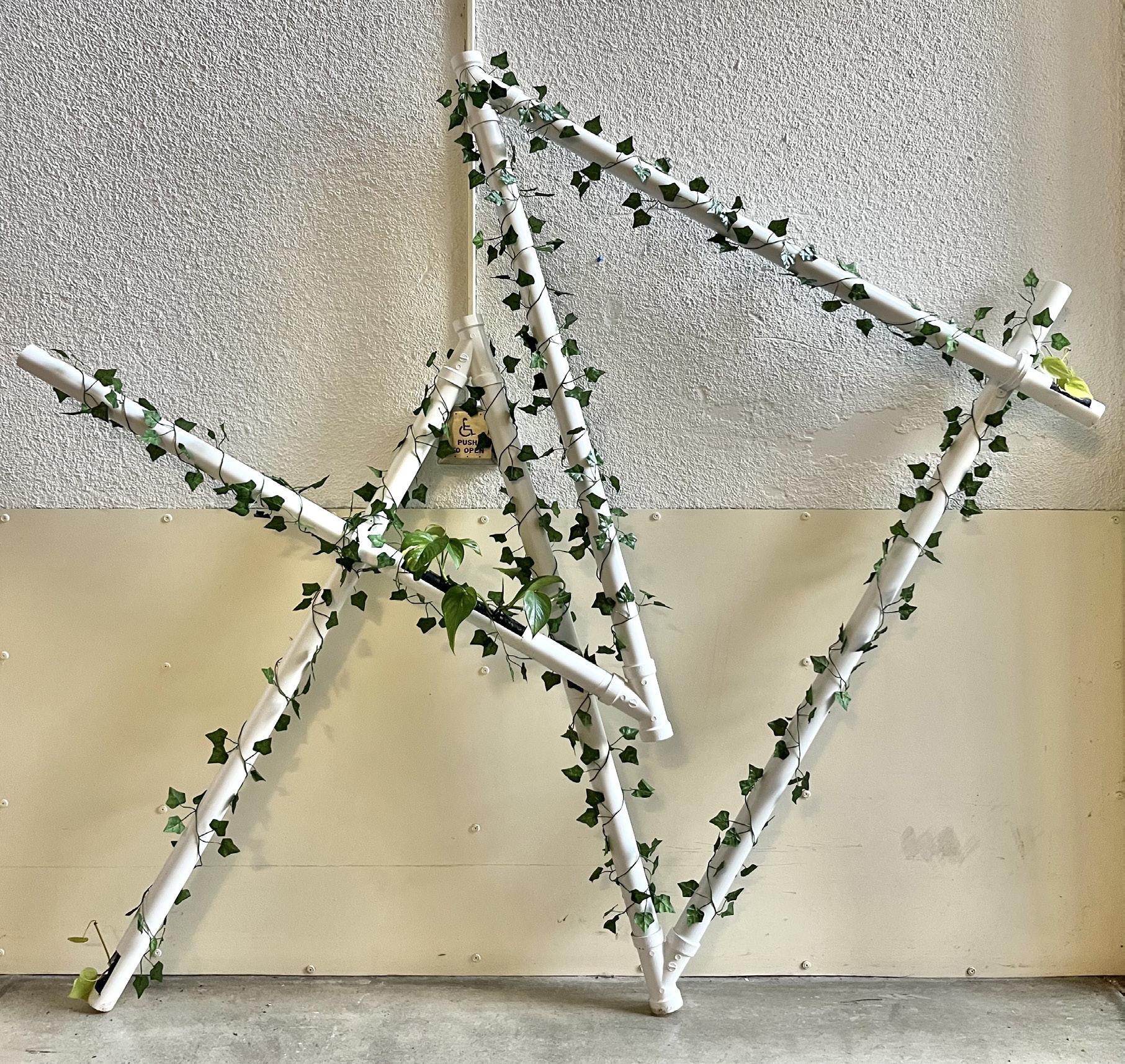

Scaffold with Baltic Ivy in designated space

JESPER BRAUN

43

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

IMAGE: Living wall system Ivy trellis

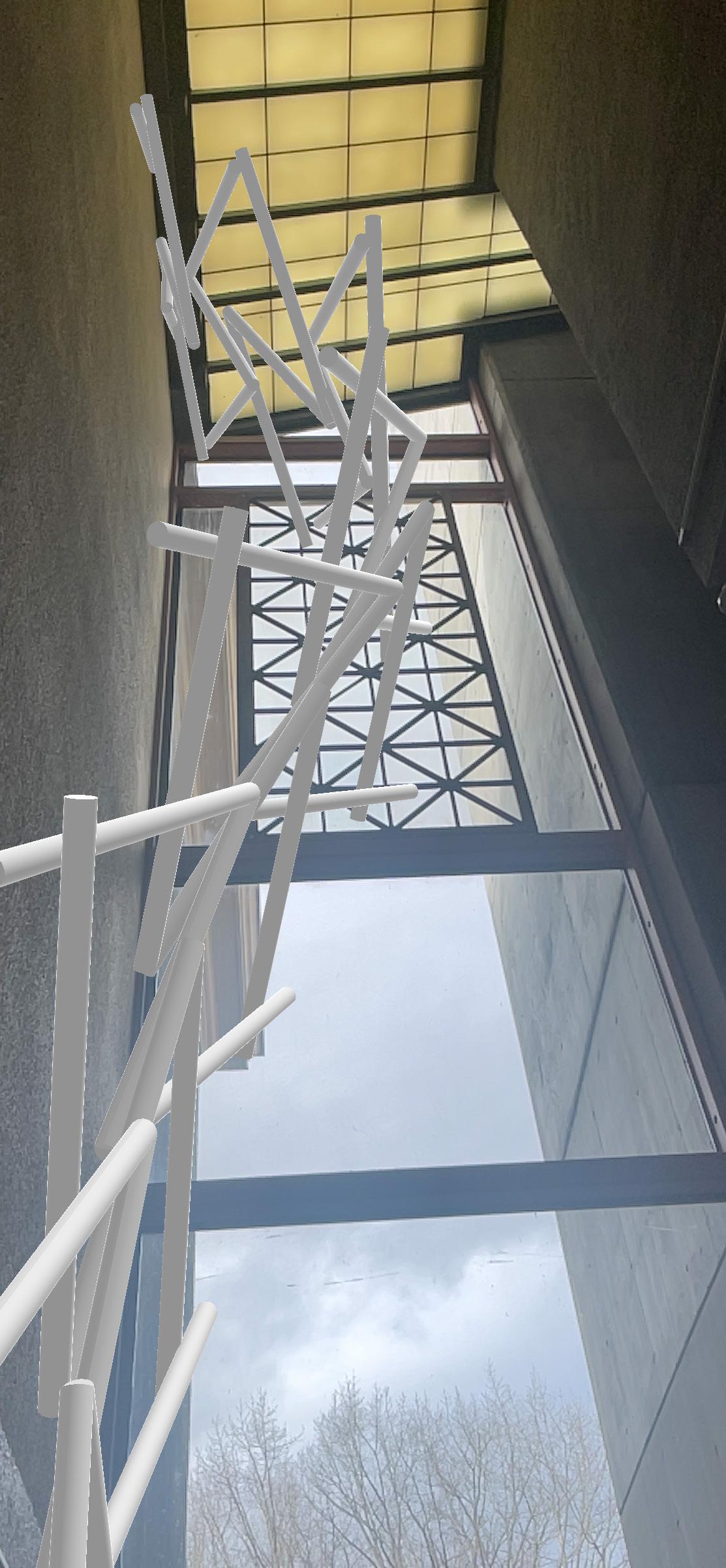

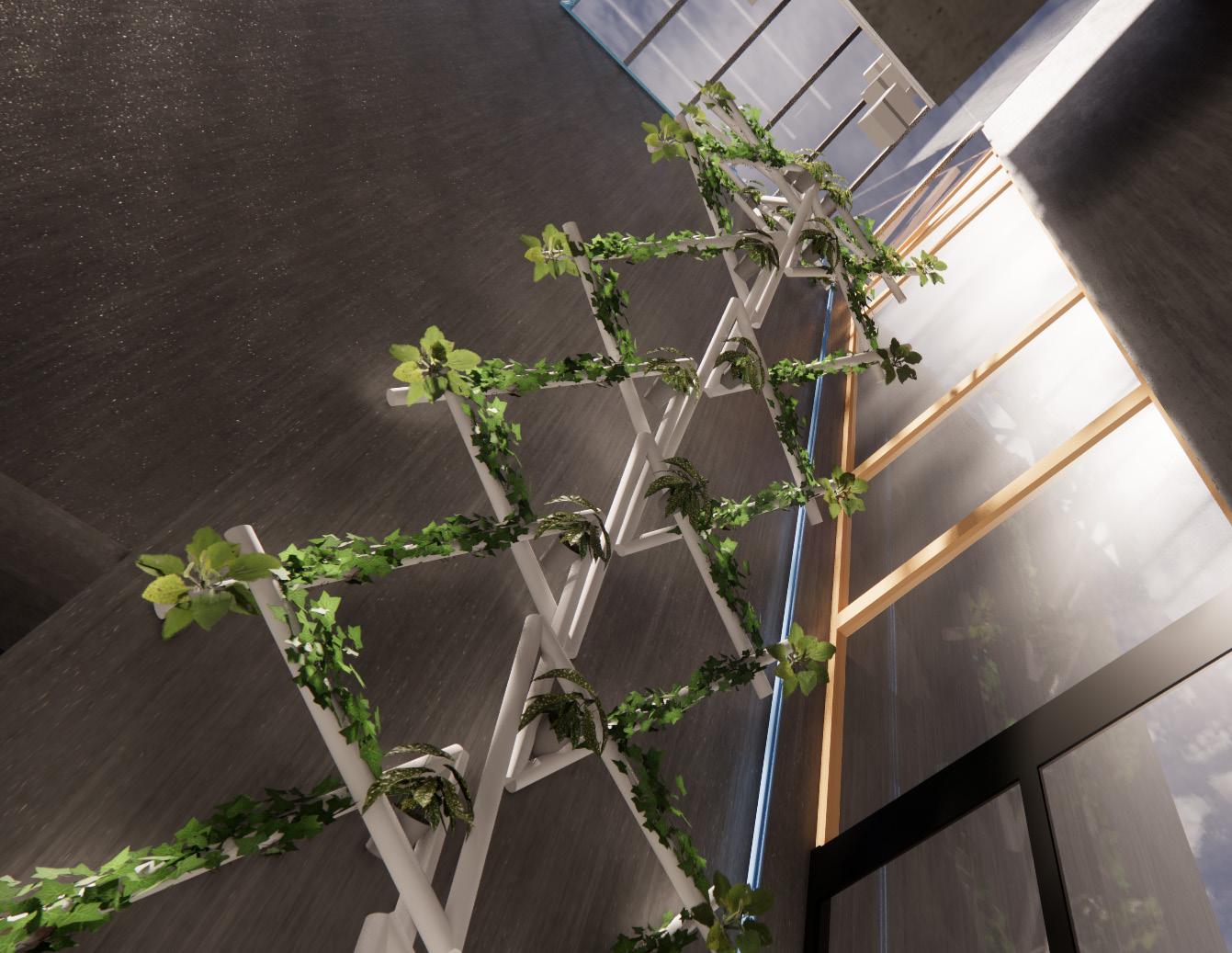

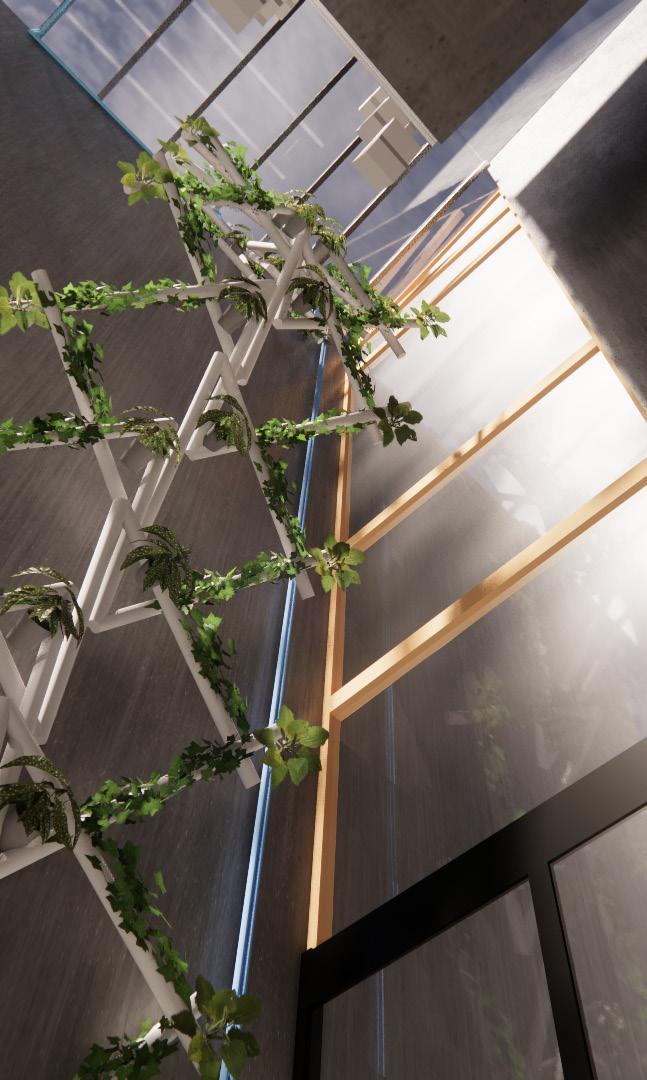

VR IMAGE CAPTURES

These are the VR Image captures of my scaffold within its space, as well as plants added in the last 2 photos.

VR Image Capture 1

VR Image Capture 2

VR Image Capture 3

VR Image Capture 4

JESPER BRAUN

45

POMPIDOU 2 STUDIO

POMPIDOU 2 STUDIO

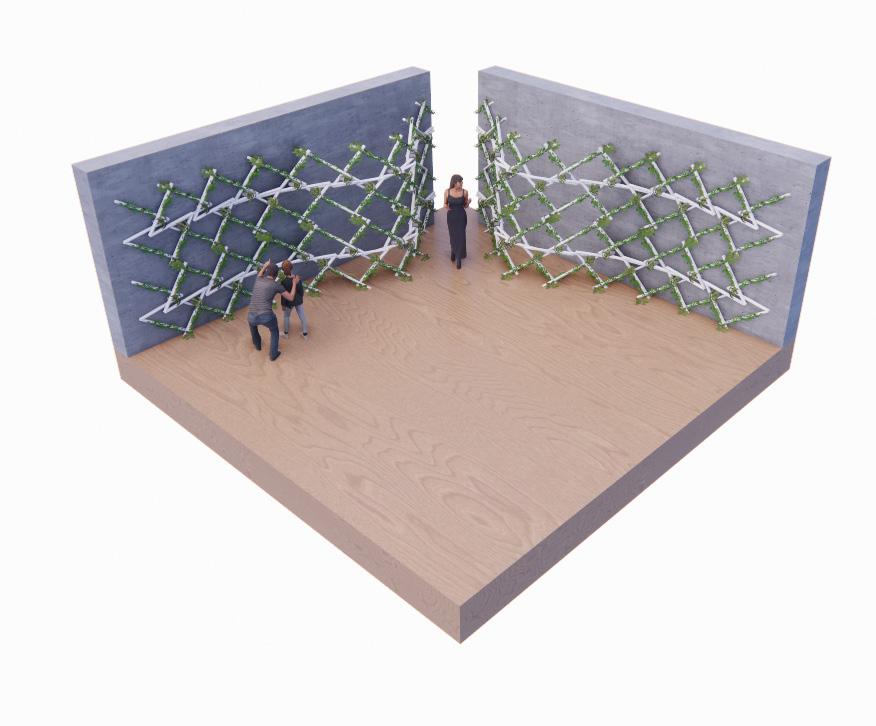

IMAGE: Living wall system Ivy trellis

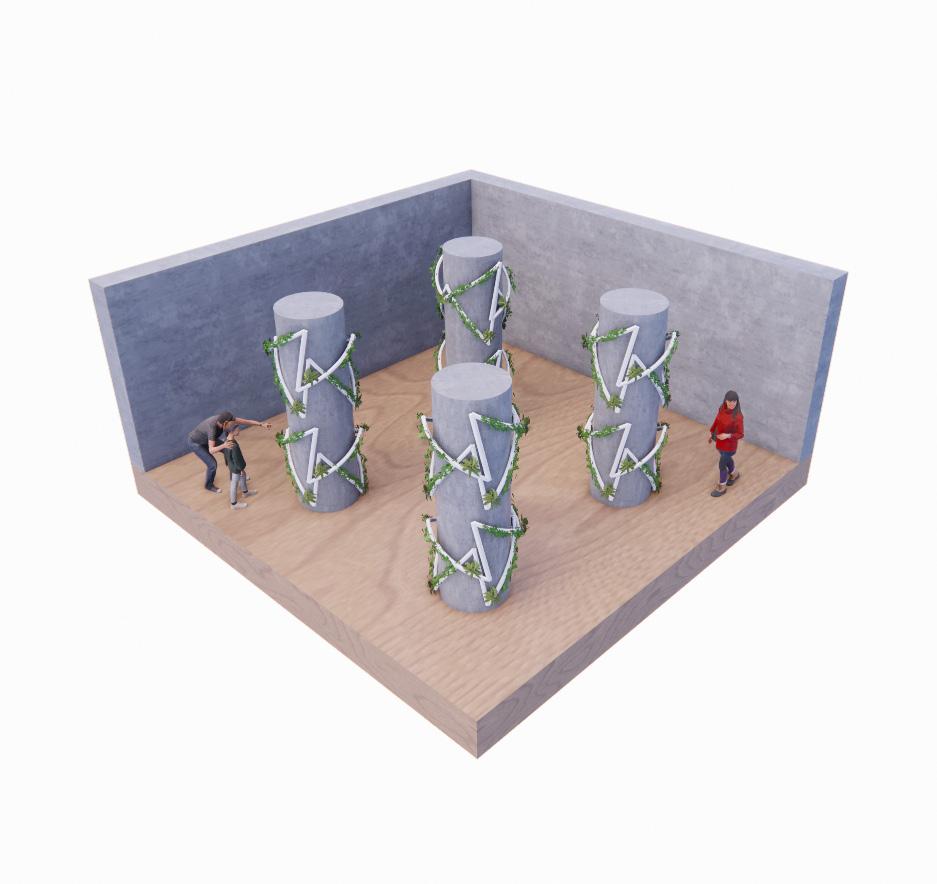

Design Variation 2

DESIGN VARIATIONS

Design Variation 1

Design Variation 3

JESPER BRAUN

47

CONCLUSIONS If I were to continue exploring this pattern, I would like to play with the three-dimensionality of the system more, and experiment with more ways that my living wall could be an immersive experience. I think that my design really came to life once I decided to pull the scaffold off the wall in the middle and create a curve, so I think moving forward with different forms of 3-dimensionality could produce some interesting & beautiful results. I think that by bringing the scaffold over people’s heads, it creates an immersive experience with the plants, instead of just having a flat 2D living wall system.

If I were to do this again I would likely also explore expanding my living system outside of the narrow piece of wall that it occupies, so that it can overhang over the doorway that is directly adjacent to my living wall system. I would also explore using different species, because the time that I spent researching plant species is limited and I could’ve investigated other options. Another thing that would be interesting to explore would be design variations, such as the column design variation I explored and the ceiling fixture variation.
