OmniTrans Bus Stop Safety Improvement Plan

Bus Stop Safety Improvement Plan

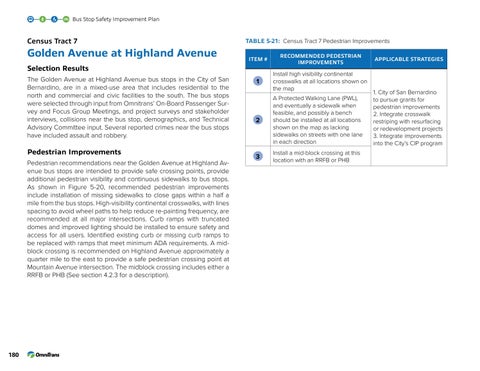

Census Tract 7

Golden Avenue at Highland Avenue

Table 5-21: Census Tract 7 Pedestrian Improvements ITEM #

RECOMMENDED PEDESTRIAN IMPROVEMENTS

Install high visibility continental crosswalks at all locations shown on the map

A Protected Walking Lane (PWL), and eventually a sidewalk when feasible, and possibly a bench should be installed at all locations shown on the map as lacking sidewalks on streets with one lane in each direction

Install a mid-block crossing at this location with an RRFB or PHB

Selection Results The Golden Avenue at Highland Avenue bus stops in the City of San Bernardino, are in a mixed-use area that includes residential to the north and commercial and civic facilities to the south. The bus stops were selected through input from Omnitrans’ On-Board Passenger Survey and Focus Group Meetings, and project surveys and stakeholder interviews, collisions near the bus stop, demographics, and Technical Advisory Committee input. Several reported crimes near the bus stops have included assault and robbery.

Pedestrian Improvements Pedestrian recommendations near the Golden Avenue at Highland Avenue bus stops are intended to provide safe crossing points, provide additional pedestrian visibility and continuous sidewalks to bus stops. As shown in Figure 5-20, recommended pedestrian improvements include installation of missing sidewalks to close gaps within a half a mile from the bus stops. High-visibility continental crosswalks, with lines spacing to avoid wheel paths to help reduce re-painting frequency, are recommended at all major intersections. Curb ramps with truncated domes and improved lighting should be installed to ensure safety and access for all users. Identified existing curb or missing curb ramps to be replaced with ramps that meet minimum ADA requirements. A midblock crossing is recommended on Highland Avenue approximately a quarter mile to the east to provide a safe pedestrian crossing point at Mountain Avenue intersection. The midblock crossing includes either a RRFB or PHB (See section 4.2.3 for a description).

180

APPLICABLE STRATEGIES

1. City of San Bernardino to pursue grants for pedestrian improvements 2. Integrate crosswalk restriping with resurfacing or redevelopment projects 3. Integrate improvements into the City’s CIP program
