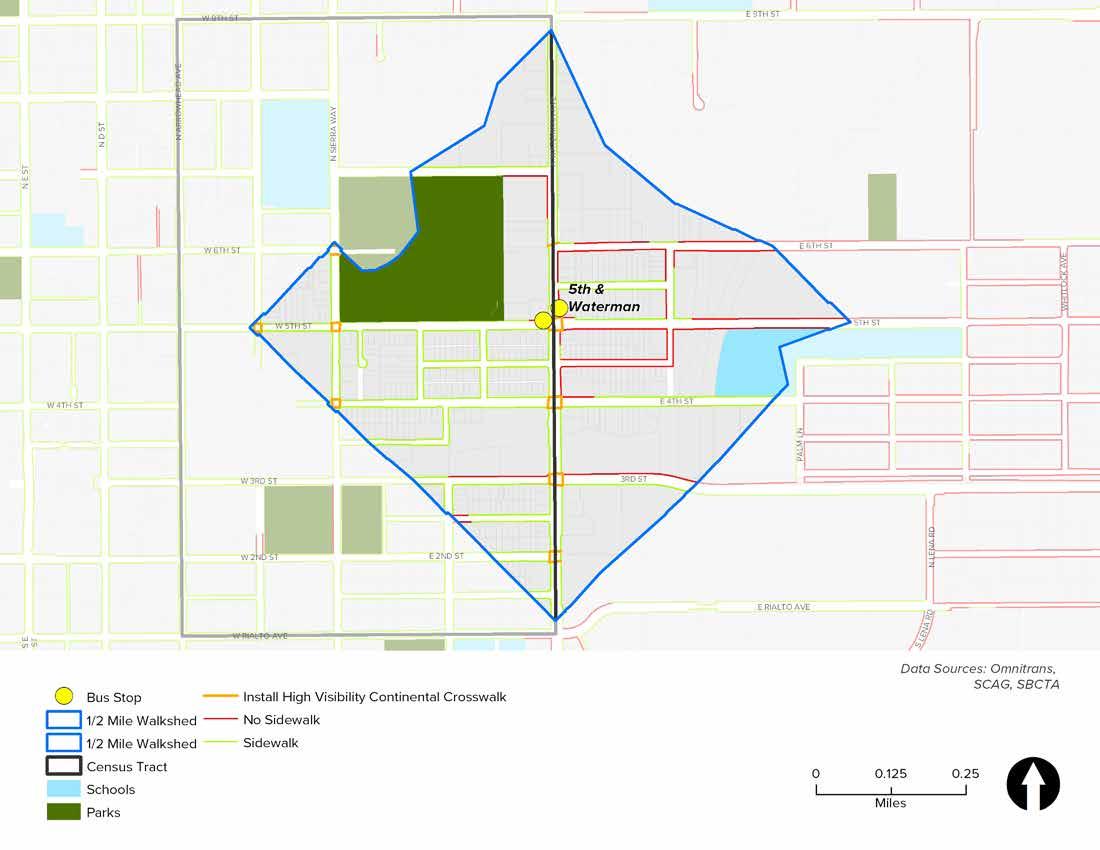

Figure 5-14: Census Tract 5 Pedestrian Recommendations

from OmniTrans Bus Stop Safety Improvement Plan

by KTUA

Implementation

1

Install high visibility continental crosswalks at all locations shown on the map

3

Install curb ramps on existing sidewalks at all locations indicated on the map and pedestrian crossing here

Implementation 05 Figure 5-14: Census Tract 5 Pedestrian Recommendations

2

A Protected Walking Lane (PWL), and eventually a sidewalk when feasible, and possibly a bench should be installed at all locations shown on the map as lacking sidewalk. This should be implemented in conjunction with a right-turn drop lane on 5th Street to facilitate the installation of the PWL. Painted truck aprons should also be installed.

4

Install a mid-block crossing at this location

Figure 5-14: Census Tract 5 Pedestrian Recommendations

Next Article

Implementation

1

3

2

4
