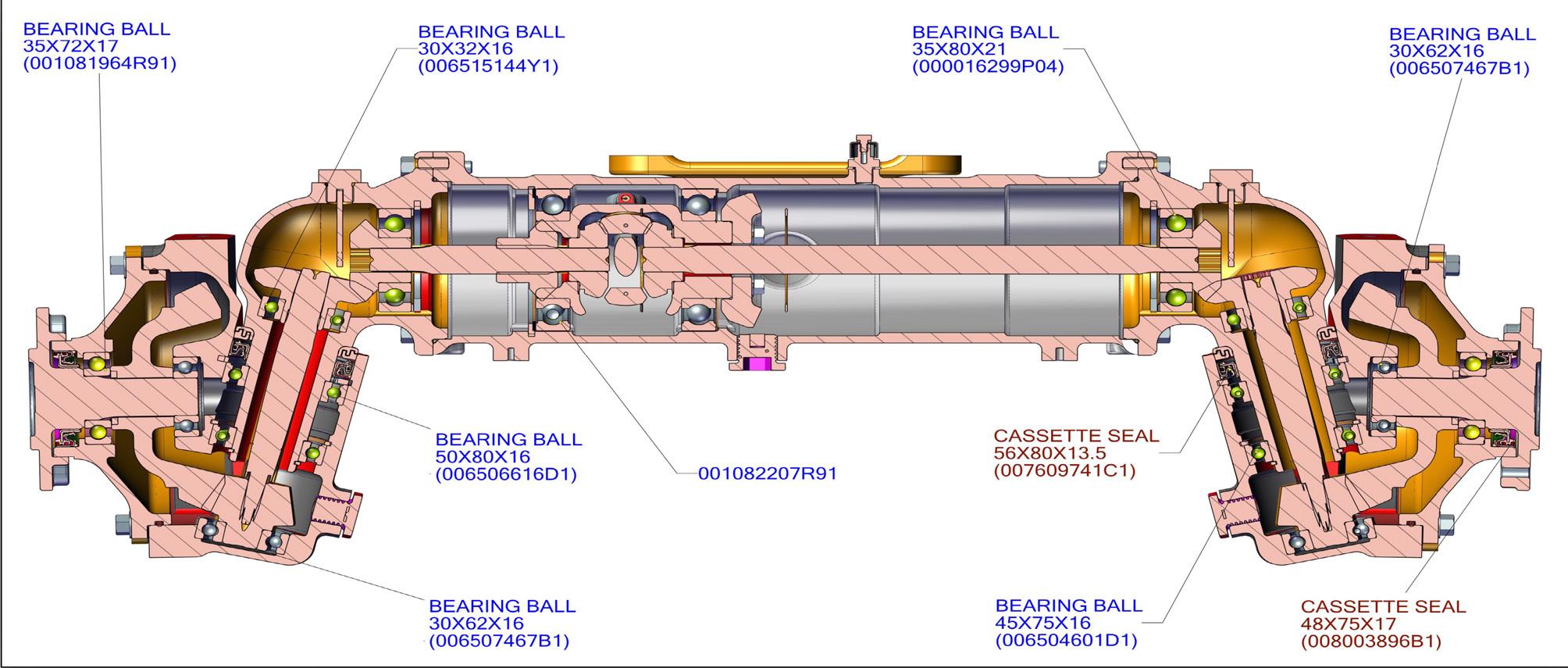

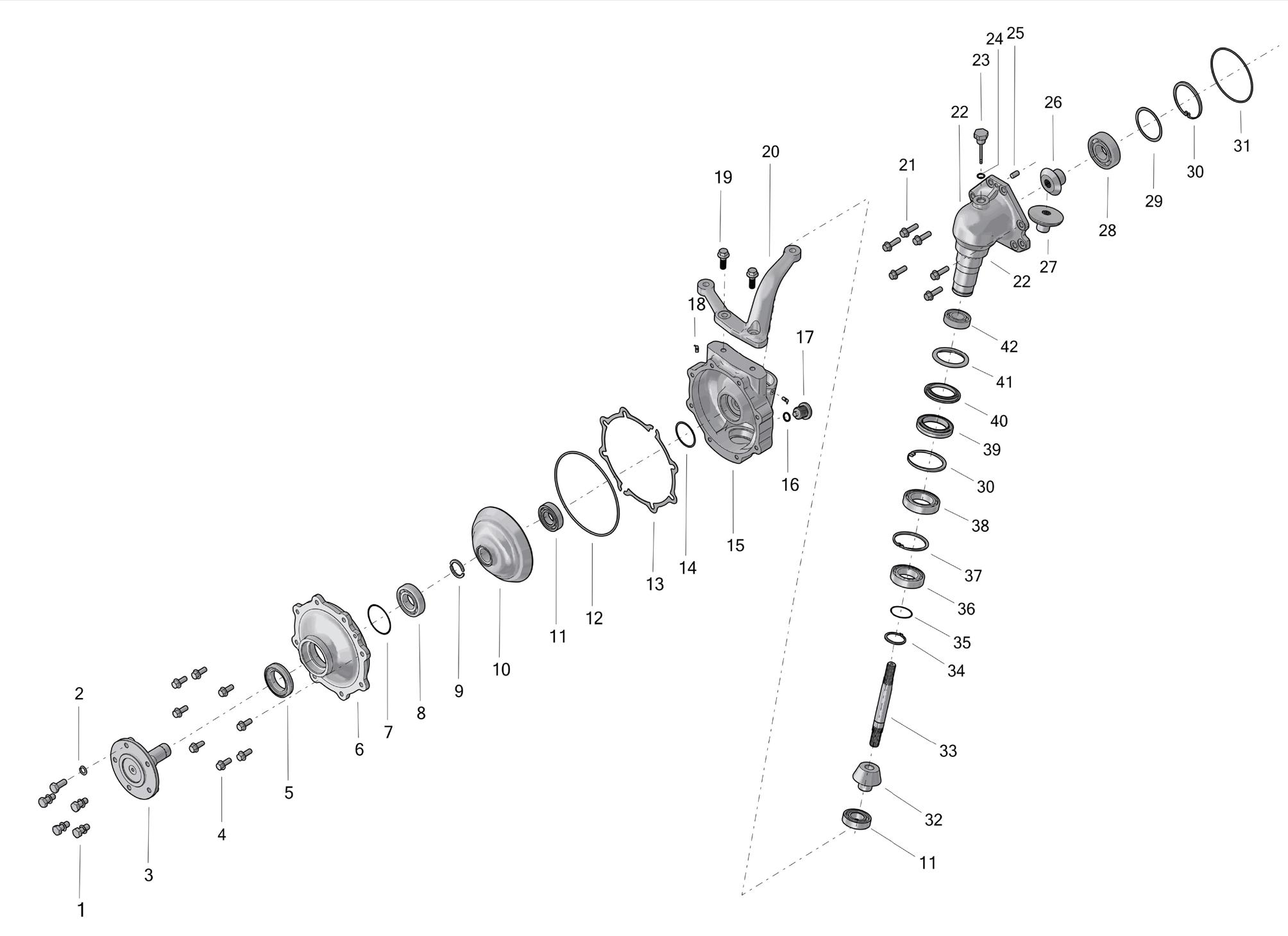

4WD FRONT AXLE ASSEMBLY

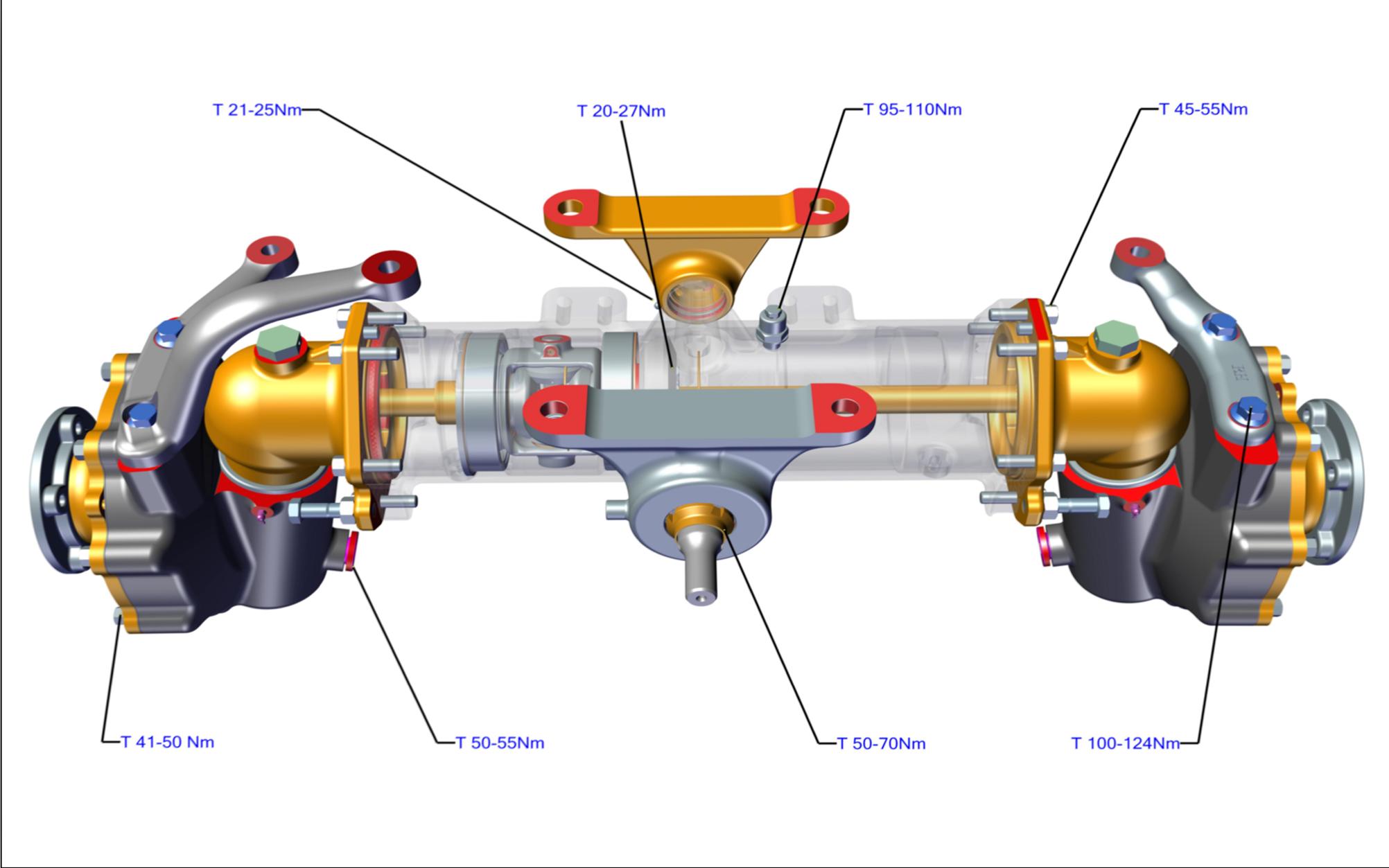

4WD FRONT AXLE -TORQUE VALUES

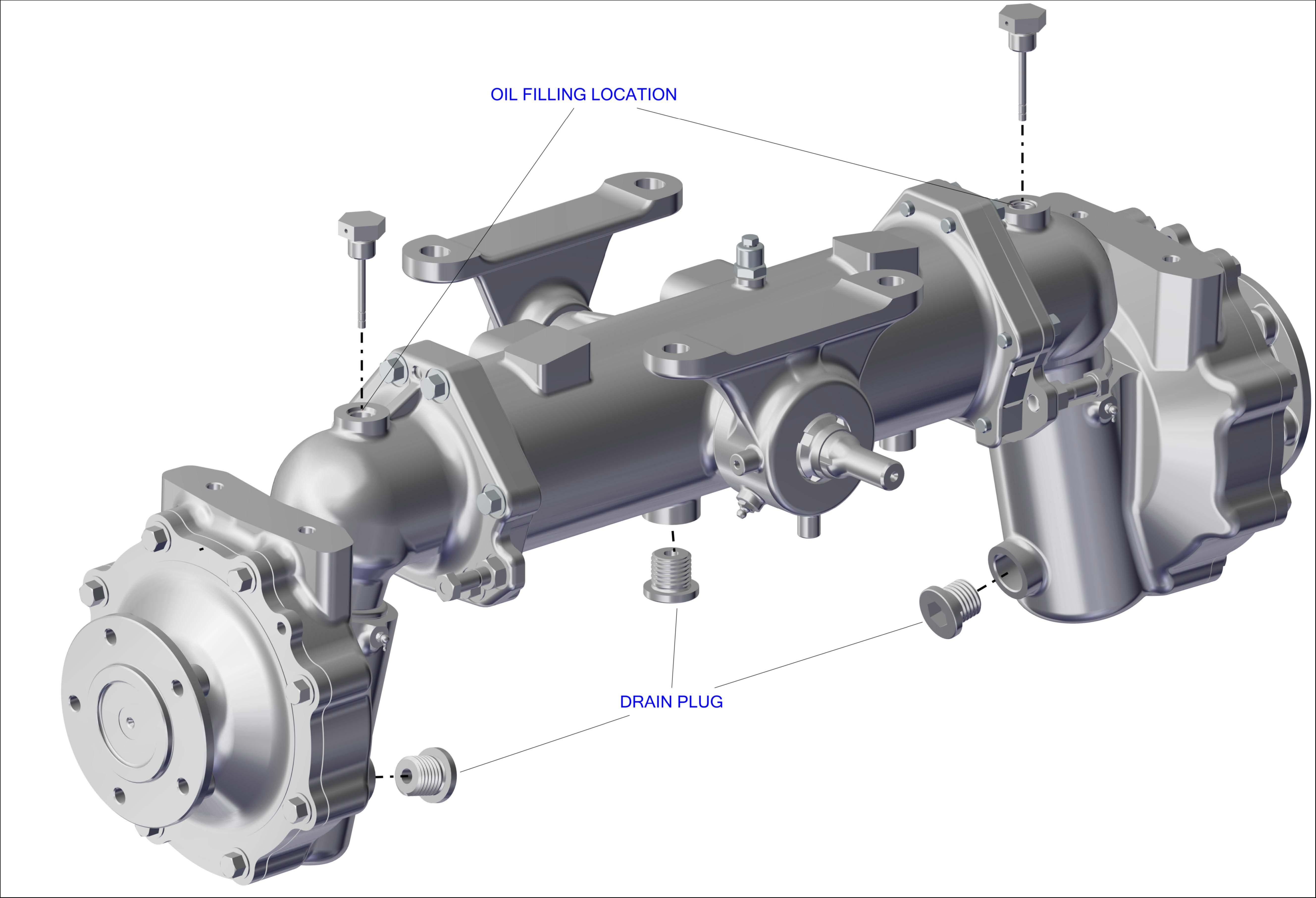

Maintenance Schedule On 4wd Front Axle

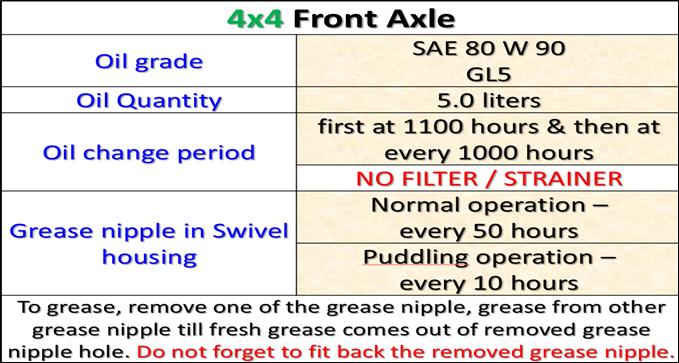

4WD FRONT AXLE –OIL & GREASE SPECIFICATIONS

SWIVEL & SIDE HOUSING

HUB END -ASSEMBLY PROCESS

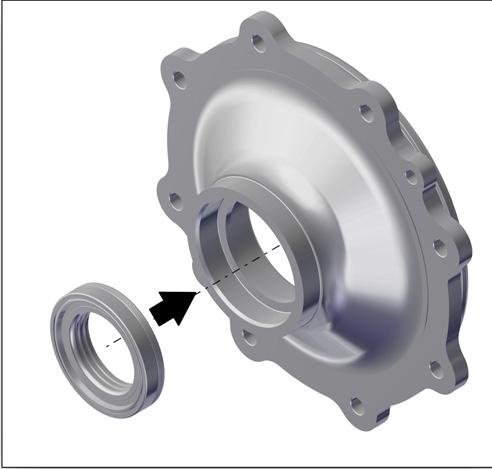

Assemble the Cassette Seal (5) with hub Housing (6) with the help of suitable special purpose dolly.

Assemble the Bearing 35X72X17 (8) in Hub Housing (6) after fitment of seal

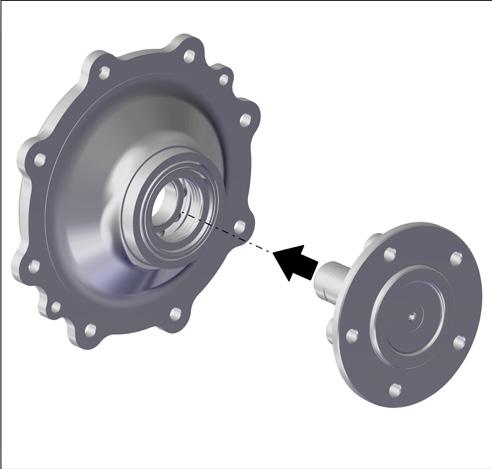

Assemble the Spindle Front Axle (3) in Hub Housing (6)

NOTE:-

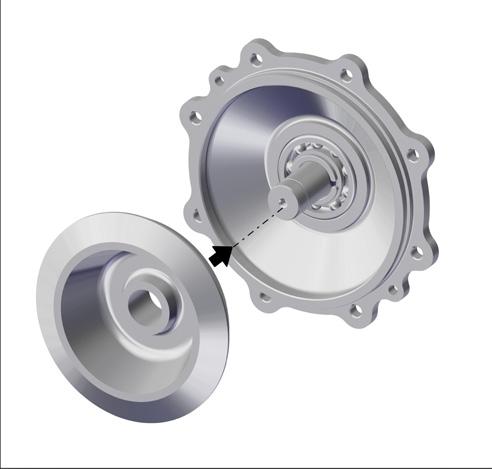

Assemble the final Reduction bevel gear (10) to Spindle Front axle (3)

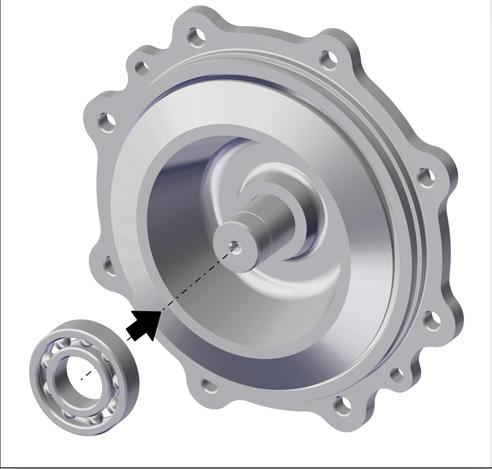

Assemble the Bearing 30X62X16 (11) in Spindle with suitable dolly

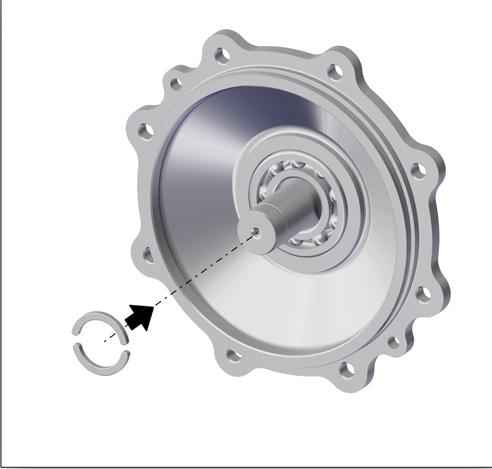

Fitment of collar (14) to Spindle Groove (3)

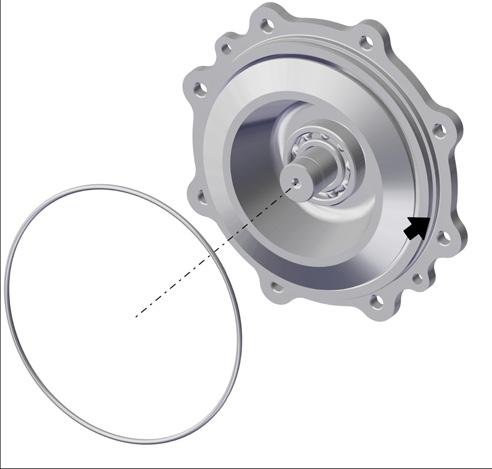

Fitment of O-Ring (12) to Hub Housing

Ensure free rotation of bearing rollers after assembly

Assembly should be free from dust and foreign particles

Apply grease during assembly of oil seal only

Hub End Assembly Critical Settings

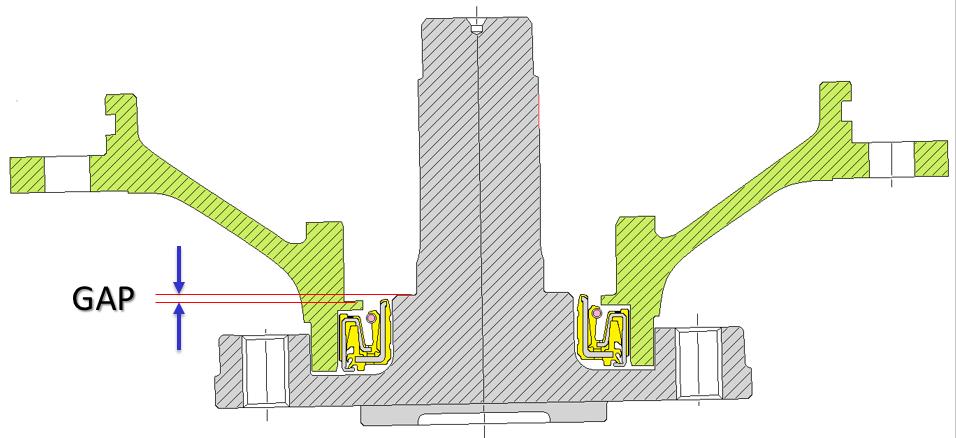

For cassette oil seal, maximum internal float recommended is 0.30 mm. Hence SHIM (7) selection is required to control it within 0.20 mm (if more, the lip of the oil seal will invert). Calculation must be done when Spindle or hub housing is replaced. It should also be done when early hour oil seal leakage is observed.

For Example- reading = 0.32 mm

Recommended maximum float = 0.20 mm

SHIM = 0.32 – 0.20 = 0.12 mm Spindle Play should be max. 0.20mm

NOTE:-

HUB END -ASSEMBLY PROCESS

HUB END ASSEMBLY CRITICAL SETTINGS

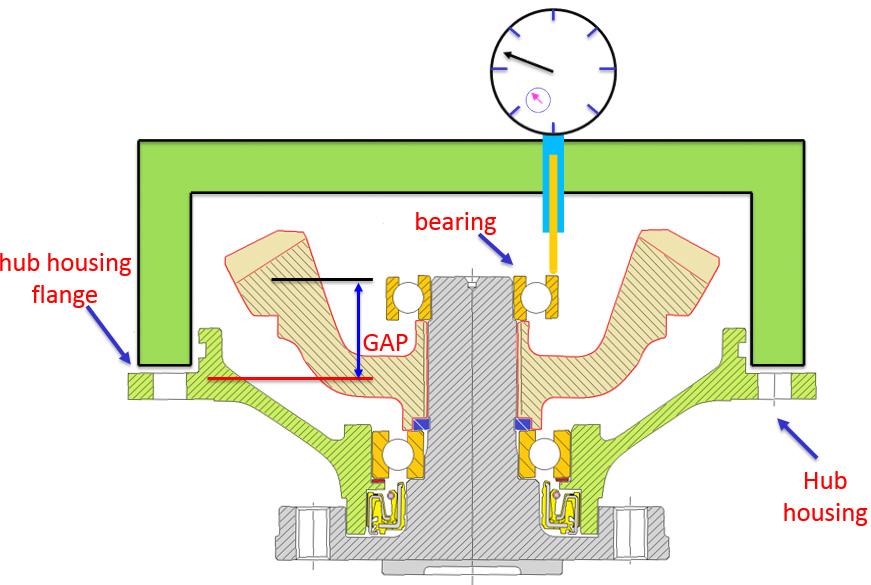

On hub housing, measure the GAP from bearing top to hub housing flange using tool “AGFAYNMG 004”

For ExampleMaster height = 35.00 mm

Measured reading = - 0.204 mm

GAP = 35.000 – 0.204 = 34.796 mm

Swivel Housing Sub Assembly

4

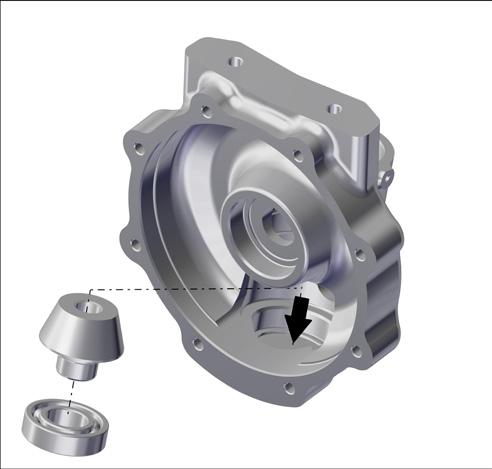

Assemble the Ball Bearing 30x62x16 (11) on Bevel Pinion Final Reduction (32). Fit pair in Swivel Housing.

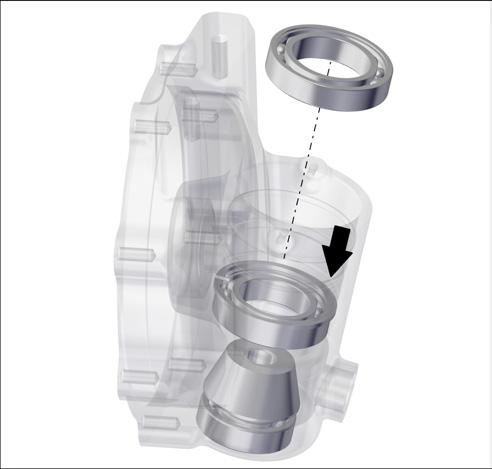

Assemble the Bearing 45X75X16 (36) in Swivel Housing.

NOTE- Loctite 638 to be applied on outer race of bearing

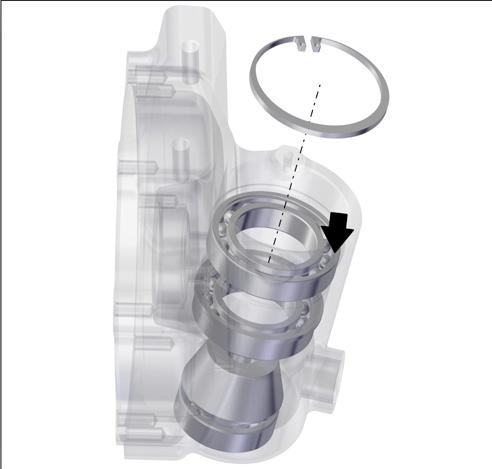

Fix the Circlip Internal 75D (37) to Swivel Housing

Ensure free rotation of bearing rollers after assembly Assembly should be free from dust and foreign particles Apply grease during assembly of oil seal only Grease to be filled in slingers

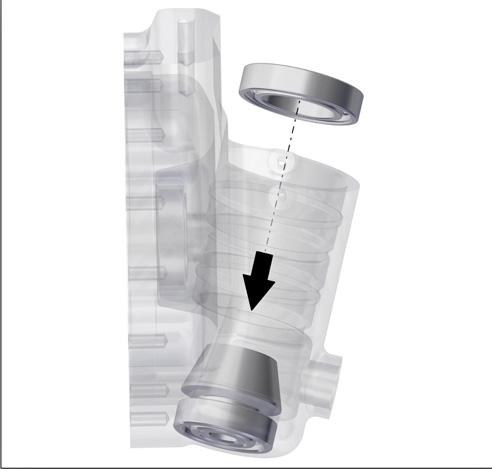

Assemble the Bearing 50X80X16 (38) in Swivel Housing

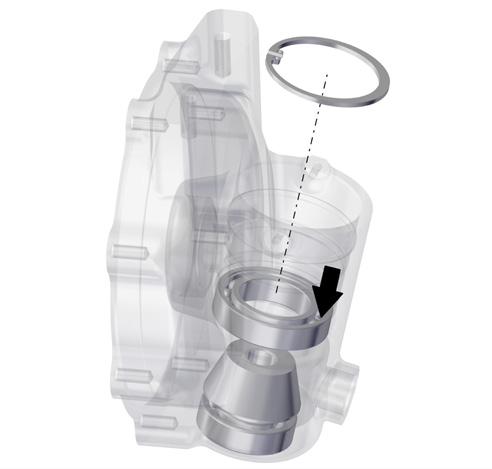

Assemble the circlip (30) after fitment of bearing in Swivel Housing. Ensure free rotation of circlip after fitment in slot.

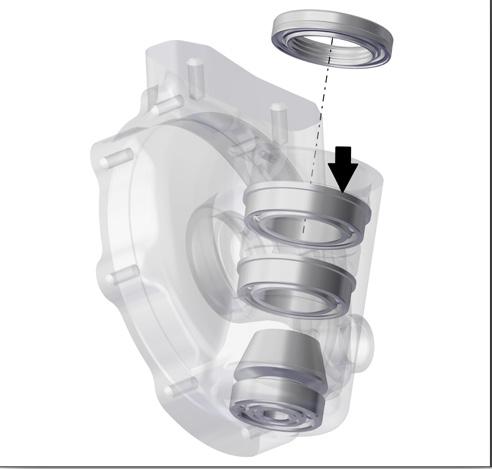

Press the Cassette oil seal 56X80X13.5 (39) in Swivel Housing with the help of suitable dolly

1
