PRIMARY CHECK UP

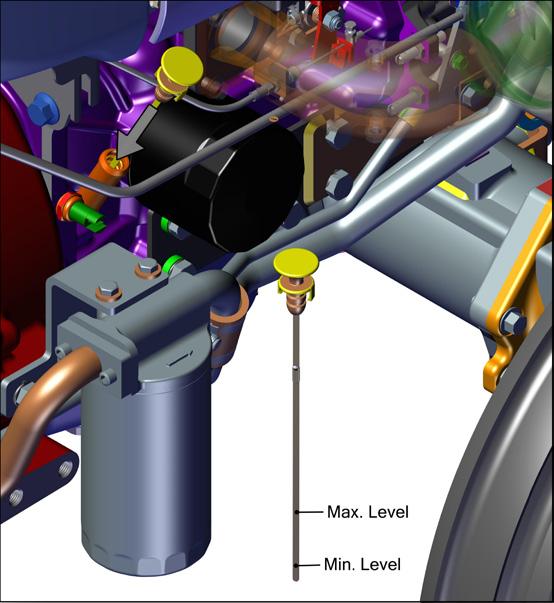

Checking Engine Oil Level

• Check the engine oil before starting the engine or ‘5’ minutes or more after the engine has stopped.

• To check the oil level, draw out the dipstick, wipe it clean, insert it and draw it out again. Check to see that the oil level lies between the two marks.

• Add oil only when the oil level reaches the lowest mark.Recommended oil

-“Mahindra M-Star Genuine Engine Oil / API CH-4 SAE 15W40 Oil

CAUTION -:Do not run the engine if the oil level is low than specified.

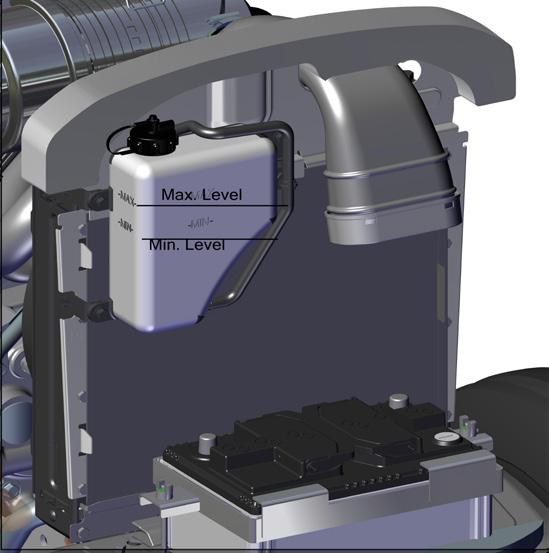

Checking

Coolant Level

• Check coolant level in recovery bottle & Top-up if required.

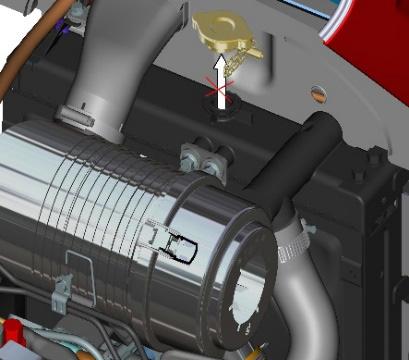

• Use redimix coolant for top up. WARNING -: Do not open the coolant cap when the engine is hot. Do not remove the radiator cap when the engine is hot

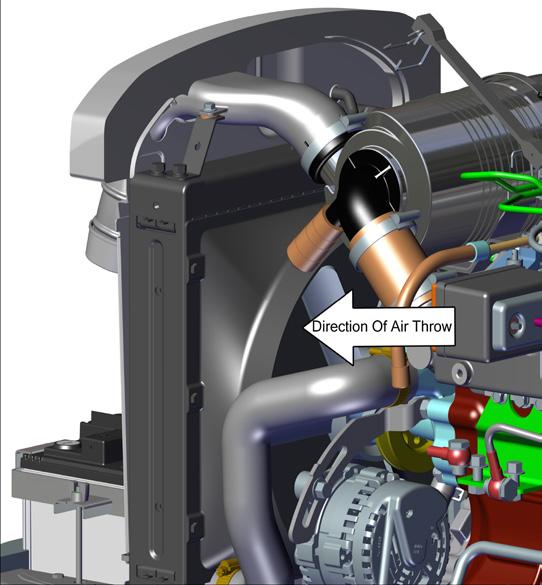

Checking radiator fins

• Clean chaff guard daily or earlier if chocked.

• Blow compressed air through the radiator fins to remove foreign material

NOTE -: Radiator fins must be free of dust or chaff to prevent the engine from overheating.

CAUTION -: To avoid personnel injury, ensure to stop the engine before working on radiator.

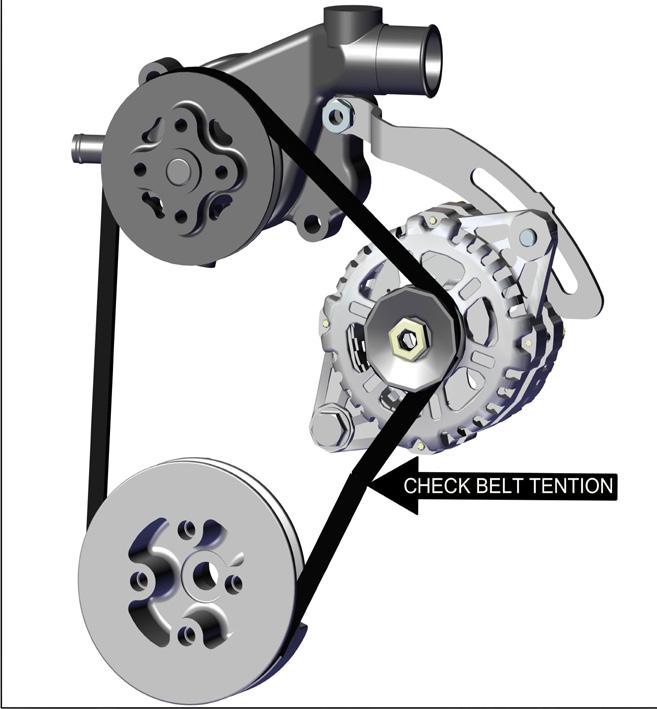

Checking fan belt tension

The tension is correct when the belt can be pressed by thumb to 9 - 12 mm.midway between the two pulleys without much effort. In case the tension is not correct the adjust the tension by adjusting alternator position on brace plate.

Check clutch pedal

• With clutch fully engaged pedal should have free movement of 20 – 25 mm

Check brake pedal

• Pedals should have free movement of 25-30 m.
