CHAPTER 11 TRANSPORTING

SMV EMBLEM & REFLECTORS (Fig. 125)

GEHL Company complies with all laws for safety when transporting slow-moving vehicles on public highways. The Baler is equipped with a Bracket for mounting a Slow–Moving Vehicle (SMV) emblem. The Baler is also equipped with Red Reflector Strips on the rear corners of both Twineboxes.

NOTE: The SMV emblem MUST be purchased locally.

When the Baler is equipped with the Quick Wrap option, a SMV Decal is already attached to the back of the Quick Wrap. See Decal chapter for details.

1.Chain is sufficiently slack to allow turns and movements of either the tractor or the farm implement, without placing tension on chain.

2.Chain is of sufficient strength to hold the decoupled implement (and its load) and tow it to the shoulder.

WARNING

ALWAYS follow state and local regulations regarding use of a safety chain and transport lights when towing farm equipment on public highways. ONLY a safety chain (NOT an elastic or nylon/plastic tow strap) should be used to retain the connection between the towing and towed machine, in the event of separation of the primary attaching system. BE SURE to check with local law enforcement agencies for your own particular regulations. Unless otherwise prohibited, use a Slow-Moving Vehicle (SMV) emblem.

As required or when desired, the Baler can be equipped with a Safety Chain for travel on public highways. Refer to the Optional Features & Accessories chapter for ordering information. The Safety Chain should be attached to the tractor and Baler as shown. When attached in this manner, the safety chain should have the following characteristics:

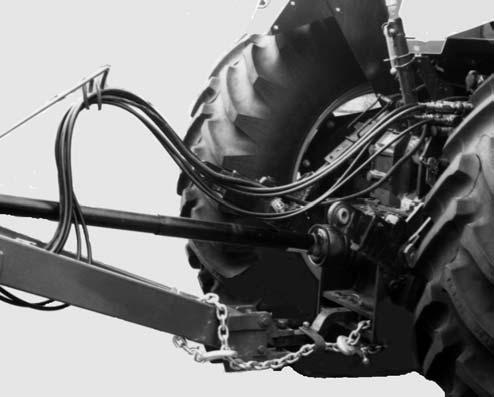

1 – CV Stand in “Storage” Position 2 – Locking Hitchbolt 3 – Drawbar Clevis (Provided) 4 – Chain Secured Around Tractor Frame Member

5 – Safety Chain Attached Around Baler Frame

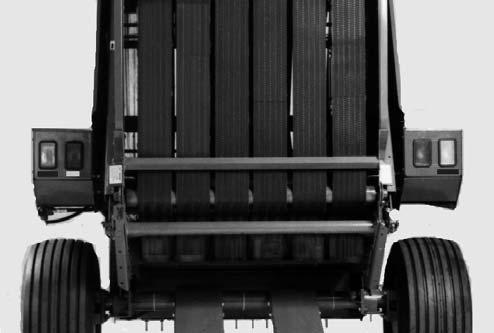

The RB1475 and RB1875 Round Balers are equipped with Transport Lights as standard equipment. A cord with a standard 7-pin connector to connect to the tractor is also provided. If your tractor is not equipped with the proper receptacle, see your tractor dealer for details.

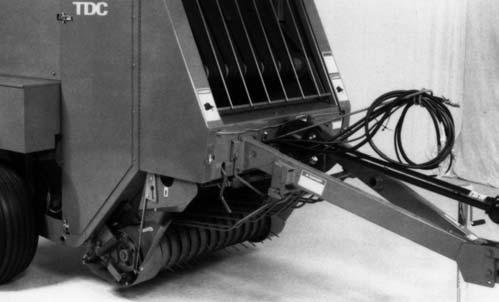

PICKUP (Fig. 127)

Whether the Baler is equipped with the optional Hydraulic Lift Kit or not, BE SURE to raise the Pickup to the transport position with the Hand Crank provided anytime the Baler is being transported. The Pickup is raised by turning the Hand Crank in a clockwise direction and lowered by turning the Hand Crank in a counterclockwise direction.

IMPORTANT: The Hand Crank settings act as the lower limit stop for the Hydraulic Lift Kit. BE SURE to reset this setting when resuming baling.
