CHAPTER 1 INTRODUCTION Thank you for purchasing this piece of Gehl equipment.

We are sure that your decision was strongly considered and that you are looking forward to many years of work from this machine.

We, as a Company, have invested a great deal of time and effort in developing our lines of equipment. The equipment you have purchased is built with a great deal of pride and designed to give you long life, efficient operation, durability and dependability.

This manual was developed specifically for the machine you have purchased. The information within is for your assistance in preparing, adjusting, maintaining and servicing your machine. More importantly, this manual provides an operating plan for safe and proper use of your machine. Major points of safe operation are detailed in the SAFETY chapter of this manual. Refer to the Table of Contents for an outline (by chapters) of this manual. Use the Index, located at the back of this manual, for specific chapter and topic page number references. A chart depicting standard hardware torques is located on the inside back cover.

A Manual Pocket is provided on this unit (inside the Twinebox) for storing the Operator’s Manual. After using the Manual, please return it to the Pocket and keep it with the unit at all times! Furthermore, if this machine is resold, Gehl Company recommends that this Manual be given to the new owner.

Modern machinery has become more sophisticated and, with that in mind, Gehl Company asks that you read and understand the contents of this manual COMPLETELY and become familiar with your new machine, BEFORE attempting to operate it.

The Gehl dealer organization stands ready to provide you with any assistance you may require and carries genuine Gehl service parts. All parts should be obtained from or ordered through your Gehl Dealer. Give complete information about the part and include the model and serial numbers of your machine. Record the serial number in the space provided on the pictorial, as a handy record for quick reference.

The model and serial numbers for this unit are on a Decal located on the Front Panel of the Baler, adjacent to the Flywheel.

2

MODEL NO.

32 0 (Fill In)

SERIAL NO. (Fill In)

COMPANY



WEST BEND, WI 53095 USA

Typical Model & Serial Number Plate

‘‘Right’’ and ‘‘left’’ are determined from a position standing behind the unit and facing forward. From this position, the Pickup is on the “right” and the Flywheel and Bale-forming Chamber are on the ‘‘left’’.

Gehl Company reserves the right to make changes or improvements in the design or construction of any part without incurring the obligation to install such changes on any unit previously delivered.

Throughout this manual, information is provided which is set in italic type and introduced by the word NOTE. BE SURE to read carefully and comply with the message or directive given. Following this information will improve your operating or maintenance efficiency, help you to avoid costly breakdowns or unnecessary damage and extend your machine’s life.

The Gehl Company, in cooperation with the American Society of Agricultural Engineers and the Society of Automotive Engineers, has adopted this SAFETY ALERT SYMBOL

to pinpoint characteristics which, if NOT properly followed, can create a safety hazard.

When you see this symbol in this manual or on the machine itself, you are reminded to BE ALERT! Your personal safety is involved!

CHAPTER 2 SPECIFICATIONS All Dimension are in Inches (Millimeters) Unless Otherwise Noted Models & Descriptions . . . . . . . . . . . . . . . . . . . . . . . .

3210 & 3250 Rectangular Balers Characteristics or Dimensions . . . . . . . . . See Table Standard Features

Three-Joint PTO Shaft Driveline Slip Clutch & Shear Bolt Protected Flywheel Gearbox with Hypoid Gears Running in Oil Bath Plunger with 3-point Mounting (Self-aligning) 540 RPM, 80 Strokes per Minute 284 Sq In (1832 sq cm) Feeder Housing Opening & 30″(762 mm) Stroke Length Suretie Knotter Single Pitch Main & Knotter Drive Chains Tension Spring Density Control Quick-detach, Adjustable Windguard

Pickup Overrunning Clutch Pickup Gauge Wheel 11.5L x 15, 6-ply Left Tire & 27 x 9.5-15, 4-ply Right Tire Six-Ball Rainproof Twinebox Drawbar-mounted Hitchjack Bale Counter Optional Features (Selectable)

Bale Thrower Attachment Tailgate Bale Chute Swinging Wagon Hitch Wagon Pole Wedges Kit for Bale Forming Chamber Plunger Face Extension Kit

Models

Characteristics or Dimensions 3210

3250

Overall Width

100 (2540)

113 (2870)

Approximate Weight in lb (kg)

3060 (1388)

3350 (1520)

Pickup Width

56 (1422)

68 (1727)

Pickup Gathering Width

48 (1219)

60 (1524)

Number of Pickup Tooth Bars

5

6

Total Number of Pickup Teeth

85

126

Overall Length

194 (4927)

Bale Width

14 (355)

Bale Height

18 (457)

Bale Length

Adjustable from 22 to 50 (558 to 1270)

3

INTENTIONALLY BLANK

4

Remove Dealer’s File Copy at Perforation

CHAPTER 3 CHECKLISTS PRE-DELIVERY After the Baler has been completely set-up, the following inspections should be made before delivering the unit to the Customer. Check off each item after prescribed action is taken.

Dealer Representative’s Name Date Checklist Filled-out

Check that: Baler is NOT damaged in shipment. Check for such things as dents and loose or missing parts; correct or replace components as required. has been correctly assembled according to o Baler instructions in this manual. Check that Wheel Lugs and all other fasteners are tightly secured. grease fittings have been properly lubricated and o All that the Main Drive Gearcase is filled to proper level.

See Lubrication chapter of this manual.

o

Serial#

DELIVERY The following Checklist is an important reminder of valuable information that MUST be passed on to the Customer at the time the unit is delivered. Check off each item as you explain it to the Customer. the Customer his Operator’s Manual. Instruct him o Give to be sure to read and completely understand its contents BEFORE operating the unit.

All Guards, Shields and Decals are in place and securely attached.

are properly mounted and that Tires are inflated o Wheels to the proper pressures listed in the Service chapter. adjustments and timing settings have been made to o All comply with settings given in the Adjustments chapter of this manual.

and Serial Numbers, for this unit, are recorded o Model in space provided on this page and page 2.

Connect the Baler PTO to a 540 RPM tractor and test-run the unit while checking that proper operation is exhibited by all components.

Check that: Drives, Chains and Mechanisms are operating o All smoothly and properly adjusted.

PTO Drive Shafts rotate freely inside the PTO o The Shields.

o

Model#

On a unit with a Bale Thrower (as applicable), the Hydraulic Hoses and all connections do NOT leak under pressure.

o The PTO Clutch is NOT seized and slips correctly.

him on how to use the Index of this manual as a o Direct quick page number locating guide. and review with him the SAFETY chapter of o Explain this manual. and review with him the Controls & Safety o Explain Equipment chapter of this manual. that regular lubrication is required for continued o Explain proper operation and long life. Review with him the Lubrication chapter of this manual. and review with him the Service chapter of this o Explain manual. the use and proper operation of the Transo Demonstrate port Lock located on the Knotter Metering Arm. fill out Owner’s Registration, including o Completely Customer’s signature, and return it to the GEHL Company.

Customer’s Signature

I acknowledge that pre-delivery procedures were performed on this unit at outlined above.

Date Delivered

Dealership Name

(Dealer’s File Copy) 5

INTENTIONALLY BLANK (To be removed as Dealer’s file copy)

6

CHAPTER 3 CHECKLISTS PRE-DELIVERY After the Baler has been completely set-up, the following inspections should be made before delivering the unit to the Customer. Check off each item after prescribed action is taken.

Dealer Representative’s Name Date Checklist Filled-out

Check that: Baler is NOT damaged in shipment. Check for such things as dents and loose or missing parts; correct or replace components as required.

o

See Lubrication chapter of this manual.

Guards, Shields and Decals are in place and securely o All attached. are properly mounted and that Tires are inflated o Wheels to the proper pressures listed in the Service chapter.

All adjustments and timing settings have been made to comply with settings given in the Adjustments chapter of this manual.

and Serial Numbers, for this unit, are recorded o Model in space provided on this page and page 2.

Connect the Baler PTO to a 540 RPM tractor and test-run the unit while checking that proper operation is exhibited by all components.

Check that: Drives, Chains and Mechanisms are operating o All smoothly and properly adjusted.

o

Serial#

DELIVERY Baler has been correctly assembled according to instructions in this manual. Check that Wheel Lugs and all other fasteners are tightly secured.

grease fittings have been properly lubricated and o All that the Main Drive Gearcase is filled to proper level.

o

Model#

The PTO Drive Shafts rotate freely inside the PTO Shields.

a unit with a Bale Thrower (as applicable), the Hyo On draulic Hoses and all connections do NOT leak under

The following Checklist is an important reminder of valuable information that MUST be passed on to the Customer at the time the unit is delivered. Check off each item as you explain it to the Customer. the Customer his Operator’s Manual. Instruct him o Give to be sure to read and completely understand its contents BEFORE operating the unit. him on how to use the Index of this manual as a o Direct quick page number locating guide. and review with him the SAFETY chapter of o Explain this manual. and review with him the Controls & Safety o Explain Equipment chapter of this manual. that regular lubrication is required for continued o Explain proper operation and long life. Review with him the Lubrication chapter of this manual. and review with him the Service chapter of this o Explain manual. the use and proper operation of the Transo Demonstrate port Lock which on the Knotter Metering Arm. fill out Owner’s Registration, including o Completely Customer’s signature, and return it to the GEHL Company.

pressure.

o The PTO Clutch is NOT seized and slips correctly.

I acknowledge that pre-delivery procedures were performed on this unit at outlined above.

Customer’s Signature Date Delivered

Dealership Name

(Pages 5 and 6 have been removed at perforation)

7

CHAPTER 4

SAFETY The above Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! It stresses an attitude of ‘‘Heads Up for Safety’’ and can be found throughout this Operator’s Manual and on the machine itself.

BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING SAFETY INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE SAFETY PRECAUTIONS. Our Company ALWAYS takes the operator and his/her safety into consideration when designing its machinery and guards exposed moving parts for his/her protection.

However, some areas can NOT be guarded or shielded in order to assure proper operation. In addition, this Operator’s Manual and Decals, on the machine, warn of further danger and should be read and observed closely.

DANGER ‘‘DANGER’’ indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING ‘‘WARNING’’ indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION ‘‘CAUTION’’ indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. May also alert against unsafe practices.

8

MANDATORY SAFETY SHUTDOWN PROCEDURE BEFORE unclogging, cleaning, adjusting, lubricating or servicing the unit: 1.

Disengage the tractor PTO.

2.

Shut off the tractor engine, remove the starter switch key and take it with you.

3.

Wait for all movement to stop.

4.

Remove the Telescoping PTO Drive and ALL power connections from the tractor.

ONLY when you have taken these precautions can you be sure it is safe to proceed. Failure to follow the above procedure, could lead to death or serious bodily injury.

ADDITIONAL SAFETY REMINDERS Some photographs, used in this manual, may show Doors, Guards and Shields open or removed for illustration purposes ONLY. BE SURE that all Doors, Guards and Shields are in their proper operating positions BEFORE starting the tractor engine to operate the unit.

ALWAYS follow state and local regulations regarding use of a safety chain and auxiliary lighting when towing farm equipment on public highways. BE SURE to check with local law enforcement agencies for your own particular regulations.

Only a safety chain (NOT an elastic or nylon/plastic tow strap) should be used to retain the connection between the towing and towed machine(s), in the event of separation of the primary attaching system.

ALWAYS wear safety glasses with side shields when striking metal against metal. It is further recommended that a softer (non-chipable) material be used to cushion the blow. Failure to heed could lead to serious injury to the eye(s) or other parts of the body.

SAFETY (Continued) Good safety practice dictates that you NEVER tow an implement (without brakes), unless towing vehicle weighs at least one-and-one half (1-1/2) times the weight of the towed implement and its load. For any public highway travel and to be in compliance with this rule, BE SURE that your tractor is heavy enough to counterbalance the weight of the Baler and loaded wagon.

Our Company does NOT sell replacement tires. In addition, tire mounting, service or inflation can be dangerous. Whenever possible, trained personnel should be called to service and/or mount tires, following the tire manufacturer’s instruction. If you do NOT have such instructions, contact your tire dealer or our Company. In any event, to avoid possible fatal or serious injury, follow the specific directive given in the Service

chapter of this manual.

DO NOT allow anyone to ride on the Baler.

NEVER use your hands to search for hydraulic fluid leaks, use a piece of paper or cardboard. Escaping fluid under pressure can be invisible and can penetrate the skin and cause a serious injury. If any fluid is injected into your skin, see a doctor at once. Injected fluid MUST be surgically removed by a doctor familiar with this type of injury or gangrene may result.

To ensure continued safe operation, replace damaged or worn-out parts with genuine Gehl service parts, BEFORE attempting to operate this equipment.

REMEMBER, it is the owner’s responsibility for communicating information on the safe use and proper maintenance of this machine.

091444

9

SAFETY (Continued)

093457

093598

10

SAFETY (Continued)

093373

093367

11

SAFETY (Continued)

093597

093466

12

SAFETY (Continued)

093365

093489

13

CHAPTER 5 CONTROLS & SAFETY EQUIPMENT GUARDS, DOORS & SHIELDS

CAUTION Become familiar with and know how to use ALL safety devices and controls on this machine BEFORE attempting to operate the unit. Know how to stop machine operation BEFORE starting it.

Miscellaneous Guards & Shields (Figs. 3 & 4) Whenever possible and without affecting machine operation, Guards, Shields and/or hinged Covers have been used on this equipment to protect potentially hazardous areas. In many places, Decals are also provided to warn of potential dangers as well as to display special operating procedures.

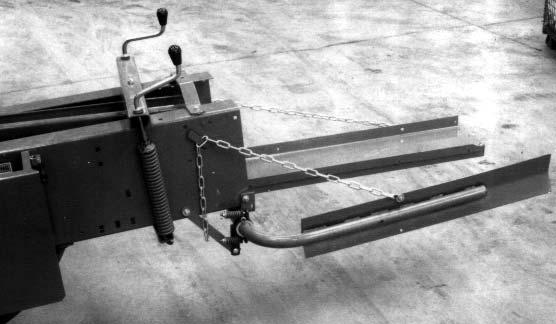

DRAWBAR CONTROL LATCH (Figs. 1 & 2) The Baler Drawbar has two positions; operating and transport. Selection of the desired Drawbar position is accomplished by a Latch Mechanism with is operated by a Control Rope from the tractor operator‘s seat. A Stop Bolt is provided in the Stay Bar to prevent it from detaching. Refer to the illustrations for further details.

2

1

2 3

1

4

1 – Packer Cover Assembly 2 – Hinged Plunger Shield 3 – Flywheel Front Shield 4 – Rear PTO Shield 5 – Front PTO Shield

Fig. 3

5

1

3 1 – Drawbar Latch Mechanism 2 – Latch Control Cord 3 – Stay Bar

Fig. 1: Drawbar in “Operating” Position

2 3

1 2

1 – Packer Cover Assembly 2 – Flywheel Rear Plastic Shield 3 – Swing Frame Shield 4 – Hinged Knotter Shield 5 – Twinebox Cover

Fig. 4 1 – Drawbar Latch Mechanism & Control Cord 2 – Stop Bolt Through Hole in Stay Bar

Fig. 2: Drawbar in “Transport” Position

14

4

5

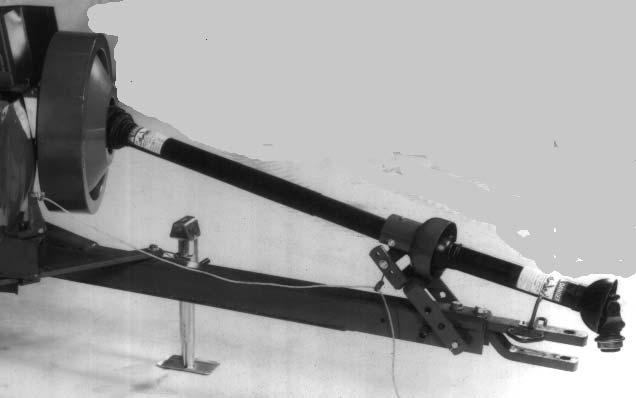

Implement Drive Line Guards (Fig. 5) The PTO Drive consists of two sections which are designed to rotate freely inside their respective Drive Shield Tubes. To prevent damage to the Fixed-length PTO Drive and rotating Shields, when NOT in use, store the PTO Drive connection as shown in Fig. 5.

1

3

normal (factory set) position shown is for standard tractors which comply with ASAE standard S203.

NOTE: Detailed drawings of the various positions are shown in the Preparing for Field Operation chapter.

HITCHJACK (Figs. 5 & 6) A Hitchjack is furnished with the Baler to support the machine when the tractor is disconnected as well as to facilitate aligning the Hitch Plates with the tractor drawbar for hookup. BE SURE that the Locking Pin is properly seated into the holes through the Jack Tube and Drawbar Hub, before disconnecting the tractor.

4

5 2

1 – Front (Fixed-length) PTO Resting on Curved Support 2 – Hitch Plates 3 – Front Bearing Stand 4 – Rotating, Telescoping PTO Shields 5 – Hitchjack in “Supporting” Position

Fig. 5

1

1 – Hitchjack in “Storage” Position

Fig. 6

FRONT BEARING STAND (See Fig. 5) The Front Bearing Stand of the Baler is designed to pivot, forward and backward, to compensate for cornering and when traveling through ditches, trenches or ruts in the field.

HITCH CLEVIS PLATES (See Fig. 5) The Baler is provided with repositionable Clevis Plates to vary the attachment position of the Drawbar with respect to the tractor drawbar and PTO shaft. The

When the Jack is NOT being used to support the Baler, it can be conveniently unlocked and swung into its storage position. Wrap the Pin Chain around the Jack Handle, to prevent Handle from dragging on the ground.

WARNING BE SURE the Hitchjack Locking Pin is entirely and properly inserted through both Hub holes BEFORE disconnecting the tractor.

15

METERING ARM TRANSPORT LOCK (Fig. 7)

WARNING You may become entangled in moving components. Install the Transport Lock BEFORE threading the Needles or transporting the machine. Lock prevents the Metering Arm from engaging the Knotter cycle. Failure to heed could result in death or serious injury.

1

CAUTION ALWAYS follow state and local regulations regarding a safety chain and auxiliary lighting when towing farm equipment on a public highway! BE SURE to check with local law enforcement agencies for your own particular regulations. Unless otherwise prohibited, use a Slow–moving Vehicle Emblem. Only A safety chain (NOT an elastic or nylon/plastic tow strap) should be used to retain the connection between the towing and towed machine, in the event of separation of the primary attaching system.

5 2 1 – Metering Arm Transport Lock (Shown in the “Engaged” Position

Fig. 7

The Baler is provided with a Metering Arm Transport Lock to secure the position of the Arm to prevent it from activating the Knotter cycle.

1 4

NOTE:

After the Baler is transported and before starting to bale, BE SURE to de-activate the Lock.

SAFETY CHAIN & AUXILIARY LIGHTING (Fig. 8) As required or when desired, the Baler should be equipped with a safety chain and auxiliary lighting for transporting the unit on public highways. The chain should be routed as shown in the illustration.

16

3 1 – Safety Chain Through Loop on Drawbar 2 – Baler Drawbar Control Cord 3 – Locking Hitchpin 4 – Clevis Bolted to Tractor Drawbar 5 – Tractor Master Shield

Fig. 8

PTO DRIVE (See Fig. 5) The PTO Drive consists of two sections which are designed to rotate freely inside their respective Drive Shield Tubes.

The front or Fixed-length Drive is provided with Spring–loaded Locking Device to positively lock the Drive connection onto the tractor PTO shaft. Depress the Locking Device, against the Spring tension, and slide the Yoke onto the tractor PTO. Release the Locking Device and move the Yoke ahead or back until the Lock engages into the groove of the PTO shaft.

NOTE: For added convenience when the Baler is NOT attached to the tractor, the Fixed-length PTO Drive can be supported by the curved Support (Fig. 5).

WARNING BE SURE that both sections of the PTO Drive rotate freely inside the Drive Shield Tubes at all times. BE SURE that the Fixed-length Drive connection is properly secured to the tractor PTO shaft and the Telescoping Drive connection is properly secure to the Baler Drive Input Shaft, BEFORE starting the tractor engine.

Also, BE SURE that the tractor master shield is in place and properly secured BEFORE starting the tractor.

17

CHAPTER 6 OPERATION EMERGENCY SHUTDOWN In an emergency or in case a foreign object enters the Pickup, the Feeder area or the Bale Forming Chamber, STOP Baler operation IMMEDIATELY by disengaging the tractor PTO.

GENERAL INFORMATION

CAUTION BEFORE starting the tractor engine and running the Baler, review and comply with ALL SAFETY recommendations set forth in the SAFETY chapter of this manual. Know how to stop machine operation BEFORE starting it.

Crop material is picked off the ground by the Pickup Tines and delivered into the Feeder area. In the Feeder Area, the Packer assemblies move the crop material into the Bale Forming Chamber. Inside the Chamber, the Plunger moves back and forth to pack the crop into a bale. Each slice of the bale is formed by the action of Plunger, Cutoff Knife and Hay Checks, working in synchronization to pack slices (charges) together to form the bale to a preset length, established by the Metering Wheel and Arm mechanism.

The density of the bale is determined by the tension placed on the top and bottom of the bale with the Tension Rails and their associated Crank Adjustments on the back end of the Bale Chamber.

Once the bale reaches a preset size, the Knotter cycle is activated, tieing a Knot and cutting the twine.

As crop continues to be picked up and new bales are formed and tied, the previous formed and tied bales are forced through the Bale Forming Chamber.

BALING (Fig. 9) NOTE: Make the initial Bearing Support and Drawbar Hitch Plate settings relative to your tractor, according to details provided in the Preparing for Field Operation chapter of this manual.

18

WARNING Because dry material is being processed, tractor should also be equipped with a spark arrestor muffler, if tractor emits sparks.

After transporting the Baler to the field and before starting to run the Baler, make sure that the Bale Metering Arm Transport Lock is disengaged. Move the Baler Drawbar to the “Operating” position and adjust the Pickup height and flotation for crop and field condition, per details in the Adjustment chapter.

2

1

3

1 – Metering Arm 2 – Metering Wheel 3 – Metering Arm Transport Lock

Fig. 9

Move the Baler into position with respect to the windrow and BE SURE to check the path in front of the Pickup and ahead of the Baler before starting to bale.

Then, start the PTO, bring the tractor RPM up to the desired operating speed and begin baling.

The Baler MUST be operated with a tractor PTO speed of 540 RPM. This PTO speed will provide a Baler Plunger operating speed of 80 strokes per minute.

Adjust the ground travel speed with the tractor gear shift lever to match the crop and ground conditions to enable the best formed and tied bales possible. Overfeeding the Baler (traveling too fast) can produce improperlyshaped bales. For lighter windrows, reduce the PTO RPM and Plunger speed and increase the ground travel speed so that a consistent amount of crop is forced into the Bale Chamber.

NOTE:

NEVER expect the Baler to automatically adjust for variations in crop conditions, terrain, humidity...etc. Adjustments can be made to improve the bale density, appearance and how well the bales are tied. Refer to the Adjustments chapter for additional information.

2 1

OVERLOAD PROTECTION Both model Balers are provided with the same overload protection devices to prevent damage to the Baler and the tractor.

PTO Slip Clutch (Figs. 10) The PTO Shaft is protected by a Spring-loaded Slip Clutch having six (6) Springs. The Clutch slips and isolates the Drive Line from the shock-loading effects of the Plunger action and sudden tractor PTO engagements. See Adjustments chapter for additional details.

4

3

1 – Slip Clutch Spring Assembly (1 of 6) 2 – Front Shield Mounting Bolt & Nut (1 each of 4) 3 – Pivoting Plastic Shield (Opened) 4 – 5/16 x 2–1/4 Grade 8 Shear Bolt & Locknut

Fig. 11: Backside-view of Flywheel

Packer Finger Assembly Shear Bolt (Figs. 12) A single 1/4 x 1 Grade 2 Shear Bolt and Locknut is provided in the Packer Finger Assembly drive linkage to help protect the Finger Assemblies and related Driveline components.

1 2

1 – Slip Clutch Located on Front of Flywheel 2 – Shield Covering Slip Clutch and Overrunning Clutch Mechanism

NOTE: Replacement 1/4 x 1, Grade 2 Shear Bolts and Locknuts can be obtained in packaged quantities of eight Bolts and Locknuts by Gehl part number 900091.

Fig. 10

1

Flywheel Overrunning Mechanism (Figs. 10 & 11) An Overrunning Clutch is provided on the PTO connection to the Flywheel. The Overrunning Clutch allows the Baler to free-wheel when the PTO is disengaged or its speed is reduced. Refer to the Service chapter for additional details.

Flywheel Shear Bolt (Fig. 11) NOTE:

Replacement 5/16 x 2–1/4, Grade 8 Shear Bolts and Locknuts can be obtained in packaged quantities of eight Bolts and Locknuts by ordering Gehl part number 906551. The Nut for the Shear Bolt is located in a slot to prevent it from turning while the Shear Bolt is being tightened.

A single 5/16 x 2–1/4 Grade 8 Shear Bolt is provided in the Flywheel Shear Flange to protect the Main Drive Gearbox, Plunger, related Drive Sprockets and Chains.

1 – 1/4 x 1 Grade 2 Shear Bolt & Locknut

Fig. 12

TWINE & THREADING PROCEDURE General Information The Baler is designed to tie a tighter bale than is usually found in rectangular baling. This means that the finished bale will have less slack as more of the original bale density is retained. It is therefore possible to mistakenly overstress the twine and cause twine breakage by excessive bale density.

19

Many brands and grades of twine are marketed and it is common to assume all twine breakage is caused by the Baler rather than the quality of the twine.

It is recommended that only top quality twine (sisal or synthetic) be used in the Baler.

3.

In the same manner as step 2, tie the inside twine from ball “5” to outside twine of ball “3” and and likewise tie the inside twine from ball “6” to outside twine of ball “4”.

NOTE: BE SURE to use Square Knots for joining the balls of twine.

Twinebox (Figs. 13 & 14) The Baler Twinebox accepts 6 balls of twine, as shown.

When placing the twine balls into Twinebox, do NOT remove wrappers around balls as this will prevent the twine from unraveling premature. Also, BE SURE the balls are placed in Twinebox with correct end upwards, as indicated by twine manufacturer.

7 8

Fig. 14: Square Knot

Threading Needles (Figs. 15, 16 & 17 & see Figs. 9 & 13)

WARNING

9

5 3

1

2

4

6

1 – Twine Ball Number 1 2 – Twine Ball Number 2 3 – Twine Ball Number 3 4 – Twine Ball Number 4 5 – Twine Ball Number 5 6 – Twine Ball Number 6 7 – 1/4 x 1 Grade 2 Shear Bolt & Locknut 8 – Feeder Arm Spring Retainer Rod 9 – Feeder Arm Spring Retainer Bracket

Fig. 13

Twine balls are connected to each other in Twinebox as follows: 1.

Use the inside twine from balls “1” and “2” to thread Baler Needles.

2.

Using a “Square Knot”, tie the inside twine from ball “3” to outside twine of ball “1” and and likewise tie the inside twine from ball “4” to outside twine of ball “2”.

20

ALWAYS perform the MANDATORY SAFETY SHUTDOWN PROCEDURE, page 8, before attempting to thread the Baler Needles. In addition, before attempting to thread the Needles, install Metering Arm Transport Lock to prevent the Metering Arm from engaging the Knotter cycle.

To thread the needles, route the twine from the Twinebox as follows: 4.

Pass twine from ball “1” through – a.

Left hand Twine Guide on underside of Twinebox Cover,

b.

Rear set of holes in the Tension Plate,

c.

Twine Guide in bottom of Twinebox,

d.

Rear Take–up Spring,

e.

Common Guide below Bale Chamber,

f.

Guide aligned with left hand Needle,

g.

Eye of left hand Needle,

h.

Lastly, tie end of twine for left hand side to Crossmember of Lower Bale Tension Bar.

1

c.

Twine Guide in bottom of Twinebox,

d.

Front Take–up Spring,

e.

Common Guide below Bale Chamber,

f.

Guide aligned with right hand Needle,

3

g.

Eye of right hand Needle,

4

h.

Lastly, tie end of twine for right hand side to Crossmember of Lower Bale Tension Bar.

2

5 4 1 – Twine from Ball 1 Routed Through Left Hand Guide on Underside of Twinebox Cover 2 – Twine from Ball 2 Routed Through Right Hand Guide on Underside of Twinebox Cover 3 – Twine from Ball 1 Routed Through Rear Set of Holes in Tension Plate 4 – Tension Plate Adjustment Spring 5 – Twine from Ball 2 Routed Through Front Set of Holes in Tension Plate

Fig. 15

1 2

4

2

1 3 1 – Twine from Ball 1 Routed Through Guide Aligned with Left Hand Needle, Through Eye of Left Hand Needle and Tied to Left Side of Crossmember 2 – Twine from Ball 2 Routed Through Guide Aligned with Right Hand Needle, Through Eye of Right Hand Needle and Tied to Right Side of Crossmember 3 – Common Guide Below Bale Chamber 4 – Crossmember of Lower Bale Tension Bar

3

Fig. 17

NOTE: Tying twine to Crossmember anchors twine for threading Knotter.

1 – Twine Guide in Bottom of Twinebox 2 – Twine from Ball 1 Routed Through Rear Take-up Spring 3 – Twine from Ball 2 Routed Through Front Take-up Spring 4 – Both Twine Route Through Common Guide Below Bale Chamber

6.

Disengage Metering Arm Transport Lock.

7.

Trip the Knotter Clutch, by rotating Metering Wheel until the Slot of Metering Arm, engages the Roller.

8.

Rotate Flywheel by hand clockwise (when viewed from behind Flywheel) until the Needles place the twine, in each respective Knotter Cord Disc, of Knotter and complete the Needle cycle..

9.

Remove each tied end of twine from Crossmember, of Lower Bale Tension Bar, and then pull other end of twine from its respective Bill Hook on each Knotter.

Fig. 16

NOTE: Tying twine to Crossmember anchors twine for threading Knotter.

5.

Pass twine from ball “2” through – a.

Right hand Twine Guide on underside of Twinebox Cover,

b.

Front set of holes in the Tension Plate,

NOTE: Refer to the Adjustments chapter for Twine Tension Adjustment procedures.

21

UNPLUGGING 1 Plugging may occur in two particular areas of the Baler: in the Pickup area or the Bale Chamber area. The procedure for unplugging differs as indicated.

Pickup Area Plugging If too much crop material gets under the Windguard or otherwise plugs the Pickup area, proceed as follows: After all movement has stopped, proceed to remove the excess material as follows: 1.

Disengage the tractor PTO clutch, back the Baler away from the windrow and shut off the tractor engine.

1 – Bale Tension (Top & Bottom Tension Bar) Adjustment Cranks

Fig. 18

1.

Disengage the tractor PTO clutch, back the Baler away from the windrow and shut off the tractor engine.

2.

Replace the Flywheel Shear Bolt, if it has sheared.

3.

Engage the Metering Arm Transport Lock.

4.

Rotate both Tension Adjustment Cranks equally counterclockwise to completely release bale tension.

5.

Bale Chamber Area Plugging (Fig. 18 & see Figs. 9 & 11)

Rotate Flywheel by hand counterclockwise (when viewed from behind Flywheel) to bring the Plunger to its most forward position and stop rotating the Flywheel.

6.

If too much material is brought in, it may plug the Bale Chamber and cause the Flywheel Shear Bolt to shear. If this occurs, proceed as follows:

Restart the tractor and engage the PTO at 1/4 to 1/2 throttle to force the Plunger through its cycle and clear the plug.

7.

Stop operation and exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE, before deactivating the Metering Arm Transport Lock and reapply bale tension.

8.

Resume baling.

WARNING Exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE, page 8, before attempting to unplug any part of the Baler.

2.

Remove the excess material, by hand, and spread it out in front of the Pickup.

3.

Restart the PTO and slowly proceed into the windrow and continue baling.

CAUTION When a Shear Bolt fails, the Baler Flywheel will continue to rotate, after the tractor PTO is disengaged. Wait for all movement to STOP BEFORE proceeding.

22

TRASH The area under the Knotter Shield is vulnerable to problems caused by trash buildup. BE SURE to check the area and remove any buildup at least every 50 hours of Baler operation.

Notes

23

CHAPTER 7 ADJUSTMENTS

WARNING BEFORE proceeding to perform any adjustments on this unit, exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE, page 8.

If, after fully adjusting the Bale Tension Rails, the bale density is still insufficient, order and install a Wedge set which contains two pairs of Wedges and mounting hardware. Install only one pair of Wedges into the Bale Forming Chamber, at a time, until the desired bale density is achieved. Refer to the Optional Features & Accessories chapter for additional details.

NOTE: NEVER attempt to install more than two pair of Wedges into the Bale Chamber at one time.

BALE DENSITY ADJUSTMENT (Fig. 19)

KNOTTER (Fig. 20)

The density of the bales is determined by the tension on the Upper and Lower Bale Tension Rails. Adjustment is made by equally rotating the Left and Right Tensioner Handles which appropriately increases or decrease the tension on the Springs.

The “Suretie” Knotter is initially setup at the factory.

Under normal operation, field adjustments are NOT required. The compressed Spring length should be 1–5/8″ (41 mm), as indicated. If necessary, readjust the bolt to obtain this dimension with NO twine in the Twine Retainer Disc grooves.

2

1

3

3

4 2 1 – Left Spring Tensioner 2 – Right Spring Tensioner 3 – Left Tension Spring 4 – Upper & Lower Bale Tension Rails

Fig. 19

Increasing Spring tension on the Rails will increase the density of the bales.

NOTE: Several bales should be formed and tied after each adjustment, to determine if the bale weight is as desired.

24

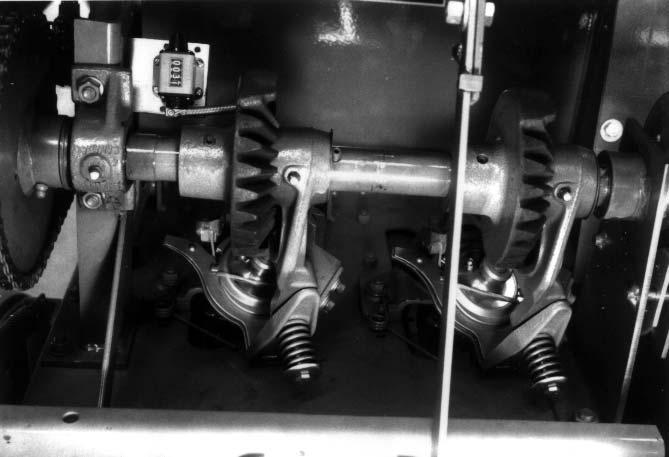

1 1 – Twine Retainer Disc (NO Twine Present) 2 – Spring Should Measure 1–5/8″ (41 mm) 3 – Internal Stop of Driven Sprocket Contacting Pawl of the Metering Pivot Arm Assembly

Fig. 20

NOTE: For repair of the ”Suretie” Knotter assembly, contact your authorized Gehl Dealer.

DRIVE CHAINS (Fig. 21) There are five different Drive Chains on the Baler. All but the Pickup Chain are provided with adjustable Idler Sprockets to adjust Drive Chain tension. An adjustable

Idler Slide is provided for adjusting the Pickup Chain tension. The various operating tensions are specified in the drawing (Fig. 21). Tension should be checked and readjusted, if required, after every 100 hours of Baler operation.

1 – Packer Drive Chain 2 – Adjust Idler for lower strand of Chain dDeflection of 1/4 to 1/2″ (6 to 12 mm) 3 – Pickup Chain 4 – Adjust Chain Slide for slack side deflection of 1/4 to 1/2″ (6 to 12 mm) 5 – #80 Main Drive Chain 6 – Adjust Idler for slack side deflection of 1/2 to 3/4″ (12 to 19 mm) 7 – Pickup Drive Chain 8 – Adjust Idler for slack side deflection of 1/2 to 3/4″ (12 to 19 mm) 9 – Twine Tie Drive Chain 10 – Adjust Idler for slack side deflection of 1/2 to 3/4″ (12 to 19 mm)

2

1

10 5 3 4 9 8 6

7

Fig. 21: Drive Chains & Adjustments

25

METERING WHEEL (Fig. 22) The Metering Wheel determines the length of the bales as they are being formed.

NOTE:

This adjustment is required after about every 10,000 bales, to adjust for Brake Pad wear.

1

2 3 1

2

3

4 4 1 – Brake Disc 2 – Brake Pad 3 – Spring Tension Nut & Washer (1 each of 2) 4 – Tension Spring (1 of 2)

Fig. 23 1 – Reset Cam on Clutch in Downward Position 2 – Metering Wheel 3 – Stop in Slot of Metering Arm 4 – 3/16 to 1/4″ (5 to 6 mm) Clearance Between Knurled Roller and Front Edge of Metering Arm

Fig. 22: Knurled Roller (Viewed with Outside Disc Removed)

Adjusting the Stop in the Slot of Metering Arm adjusts the length of the bales.

Moving the Stop upwards in the Slot increases the length of the bales. Conversely, moving the Stop downwards in the Slot decreases the length of the bales.

To ensure correct operation of the Metering Wheel, a clearance of 3/16” to 1/4” (5 to 6 mm) MUST be maintained between the front edge of the Metering Arm and the Knurled Roller at the center of the Disc assembly.

This clearance is required through the full arc of Metering Arm when the Reset Cam on the Clutch is in the downward position.

The clearance can be obtained by adjusting the position of the Metering Wheel assembly by means of the slotted holes in Support Brackets, at both sides of the Bale Chamber.

Excessive drag on the Brake causes a jerking motion at the Clutch and a strong disengagement. Insufficient drag will allow drifting of the Needles from the ”home” (rearmost) position after the Clutch has been tripped.

NOTE: Before adjustment, check that the Brake Disc is clean (free of paint, corrosion, etc.).

To adjust the Needle Brake: 1.

Loosen Spring Tension Nuts until all tension is removed from the Springs.

2.

Tighten the Nuts, by hand, until the Nut and Washer just begin to exert pressure on the Springs.

3.

Advance each Nut four turns.

PICKUP Flotation (Figs. 24 & 25) To adjust flotation of the pick–up: 1.

Lower the Pickup assembly into the “field operating” position.

2.

Loosen the Locknut on underside of Support Frame.

3.

Adjust the Nut, on the top of the Frame, to obtain a dimension of 1–3/4″ (44 mm) for a 3210 model Baler or 3–1/2″ (89 mm) for a 3250 model Baler.

NEEDLE BRAKE The Needle Brake assembly consists of a Disc and Pad. Adjusting the Spring Tension Nuts places appropriate tension on the Brake.

26

2

3

3 4 1

1 5

5

4 6 2

1 – Locknut on Underside of Support Frame 2 – Nut on Top of Support Frame (Adjust for an Exposed Thread Dimension as Indicated in Step 3.)

3 – Pickup Height Adjustment 4 – Windguard Tension Spring 5 – Windguard Crosstube

Fig. 24: Pickup in “Field Operating” Position

NOTE: On the 3250 model Balers only, similarly adjust the Spring on the right side of the Pickup to obtain a dimension of 2–1/16” (52 mm).

With the Flotation Spring(s) adjusted as detailed above, it should take approximately 35 lbs (16 kg) to lift the Pickup at Windguard Crosstube.

NOTE:

During field operation, if the Pickup has a tendency to bounce, especially over rough ground, it may be necessary to reduce Flotation Spring(s) tension by slightly decreasing the dimensions given previously.

Gauge Wheel (Fig. 25) The adjustable Gauge Wheel, on the right end of Pickup, prevents damage to Pickup when operating over rough or bumpy ground.

After the operating height of Pickup has been adjusted, the Gauge Wheel should be adjusted so that the Tire is approximately 1” (25 mm) clear of ground.

1 – 3250 Model ONLY Right Side Pickup Flotation Adjustment - Adjust Spring to 2-1/16″ (52 mm) Length 2 – Gauge Wheel Adjustment 3 – Alternate Windguard End Bracket Upper Position Rear Mounting Hole* 4 – Alternate Windguard End Bracket Upper Position Front Mounting Holes (2)* 5 – Alternate Windguard End Bracket Lower Position Alternate Front Mounting Hole* 6 – Factory Installed Windguard End Bracket Front and Rear Mounting Holes* * Same Holes and Hole Pattern on Left Side

Fig. 25: 3250 Model Right Side of Pickup

Height Control (See Fig. 24) The height of the Pickup should be set to enable the Pickup to gather all the crop without the Pickup Teeth contacting ground.

To set the height, remove Hairpin Cotter Pin, and adjust Pickup on Support Rod by reinserting Hairpin in one of the four holes provided in the Rod. The fifth (bottommost) hole in the Support Rod is used to place the Pick–up in the “Transport” position.

Windguard (See Figs. 24 & 25) The Windguard holds material against Pickup Teeth.

The Windguard can be adjusted, on both sides evenly, to any one of four positions using the appropriate set of holes, as follows: For extremely heavy crops, install the Windguard Mounting End Brackets using the uppermost holes For extremely light crops, install the Windguard Mounting End Brackets using the lowermost holes For less than extremely heavy or extremely light crops, use appropriate alternate holes

27

PACKER FORK POSITION (Fig. 26, 27, 28 & 29)

2

The Packer Fork assembly can be adjusted from its normal packing position to move more material to either the right hand side of Bale Chamber or to the left hand side. Adjustment is made at Spring Retainer assembly.

1.

For normal packing in the majority of crops and crop conditions, the Pivot Pin should be located in center hole of Spring Retainer Bracket and the top hole of Fork assembly.

2.

Where more material is required at right hand side of Bale Chamber, relocate the Pin in left hand hole of Bracket and in the upper hole of Fork assembly.

3.

Where more material is required at left hand side of Bale Chamber, relocate the Pin in right hand hole of Bracket (from the back side) and in lower hole of Fork assembly.

3 1

1 – Spring Retainer Bracket 2 – Pivot Pin in Left Hole 3 – Fork Assembly Anchored in Top Hole

Fig. 28: Fork Position Detail for Step 2 Above

2

1

1

3

2

1 – Spring Retainer Bracket 2 – Pivot Pin in Right Hand Hole 3 – Fork Assembly Anchored in Bottom Hole

Fig. 29: Fork Position Detail for Step 3 Above

TIMING 1 – Spring Retainer Assembly 2 – Packing Fork Assembly

WARNING

Fig. 26

Keep hands clear of Packer Fork assembly.

2

1

3

1 – Spring Retainer Bracket 2 – Pivot Pin in Center Hole 3 – Fork Assembly Anchored in Top Hole

Fig. 27: Fork Position Detail for Step 1 Above

28

NOTE: When checking timing of Baler components, timing MUST be performed in the following sequence; —

1st, Packer Arms,

—

2nd, Packer-to-Plunger Timing,

—

3rd, Needle Timing and,

—

4th, Plunger Safety Stop

Packer Arm (Fig. 30) To check Packer timing, rotate the Flywheel until left hand Crank Arm is straight down. Check right hand

Crank Arm and make sure it is also straight down, so both Crank Arms are parallel. If Arms are NOT parallel, loosen the Idler Sprockets and remove the Drive Chain from Driven Sprocket. When Chain is removed, right hand Crank Arm will drop to straight down position.

With both Crank Arms parallel, reinstall Chain and adjust tension at Idler Sprocket until there is 1/4 to 1/2″ (6 to 13 mm) deflection on lower strand of Chain.

2

1

3

4

1

3

2 4

5

1 – Center of Left Hand Packer Fork Crankshaft 2 – Measured Distance of 13 to 13–1/2″ (220 to 343 mm) When Fork is Correctly Timed 3 – Top of Front Stripper Rail 4 – Chain Attached to Overhead Hoist

6

Fig. 32 1 – Right Hand Crank Arm 2 – Driven Sprocket 3 – Idler Sprocket 4 – Drive Chain 5 – Lower Strand of Chain Should Be Adjusted for 1/4 to 1/2″ (6 to 13 mm) of Deflection 6 – Left Hand Crank Arm

Fig. 30

Packer Fork to Plunger (Figs. 31 & 32) The timing of Packer Forks, relative to Bale Chamber Plunger, MUST also be checked.

2

To check the timing of Packer Forks, relative to Bale Chamber Plunger, rotate the Flywheel, by hand, until Plunger is on its compression stroke and the Projections, on face of the Plunger are flush with rear edge of Front Stripper Rail, as shown.

Measure distance from top side of the Front Stripper Rail to the center of left hand Packer Fork Crankshaft.

If this measurement is 13 to 13–1/2″ (330 to 343 mm), the Fork assembly is correctly timed; if NOT, retime it according to the following procedure: 1.

Obtain wooden (2 x 4) block 11–3/4″ (298 mm) long and block-up under the left Packer Fork Crankshaft so it remains in position.

2.

Loosen the Idler Sprocket and remove the Main Drive Chain to the Plunger Crank Arm.

3.

Turn the Flywheel (by hand) and position the Plunger so that the Projections, on the face of Plunger are flush with rear edge of Front Stripper Rail.

4.

Make sure that the Plunger remains in this position and reinstall and readjust the Chain tension while keeping the Chain tight on the Drive side.

5.

Remove block of wood and recheck the timing between the Packer Fork and Plunger to ensure they are timed correctly.

3

1

1 – Projections (2 of 4) on Face of Plunger 2 – Rear Edge of Front Stripper Rail 3 – Left Hand Packer Fork

Fig. 31

NOTE: Whenever the Packer Fork timing is adjusted, the Needle timing MUST be rechecked and readjusted per the following details.

29

Needles (Figs. 33 through 39 and see Fig. 20)

4.

At this point, Needles should be rubbing with a slight pressure on the Knotter Frame, as shown in Fig. 34; if NOT, loosen Nuts on Bolts and adjust the Needles laterally on the Swing Frame until required contact is made with Knotter Frame.

5.

Continue to rotate the Swing Frame and check the clearance of Fixed Roller of the Needle between the Twine Disc and the Twine Retainer. As the Needle passes the Disc and the Retainer, the clearance should measure between 1/16 to 1/8″ (1.5 to 3 mm).

6.

If the clearance is NOT correct, refer to Fig. 36 and loosen the one NUT and tighten the other Nut to move the appropriate Needle on the Swing Frame, until clearance is correct.

To check and adjust the Needles, proceed as follows: 1.

Remove all hay from Bale Chamber.

2.

Carefully remove Cotter Pin and Clevis Pin to disconnect Connecting Rod from Swing Frame Bracket.

3

4 2 1 7

5

6

1

8

1 – Drive Sprocket 2 – Drive Chain 3 – Idler Sprocket 4 – Driven Sprocket 5 – Connecting Rod 6 – Cotter Pin & Clevis Pin 7 – Swing Frame Bracket 8 – Left Needle

4 2 3

Fig. 33: Left Side of Baler with Tire Removed

1 – Clearance Should Measure From 1/16 to 1/8″ (1.5 to 3 mm) 2 – Twine Retainer 3 – Fixed Roller on End of Needle 4 – Twine Disc

Fig. 35

NOTE: Loosening the rear Nut and tightening the front Nut will increase clearance. Conversely, loosening the front Nut and tightening the rear Nut will decrease clearance.

1

2

1 – Needle 2 – Knotter Frame

Fig. 34

3.

30

Rotate Swing Frame assembly, by hand, until Needles are adjacent to Knotter Frame.

7.

Move the Swing Frame assembly back to the home position and reattach the Connecting Rod to the Swing Frame Bracket with the Clevis Pin.

8.

With the Swing Frame in the “home” position, check the clearance between the Needle tips and the bottom of the Bale Chamber. Clearance should be 1/2: to 3/4″ (13 to 19 mm). If clearance is incorrect, remove the Clevis Pin, to detach the Connecting Rod and adjust the Clevis until the correct clearance is obtained.

NOTE:

1

Check clearance after retightening Jam Nut, against the Clevis, and reinserting Clevis Pin.

1

2 2

5

3

9.

Rotate the Flywheel until Needles enter Bale Chamber and tips of Needles are flush with inside of Bale Chamber Floor.

10.

Check that there is 1/4” to 1” (6 to 25 mm) clearance between end of Projection, of the Plunger, and the back of the Needle. If clearance is NOT obtained:

4

a.

Loosen the Idler Pulley and remove the Knotter Drive Chain from Drive Sprocket (Fig. 33).

b.

Rotate the Flywheel until Plunger is in correct position to provide the required 1/4” to 1” (6 to 25 mm) clearance (Fig. 38). Also, rotate Driven Sprocket until the Internal Stop of Sprocket contacts the Pawl (Fig. 20).

1 – Rear Nut 2 – Front Nut 3 – Left Needle 4 – Right Needle 5 – Swing Frame

NOTE: If Chain does NOT align with Sprocket Teeth, remove Timing Bolts through the Knotter and Pickup Drive Sprockets. Turn the Knotter Drive Sprocket until the Teeth align with the Chain. Reinstall the Timing Bolts in any one of four holes to obtain Needle adjustment.

Fig. 36

c.

1

Reinstall the Drive Chain and adjust the Chain tension at the Idler Sprocket. Be Sure to keep the Drive side of the Chain tight without moving the Sprockets.

2

8

3

4

2 5

6

7

4 1 1 – Clutch Housing 2 – Connecting Rod 3 – Swing Frame 4 – Needle 5 – Clearance of from 1/2 to 3/4″ (13 to 19 mm) Between Needle Tips and Bottom of Bale Chamber 6 – Clevis Pin 7 – Clevis 8 – Jam Nut

Fig. 37

3

1 – Projection in Bottom of Bale Chamber 2 – Clearance Between End of Needle and Projection Should be 1/4 to 1″ (6 to 25 mm) 3 – Needle 4 – Swing Frame Bracket

Fig. 38

31

2

1

3

4

a.

Ensure Swing Frame is in ”home” (rearmost) position.

b.

Loosen Locknut, 8, Fig. 41 and adjust the Plunger Stop, by means of the opposing slots in Arms 4 and 6, Fig. 41, the correct distance of 3” (76 mm) is obtained, as indicated at 1 of Fig. 41, between the Plunger Stop and the bottom of the Bale Chamber.

After the complete adjustment has been made, BE SURE to retighten Locknut with a torque of 58 to 66 ft–lbs (78 to 88 Nm).

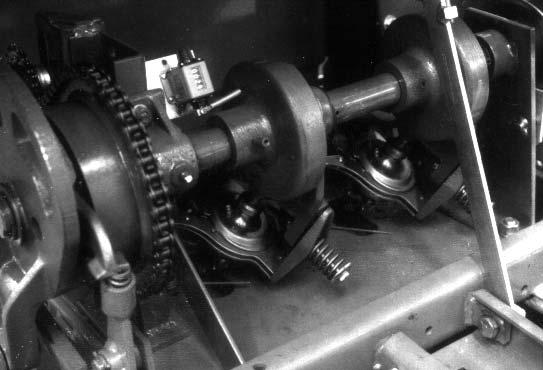

1 – Main Driven Sprocket 2 – Timing Bolt (1 of 2) 3 – Knotter Drive Sprocket 4 – Pickup Drive Sprocket

NOTE: The setting of the Plunger Safety Stop MUST be checked and reset, if necessary, whenever the Needles have been adjusted. Adjustment is detailed in a later paragraph.

Fig. 39

NOTE: Whenever the Needles have been adjusted, the Plunger Safety Stop setting MUST be checked and, if required, readjusted.

Plunger Safety Stop (Figs. 40 & 41)

2

1.

3

1

To check and adjust the Plunger Safety Stop setting, proceed as follows: Make sure that the Swing Frame is in the ”home” (rearmost) position.

2.

Referring to Fig. 41, measure the distance from the bottom of the Bale Chamber, 2, to the tip of the Stop, 3. The distance MUST be 3” (76 mm) as indicated by callout #1.

3.

If this distance is NOT obtained adjustment can be made as follows:

4

5

1 – Plunger Stop Tension Spring 2 – Plunger Stop Shaft 3 – Locknut 4 – Arm-Plunger Stop Rod 5 – Activating Pin on Swing Frame

Fig. 40: Plunger Safety Stop (Viewed with Tire Removed)

9 2

1

3

5

4

5 7

8 6 6 4

Detail

1 – 3″ (76 mm) Measured Distance from Bottom Side of Bale Chamber 2 – Bottom of Bale Chamber 3 – Plunger Stop Dog 4 – Plunger Stop Shaft 5 – Stop Rod 6 – Arm-Plunger Stop Rod 7 – Opposing Slots In Items 4 & 6 8 – Locknut 9 – Activating Arm on Swing Frame (Shown in “Home” Position)

Fig. 41: Plunger Safety Stop Adjustment Detail

32

TWINE TENSION (Figs. 42, 43, 44, 45 & 46) 1

The tension on the twine should be adjusted at the Twine Tension Plate by adjusting the Nut so that there is a deflection of 2–1/2 to 3″ (63 to 75 mm) at the Take–up Springs underneath the Twinebox, as the twine just starts to slip through the Tensioner when pulling on the twine in the direction of the Bale Chamber.

3

2 1 – Properly-tensioned Twine 2 – Bill Hooks 3 – Cord Disc

1

Fig. 44

1 – Tension Plate Adjustment Spring, Washer & Nut

Fig. 42

1 1 2 1 – Typical Appearance for NOT Enough Twine Tension

Fig. 45 1 – When Tension Plate is Properly Adjusted, Twine from Ball 1 Routed Through Rear Take-up Spring Should Just Start to Slip After Deflecting Tensioner Spring Approximately 2–1/2 to 3″ (63 to 75 mm) 2 – When Tension Plate is Properly Adjusted, Twine from Ball 2 Routed Through Front Take-up Spring Should Just Start to Slip After Deflecting Tensioner Spring Approximately 2–1/2 to 3″ (63 to 75 mm)

1

Fig. 43

When the twine tension is correct, the twine will be located in the Knotter as shown in Fig. 44.

When there is NOT ENOUGH twine tension, at the Twine Tension Springs, the twine will be located in the Knotter to the approximate position shown in Fig. 45.

1 – Typical Appearance for Too Much Twine Tension

When there is TOO MUCH twine tension, at the Twine Tension Springs, the twine will be located in the Knotter to the approximate position shown in Fig. 46.

NOTE: The measurement for twine tension at the take–up springs is also applicable when using synthetic (plastic) twine.

Fig. 46

33

CHAPTER 8 LUBRICATION GENERAL INFORMATION

Lubricate Every 10 hours (or daily) All Roller Drive Chains Lubricate Every 50 hours

CAUTION NEVER attempt to lubricate this unit when any part of the machine is in motion. ALWAYS BE SURE to exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE (page 8) BEFORE proceeding to lubricate this equipment.

NOTE:

Before starting the Baler, make sure the entire unit is properly lubricated and that the Main Gear Housing is filled to the proper oil level.

It is well to remember that a sufficient amount of oil and grease will prevent excessive part wear and early failure.

MAIN GEAR HOUSING The Main Gear Housing should be checked at the start of each season of Baler operation and after every 100 hours of operation, thereafter. Replenish the oil level, as necessary. The Housing requires approximately 7 U.S. quarts (6.7 liters) of EP80W90 Gear Lube. Order and obtain a 1 Quart Bottle by Gehl Part Number 127178.

Drawbar Position Control Latch Lubricate Every 500 hours (or annually) All Pivot Points and the Bale Chamber Plunger Rails

GREASING NOTE:

Grease all fittings on a prescribed basis, at the intervals of operation listed, before and after storing the unit, and as otherwise listed. Use a good grade of Lithium base grease.

Wipe dirt from the fittings before greasing to prevent the dirt from being forced into the Bearing or pivot. Replace any missing fittings, when noted. Force the grease into the fitting until it comes out at the Bearing Seal or at the Shaft. To minimize dirt build-up, avoid excessive greasing.

NOTE: In addition to the fittings, check and repack (if necessary) the Wheel Bearings once a year and before placing Baler into storage.

Grease Fitting Locations Grease Every 50 hours 1.

Telescoping Section of PTO Drive (2 Places at 180° apart)

2.

PTO U-Joint Crosses (3 Places)

3.

Main Drive Chain Fixed Idler Sprocket

4.

Plunger Bushing

5.

Packer Gearbox (Access Hole in Shield)

6.

Packer Fork Assembly Bushing

7.

Pickup Gauge Wheel

8.

Knotter Drive Sprocket

NOTE:

Do NOT overfill the Gear Housing; only fill to the bottom of the Oil Level Plug hole.

OILING Lubricate all Drive Chains using a good grade of foaming aerosol lubricant, such as NAPA Chain and Cable Lubricant. This type of lubricant increases the life of the Chain 3 to 4 times over those lubricated at 8 hour intervals with new or used motor oil. The recommended method is to spray the entire length of Chain on the center of the Rollers. It is better to lubricate Chains when they are warm (after use, rather than before).

In addition to the Roller Chains, apply motor oil on all other points listed at the intervals specified.

34

Grease ONLY Once a Year 9.

Knotter Assembly Bearings (3 Places)

10.

Both Knotter Mechanisms (1 Each Disc)

4 1 7

2

Front Master

9 5

6

8 10

10

3

Rear Master

35

CHAPTER 9 SERVICE e.

CAUTION

Reassemble Yoke, Thrust Washer and Special Washer (Pin in Washer MUST be aligned with Hole in Shaft). Tighten Bolt to 55 ft–lbs (75 Nm).

BEFORE proceeding to perform all Service routines on this unit, exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE (page 8).

NOTE: The following information is referred to in both the Troubleshooting Guide and the Maintenance Schedule chapters of this manual. It should be understood that all services detailed in this chapter are Owner-Operator responsibilities.

Where indicated, certain service routines should only be carried-out under the direction of an authorized GEHL equipment dealer.

1 2

This section covers items of servicing which are required periodically to keep Baler in good running order. These minor items can be done with ordinary tools. Where major servicing is required, consult your authorized GEHL Dealer.

PTO YOKE END PLAY (Fig. 47) The PTO Yoke should have an end play of 0.0l0 to 0.030″ (0.25 to 0.76 mm).

3

4

1 – Shear Bolt Arm 2 – Shaft Shoulder 3 – Shim(s) 4 – Left-hand Threaded Retaining Bolt, Special Washer & Thrust Washer

To check end play:

Fig. 47

1.

Make sure Shear Bolt Arm, 1, Fig. 47, is tight against the Shaft Shoulder, 2.

After assembly, the PTO Yoke MUST be free to rotate (by hand) clockwise, when facing the Flywheel..

2.

Check end play of PTO Yoke, if in excess of 0.030″ (0.76 mm), it is necessary to place Shims, 3, behind the Yoke. To install or remove shims:

SURETIE KNOTTER TWINE KNIFE SHARPENING (Figs. 48, 49, 50 & 51)

a.

Remove Shield in the front of Flywheel.

b.

Rotate the Rear Shield to gain access to Shield Retaining Bolts.

The Twine Knife should always be razor sharp; especially the corner, which should be checked frequently to ensure it is NOT chipped.

36

c.

Remove Retaining Bolt, 4, (left–hand threads) Special Washer and Thrust Washer.

d.

Remove PTO Yoke and insert correct amount of Shims to obtain the 0.010 to .030″ (0.25 to 0.76 mm) end play.

If the knife becomes dull or the corner is chipped, it should be removed for resharpening.

Knife Removal To remove the Knife: 1.

Unlatch and open the Knotter Cover. Properly engage the Cover Support.

3

1

2 1 – Cap Screw Securing Knotter Frame to Bale Chamber Bracket 2 – Bale Chamber Bracket 3 – Knotter Frame

Fig. 50: Knotter Assembly in Vertical Position

Fig. 48

2.

1

Remove Cap Screw, 1, Fig. 48, securing Knotter Frame, 3, to the Bale Chamber Bracket, 2.

1

2

3

4 2

1 – Knife 2 – Cap Screw 3 – Locating Plate 4 – Socket Head Screws (2)

1 – Bill Hook Roller 2 – Back Side of Cam

Fig. 51

Fig. 49

Sharpening Knife 3.

Rotate Knotter assembly upward until Bill Hook Roller, 1, Fig. 49, contacts back side of Cam, 2.

4.

Lift Bill Hook Roller over Cam and continue rotating assembly until it is in a vertical position, as shown in Fig. 50.

5.

Remove Cap Screw, 2, Fig. 51, and remove Knife, 1, from Locating Plate, 3.

NOTE: It is NOT necessary to loosen Socket Head Screws, 4, Fig. 51

To sharpen the Twine Knife, proceed as follows: 1.

Carefully maintain original cutting angle.

2.

Remove the least amount of metal as possible from the cutting edge.

3.

Take care so as NOT to overheat Knife.

4.

Reinstall Knife onto Locating Plate, 3, Fig. 51, and secure with Cap Screw, 2.

5.

Check and readjust the Twine Knife clearances per the following details, if necessary.

37

TWINE KNIFE CLEARANCES (Figs. 52 & 53)

1

Prior to checking and adjusting Twine Knife clearances, it will be necessary to trip Knotter Clutch and rotate Knotter Drive Shaft sufficiently to position the Bill Hook Roller, 2, Fig. 52 against Cam, 3. This ensures correct timing of Twine Disc.

2

3

1 – Twine Knife 2 – Twine Disc 3 – 0.04 to 0.05″ (1 to 1.25 mm) Clearance

2

Fig. 53

3

SURETIE KNOTTER NOTE:

If removal of complete Knotter is required, refer to the next topic titled “Removing Complete Knotter”.

1

NOTE: Either Knotter assembly can be serviced individually without removing Main Drive Shaft.

5

4

Disassembly (Figs. 54 through 71 and see Figs. 48, 49, 50 & 51) 1.

6

2.

1 – Knife Edge 2 – Bill Hook Roller 3 – Cam 4 – Twine Disc 5 – Overlap of 0.06 to 0.08″ (1.5 to 2 mm) 6 – Gap Between Knife Edge and Disc of 0.08 to 0.12″ (2 to 3 mm)

3.

4.

Fig. 52

5.

Unlatch and open the Knotter Cover. Properly engage the Cover Support.

Remove Cap Screw, 1, Fig. 48, securing Knotter frame, 3, to bale chamber bracket, 2.

Rotate Knotter assembly upward until Bill Hook Roller, 1, Fig. 49, contacts back side of Cam, 2.

Lift Bill Hook Roller over Cam and continue rotating assembly until it is in a vertical position, as shown in Fig. 50.

Remove Pin from Bill Hook Gear, Fig. 54.

Check to ensure there is 0.060″ to 0.080″ (1.5 to 2 mm) overlap of Knife, 5 of Fig. 52. To obtain this overlap, remove the Socket Head Screws, 4, Fig. 51, and remove Shim(s) under the Locating Plate 3, Fig. 51.

Check to ensure there is 0.080″ to 0.120″ (2 to 3 mm) gap between Knife edge, 6, of Fig. 52, and Twine Disc, 4. Also, check to ensure there is 0.040″ to 0.050″ (1 to 1.25 mm) clearance between Knife, 1, Fig. 53, and the Twine Disc, 2, as indicated at 3, To obtain these clearances, loosen the Socket Head Screws, 4, Fig. 51, and move the Locating Plate 3, Fig. 51, in the slotted holes. BE SURE the Socket Head Screws are securely retightened when adjustments have been completed.

38

Fig. 54

6.

Remove Cap Screw, 2, Fig. 51, securing Knife and remove Knife, 1.

NOTE:

Do NOT loosen Socket Head Screws, 4, Fig. 51, as these secure a Plate set at factory to ensure correct relationships of Twine Knife to Twine Disc.

7.

Using a screwdriver, pry tension arm, 3, Fig. 55, outward; then, turn cord grip, 2, to the left and remove it.

8.

Remove two cap screws, 1, Fig. 55, securing assembly to frame. Remove bill hook and twine disc assembly.

9.

Turn bill hook clockwise until roller contacts straight side of cam. Turn twine disc counter– clockwise to remove slack from planetary gears and then mark housing and twine disc, Fig. 56.

NOTE: Marking aids reassembly. If new parts are to be installed, marking is NOT required.

10. Loosen Set Screw in Retaining Collar, 3, Fig. 57, and slide Collar, Twine Disc, 2, and Twine Disc Cleaners off Bill Hook Shaft.

2

2

1

3 1

3

1 – Bill Hook 2 – Twine Disc 3 – Set Screw in Retaining Collar

1 – Two Cap Screws 2 – Cord Grip 3 – Tension Arm

Fig. 57

Fig. 55

11.

Remove Gears, 3, Fig. 58, and Key from Bill Hook Shaft and remove Shaft.

1

2

3 4

Fig. 56

1 – Bill Hook 2 – Retaining Collar 3 – Gears 4 – Disc Assembly

Fig. 58

39

12.

Make a tool, Fig. , to remove and install spring and pin in bill hook. Use as shown in Fig. 60.

2

2

1 3 4

1

3

4

5 1 – Bill Hook 2 – Spring Retaining Pin 3 – Spring 4 – Plug 5 – Pin

Fig. 61

1 – Drill 1/8″ Diameter Hole 2 – File-out 5/32″ Wide Slot 3 – 1/4″ From Hole 4 – Locate Centerline of Hole 1/2″ From End

Fig. 59: 5/16 x 2 Cap Screw Modification Detail

Reassembly 13.

Assemble Bill Hook parts, Fig. 61, holding Bill Hook, 1, with open end upwards.

14.

Install pin, 5, Fig. 61, being sure pin is in notch in loose jaw; otherwise pin will be damaged.

15.

Lubricate plug, 4, Fig. 61, with a small amount of grease and install it into bill hook bore with recessed end down.

16.

Install spring.

17.

Using the tool formed according to the details in FIg. 59, install spring retaining pin, 2, Fig. 61

Fig. 60

40

NOTE: Be sure to reinstall Plastic Plug (NOT shown) in end of Bill Hook Shaft. This keeps dirt out of Spring area of Bill Hook.

18.

Lubricate Bill Hook Bracket grooves (inside and outside) and Bearing and then install Bill Hook into Bracket.

19.

Install Key in Bill Hook Shaft and install Sun Gear and Planetary Gears (with chamfers on Teeth upwards, as shown in Fig. 62).

Fig. 62

20.

Insert Twine Disc Cleaners, 1, Fig. 63, into grooves of Twine Disc.

1

1

2

1 – Adjusted Clearance of 0.005″ (0.1 mm)

Fig. 65 1 – Twine Disc Cleaners 2 – Collar

Fig. 63

23.

Install Bill Hook, 3, Fig. 66, and Twine Disc, 1, into Frame and Drive Gear.

24.

Install Bolts, 2, Fig. 66, at rear of Housing to secure Bill Hook assembly into place. Do NOT tighten bolts at this time.

When inserting Cleaners, ensure that flattened side, shown, Fig. 64, will be located adjacent to Knife when Knotter has been completely reassembled.

4

3 2

5 1 1 1 – Flattened Side of Cleaner

Fig. 64

21.

Referring to Fig. 63, turn Bill Hook until Roller contacts back side of Cam. Slide Twine Disc over Shaft and Twine Disc Cleaners over Pin. When Cleaners are correctly installed, they will be almost hidden behind Bracket.

1 – Twine Disc 2 – Bolts 3 – Bill Hook 4 – Cord Grip 5 – Slot of Tension Arm

Fig. 66

NOTE:

If new parts are installed, ensure Roller, 2, Fig. 52, on Bill Hook is against Cams, 3, and align Twine Disc, 4, so dimension 6, Fig. 52, is approximately 1/8″ (3 mm).

22.

Install retaining collar and adjust end–play on shaft to obtain a 0.005″ (0.1 mm) clearance as indicated at ”1”, Fig. 65, and tighten set screw in collar, 2 of Fig. 63.

25.

Rotate Bill Hook tip to point toward flat side of Drive Gear and align Pin hole.

26.

Insert Pin.

27.

Lift Twine Disc and Bill Hook assembly, 1 and 3, Fig. 66, by hand, so Bevel Gear contacts Knotter Frame, then tighten Bolts, 2 of Fig. 66.

41

NOTE:

After tightening Bolts, 2, Fig. 66, ensure Bevel Gear and/or Bill Hook can be rotated freely, by hand.

28.

Pry Cord grip tension arm, 5, Fig. 66 outward and insert cord grip, 4, into slots in twine disc, 1; then insert tab, 4, in slot of tension arm, 5.

NOTE:

Bill Hook and Drive Gear are correctly timed when Knotter is bolted in place and Bill Hook points to left rear of machine.

29.

2

1

3

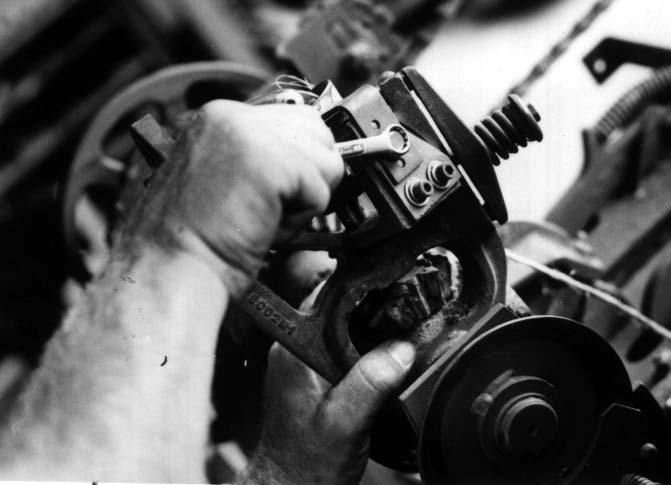

Install Twine Knife on Locators and secure with Bolts, Fig. 67. Locators position Twine Knife correctly over Twine Disc.

4

NOTE:

Locators and Plate are set at factory and secured to Bracket by the two Socket Head Screws.

1 – Dimension of 0.8 to 0.12″ (2 to 3 mm) 2 – Dimension of 0.06 to 0.08″ (1.5 to 2 mm) 3 – Dimension of 0.04 to 0.05″ (1 to 1.3 mm) 4 – Side-view

Fig. 68

30.

Rotate the Knotter into position and secure it with Bolt, Fig. 69.

1

Fig. 67

After tightening the bolts, the twine knife should be positioned correctly. To check position, refer to dimension ”1”, ”2” and ”3” of Fig. 68.

If the dimensions ”1”, ”2” and ”3” of Fig. 68 are NOT obtained, loosen the Socket Head Screws and reposition the Knife and re-tighten the Screws. It may be necessary to add or remove Shims to obtain the dimensions.

42

1 – Main Shaft

Fig. 69

31.

Check distance between tip of Twine Disc Groove, 2, Fig. 70, and the Knotter Frame, 1, as indicated at ”3”. Distance should be 2.016″ to 2.040″ (51.2 to 51.8 mm).

REMOVAL AND INSTALLATION OF COMPLETE KNOTTER (See Figs.

33 & 23) Removal 1.

Disconnect Rod between Needle Swing Frame and Knotter Shaft, 5 of Fig. 33.

2.

Remove Knotter Drive Chain, 2 of Fig. 33.

3.

Remove Brake assembly, Fig. 23.

4.

Remove Bolts (total of 5) securing Knotter to the Baler.

5.

Remove complete Knotter assembly.

Installation

1 2

3

1 – Knotter Frame 2 – Distance of 2.016 to 2.040″ (51.2 to 51.8 mm) 3 – Tip of Twine Disc Groove

Fig. 70

6.

Reposition Knotter assembly on Baler and loosely attach with Bolts, removed in step 4.

7.

Re-install Brake assembly, removed in step 3 and readjust tension per details under “Needle Brake” topic in Adjustments chapter.

8.

Tightly secure hardware installed in step 6. Then, re-install Knotter Drive Chain and adjust tension with the Idler, 3 of Fig. 33. Check the Plunger to Needle timing per details under the “Timing” subtopic of the “Packer” topic in the Adjustments chapter..

9.

Check the Needle adjustment and timing per details under the “Needles” topic in the Adjustments chapter.

NOTE:

If the above dimension is NOT obtained, it may be necessary to add or remove Shims from the Main Shaft, 1, Fig. 69.

NOTE: The number of Shims required is determined by having a clearance of 0.005 to 0.015″ (0.13 to 0.38 mm) clearance between the Bevel Gear and the Pinion in the Knotter assembly.

32.

Thread Knotter and check Cord Grip Tension Spring. If necessary, adjust Spring length to 1–1/2″ to 1–3/4″ (38 to 44 mm), Fig. 71.

SHEAR KNIFE SHARPENING (Fig. 72 & 73)

WARNING Use extreme caution when working with knives. Do NOT make contact with sharp edges.

1

1 – Adjust Spring Length from 1–1/2 to 1–3/4″ (38 to 44 mm)

Fig. 71

The Plunger Knife, 1, Fig. 72, is mounted on leading edge of right–hand side of Plunger, and the Bale Chamber Knife, 2, Fig. 72, is mounted on right–hand side of Bale Chamber at rear of throat opening.

Knives MUST be sharp and properly adjusted to ensure good baling operation.

Position Plunger Knife midway in throat opening.

43

1

2 2 3

1

1 – Plunger Knife 2 – Bale Chamber Knife 3 – Countersunk Screw (Middle 1 of 3)

1 – Plunger Connecting Rod 2 – Drive Crank

Fig. 73

Fig. 72

PLUNGER KNIFE SUPPORT (Figs. 74 & 75)

WARNING Disconnect Plunger Connecting Rod, 1, Fig. 73, from Drive Crank, 2, Fig. 73, to prevent unintentional movement of the Plunger.

NOTE:

If Shims had been installed behind either Knife, make sure these are reinstalled in their original positions when Knife is reinstalled.

Remove Plunger Knife, 1, Fig. 72, by removing all three Countersunk Screws, 3, Fig. 72, with a 5/16″ allen wrench.

Continue Plunger movement until throat opening is completely clear and then remove Chamber Knife, 2, Fig. 72, by removing all three Countersunk Screws with a 5/16″ allen wrench.

Plunger Knife Support, 2, Fig. 74, is located against Plunger Knife at location, 5, Fig. 75, and is used to prevent toe–in of Plunger Knife toward Bale Chamber.

Where toe–in of Plunger is evident, support should be adjusted so that knife is parallel to Bale Chamber Knife.

Adjustment is made by slightly loosening Bolts, 3, Fig. 74, and tapping Support, 2, so that support is adjusted in slotted holes. Make sure Bolts, 3, are tightened securely after adjustment has been made.

NOTE: Support is adjusted to ensure Plunger Knife is parallel to Bale Chamber Knife NOT to adjust Knife clearance.

1

3

Sharpen both Knives, maintaining original 45° angle and straight cutting edge.

2

NOTE: Make sure Knife does NOT get overheated during sharpening.

3

Lubricate threads and tapered area of the Countersunk Screws with Never–seize compound and reinstall Knives.

If Shims were removed, BE SURE they are reinstalled in their original positions.

44

1 – Plunger Knife 2 – Plunger Knife Support 3 – Support Anchor Bolt

Fig. 74

SHEAR KNIFE ADJUSTMENT (Figs. 75, 76, 77 & 78) 1.

Check operating clearance between Plunger Knife, 1, Fig. 75, and Bale Chamber Knife, 2.

To do this: a.

b.

c.

Rotate Flywheel until Plunger Knife, 1, Fig 75, has just passed base of Bale Chamber Knife, 2, as shown, and check clearance using a feeler gauge.

Rotate Flywheel until top of Plunger Knife is just past top of Bale Chamber Knife and again, check clearance.

WARNING Disconnect Plunger Connecting Rod, 1, Fig. 73, from Drive Crank, 2, Fig. 73, to prevent unintentional movement of the Plunger. b.

Position Plunger so Plunger Knife, 1, Fig. 75, is just passed top of Bale Chamber Knife, 2.

c.

Loosen two rows of Nuts, 1, Fig. 76.

d.

Adjust rear bolt, 2, Fig. 76, to raise or lower rail, 2, Fig. 77, until clearance between Plunger Knife and Bale Chamber Knife is same at top and bottom.

e.

When Knife clearance is same top and bottom, adjust front bolt, 3, Fig. 76, so distance between lower Rail and Bale Chamber Floor is same at front and rear.

f.

When lower Rail, 2, Fig. 77, is adjusted, tighten lower row of Nuts, 1, Fig. 76, so lower Rail is positioned securely.

g.

Using upper row of Nuts, 1, Fig. 76, adjust top Rail, 1, Fig. 77, so there is a clearance of 0.015″ to 0.020″ (0.3 to 0.5 mm) between Plunger Roller, 3, and underside of top Rail, 1, along its full length.

Clearances should be between 0.005″ to 0.030″ (0.1 to 0.7 mm) with same clearance at bottom and top of Knives.

2

1 5 3

4 1 1 – Plunger Knife 2 – Bale Chamber Knife 3 – Guide Rail 4 – Trapezoidal-shaped Rail 5 – Plunger Knife Support

2

3

Fig. 75

2.

If clearance is NOT the same at top and bottom, then Plunger is NOT parallel and MUST be readjusted.

To do this: a.

Disconnect Plunger Connecting Rod, 1, Fig. 73, from Drive Crank, 2.

1 1 – Rail Anchor Nuts 2 – Rear Adjustment Bolt 3 – Front Adjustment Bolt

Fig. 76

45

1 3 1 4 2

3 2

5

2

2 3

1 – Top Rail 2 – Bottom Rail 3 – Plunger Roller

Fig. 77

NOTE: Check to ensure both rows of nuts, 1, Fig. 76, have been tightened securely.

3.

Where Knife clearance is the same at top and bottom, but the clearance exceeds 0.030″ (0.7 mm), the Knife clearance should be adjusted as follows: a.

b.

Position Plunger so the Plunger Knife, 1, Fig. 75, is just at the top of the Bale Chamber Knife, 2.

Referring to Fig. 75, adjusting the position of the trapezoidal-shaped Rail, 4, laterally, adjusts the Knife clearance. The trapezoidal-shaped Rail, shown as 1, Fig. 78, is retained by a row of ten bolts with Nuts, 2, located on the underside of the Bale Chamber.

NOTE:

One of the bolts is located in a Locking Plate with a diagonal slot, 3, Fig. 78, which is retained by Block, 4. This arrangement allows the Rail to be tapped (by hitting the nuts) toward the rear of the Baler (in the direction of arrow ”5”) so the bolt is moved in the slot and the trapezoidalshaped Rail moves the Plunger Knife to effect its clearance to the Bale Chamber Knife.

46

c.

Loosen ten nuts, 2, Fig. 78, on underside of Bale Chamber.

d.

At Locking Plate, 3, Fig. 78, tap the Nut so the bolt (and therefore the trapezoidalshaped Rail) moves in the slot to increase or decrease the Knife clearance; after the adjustment is made, tighten this Nut before checking the Knife clearance.

4

1 – Trapezoidal-shaped Rail 2 – Nut (1 of 10) 3 – Diagonal Slot 4 – Block 5 – Rear of Baler Direction Arrow

Fig. 78

e.

The Knife clearance should be 0.005″ to 0.030″ (0.1 to 0.7 mm). When this clearance is obtained, reconnect the Plunger Connecting Rod, 1, Fig. 73, to the Drive Crank, 2.

f.

Rotate the Flywheel until the Plunger is at the front of the Bale Chamber.

g.

Adjust the trapezoidal-shaped Rail, 4, Fig. 75, until it is parallel with Guide Rail, 3, and then tighten the remaining nine Nuts.

h.

Recheck the Knife clearance to ensure it is 0.005″ to 0.030″ (0.1 to 0.7 mm).

BALE CHAMBER KNIFE DETAIL (Fig. 79)

WARNING Disconnect Plunger Connecting Rod, 1, Fig. 73, from Drive Crank, 2, Fig. 73, to prevent unintentional movement of the Plunger.

Whenever a new Bale Chamber Knife, 1, Fig. 79, is installed, it is important that the 0.003″ to 0.006″ (0.07 to 0.15 mm) clearance, as indicated at ”5”, Fig. 79, be re–established for the new Knife.

This clearance MUST exist between face of Bale Chamber Knife, 1, Fig. 79, and side of Guide Rail, 2, to

ensure Plunger Knife, 4, does NOT contact Bale Chamber Knife when Baler is operating.

The 0.003″ to 0.006″ (0.07 to 0.15 mm) clearance can be obtained by using existing Shims, 3, Fig. 79, and where necessary, adding Shims, supplied with Baler from factory. When this clearance is obtained, reconnect the Plunger Connecting Rod, 1, Fig. 73, to the Drive Crank, 2.

After a new Knife has been installed, turn Flywheel by hand to ensure Plunger Knife is clear of Bale Chamber Knife. Also, recheck Knife clearance as detailed under “Shear Knife Adjustment” topic in the Adjustments chapter and re-adjust, if necessary.

2.

Remove Chains from solvent and allow to drain.

3.

Completely immerse Chains in SAE 30 motor oil and allow to soak as long as possible, preferably overnight.

4.

Remove from oil and suspend Chain to allow surplus oil to drain off. Wipe chain with clean cloth.

NOTE:

Chain MUST be allowed to drain thor-

oughly.

MAIN GEAR HOUSING (Fig. 80)

1 4

1

3 2

5

3

2

1 – Bale Chamber Knife 2 – Guide Rail 3 – Existing Shims 4 – Plunger Knife 5 – Clearance of 0.003 to 0.006″ (0.07 to 0.15 mm)

1 – Breather Fitting 2 – Oil Level (Check) Plug 3 – Drain Plug

Fig. 80

If at any time, the Main Gear Housing has been drained of oil, the following procedure MUST be used for refilling: 1.

Make sure that the Drain Plug is replaced and tightened.

2.

Fill Housing through Oil Level Plug with EP80W90 Gear Lube until it just begins to run out of Level Plug Hole. Then, wipe up any surplus oil and reinstall the Plug, The Housing requires 1 U.S. quart (0.95 liters) of EP80W90 Lube. Order and obtain 1 Quart Bottle by Gehl Part Number 127178).

Fig. 79

DRIVE CHAINS NOTE: The following procedure is recommended if a Drive Chain becomes stiff.

1.

Remove Chains from Baler, coil each one and completely immerse in kerosene or similar solvent. To speed cleaning process, work links backwards and forwards to help solvent to penetrate.

NOTE:

Do NOT overfill the Housing.

47

SLIPPING PTO SLIP CLUTCH (Fig. 81) To avoid possible damage as a result of Clutch seizure caused by lack of use, the Clutch should be slipped before a new machine is first put into operation and at the beginning of each season.

1

operation. The Left 11L-15 Tire, on the 3210 model Baler, should be inflated to 25 PSIG (155 kPa) or, on the 3250 model Baler, should be inflated to 32 PSIG (224 kPa). The Right 27 x 9.50-15 Tire on either model Baler should be inflated to 15 PSIG (105 kPa).

NOTE: If a Bale Thrower Attachment is installed the Left Tire pressure should be increase to 36 PSIG (252 kPa).

Wheel Lugs torque should also be checked after every 50 hours of operation and tightened with 90 ft-lb (124 Nm) torque.

WARNING 2

1 – Clutch Spring Nut (1 Each of 6) Loosen ed So That About 1/4″ (6 mm) of Thread is Showing 2 – Slip Clutch

Fig. 81

Inflating or servicing tires can be dangerous.

Whenever possible, trained personnel should be called to service and/or mount tires. In addition, do NOT place your fingers on the tire bead or rim during inflation; serious injury or amputation could result. In any event, to avoid possible death or serious injury, follow the safety precautions below:

NOTE:

Refer to the “Slipping PTO Slip Clutch” topic in the Set-up & Assembly chapter for details.

•

BE SURE the Rim is clean and free of rust.

HAY CHECKS (Fig. 82)

•

After every 10 hours of operation or daily, remove all crop material from beneath the top and bottom Hay Checks, as necessary. Debris can affect bale shape and tying performance.

Lubricate both the tire beads and rim flanges with a soap solution. Do NOT use oil or grease.

•

Use a clip-on tire chuck with a remote hose and gauge which allows you to stand clear of the tire while inflating it.

•

NEVER inflate beyond 35 PSI (240 kPa) to seat the beads. If the beads have NOT seated by the time the pressure reaches 35 PSI, deflate the assembly, reposition the tire on the rim, relubricate both parts and re-inflate it. Inflation pressure beyond 35 PSI with unseated beads may break the bead or rim with explosive force sufficient to cause death or serious injury.

•

After seating the beads, adjust the inflation pressure to the recommended operating pressure listed.

•

Do NOT weld, braze, or otherwise attempt to repair and use a damaged rim.

1

1 – Celan-up Debris Underday Hay Check* (Where Arrow Points) * Baler Has Three Hay Checks on Top of Bale Chamber and Two Checks on Bottom of Chamber

Fig. 82

TIRES & WHEELS Check the Tire pressure after every 50 hours of 48

OVERRUNNING CLUTCHES (Figs. 83 & 84)

ing, after the drive force is removed. NO field adjustment is required under normal conditions. The function of both Clutch assemblies should be tested after every 500 hours of service or at least once a year.

5 3

1

2

2 3

3 1 2

4

1 – Universal Joint 2 – Spring 3 – Clutch Dog 4 – Pawl Pin (Head of Pin in Recess) 5 – 3/32 x 3/4 Cotter Pin

4

Fig. 83: Overrunning Clutch on End of PTO (Links to Flywheel Housing)

Overrunning Clutches are provided on both the PTO Drive Input connection to the Baler and the Pickup Drive connection. Both Clutches are designed to help prevent Drive Line damage by allowing for free-wheel-

1 – Pickup Drive Clutch Housing 2 – Clutch Dog 3 – Clutch Spring 4 – Drive Hub

Fig. 84: Pickup Drive Overrunning Clutch

49

CHAPTER 10 PREPARING FOR FIELD OPERATION TRACTOR DRAWBAR & PTO SHAFT REQUIREMENTS (Fig. 85) The tractor MUST be equipped with drawbar and PTO shaft conforming to ASAE standard S203, as shown.

1

2 3 5

Do NOT allow anyone to ride on any part of the Baler when it is in motion.

TURNING CORNERS 7

4

CAUTION

4 6

NOTE:

DO NOT turn corners too sharply as this places excessive stress of the PTO drive shaft and may cause damage to drive components.

ATTACHING BALER TO TRACTOR (Fig. 86) Rotate the Hitchjack Handle to lower or raise Baler Drawbar until the Baler is level.

1 – 14″ (355 mm) 2 – 6 to 12″ (150 to 300 mm)* 3 – 13 to 17″ (330 to 432 mm)* 4 – Tractor PTO Shaft* 5 – Tractor Drawbar* 6 – Locking Hitchpin 7 – Upper & Lower Bearing Support Yokes *Tractor MUST comply with ASAE Standard S203

Fig. 85

TRACTOR HORSEPOWER

Fig. 86: Possible Hitch Plate Positions

The minimum power required to operate the Baler is 30 horsepower.

Back the tractor toward Baler and check the alignment of the Hitch.

BALER OPERATING SPEED

If Hitch is NOT in alignment (when Baler is level), reposition Hitch Plates to closest one of the four positions shown.

The Baler MUST be operated with tractor PTO speed of 540 RPM. This provides a Plunger operating speed on the Baler 80 strokes per minute.

TRACTOR GROUND SPEED The ground speed of the tractor MUST be regulated to suit both crop and ground conditions to ensure bales will be properly formed and tied.

50

NOTE: If Hitch Plates are repositioned, the mounting Bolts MUST be tightened to a torque of 190 to 210 ft–lbs (257 to 285 Nm).

When Hitch is aligned, connect Hitch to tractor drawbar using a locking hitchpin. Attach PTO Shaft Coupler to tractor PTO shaft by pulling back the Slide Lock and sliding the Coupling onto PTO shaft. Make sure locking ball engages shaft when Slip Lock Ring is released.

When Baler PTO Shaft is attached to tractor, the two sections of the PTO Shaft should be in a straight line when viewed from the side of the PTO Shaft. If NOT, adjust Upper and/or Lower PTO Bearing Support Yokes, to obtain the correct alignment.

The “Field Operating” position is the one where the Latch Pin is engaged in the outer hole of Stay Bar. The “Transport” position (for towing the Baler) is with the Latch Pin is engaged in the inner hole of Stay Bar.

Refer to the “Twine & Threading” topic in the Operation chapter for procedures to follow for threading twine.

If the Baler is equipped with an optional Bale Thrower, connect the Thrower Electrical Harness per details in the separate Thrower Manual provided.

Place the Hitchjack in the “Storage” position.

DRAWBAR OPERATING AND TRANSPORT POSITIONS (Figs. 87 & 88) The Drawbar can be engaged in one of two positions by anchoring the Latch Pin into one of the two holes in Stay Bar.

3 1 – Drawbar Latch Mechanism 2 – Latch Control Cord 3 – Stay Bar

Fig. 88: Drawbar in “Operating” Position

Transport–to–Operating Position 1.

Slowly move tractor forward.

2.

Pull on Drawbar Control Rope to disengage Spring–loaded Latch Pin.

3.

As tractor moves forward, release the Rope and allow the Latch Pin to automatically engage the hole to lock the Drawbar.

1 2

1 – Drawbar Latch Mechanism & Control Cord 2 – Stop Bolt Through Hole in Stay Bar

Fig. 87: Drawbar in “Transport” Position

2

1

Operating–to–Transport Position 4.

Slowly move tractor rearward.

5.

Pull on Drawbar Control Rope to release the Spring–loaded Latch Pin.

6.

As tractor moves rearward, release the Rope and allow the Latch Pin to automatically engage the hole to lock the Drawbar.

51

CHAPTER 11 TRANSPORTING METERING ARM TRANSPORT LOCK (Fig. 89)

WARNING You may become entangled in moving components. Install the Transport Lock BEFORE threading the Needles or transporting the machine. Lock prevents the Metering Arm from engaging the Knotter cycle. Failure to heed could result in death or serious injury.

Emblem Mounting Bracket mounted to the back of the large top Shield; the SMV Emblem MUST be purchased locally. Because of variations in safety laws for different states and localities, it may be necessary to use a different location for displaying the Slow-moving Emblem. Your Gehl Dealer can aid you in installing a different Emblem Mounting Bracket (if required). Red Reflector Strips are provided at the rear corners of the Baler and Amber Reflector Strips are provided at the front corner of the Baler, as shown.

1

1

1 1 – Amber Reflector Strip

Fig. 90

1 – Metering Arm Lock (Shown in “Engaged” Position

Fig. 89

The Baler is provided with a Metering Arm Lock to lock the position of the Arm to prevent it from activating the Knotter cycle.

1

NOTE: After the Baler is transported and before starting to bale, BE SURE to de-activate the Lock.

SMV EMBLEM & REFLECTORS (Figs. 90 & 91) The Baler is provided with a Slow-moving Vehicle

52

1 – Red Reflector Strip 2 – SMV Emblem Mounting Bracket

Fig. 91

2

1

SAFETY CHAIN & AUXILIARY LIGHTING (Fig. 92)

5

1.

Chain is sufficiently slack to allow turns and movements of either the tractor or the farm implement, without placing tension on Chain.

2.

Chain is of sufficient strength to hold the decoupled implement (and its load) and tow it to the shoulder.

2

CAUTION 1 4 3 1 – Safety Chain Through Loop on Drawbar 2 – Baler Drawbar Control Cord 3 – Locking Hitchpin 4 – Clevis Bolted to Tractor Drawbar 5 – Tractor Master Shield

Fig. 92

As required or when desired, the Baler can be equipped with a Safety Chain for operation on public highways.

The Safety Chain, when attached in this manner, has the following characteristics:

ALWAYS follow state and local regulations regarding use of a safety chain and auxiliary lighting when towing farm equipment on public highways. ONLY a safety chain (NOT an elastic or nylon/plastic tow strap) should be used to retain the connection between the towing and towed machines, in the event of separation of the primary attaching system.

BE SURE to check with local law enforcement agencies for your own particular regulations.

Unless otherwise prohibited, use a Slow-moving Vehicle Emblem. NEVER tow a Baler on a public highway at a speed greater than 20 mph (32 kmh). BE SURE the Metering Arm Transport Lock is properly engaged, before transporting the Baler.

53

CHAPTER 12 STORAGE If Baler is to be out of use for a considerable amount of time, the following storage procedure is recommended.

5.

Release pressure on Slip Clutch Facings by loosening Slip Clutch Springs.

1.

Thoroughly clean the Baler, inside and outside, making sure that all crop material and accumulated dirt, etc. are removed.

6.

Remove twine from Baler and store the twine balls in a dry area. Store the balls on end to prevent distortion.

2.

Inside the Bale Chamber and on those areas where the original factory finish has become worn off, liberally coat these surfaces with a rust preventative.

7.

Check the Baler for signs of damage and worn parts. Repair Baler as necessary and order replacement parts from your authorized GEHL Dealer.

8.

Store the unit inside a shed, if possible, or cover the top half of the unit to protect it, if it MUST be stored outside.

9.

Reorder and replace any required parts so that the Baler will be ready to operate at the start of the next baling season.

3.

4.

54

Carry out all lubrication detailed in “Lubrication” chapter of this manual. Grease all Fittings and make sure the PTO Drive Tubes and Shields are completely greased. Repack the Wheel Bearings, if required.

Raise Baler and insert blocks under the Axle to take the weight off both Tires.

NOTE:

Before starting–up next season, go over the Checklists, chapter 3 in the front of this manual.

CHAPTER 13 TROUBLESHOOTING NOTE: This Troubleshooting guide presents problems, causes and suggested remedies beyond the extent of loose, worn or missing parts and it was developed with the understanding that the machine is in otherwise good operating condition. Refer to the index at the back of this manual for Chapter and Topic page references. BE SURE to exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE (page 8), BEFORE making any adjustments or repairs.

GENERAL PROBLEM

CAUSE

REMEDY

Pickup is NOT picking-up cleanly.

Excessive number of broken or bent Pickup Tines.

Replace Tines and adjust Pickup so that Tines pick up crop without digging into the ground.

Pickup flotation is NOT properly set.

Readjust flotation following details under Flotation subtopic under Pickup topic in Adjustments chapter.

Improper ground travel speed.

Change travel speed.

Pickup is set too high.

Readjust height following details under Pickup topic in Adjustments chapter.

Bales are too heavy.

Loosen bale tension or remove hay Wedges, if present.

Dull Shear Knives.

Sharpen Shear Knives per details in Service chapter.

Excessive clearance between Shear Knives.

Adjust Shear Knives per details in Adjustments chapter.

Incorrect Stop Dog setting.

Readjust Stop Dog per details under Plunger topic in Adjustments chapter.

Damp crop build-up in Bale Chamber.

Clean-out Bale Chamber.

Incorrect Packer Fork positioning.

Increase or decrease the position of the Packer Fork per details in Adjustments chapter.

Ground travel speed too slow for small amount of material in windrow.

Increase the size of the windrows or otherwise travel faster.

Ground travel speed too fast for the crop material being baled resulting in bunched hay in the bales.

Reduce the ground travel speed as heavy crops provide charges which are too large, resulting in misshaped bales.

Hay Dogs are NOT fully penetrating the Bale Chamber.

Remove obstruction or trash build–up and inspect for broken Springs.

Front Drive Chain is broken or disconnected.

Repair or replace Chain.

Flywheel Shear Bolts shearing frequently.

Misshaped bales.

55

GENERAL (cont.)

PROBLEM

CAUSE

REMEDY

Excessive Slip Clutch slipping.

Clutch Spring Bolts are NOT properly tightened.

Tighten the Bolts until bottomout replace Clutch Discs.

Excessive PTO Shaft noise on cornering.

Incorrect PTO Shaft alignment.

Realign PTO per details in Preparing For Field Operation chapter.

Making too short turns.

Make wider turns.

Dull Knives.

Sharpen or replace Knives.

Knives are incorrectly adjusted.

Readjust Knife positions per details under Shear Knife Adjustment topic in Service chapter.

Improper clearance between Metering Arm and Knurled Roller.

Reajust clearance per details under Metering Wheel topic in Adjustments chapter.

Knurled Roller is loose.

Tightly secure retaining Nut.

Metering Arm Pivot Linkage is inoperative.

Dissamble, clean, reassemble and lubricate Linkage.

Metering Arm arc is NOT true.

Reshape to true arc or replace Arm.

Raggedly cut bale surfaces.

Irregular bale lengths.

56

KNOTTER NOTE: Knotter problems may appear after a long period of operation. Baler will be running well and then, all of a sudden, the Baler starts to mistie. Use the following steps to find and identify a tying or knotting problem: 1.

Find the twine from the broken bales.

2.

Determine which Knotter has a problem.

3.

Determine where or how the knot was miss-made a.

One twine has a knot and the other twine doesn‘t

b.

NO sign of a knot

c.

Twine broken adjacent to the knot PROBLEM

One twine has a Knot and the other twine doesn‘t.

NO sign of a knot.

Twine broken adjacent to knot.

CAUSE

REMEDY

Trip Knotter and slowly turn the Needles through their cycle by hand while checking the following: Needle position in regards to Knotter.

Needle should lightly rub Knotter Frame and clear Cord Disc by 1/16 to 1/8″ (1 to 5.3 mm).

Check Needle to Plunger timing.

Adjust for 1/4 to 3/4″ (6 to 18 mm) behind tip of Plunger.

Examine Knotter for loose or broken parts with particular attention to the Bill Hook Jaw and Twine Knife.

Replace any broken parts.

Insufficient Twine Retainer tension.

Check Retainer Spring setting.

Compressed Spring length should be 1-5/8″ (41 mm), with NO twine in the Retainer.

Make sure the Hay Dogs are engaging fully.

Remove any foreign material and make sure Dogs move freely.

Compare a good Knotter with a basd one.

Look for broken or loose parts.

Determine if twine has been changed.

Change twine, if necessary.

Determine if this is a new crop.

Check bale tension.

Check the Bill Hook Jaw to make sure that it is free to move up and down.

Free-up the soil inside the Bill Hook barrel so Plunger moves freely and/or replace Bill Hook.

57

NOTE: 1.

2.

3.

KNOTTER (continued) Tying problems may have existed from first day Baler was operated. Use the following:

Using this Operator‘s Manual, start at the front of the Baler and work to the back while making allof the adjustments, including basic Knotter adjustments. a. Plunger –properly set with sharp Knives d. Needles – in “home” position b. Packer to Plunger timing e. Needle to Plunger timing c. Needles – positioned to Knotter Check Knotter a. Knotter properly timed c. Cord grip grooves clean b. Knife sharp and set properly d.

Try machine in field – and follow procedures based on results

NO Knot.

Missing about every 2 of 50 knots, where secondary twine is untied.

Primary twine missed.

Twine breaking at knot about every 2 of 100 knots.

58

Cord grip tension Spring length

Examine twine routing and twine tension on Twinebox.

Correctly rethread twine making sure that there is just enough twine tension to actuate Twine Fingers.

Check for broken or missing parts.

Repair or replace parts, as required.

Turn the Knotter through by hand and make sure there is clearance at the Cord Grip to allow the twine from the Needle to enter.

If the clearance is insufficient, it will be necessary to re-time the Knotter.

Make sure the Hay Dogs are working.

Clean-out any foreign material and free-up the Dogs.

Check the Cord Grip grooves.

Clean, if necessary.

Check that Twine Retainer is properly seated in Cord Grip.

Replace, if necessary.

Inspect Twine Retainer.

Replace Retainer, if worn-out.

Inspect twine quality and tensile strength.

Change twine, if necessary.

Check for sharp edges in the twine routing.

Follow the twine routing and correct burrs or sharp edges.

Make sure that Bill Hook Jaw is opening.

Lubricate the Plunger, inside the Bill Hook Barrel or replace the Bill Hook.

Inspect that Twine Knife is sharp.

Sharpen, if necessary.

Check that Twine Knife is properly adjusted.

Readjust position per details in Service chapter.

Excessive bale density.

Reduce bale density; equally adjust top and bottom Tension Rails.

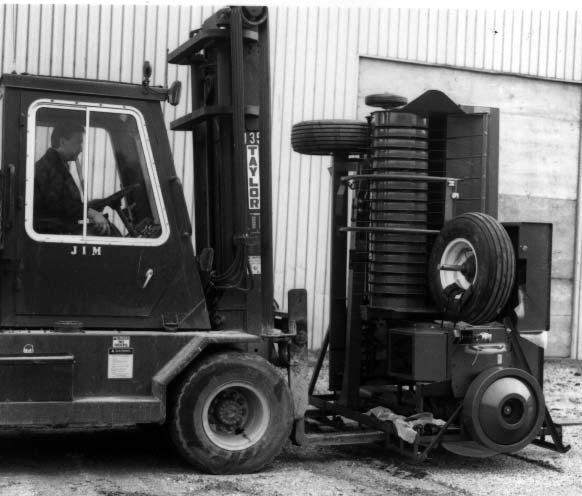

CHAPTER 14 SET-UP & ASSEMBLY FORK LIFTING BALER (Fig. 93) A forklift with 4000 lb (1820 kg) minimum capacity can be used to lift and move Baler. Fork entry positions are provided on the shipping stand using a yard forklift with 48″ (1220 mm) fork spacing. Forks MUST be at least 48″ (1220 mm) long.

—

Telescoping & Fixed PTO Drives & Support Brackets

—

Hitchjack

—

Bale Chamber & Tensioning Components

—

Metering Wheel Assembly & Linkage

—

Needle Guard Assembly

—

Left Wheel, Tire & Axle

—

Axle Brace

—

Needle Guard Shield & Mounting Parts

—

Knotter Shield Assembly

—

Front Shield Latch

—

Bag of Miscellaneous Loose Parts

Fig. 93

TOWING BALER (Fig. 94)

1

The Baler can be towed off the railcar or truck using chains attached to shipping stand at the locations shown.

UNCRATING The Baler Main Frame is shipped from the factory attached to a shipping stand. The various completing components, listed, are shipped either attached to the Baler Frame or the shipping stand.

—

Baler Drawbar

1 – Attach Chains to Shipping Stand at These Two Locations and Proceed to Drag Baler In the Direction the Flywheel is Facing

Fig. 94

59

LOWERING BALER

CAUTION Make sure chain is SECURELY fastened to the forklift and to the Baler.

Fig. 96

Lowering Baler With Forklift (Figs. 95 & 96)

CAUTION

NOTE:

Contrary to what is shown in the pictures, it is advisable to remove everything that is banded or otherwise attached to the Shipping stand or Baler Main Frame BEFORE attempting to lower baler to the floor (or ground) 1.

Attach a chain to the Baler Axle and fork frame.

Chain must be slightly longer than forks to prevent damage to the pickup as the Baler is tilted toward the forks.

Make sure all personnel are in a safe position when lowering the Baler.

2.

Back the forklift away from the Baler. As the Baler tilts over center, keep the forks raised close to the Baler tire for support.

3.

Lower the Baler to the floor. After Baler is lowered, remove the chain and back the forklift away from the Baler.

Lowering Baler Using Gantry; Jib Crane or Hand Hoist (Figs. 97, 98 & 99)

1

NOTE: It is advisable to remove everything that is banded or otherwise attached to the Shipping stand or Baler Main Frame BEFORE attempting to lower baler to the floor (or ground) 1.

2

Attach hook/chain through hole in Lifting Bracket located in Upper Packer Arm area.

NOTE: Keep chain loosely attached (NO tension) until Baler has been tipped to Position “2”.

1 – Long Chain Attached to Fork Frame 2 – Forks Spaced to Cradle Right Wheel & Tire

Fig. 95

NOTE:

Space-out forks to cradle the Wheel as shown. Secure forks to prevent them from spreading. Block base of shipping stand to prevent it from sliding in direction of forklift.

60

CAUTION Ensure both ends of hoist are SECURELY fastened.

NOTE:

1

2

3

Before separating the Baler from the shipping stand and with the right-hand Tire resting on the ground, steady the unit by placing approximately 12″(305 mm)high, wooden blocks, or a hydraulic jack, under the left-hand end of the Axle, as shown in Fig. 100. In addition, place wooden blocks or a jack under the Plunger Crank Housing.

4

1 – Initial Position 2 – 2nd Position 3 – 3rd Position 4 – Chain Hook Attached to Hole in Lifting Bracket

Fig. 97

2.

Using tractor with front end loader (or equivalent high-reaching, moveable, chain support), attach other end of chain around Baler axle, as shown.

Pull in direction as shown until Baler is tipped off center. Remove chain from Baler axle.

Fig. 99: Right Side of Baler Frame Lowered to Ground with Shipping Stand Still Attached

Remove all of the banded parts from the shipping stand and then detach the stand from the Baler

2

CAUTION

1

Make sure all personnel are in a safe position when lowering the Baler.

3.

Lower Baler to floor or ground. Disconnect hook/ chain from Baler.

NOTE: Lower the Baler on to the ground or floor with the shipping stand still attached as shown.

1 – End of Left-hand Axle 2 – Top Nut & Bolt for Attaching Hub Spindle (Torque to 60-70 ft-lb (81-95 Nm)

Fig. 100

BALER ASSEMBLY Baler set-up should be performed inside an enclosed workshop which is equipped with the proper tools and an overhead hoist. Although the procedures imply a single set-up person, two people can and will be able to assemble the machine more quickly and easily.

Wheel Assembly (Figs. 100 & 101) NOTE:

Fig. 98: Left Side of Baler Frame Lowered to Ground with Shipping Stand Still Attached

For convenience, it is recommended that the following checks be made on the Baler BEFORE the left-hand Wheel assembly is installed: (a) Check that the Hook on the end of the Rod, shown in Fig. 101, is correctly aligned with the Pin on Needle Frame. (b) Check that Plunger Stop adjustment is correct per Adjustments chapter.

61

At the left-hand end of the Axle, remove the top Nut and Bolt. Insert the Hub Spindle into the hole in the end of the Axle and then reinstall Bolt, so it passes through the hole in the Hub Spindle. Reinstall and tighten the Nut to a torque of 60-70 ft-lb (81-95 Nm).

3 1

1

2 3

2

4 1 – Drawbar 2 – Attachment Bolt 3 – Castellated Nut Secured With 1/4 x 1-3/4 Cotter Pin

1 – Tire & Wheel 2 – Wheel Hub 3 – Lug Nut (1 of 6) 4 – Hook on End of Rod Correctly Aligned With Pin on Needle Frame

Fig. 103

Install the Drawbar using the Special Attachment Bolt and Castellated Nut. Secure the Nut with 1/4 x 1-3/4″ Cotter Pin.

Fig. 101

If the Wheel assembly is NOT already installed on the Hub, attach the Wheel using the Lug Nuts, provided.

Tighten the Nuts to 90 ft-lb (122 Nm)

2

Drawbar and Hitchjack (Figs. 102, 103, 104 & 105)

1

2

3

8

1

3

4 7 5 6

5

1 – Bracket at Bottom of Latch Housing 2 – Jack Anchored Under Baler Frame 3 – 1/2 x 1-1/4 Cap Screw (Head on Top) 4 – Plain Washer & 1/4 x 1-1/2 Cotter Pin 5 – Staybar

Fig. 102

4 1 – Latch Lever 2 – Bolt & Nut Securing Latch to Housing 3 – Roll Pin 4 – Hole in Latch Pin 5 – Spring 6 – Plain Washer 7 – Cotter Pin 8 – Rope Attached to Latch Lever

Fig. 104

Install the Staybar through the Bale Chamber Bracket with the chamfered hole side facing up and the Stop Pin facing down. Connect the Staybar to the Drawbar using a Plain Washer and 1/4 x 1-/2″ Cotter Pin. Install a 1/2 x 1-/4″ Cap Screw, (head at top), Lock Washer and Nut, in the hole in Staybar closest to the Drawbar.

62

NOTE: Fig. 104 and the following procedure are required ONLY if Latch assembly was NOT preassembled at the factory.

1.

Assemble Latch Lever to lug on top of Latch Housing using Bolt and Nut.

2.

Insert Roll Pin into the hole in Latch Pin and then insert Latch Pin into Housing through the hole in the top.

3.

Slide spring and Plain Washer over end of Latch Pin and install Cotter Pin to secure Spring.

4.

Attach Rope to Latch Lever.

5.

Move Drawbar so Latch Pin engages one of the holes in the Staybar.

1 3 2

Install Hitchjack to the mounting Hub on the Drawbar and secure it with the Lock Pin. Adjust height of Jack to level and Support Drawbar.

1 – Flywheel 2 – Rotate Flywheel Rear Shield 3 – Front Shield Attaching Nut (1 of 3)

Fig. 107

Fig. 105: Hitchjack Secured to Drawbar Hub with Lockpin in “Supporting” Position

PTO Shaft Connection (Figs. 106 through 113) Remove the Shield from the front of the Flywheel by partially rotating the Rear Shield to gain access to three Nuts. Remove the Nuts and then remove the Shield on front of Flywheel.

The PTO Shaft and Flywheel center incorporates an Overrunning Mechanism so that, when the PTO Drive is disengaged on the tractor, the Baler PTO Shaft will also be disengaged while the remainder of the Baler Drives are coming to a stop.

3

1 2 1 – Clutch Dog (1 of 2) 2 – Clutch Spring (1 of 2) 3 – Curved Tip of Dog When Installed Should Face To Outside

Fig. 108

The Overrunning Mechanism consists of two Dogs each with a Spring installed at 180° to each other at the end of the Baler PTO Shaft. For reference, the Dogs are installed with the curved tip to the outside.

1

At the Universal Joint, at the end of the PTO Shaft, install Spring so the curve of the Spring follows the contour of the Groove in the Channel of the U-joint.

Install the Dog, to rest on the Spring with the curved tip outwards.

1 – Shield On Front of Flywheel

Fig. 106

Secure the dog using pawl pin (head of pin in recess at end of shaft, as shown). Secure pin with 3/32 x 3/4″ cotter pin.

63

NOTE:

The Pawl Pin is a specially hardened Pin and NOT an ordinary Clevis Pin. 1 5 2

3

2

3 1 2

4

1 – Universal Joint 2 – Spring 3 – Clutch Dog 4 – Pawl Pin (Head of Pin in Recess) 5 – 3/32 x 3/4 Cotter Pin

1 – Recess At Center of Flywheel 2 – End of PTO Shaft

Fig. 111

Fig. 109

Install the other Spring and Dog using the same procedure.

NOTE: The end of the PTO Shaft, with the Dogs, is installed into the center of the Flywheel and secured to Shaft by a Special Washer, Thrust Washer, and a Left-hand Threaded Cap Screw, as illustrated in Figs. 110 & 111.

1

Secure the PTO Shaft to the Flywheel Hub using Special Washer with Thrust Washer and Left-hand Threaded Cap Screw and tighten with 55 ft-lbs (75 Nm) torque.

NOTE: When correctly installed, Alignment Pin protruding from Special Washer (see Fig. 110), MUST be located in the Hole in the end of the Drive Shaft.

5 2

2

3

4

1 – End of Drive Shaft 2 – Special Washer 3 – Thrust Washer 4 – Left-hand Threaded Cap Screw 5 – Alignment Pin Hole in End of Shaft

Fig. 110

1 1 – Special Washer & Thrust Washer 2 – Left-hand Threaded Cap Screw

Fig. 112

NOTE:

Do NOT add Shims until after end play has been checked.

Insert the end of the PTO Shaft into the mating recess at the center of the Flywheel as shown. Rotate the PTO Shaft slightly clockwise to compress the Dogs into the Housing and allow the end of the Shaft to bottom-out inside the Clutch .

64

NOTE:

The PTO Shaft must rotate freely when turned by hand in a clockwise direction (facing the Flywheel). If binding occurs, remove the PTO Shaft and remove any burrs or paint from the outer diameter of the PTO casting. Then, reassemble and recheck for smooth rotation.

Check End Play (Fig. 113)

7

NOTE:

Before checking end play, make sure Shear Bolt is tight and that Shear Bolt Arm is tightened against both the Shaft Shoulder and the Flywheel.

Check end play of PTO Yoke. It should be 0.010 to 0.030″. If in excess of 0.030″, it will be necessary to add Shims behind Yoke. Disassemble and add Shims, as required. If end play is less than 0.010″, remove Flywheel and Shear Bolt Arm and remove any paint or dirt between the surfaces (0.010″ minimum end play MUST BE obtained BEFORE proceeding). Reassemble in reverse order of disassembly.

5 1 2

5

8

6

3

4

1 9

2

1 – Lower Half of PTO Support Bracket 2 – 3/4 x 7-1/8″ Headless Pin (2) 3 – Upper Half of PTO Support Bracket 4 – PTO Shaft Support, Clip and (1 each) 3/8 x 3/4 Cap Screw, Plain Washer and Nut 5 – Bearing Housing 6 – 7/16 x 7″ Cap Screw 7 – Bell Housing 8 – Drive Shield 9 – Cap Screws, Hardened Washers and Lock Nuts (Torque to 250-270 ft-lb)

Fig. 114

3

4

Install the lower half of PTO Support Bracket to the Drawbar using a 3/4 x 7-1/8″ Headless Pin. Secure the Headless Pin with a 3/16 x 1-1/4″ Cotter Pin at each end.

Install the other 3/4 x 7-1/8″ Headless Pin in the top hole of the lower half of the PTO Support Bracket. Secure the Headless Pin with a 3/16 x 1-1/4″ Cotter Pin at each end.

1 – Shear Bolt Arm 2 – Shaft Shoulder 3 – Shim(s) 4 – Left-hand Threaded Retaining Bolt, Special Washer & Thrust Washer 5 – PTO Yoke

Fig. 113

Reinstall and secure the Front Flywheel Shield.

PTO Bearing Support (Fig. 114) At the front of the Drawbar, install the Hitch Plates using (2 each) 3/4 x 3-3/4″ Cap Screws, Hardened Washers and Lock Nuts. Tighten Nuts to 250-270 ft-lb (340-365Nm). Refer to “Preparing for Field Operation” chapter for additional details.

Install the curved PTO Shaft Support using the Clip and a 3/8 x 3/4″ Cap Screw, Plain Washer and Hexagon Nut.

Install the upper half of the Bracket to the lower half using a 1/2 x 2″ Cap Screw with a Special (hardened) 17/32 x 1-1/2 x 0.190″ thick Washer and Lock Nut. Secure the Lock Nut so that Bracket are free to pivot.

NOTE: The Stiffener Flange of each Bracket should be located toward the rear.

Install the Bearing Housing on the PTO Shaft with the Bearing and Snap Ring toward the front.

NOTE: The Bearing is a press-fit on the Shaft.

When installing the Bearing make sure that only the Inner Race is used to press the Bearing onto the Shaft otherwise the Bearing can be damaged.

Install the Bearing Housing at the top of the upper Bracket using a 7/16 x 7″ Cap Screw; making sure that long Spacer is in mounting portion of Housing. Before installing the Nut, install the Rope Guide (Wire Loop) (NOT shown) over the Bolt and then install and tighten the Nut. 65

Install the Bell Housing over the Bearing Housing and secure with three Cap Screws and Lock Washers.

Connect the Telescopic section of the rear PTO Shaft to the front PTO shaft and align the Set Screw with the recess in the PTO shaft. Tighten the Set Screw and Jam Nut to secure the Telescopic section.

Clearance Between Plunger and Bale Chamber Knives (Fig. 115)

NOTE:

It is STRONGLY RECOMMENDED that clearance between the Plunger Knife and the Bale Chamber Knife be checked BEFORE the Bale Formers are installed. It is much more convenient to check (and adjust) the clearance at this stage than at any future time with the Bale Formers and Tension Rails installed. Check the clearance between the Plunger Knife and the Bale Chamber Knife along the entire length of the Knives. Clearance should be between 0.005″ and 0.030″.

NOTE:

CAUTION Use extreme caution when turning the Plunger, to check the clearance, since the Knives are very sharp. Under NO circumstances, should anyone attempt to insert their hand between the Knives (while they are separated by the Plunger stroke) .

2

1

For additional information of checking and adjusting the Plunger Knife and the Bale Chamber Knife clearance, refer to details in the “Shear Knife Adjustment” topic in the Service chapter.

Bale Formers and Tensioners (Figs.

116 through 123) NOTE:

In the assembly of the Bale Formers and related parts, the Carriage Bolts MUST be installed with their heads inside the Bale Chamber to ensure smooth passage of the bales through the Baler.

Install the left-hand and right-hand Bale Formers to the end of the Bale Chamber using 3/8 x 1″ Carriage Bolts, Plain Washers and Nuts. Leave the Bolts of right-hand bale former loose until the Brace is installed.

On the underside of the Bale Formers, install the Needle Guard using 3/8 x 1″ Carriage Bolts, Plain Washers and Nuts.

2

5 3

3 2 4 1 – Plunger Knife 2 – Bale Chamber Knife 3 – Guide Rail 4 – Trapezoidal-shaped Rail 5 – Plunger Knife Support

Fig. 115

66

1

1 – Left-hand Bale Former 2 – 3/8 x 1 Carriage Bolt, Plain Washer & Lock Nut 3 – Needle Guard

Fig. 116

Install Axle Brace between the Bracket on the Axle and the side of the Bale Former. Connect Brace to Axle Bracket using 1/2 x 1-1/4″ Cap Screws, Plain Washers and Nuts.

2 3

2

1

6

1 – Axle Brace 2 – Axle Bracket 3 – 1/2 x 1-1/4 Cap Screws, Plain Washers & Nuts

3 1

4

Fig. 117

5

Connect Brace to side of Bale Former using a 1/2 x 1-1/4″ Carriage Bolt, Plain Washer and Lock Nut.

3

1 – Upper Tension Rail 2 – 1/2 x 1-1/2 Cap Screw & Lock Nut (Each Side) 3 – Special Shoulder Bolt 4 – Metering Arm 5 – Metering Arm Lock 6 – Metering Wheel & Shaft Assembly

Fig. 120

2 1 1 – Brace 2 – Right Side of Bale Chamber 3 – 1/2 x 1-1/4 Carriage Bolt, Plain Washer & Nut

Fig. 118

Install the Lower Tension Rail at the Brackets at the rear of Bale Chamber using 1/2 x 1-1/2″ Cap Screws and Lock Nuts.

NOTE: Tighten the nuts to take out the end play but allow the tension rail to pivot on the bolts.

Install Strap using 3/8 x 1″ Carriage Bolts in the last holes at the top of the Formers. Secure Cap Screws with Plain Washers and Lock Nuts.

Install the Tension Rail Support to the upper Tension Rail using a 1/2 x 5-3/4″ Carriage Bolt at the Tension Rail) secured with a Lock Nut. 7

4 2

2

3 1

1

6 1 – Lower Tension Rail 2 – 1/2 x 1-1/2 Cap Screw & Lock Nut

Fig. 119

NOTE: Tighten the Nuts to take out the end play but allow the Tension Rail to pivot on the Bolts.

Install the upper Tension Rail at the upper Brackets, on the Bale Chamber, using 1/2 x 1-1/2″ Cap Screws and Lock Nuts.

5 1 – Strap 2 – 3/8 x 1 Carriage Bolt, Plain Washer & Lock Nut 3 – Tension Rail Support 4 – 1/2 x 5-3/4 Carriage Bolt & Lock Nut 5 – Cross Support 6 – Spring 7 – Tension Handle

Fig. 121

67

Attach Springs to Cross Support and then insert the Tension Handles through the Support Rail and screw it into the Threaded Plugs at the top of the Springs.

Install the Metering Wheel and Shaft assembly to the top of the Bale Formers using 5/16 x 3/4″ Carriage Bolts, Plain Washers and Lock Nuts.

holes in Support Brackets, at both sides of the Bale Chamber.

At the slotted holes in the Needle Guard, located directly under the Knotter assembly, install the three Ceramic Guides using the U-bolts supplied.

Install the Metering Arm on the Retaining Disc and connect the opposite end to the Knotter Clutch using the special Shoulder Bolt with a Plain Washer and secured with a Lock Nut, as shown in Fig. 120.

1

2

2 1

3

1 – Using Holes Provided, Install Ceramic Guides with U-Bolts provided.

2 – Using Holes Provided, Install Ceramic Guide with U-Bolt Provided In Approximate Area Shown

Fig. 123

4

1 – Reset Cam on Clutch in Downward Position 2 – Metering Wheel 3 – Stop in Slot of Metering Arm 4 – 3/16 to 1/4″ (5 to 6 mm) Clearance Between Knurled Roller and Front Edge of Metering Arm

Fig. 122: Knurled Roller (Viewed with Outside Disc Removed)

NOTE: After the Shoulder Bolt, Plain Washer and Lock Nut are installed and the Lock Nut is tightly secured, the Metering Arm MUST fall freely and be centered between the Retaining Discs.

The Metering Wheel determines the length of the bales as they are being formed. Adjusting the Stop in the Slot of Metering Arm adjusts the length of the bales. To increase the length of the bales, move the Stop upwards in the Slot; to shorten the length of the bales, move the Stop downwards.

To ensure correct operation of the Metering Wheel, a clearance of 3/16” to 1/4” (5 to 6 mm) MUST be maintained between the front edge of the Metering Arm and the Knurled Roller at the center of the Disc assembly. This clearance is required through the full arc of Metering Arm when the Reset Cam on the Clutch is in the downward position.

The clearance can be obtained by adjusting the position of the Metering Wheel assembly by means of the slotted 68

NOTE: The third Ceramic Guide is installed at the approximate location shown in the Needle Guard. Also, when the U-bolts are tightened, the Ceramic Guides MUST be located directly in-line with the Twine Groove of the Needles.

Baler Shields & Miscellaneous Components (Figs. 124 thru 129) At the Twinebox/Bale Chamber corner, install the right-hand Needle Guard Shield using (2 each) 5/16 x 3/4″ Carriage Bolts, Plain Washers and Lock Nuts and (2 each) 5/16 x 3/4″ Cap Screws, Plain Washers and Lock Nuts

2 2 1

1 – Right-hand Needle Guard Shield 2 – 5/16 x 3/4 Carriage Bolts, Plain Washers & Lock Nuts 3 – 5/16 x 3/4 Cap Screws, Plain Washers & Lock Nuts

Fig. 124

At the left-hand side of the Baler, at the location of the Knotter assembly, install two Brackets for the left-hand Needle Guard Shield. Install Bracket at the second from top bolt at the Bale Chamber/Bale Former joint. Install Bracket using a 5/16 x 3/4″ Cap Screw in the pre-drilled hole in the Frame. Secure Screw with Plain Washer and Lock Nut.

4

2

1 2

3

5

1

4 3

1 – Upper Bracket 2 – Existing 2nd Bolt From Top 3 – Lower Bracket 4 – 5/16 x 3/4 Cap Screw, Plain Washer & Lock Nut

Fig. 125

Install the Left Needle Guard Shield to the two Brackets using 5/16 x 3/4″ Carriage Bolts with Plain Washers and Lock Nuts. Secure the Shield to the Bale Former using two 5/16 x 3/4″ Carriage Bolts, Plain Washers and Lock Nuts.

2

1 – Knotter Assembly Shield 2 – 5/16 x 3/4 Cap Screws, Lock Washers & Nuts (2 Each of 5) 3 – Hinged Support Strap 4 – 3/16 x 15/16 Clevis Pin, Plain Washer & Cotter Pin 5 – Right-hand Bolt At Upper Tension Rail

Fig. 127

Connect the Hinged Support Strap to the Shield using a 3/16 x 15/16″ Clevis Pin with a Plain Washer and Cotter Pin. Use the right-hand bolt at the Upper Tension Rail to attach the lower end of the Hinged Support Strap.

Install the Bracket to Swing Frame Shield for the Rubber Latch. Close the Knotter Shield and check the alignment with the Needle Guard Shield. Adjust the Needle Guard Shield, if necessary, to align the Shields.

4 2

2 3 1

1 2

1 – Left-hand Needle Guard Shield 2 – 5/16 x 3/4 Carriage Bolts, Plain Washers & Lock Nuts (4 Each)

Fig. 126

NOTE: The Needle Guard Shield may require a slight adjustment to align with the Knotter assembly Shield when the latter Shield is installed.

Install the Knotter Assembly Shield using 5/16 x 3/4″ Cap Screws, Lock Washers and Nuts.

1 – Rubber Latch & Latch Hook 2 – Needle Guard Shield 3 – Knotter Shield 4 – SMV Emblem Mounting Bracket Secured to Holes in Shield

Fig. 128

69

At the front of the Baler and in the area next to the Flywheel, install the Shield Latch using a 5/16 x 3/4 Cap Screw, Lock Washer and Nut. Using existing holes, attach the Shield Latch Anchor to the Front Shield with (2 each) 1/4 x 5/8 Cap Screws and Lock Nuts.

2 1 3

Fig. 131: Pickup Gauge Wheel in Proper Mounting Position

Gearbox Breather (Fig. 132) 1 – Front Shield 2 – Shield Latch Anchor Secured with (2 each) 1/4 x 5/8 Cap Screws and Lock Nuts 3 – Shield Latch Anchored with 5/16 x 3/4 Cap Screw, Lock Washer & Nut

Fig. 129

NOTE: The Breather MUST be installed BEFORE the Baler is run with tractor PTO drive engaged.

Remove and discard the Square Shipping Plug in the Main Gearbox and install the Breather supplied .

Plunger Crank Shield (Fig. 130) The Plunger Crank Shield may be loosely installed in a forward location when the Baler is shipped. This Shield may have to be removed and relocated to its proper location as shown.

1

1 – Breather Installed in Place of Shipping Plug

1 1 – Plunger Crank Shield

Fig. 130: Plunger Crank Shield in Proper Mounting Position

Pickup Gauge Wheel (Fig. 131) The Pickup Gauge Wheel may be inverted when the Baler is shipped. Remove the Pickup Gauge Wheel and reinstall it into its proper operating position, as shown.

70

Fig. 132

SMV Emblem Mounting Bracket (See Fig. 128) Install the SMV Emblem Holder Bracket in the pre-drilled holes at the rear of the Packer Housing using (2 each) 1/4 x 5/8 Carriage Bolts, Plain Washers, Lock Washers and Nuts. If necessary, attach the SMV Bracket Holder to the Bracket with (2 each) 5/16 x 5/8 Carriage Bolts and Lock Nuts.

Slipping PTO Slip Clutch (Fig. 133)

CAUTION

CAUTION To avoid possible damage as a result of Clutch seizure caused by lack of use, the Clutch should be slipped before a new machine is first put into operation and at the beginning of each season.

BEFORE proceeding to perform all Service routines on this unit, exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE (page 8).

1.

Loosen the Clutch Spring Nuts until 1/4″ (6 mm) of thread is showing.

2.

To prevent Baler from turning while slipping the Clutch, engage the Plunger Stop as follows:

1

2

1 – Clutch Spring Nut (1 Each of 6) Loosened So That About 1/4″ (6 mm) of Thread is Showing 2 – Slip Clutch

With the Plunger at the front of the Baler, trip the Metering Mechanism.

b.

Rotate ONLY the Knotter Shaft 1/4 turn clockwise, to allow the Plunger Stop to move into the Bale Chamber.

c.

Rotate the Flywheel in the normal direction (counterclockwise when viewed from back of Baler) until the Plunger engages the Plunger stop.

3.

Start the tractor and engage tractor PTO power and slip the Clutch for 10 to 20 seconds.

4.

Exercise the Mandatory Safety Shutdown procedure, disengage the PTO and stop the tractor engine.

5.

Rotate the Knotter Shaft back to the home position and reset the Metering Trip Arm.

6.

Re-tighten Nuts, on the Clutch bolts until the shoulder is tight on the Pressure Plate.

Fig. 133

To slip the Clutch:

a.

This completes the Slip Clutch “Slipping” process.

71

CHAPTER 15 OPTIONAL FEATURES & ACCESSORIES QUARTER-TURN BALE CHUTE (Figs. 134, 135, 136, & 137)

depending on which side the Bale Arm assembly is mounted.

The Quarter-turn Bale Chute package (805099) is a Baler accessory designed for installation on the end of the Bale Forming Chamber to position and drop the bales on the ground on either the left or right side,

NOTE: The photographs show the Bale Arm on the left side which causes the bales to be rotated counter-clockwise and thus position the bales to the left of the Bale Forming Chamber.

4 5

1 2 3 1

6 5 2 7

8 5

10

2

13 12 14

1

3 9

11

2

18

22

17 22

16 21 20 19

4

15

1

17

Fig. 134: Quarter-turn Bale Chute Exploded-view Ref. No.

Part No.

Description

Qty. Req.

Ref. No.

Part No.

11

071703

LN 3/8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Description

Qty. Req.

805099

QUARTER TURN BALE CHUTE . . . . . . . 1

12

651265

PIN/COTTER . . . . . . . . . . . . . . . . . . . . . . . . 3

1

653007

HN 5/16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

13

117113

ARM ASS’Y/BALE . . . . . . . . . . . . . . . . . . . . 1

2

654024

LW 5/16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

14

650681

CB 3/8 X 3-3/4 . . . . . . . . . . . . . . . . . . . . . . . 2

3

124275

WASHER/FLAT . . . . . . . . . . . . . . . . . . . . . . 2

15

117105

CLAMP ASS’Y . . . . . . . . . . . . . . . . . . . . . . . 1

4

117101

CHAIN/TAILGATE . . . . . . . . . . . . . . . . . . . . 2

16

124279

FLAT WASHER SPECIAL . . . . . . . . . . . . . 2

5

650573

CB 5/16X1 . . . . . . . . . . . . . . . . . . . . . . . . . . 6

17

651067

CB-SN 3/8 X 1 . . . . . . . . . . . . . . . . . . . . . . . 2

6

117117

CHUTE ASS’Y . . . . . . . . . . . . . . . . . . . . . . . 1

18

117116

SPRING/COMPRESSION . . . . . . . . . . . . . 2

7

650786

CB 3/8 X 1-1/4 . . . . . . . . . . . . . . . . . . . . . . . 2

19

117108

BRAKE ARM ASS’Y . . . . . . . . . . . . . . . . . . 1

CONSISTS OF:

8

117102

SPACER/BALE CHUTE . . . . . . . . . . . . . . . 2

20

124283

FLAT WASHER SQ. . . . . . . . . . . . . . . . . . . 1

9

117120

BRACKET ASS’Y . . . . . . . . . . . . . . . . . . . . 1

21

117111

LINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

10

654006

PW 3/8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

22

117112

SPACER . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

72

To mount the components of the package, proceed as follows: 1. Using the hardware provided, preassemble and tightly secure the Bracket assembly to the Chute assembly.

2. Place the (2) Special Flat Washers onto the Tube of the Bale Arm assembly and slide the Tube into the Pivots of the Bracket assembly. Fasten the Tube by installing a Cotter Pin through appropriate hole in the end of the Tube. Bring the two Washers together and limit their movement by installing a Cotter Pin on each side of the Washers.

4.

Attach the preassembled components of steps 1, 2 and 3 to the end of the Bale Forming Chamber using the appropriate hardware. Hang the Chute and Bale Arm so that they are parallel to the ground by appropriately suspending them with the Chains hooked over the Tabs on each side of the Forming Chamber.

5.

Properly position and install the Clamp assembly and the Brake Arm assembly between the two Special Flat Washers (installed in step 2) and around the Tube of the Bale Arm assembly with (2 each) 3/8 x 3–3/4 Carriage Bolts, Compression Springs, Plain Washers and 3/8 Lock Nuts. Initially, tighten the Lock Nuts equally so that the Springs compress to a measured length of 2-1/8″ (54 mm).

3

2

NOTE: Brake tension can be equally readjusted so that the Bale Arm does NOT bounce when traveling over bumps or through ruts.

1

6.

Properly position and install the Link onto the Brake Arm assembly with a Short-necked 3/8 x 1 Carriage Bolt, Flat Washer with Square Hole, Spacer, Plain Washer and 3/8 Lock Nut.

7.

Connect the other end of the Link to the side of the Bale Forming Chamber with the other Shortnecked 3/8 x 1 Carriage Bolt, Spacer, Plain Washer and 3/8 Lock Nut.

4 1 – Bale Arm Assembly 2 – Tailgate Chains 3 – Bracket Assembly 4 – Chute Assembly

Fig. 135

3.

Using hardware provided, anchor one of the Tailgate Chains to the appropriate hole in the Chute assembly. Likewise, anchor the other Tailgate Chain to the appropriate hole in the Bale Arm assembly.

1 2

2

1

3 4

3

4

2

1 – Clamp & Brake Arm 2 – Special Flat Washer & Cotter Pin 3 – Springs Compressed to 2-1/8″ (54 mm) 4 – Link

Fig. 137 1 – Chute Assembly 2 – Bale Arm Assembly 3 – Brake Arm Assembly 4 – Link

Fig. 136

73

NOTE:

TAILGATE CHUTE & WAGON LOADING CHUTE (Figs. 138, 140, 139 & 141)

In order to install the Wagon Loading Chute package, the Tailgate Chute package MUST already have been ordered and installed.

1

Refer to the photographs and drawings and install the Tailgate Chute package (805098) and Wagon Loading Chute package (805100) as shown.

2

1

3 4 2

1 – Tailgate Chute 2 – Wagon Loading Chute 3 – 26″ Long Wagon Pole (Installed) 4 – 51 ″ Long Wagon Pole (NOT Installed)

3 1 – Tailgate Chute 2 – Wagon Loading Chute 3 – 26″ Long Wagon Pole

Fig. 140

Fig. 138

1

4

3 6

7 9 10

Part No. 805098

4 4

2

7 8 1

Fig. 139 Ref. No.

5

2

5 6

11

4

1

3

2

Description

8 Qty. Req.

Fig. 141

TAILGATE CHUTE . . . . . . . . . . . . . . . . . . . 1 CONSISTS OF:

Ref. No.

Part No.

Description

Qty. Req.

1

117103

CHUTE/BALE . . . . . . . . . . . . . . . . . . . . . . . . 1

2

650786

CB 3/8 X 1-1/4 . . . . . . . . . . . . . . . . . . . . . . . 2

3

124274

WASHER/FLAT . . . . . . . . . . . . . . . . . . . . . . 2

4

650573

CB 5/16X1 . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1

653007

HN 5/16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

654024

LW 5/16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

805100

WAGON LOADING CHUTE . . . . . . . . . . . 1 CONSISTS OF:

5

124275

WASHER/FLAT SPECIAL . . . . . . . . . . . . . 2

2

6

654024

LW 5/16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3

117128

CHAIN 41 LINKS . . . . . . . . . . . . . . . . . . . . . 2

7

653007

HN 5/16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

4

124275

WASHER/FLAT SPECIAL . . . . . . . . . . . . . 8

8

117101

CHAIN/TAIL GATE . . . . . . . . . . . . . . . . . . . 2

5

650573

CB 5/16X1 . . . . . . . . . . . . . . . . . . . . . . . . . . 2

9

654006

PW 3/8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

6

117125

BALE/LOADER ASS’Y . . . . . . . . . . . . . . . . 1

10

071703

LN 3/8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

7

650745

CB 5/16 X 1-1/4 . . . . . . . . . . . . . . . . . . . . . . 2

11

117102

SPACER/BALE CHUTE . . . . . . . . . . . . . . . 2

8

068958

SPACER . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

74

SWINGING WAGON HITCH (Fig. 142 and see Figs. 138 & 140) The Swinging Wagon Hitch (805101) is a field-installed accessory for mounting a 51″ (1295 mm) Long Wagon Pole (805102) or a 26″ (660 mm) Long Wagon Pole (805103); either length Pole MUST also be ordered separately.

Installation involves proper positioning and attachment of the Wagon Hitch assembly to the bottom and sides of the Bale Forming Chamber, using the eight (8) aligning mounting holes provided in the Chamber. The Hitch is secured at seven of the eight (7 of the 8) attachment hole positions with (1 each) 1/2 x 1–1/4 Cap Screw, Hardened Washer and Lock Nut. The eighth (front left) position is secured with a 1/2 x 1–1/2 Cap Screw, Hardened Washer and Lock Nut. This is necessary when the Baler is equipped with a Bale Thrower Attachment, to accommodate the extra thickness for the Control Cylinder Mount.

After the Wagon Hitch assembly is properly secured to the Bale Chamber, the separately ordered Wagon Pole can be inserted and secured to the Hitch with the Clevis Pin and Cotter Pin provided. Select the desired swing position and secure the Pole with the smaller Clevis Pin and Hairpin Cotter Pin.

1 2

*

6 5 9

8 10

3

* Tighten All Lock Nuts with 68 ft–lb (92 Nm) Torque Fig. 142 Ref. No.

Part No. 805101

NOTE:

Tighten all eight (8) 1/2 Lock Nuts with 68 ft–lb (92 Nm) of torque.

7

4

1 2 3 4 5 6 7 8 9

062255 071706 076099 117163 124280 124281 650527 650834 651160

Description

Qty. Req.

SWINGING WAGON HITCH . . . . . . . . . . . 1 CONSISTS OF: WASHER/HARDENED . . . . . . . . . . . . . . . . 8 LOCK NUT 1/2 . . . . . . . . . . . . . . . . . . . . . . . 8 COTTER/HAIR PIN . . . . . . . . . . . . . . . . . . . 1 HITCH/ASS‘Y WAGON . . . . . . . . . . . . . . . 1 PIN/CLEVIS . . . . . . . . . . . . . . . . . . . . . . . . . 1 PIN/CLEVIS . . . . . . . . . . . . . . . . . . . . . . . . . 1 CARRIAGE BOLT 1/2X1–1/4 . . . . . . . . . . 7 CARRIAGE BOLT 1/2X1–1/2 . . . . . . . . . . 1 PIN/COTTER . . . . . . . . . . . . . . . . . . . . . . . . 1

NOTE:

The 805102 51″ (1295 mm) Long Wagon Pole MUST be ordered and used with the Bale Thrower Attachment.

805102 805103 10

126742 126743

51″ (1295 MM) LONG WAGON POLE . . . 1 26″ (660 MM) LONG WAGON POLE . . . . 1 CONSISTS OF: 51″ (1295 MM) LONG HITCHPOLE . . . . . 1 26″ (660 MM) LONG HITCHPOLE . . . . . . 1

75

HAY WEDGE KIT (Fig. 143) The Hay (Bale Chamber) Wedge Kit (805104) is available to extend the adjustment limitations of the Upper and Lower Bale Tension Rails and increase bale density in extremely dry and spongy crops such as prairie grass. The Kit consists of two pairs of Hay Wedges which can be installed inside the Bale Forming Chamber, using holes already provided. Only one pair of Wedges should be installed at a time using (2 each) 5/16 x 3/4 Carriage Bolts, Lock Washers and Hexagon Nuts.

NOTE: Wedges MUST always be positioned and installed directly across from each other, starting at the back end of the Bale Chamber. Do NOT attempt to operate the Baler with more than two pair of Wedges installed at one time.

PLUNGER FACE EXTENSION KIT (Fig. 144) The Plunger Face Extension Kit (805105) is available to improve Knotter performance in stemmy crops such as corn stalks or sudan grass. By extending the face of the Plunger, deeper grooves are made in each slab which, in turn, provides more room for the Needles to deliver and position the twine. Installation involves proper positioning and attachment of the four Plunger Extensions with (2 each) 3/8 x 1 Cap Screws, Plain Washers and Lock Washers and, the Spacer Plate, under the Plunger Knife Support, using the original attaching hardware.

3

4

5

2 3

1

4 1

2 1 Fig. 144: Plunger Face Extension Kit Ref. No.

Fig. 143: Hay Wedge Kit (Only One-half of Full Kit Installed) Ref. No.

Part No. 805104

Description

805105

Qty. Req.

HAY WEDGE KIT . . . . . . . . . . . . . . . . . . . . 1 CONSISTS OF:

Part No.

Description

Qty. Req.

PLUNGER FACE EXTENSION . . . . . . . . . 1 CONSISTS OF:

1

117160

EXTENSION/PLUNGER . . . . . . . . . . . . . . 4

2

117161

PLATE/SPACER . . . . . . . . . . . . . . . . . . . . . 1

3

650490

CS 3/8X1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1

117381

WEDGE/HAY . . . . . . . . . . . . . . . . . . . . . . . . 4

2

650790

CB 3/8X3/4 . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3

653010

HN 3/8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4

654026

LW 3/8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4

654026

LW 3/8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

5

654049

PW 3/8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

76

Notes

77

CHAPTER 16 DECAL LOCATIONS GENERAL INFORMATION

CAUTION ALWAYS read and abide by the Safety Rules and information shown on Decals. If Decal(s) become(s) damaged, unreadable or if the unit is repainted, the Decal(s) MUST be replaced.

If repainting, MAKE SURE ALL Decals which apply to your machine are properly affixed to your unit in their proper locations.

Decal Locations information is provided to assist in the proper selection and application of new decals, in the event the original decal(s) become(s) damaged or the machine is repainted.

For correct replacement of decal(s), compare the close-up location photographs to your machine BEFORE starting to refinish the unit. Check–off each required decal using the illustration reference number to find the part number, description and quantity in the list. Refer to the appropriate illustration(s) for replacement location(s).

NOTE:

Refer to the SAFETY Chapter of the Operator’s Manual for the specific information provided on all of the various Safety Decals.

PAINT NOTICE Use this list to order paint for refinishing: 906315 One Gal. Red 906323 One Qt. Charcoal Grey 906317 One Gal. Charcoal Grey 902873 One Qt. Black 906316 6 (12 oz. Spray Cans) Red 906318 6 (12 oz. Spray Cans) Grey 902875 6 (12 oz. Spray Cans) Black

78

NEW DECAL APPLICATION Surfaces MUST be free from dirt, dust, grease and other foreign material before applying the new decal. To apply a solid-formed decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Slowly peel off the other portion of the backing paper while applying hand pressure to smooth-out the decal surface. To apply a die-cut Decal, first remove the backing paper. Then, properly position the Decal onto the clean mounting surface. After the Decal is firmly applied and smoothly pressed-down, remove the front covering paper.

The Decal Set for the 3210 & 3250 Balers is 127177.

The Set includes the following: Ref. Part No. No. 1 067493 2 067926 3 091444 4 5 6 7

093020 093365 093366 093367

8 9 10 11 12 13 14 15 16

093373 093457 093466 093489 093597 093598 094914 094951 094958 094959 094960 094961 094962 094963 115877 126345 126757 086902

17 18 19 20 21 22

Description & Quantity Red Reflector (2 Places) Amber Reflector (2 Places) DANGER - Rotating Component (2 Places) Lubrication Symbol (4 Places) WARNING - Close or Replace Guard IMPORTANT - Store Manual Here WARNING - Owner’s Responsibility & Read Manual WARNING - General Safety WARNING - Keep Door Closed(5 Places) WARNING - 540 RPM Operation ONLY WARNING - Pinch Point WARNING - Rotating Drive Line WARNING - Install Transport Lock GEHL 5 x 23-1/2″ (3 Places) Made in USA 3210 (Only) 3250 (Only) 3210 & Colorbar 3250 & Colorbar Colorbar for 3210 Colorbar for 3250 Hay Check Reminder GEHL 2-1/2 x 11-3/4″ Stripe (10 ft Roll) DANGER - Rotating Component - NOT Shown (Inside PTO Shield)

3 3

4 9

9

2

9

9

2

14 17

20

15

Front Master

5 4

13

4

6

9 11

4

8

7

1

Rear Master

18 16 19 21 12

14

14

1

10

79

CHAPTER 17 MAINTENANCE SCHEDULE SERVICE EVERY 10 HOURS COMPONENT and SERVICE REQUIRED

PROCEDURE and/or CHAPTER TOPIC REFERENCE (Check Page No. in Index)

Lubricate all Roller Chains.

Refer to Lubrication chapter.

Cleanout material under Hay Checks.

Refer to appropriate topic in Service chapter.

Grease Telescoping section of PTO Drive and all three Bearing Crosses

Refer to Lubrication chapter for Grease Fitting locations.

Date After Service is Completed

SERVICE EVERY 50 HOURS Grease appropriate Fittings.

Refer to Lubrication chapter for Grease Fitting locations.

Cleanout material (trash) buildup under Knotter Shield

Refer to Operation chapter for details.

Lubricate Drawbar Position Control Latch

Refer to Lubrication chapter for details.

Date After Service is Completed

80

SERVICE EVERY 100 HOURS COMPONENT and SERVICE REQUIRED

PROCEDURE and/or CHAPTER TOPIC REFERENCE (Check Page No. in Index)

Check and replenish Main Drive Gear Housing Oil Level.

Maintain level at Check Plug opening; refer to Lubrication chapter for details.

Inspect all Chains and Sprockets for signs of wear.

Replace if worn excessively.

Date After Service is Completed

SERVICE EVERY 500 HOURS (OR ANNUALLY) Check that Plunger and Bale Chamber Knives are sharp and properly aligned.

See Service chapter.

Check Knotter Twine Knife is sharp.

Sharpen or replace; see Service chapter for additional details.

Lubricate all pivot points and the Bale Chamber Plunger Rails

See Lubrication chapter.

Slip the PTO Slip Clutch.

See details in Service and Set-up & Assembly chapters.

Check Tire pressures and Wheel Lug torques.

Refer to Service chapter.

Check function of PTO and Pickup Drive Overrunning Clutch mechanisms.

Refer to Service chatper.

Date After Service is Completed

81

Index A Adjustments, 24–33 Auxiliary Lighting, 16

B Bale Chamber Knife, 46 Bale Density. See Density Bale Forming Chamber mounting, 66 Bale Length – adjustment. See Metering Wheel Adjustment Baler Operation, 18 Baling, 18

C Checklists, delivery, 5–7 Control Rope. See Drawbar Latch Control Controls & Safety Equipment, 14–17

D Decal Locations, 78–79 Decal Set & List, 78 Decals, applying new, 78 Density, 24 Drawbar Latch assembly, 62 Drawbar Latch Contrl, 14 Drawbar mounting, 62 Drawbar operating and transport positions, 51 Drawbar positioning, 51 Drive Chains Lubrication, 34 Tension Adjustment, 25 Wear inspection procedure, 47 Drive Chains, oiling, 34

F Fittings, Grease, 34 Locations and Intervals, 34 Flywheel Overrunning Mechanism. See Overload Protection Flywheel Shear Bolt. See Overload Protection Front Bearing Stand, 15

G Grease Fitting, location details, 35 Guards & Shields, 14

H Hay Check inspection, 48 Hay Wedge Kit mounting, 76 Hitch Clevis Plate, 15

82

Hitch Plate positions, 50 Hitchjack, 15 Hitchjack mounting, 62

I Identification numbers, 2, 3 Implement Drive Line Guards, 15 Introduction, 2

K Knotter Adjusting, 24 Complete Removal & Installation, 43 Dissassembly, 38 Reassembly, 40

L Left Wheel mounting, 61 Lubrication, 34–35

M Main Gear Housing Lubrication, 34 Service, 47 Maintenance Schedule, 80–81 Mandatory Safety Shutdown Procedure, 8 Metering Arm Transport Lock. See Transport Lock

N Needle Brake – adjustment, 26

O Operation, 18–22 Operator’s Manual, storing, 2 Optional Features & Accessories, 72–77 Overload Protection, 19 Overrunning Clutch service, 49

P Packer Finger Assembly Shear Bolt. See Overload Protection Packer Fork position adjustment, 28 Pickup Flotation adjustment, 26 Gauge Wheel adjustment, 27 Pickup height adjustment, 27 Windguard position adjustment, 27 Plunger Face Extension Kit mounting, 76 Plunger Knife Support adjustment, 44 Plunger to Knife clearance adjustment, 66 Preparing for Field Operation, 50–51

PTO Bearing Support mounting, 65 PTO Shaft mounting, 63 PTO Slip Clutch. See Overload Protection PTO Yoke Endplay adjustment – shimming, 36

Q Quarter Turn Bale Chute assembly, 72

R Reflectors – amber and red, 52

S Safety, 8–13 Safety Chain, 16 Safety Chain for road towing, 53 Service, 36–49 Set-up & Assembly, 59–71 Setting-up Baler Component assembly, 61 Lowering Baler from shipping position, 60 Moving Shipping Stand with forklift, 59 Uncrating, 59 Shear Knife Adjusment, 45 Sharpening, 43 Shield mounting, 68 Slipping PTO Clutch, 71 SMV Emblem for transporting, 52 Specifications, 3–4 Storage, 54 Suretie. See Knotter Suretie Knotter. See Knotter

T Tailgate Chute assembly, 74 Threading Twine – Needles, 20 Timing Needle Position, 30 Packer Arm adjustment, 28 Packer Fork to Plunger adjustment, 29 Plunger Safety Stop adjustment, 32 Tire pressure checking, 48 Tractor PTO and power requirements, 50 Transport Lock, 52 Transporting, 52–53 Trash Buildup, 22 Troubleshooting, 55–58 Twine Knife Clearance adjustment, 38 Removal, 36 Sharpening, 37 Twine tension adjustment, 33 Twinebox, 20

U Unplugging, 22

W Wagon Hitch assembly, 75 Wagon Loading Chute assembly, 74 Wagon Pole assembly, 75 Wheel Bearing Repacking, 34 Wheel lug torque, 48 Winter storage, 54

83

Notes

84

TORQUE SPECIFICATIONS NOTE:

Use these torque values when tightening GEHL hardware (excluding: Locknuts and Self–tapping, Thread Forming and Sheet Metal Screws) unless specified otherwise.

All torque values are in Lb-Ft except those marked with an * which are Lb-In (For metric torque value Nm, multiply Lb-Ft value by 1.355 or Lb-In value by 0.113)

Grade 2

Grade 5

Grade 8

Unified National Thread

Dry

Lubed

Dry

Lubed

Dry

Lubed

8-32 8-36

19* 20*

14* 15*

30* 31*

22* 23*

41* 43*

31* 32*

10-24 10-32

27* 31*

21* 23*

43* 49*

32* 36*

60* 68*

45* 51*

1/4-20 1/4-28

66* 76*

50* 56*

9 10

75* 86*

12 14

9 10

5/16-18 5/16-24

11 12

9

17 19

13 14

25

18 20

3/8-16 3/8-24

20 23

15 17

30 35

23 25

45 50

35

7/16-14 7/16-20

32 36

24 27

50 55

35 40

70 80

55 60

1/2-13 1/2-20

50 55

35 40

75 90

55 65

110 120

80 90

9/16-12 9/16-18

70 80

55 60

110 120

80 90

150 170

110 130

5/8-11 5/8-18

100 110

75 85

150 180

110 130

220 240

170 180

3/4-10 3/4-16

175 200

130 150

260 300

200 220

380 420

280 320

7/8-9 7/8-14

170 180

125 140

430 470

320 360

600 660

460 500

1-8 1-14

250 270

190 210

640 710

480 530

900 1000

680 740

904780/1P692

GEHL Company 1992

Printed in U.S.A.
