INSTALLING ATTACHMENTS

A-ATTACHMENT WITHOUT HYDRAULICS AND MANUAL LOCKING DEVICE

CT6-18

INSTALLING AN ATTACHMENT

-Ensure that the attachment is in a position for locking it to the carriage. If it is not correctly oriented, take the necessary precautions to safely position it.

-Check that the locking pin and the clip are in position in the bracket (fig. A).

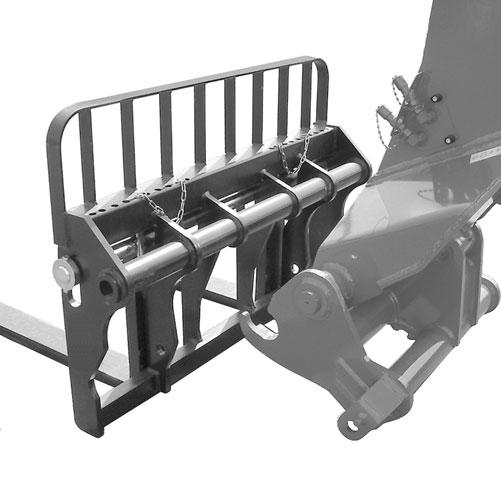

-Park the telescopic handler with the boom lowered in front of and in line with the attachment. Tilt the carriage forwards (fig. B).

REMOVING AN ATTACHMENT

-Proceed in the reverse order of paragraph INSTALLING AN ATTACHMENT. Be sure to place the attachment flat on the ground and in a closed position.

B -ATTACHMENT WITHOUT HYDRAULICS AND WITH HYDRAULIC LOCKING DEVICE

CT6-18 TURBO

Installing An Attachment

-Ensure that the attachment is in a position for locking it to the carriage. If it is not correctly oriented, take the necessary precautions to safely position it.

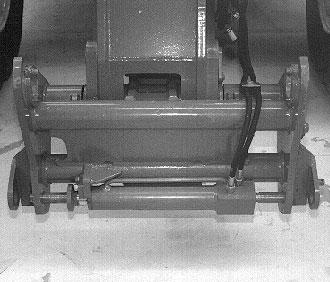

-Check that the pins (1) on the locking cylinder are retracted (fig. A).

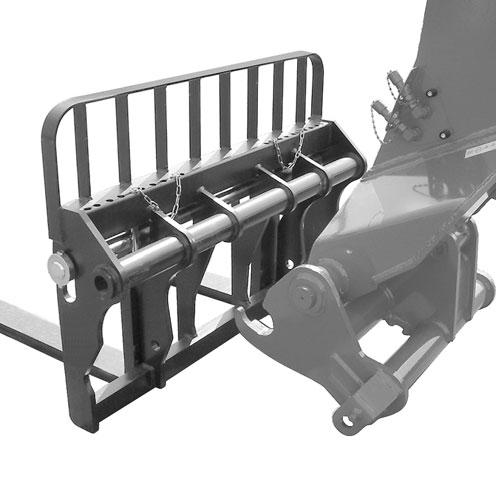

-Park the telescopic handler with the boom lowered in front of and in line with the attachment. Tilt the carriage forward (fig. B).

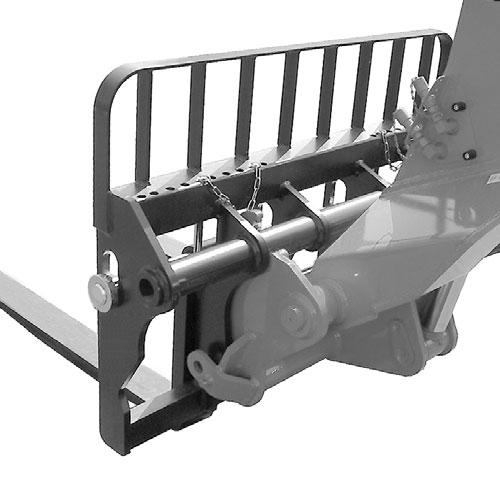

-Bring the carriage under the mounting tube of the attachment, slightly lift the boom, and tilt the carriage rearward to position the attachment (fig. C).

-Lift the attachment off the ground to ease locking.

MANUALLOCKING

-Remove the locking pin and the clip from the bracket (fig. A) and lock on the attachment (fig. D). Do not forget to replace the clip.

-Bring the carriage under the locking tube of the attachment, slightly lift the boom, and tilt the carriage rearward to position the attachment (fig. C).

-Lift the attachment off the ground to ease locking.

Manualreleasing

-Proceed in the reverse order of paragraph MANUALLOCKING. Be sure to reinstall the locking pin and the clip in the bracket (fig. A).

Hydraulic Locking

-Place the selector valve in position A(fig. D), with the hydraulic circuit for attachment locking “open.”

-Switch button (1) (fig. E) of the hydraulic control valve joystick up to lock the attachment on the carriage.

-Close the valve to position B (fig. D), with the hydraulic circuit for attachment locking “closed.”

Warning

Always close the valve to position B (fig. D) after locking on the attachment, to avoid accidental unlocking, and to use the attachment safely.

HYDRAULIC RELEASING

-Place the valve in position A(fig. D), with the hydraulic circuit for attachment locking “open.”

-Switch button (1) (fig. E) of the hydraulic control valve joystick down to completely release the attachment.

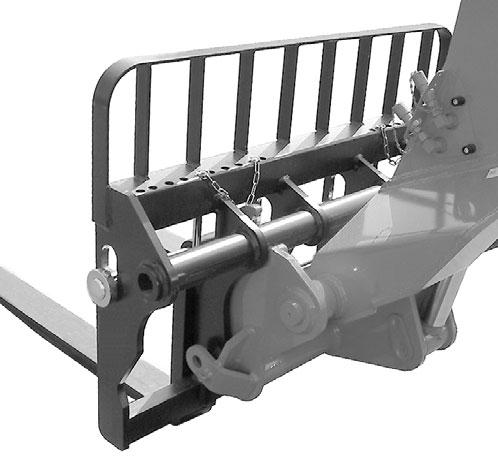

-Bring the carriage under the mounting tube of the attachment, slightly lift the boom, and tilt the carriage rearward to position the attachment (fig. C).

-Lift the attachment off the ground to ease locking.

HYDRAULIC LOCKING

-Place the selector valve in position A(fig. D), with the hydraulic circuit for attachment locked “open.”

-Move the hydraulic control valve joystick (1) (fig. E) forward to lock the attachment on the carriage.

REMOVING AN ATTACHMENT

-Proceed in the reverse order of paragraph INSTALLING AN ATTACHMENT.

-Be sure to place the attachment flat on the ground and in a closed position.

C -ATTACHMENT WITHOUT HYDRAULICS AND WITH HYDRAULIC LOCKING DEVICE

CT6-18 Option

INSTALLING AN ATTACHMENT

-Ensure that the attachment is in a position for locking it to the carriage. If it is not correctly oriented, take the necessary precautions to safely position it.

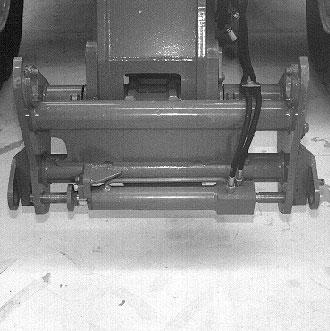

-Check that the pins (1) on the locking cylinder are retracted (fig. A).

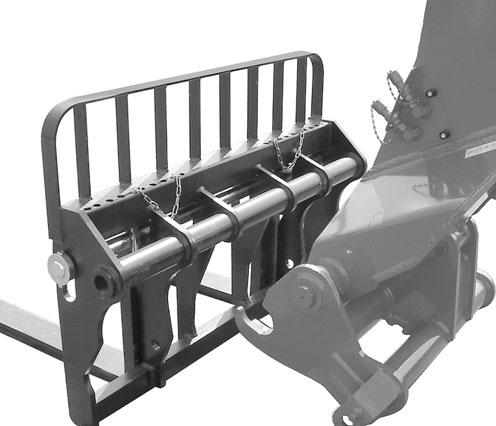

-Park the telescopic handler with the boom lowered in front of and in line with the attachment. Tilt the carriage forward (fig. B).

-Close the valve to position B (fig. D), with the hydraulic circuit for attachment locked “closed.”

Warning

Always close the valve to position B (fig. D) after locking on the attachment, to avoid accidental unlocking, and to use the attachment safely.

Hydraulic Releasing

-Place the valve in position A(fig. D), with the hydraulic circuit for attachment locking “open.”

-Move the hydraulic control valve lever (1) (fig. E) rearward to release the attachment.

REMOVING AN ATTACHMENT

-Proceed in the reverse order of paragraph INSTALLING AN ATTACHMENT.

-Be sure to place the attachment flat on the ground and in a closed position.
