H -EVERYTWO YEARS

Warning

Never try to repair the air conditioning system yourself. To recharge the circuit, always contact your dealer, who has the appropriate parts, technical training and necessary tools.

-Do not open the circuit under any circumstances, because this will cause the refrigerant to be lost.

-The air conditioning system contains a gas, which can be hazardous under certain conditions. This gas, refrigerant R134a, is colorless, odorless and heavier than air.

Warning

• If refrigerant is inhaled, take those affected into fresh air, give them oxygen or artificial respiration if necessary and call a doctor.

• If refrigerant contacts the skin, wash immediately under running water and remove any contaminated garments.

• If refrigerant contacts the eyes, rinse in clear water for 15 minutes and call a doctor.

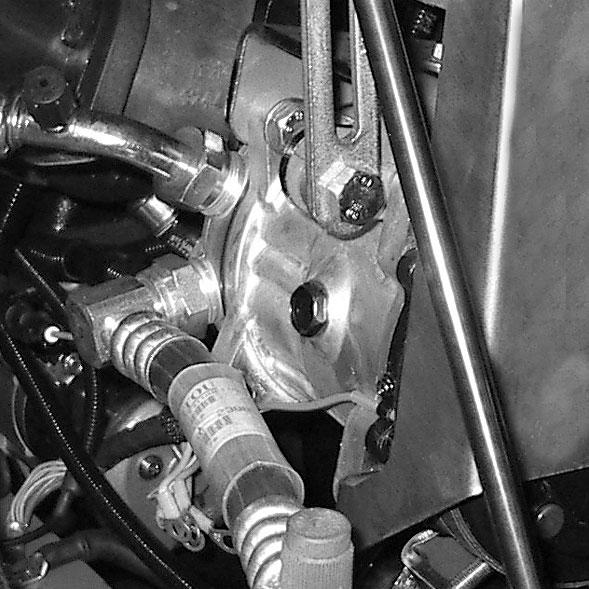

-The compressor has an oil level gauge; but never unscrew this gauge, because it would depressurize the installation. The oil level is only checked when changing the oil in the system.

H1 -CLEANING THE CONDENSER AND EVAPORATOR COILS (*)

H2 -CLEANING THE HOTWELLAND THE PRESSURE RELIEF VALVE (*)

H3 -COLLECTING THE REFRIGERANT TO REPLACE THE FILTER-DRIER (*)

H4 -RELOADING REFRIGERANT AND CHECKING THE THERMOSTATIC CONTROLAND PRESSURE SWITCHES (*)

NOTE : When opening the evaporator unit, remember to replace the cover seal.

(*): CONSULTYOUR DEALER.

Introduction

Chapter 7

Attachments

-The telescopic handler can be used with interchangeable equipment, called attachments.

-Awide range of attachments, specially designed and suitable for the telescopic handler is available and approved by GEHL.

-Attachments are delivered with a load chart applicable to the telescopic handler. The operator's manual and the load chart should be kept in the place provided in the telescopic handler. For standard attachments, their use is covered by the instructions contained in this manual.

-Some particular uses require an adaptation of the attachment, which is not provided in the listed options. Consult your dealer.

Warning

Only attachments approved by the manufacturer are to be used on GEHLtelescopic handlers (see chapter: 7 - ATTACHMENTS: TECHNICALSPECIFICATIONS OF ATTACHMENTS).

The manufacturer's liability will be denied in case of modification or adaptation without the manufacturer’s approval.

IMPORTANT: Certain attachments may, when the boom is lowered and retracted, come into contact with the front tires and cause damage to them, if the attachment is tilted forward. TO AVOID THIS RISK, EXTEND THE BOOM SO THAT SUCH CONTACT IS NOT POSSIBLE.

Warning

Maximum loads are defined by the capacity of the telescopic handler, based on the attachment’s mass and center-of-gravity. If an attachment has less capacity than the telescopic handler, never exceed the attachment’s limit.
