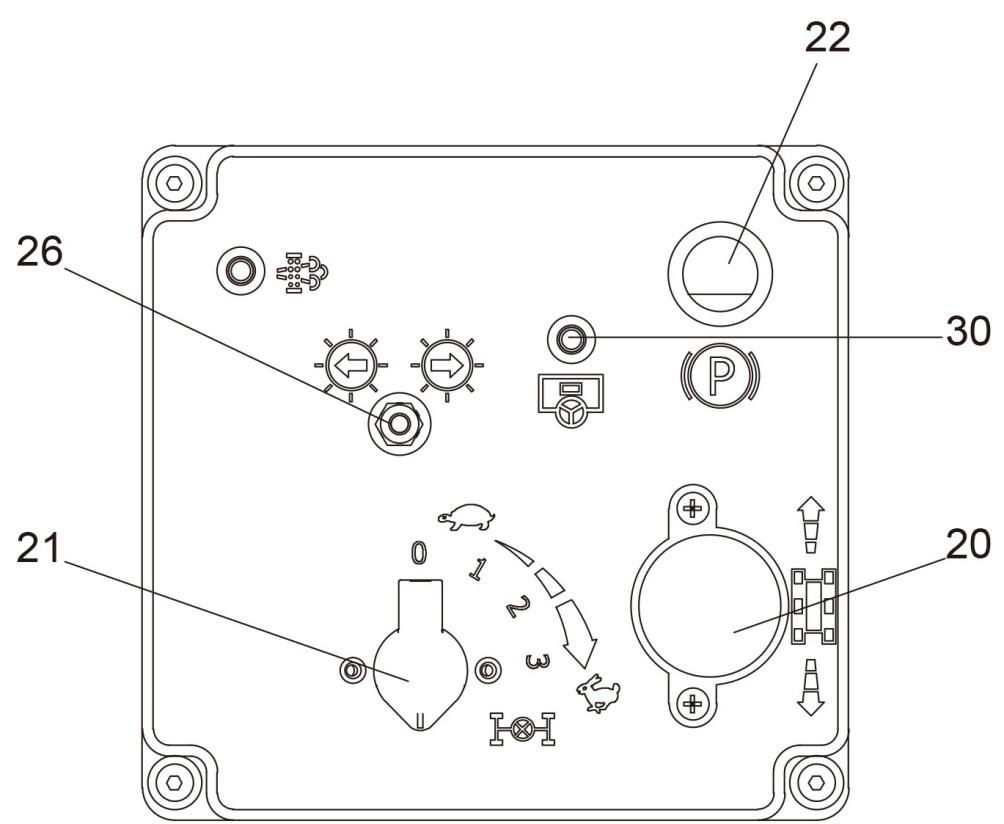

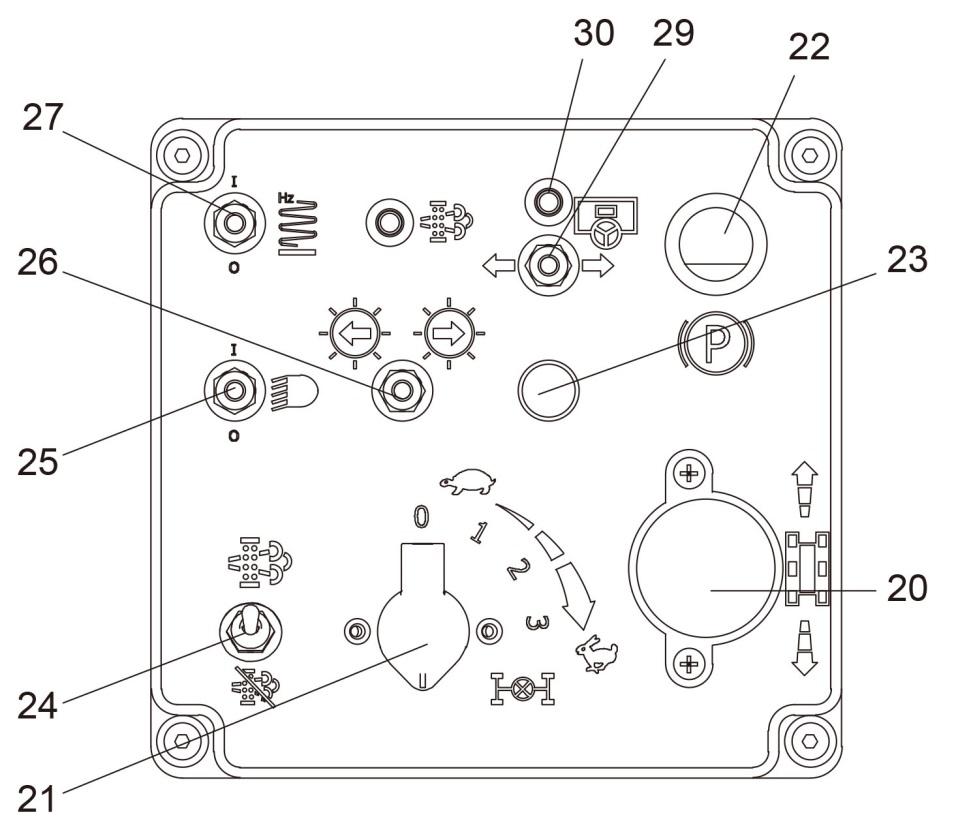

PANEL B

Item Designation Brief description

For switch on the paver functions and for regulating the road speedforward or reverse.

Zero position: starting is possible; engine at idle speed; no track drive; protected against inadvertent start.

To move the lever, lift the ring (20a) to release it. Depending on the position of the drive lever, the following functions can be activated:

- 1 st position: Engine runs at preselected speed (see "Travel drive/engine pre-selector switch")

- 2 nd position: Conveyor and auger on.

- 3 rd position: Travel drive (propel) on; increase speed by turning the speed control until it stops.

The maximum speed is set with the travel drive/engine pre-selector switch and with the travel drive pre-selector.

The floating position function is only active when the drive lever is moved from its central position!

If the drive lever is moved to the central position, the paver automatically switches to screed stop (lock).

The auger conveyor clean mode only operates when the drive lever is in neutral position.

The auger conveyor automatic function only operates when the drive lever is out of neutral position and in the forward position.

To pre-select the desired speed level.

- Switch setting 0: Preselected vehicle speed "0".

21

Pre-selector

- Switch setting 1: Vehicle speed - for paving with low operating speed.

- Switch setting 2: Vehicle speed - for paving with higher operating speed.

- Switch setting 3: Transport speed - for transportation.
