Resetting the maintenance counter
from CLAAS QUANTUM 6800 S P QUANTUM 5800 S P QUANTUM 5700 Supplement to Operator's manual-PDF DOWNLOAD
W
Z1 47
48 CLAAS Communicator:
• “Terminal” button, see page 25 Turn the “Terminal” button until the desired value (W) appears with a border around it.
9
9
Push the “Terminal” button, the border is shown enlarged.
• Turn the “Terminal” button until the desired value is displayed. • Confirm the setting by pushing the “Terminal” button. – Save the setting by confirming the new setting. The other settings should be carried out in the same way.

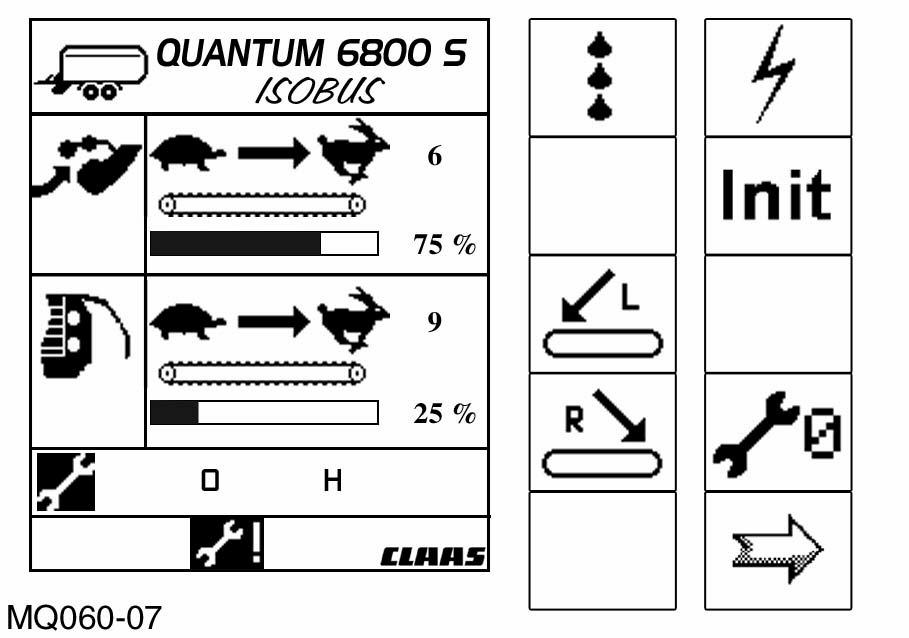

Setting range: Loading operation
Value (K1) = 0 – 20 Basic setting = 6 Value (S1) = 0 – 90% Basic setting = 75%
Unloading operation
Value (K2) = 0 – 20 Basic setting = 9 Value (S2) = 0 – 35% (presently without function) Basic setting = 25% (Fig. 47)

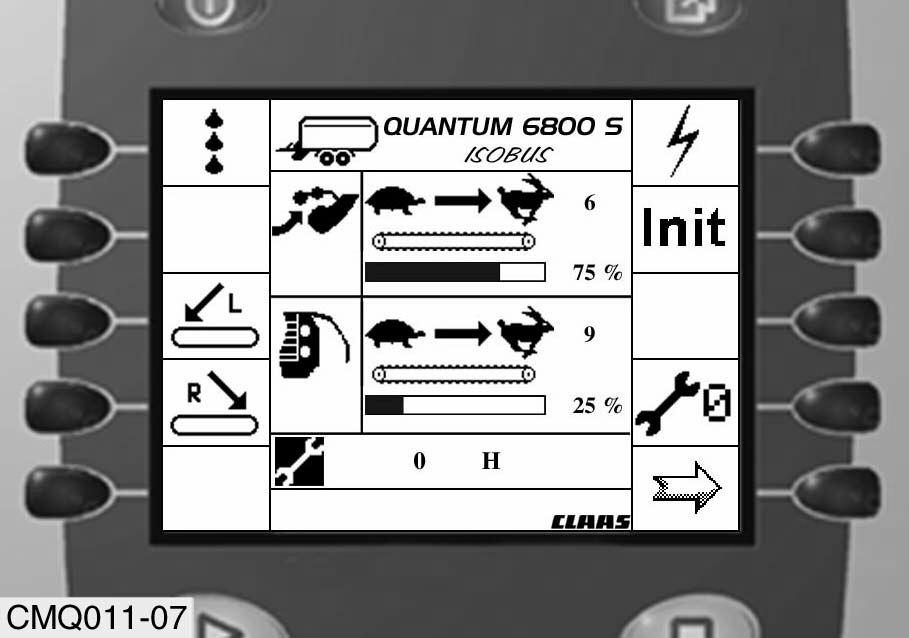

Resetting the maintenance counter
The maintenance counter shows the number of operating hours since the last time the maintenance counter was reset. If the next maintenance interval has been reached, the symbol (Z1) flashes in the status line. A bleeper sounds every 10 minutes as a reminder. Actuate the “Soft Key” after completing the maintenance work, – in order to set the maintenance counter back to zero. – The symbol (Z1) in the status line disappears. – The bleeper stops. (Fig. 48)
