Changing the swath width

1

A

B C 2

D

68065

2 3

1

A B C D 31

3

32 13.1.3Changing the swath width

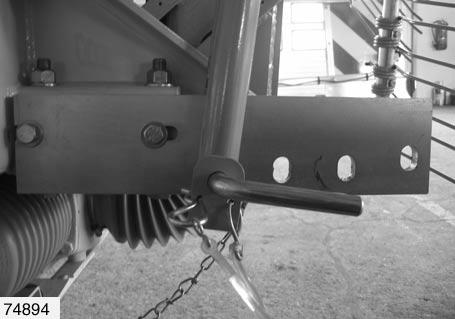

By locating the thrust rods(1) in one of the four holes(A-D), the swath width can be varied between 1.5m(A)and 2.3m(D).

Note!

The swath width can only be changed in the transport position. Secure the pin(3) with the spring clip(2).

(Fig.31)

Note!

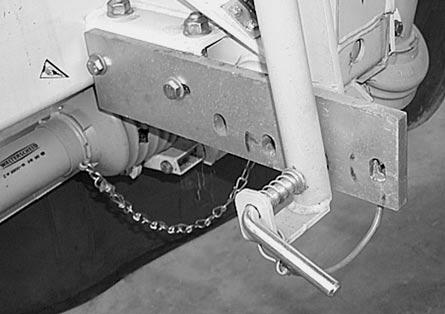

If the thrust rod is located in holeA, the pin(3) cannot be secured with the spring clip(2) (Fig.32).

(Fig.32)
