Starting the initialization process

42

43

44 11.4.1Starting the initialization process

Danger!

When raising/lowering the rotors, make sure that nobody is in the pivoting area. There is a risk of injury. – Direct all persons out of the danger area. – Switch off the machine at once, if necessary. – If necessary, interrupt the control unit with the “STOP” key. Never work on the machine while the tractor's engine is running. – Switch off the engine. – Remove the ignition key. • Turn the terminal on.

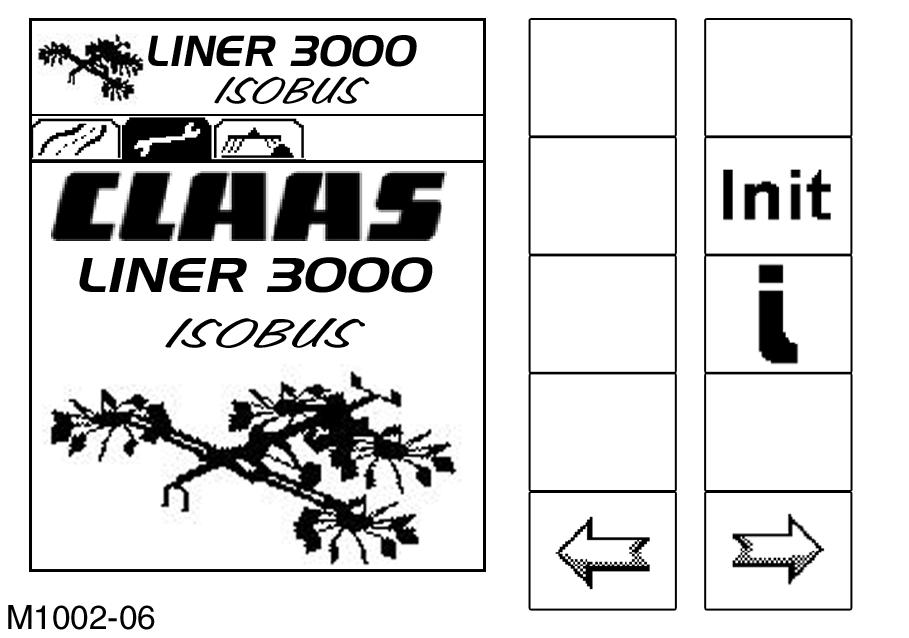

See the operator's manual of the terminal being used or Switching on/off the CLAAS Communicator, see page69. Press the “Soft Key”. (Fig.42) – The display switches to the “LINER3000” start screen. – The submenu “Working Position” is active –the icon “Working Position” is shown inverted (Fig.43). Switch to the “Maintenance” tab as follows: Press the “Soft Key” (Fig.43).

– The submenu “Maintenance” is opened –the

“Maintenance” icon is shown inverted (Fig.44). Press the “Soft Key” (Fig.44).

– The display switches to the “Init” (Fig.45)screen.
