Menu bar

S

3 11.1.3Menu bar

The menu bar(2) shows the submenus available on the tabs. The tabs are changed with the following soft keys: “next” = next menu,

“back” = previous menu –see Soft Key icons, page77. The following icons are available in the menu bar: Road transport Working position Maintenance Clearance height Program clearance height (headland) Rake height Working width: Information Running gear The icon(S) of the active submenu is shown inverted black/white, e.g.: Working position = not active, Working position = active.

Note!

The menus which are available depend upon the equipment fitted to the machines. The menus illustrated in the following figures are not always available.

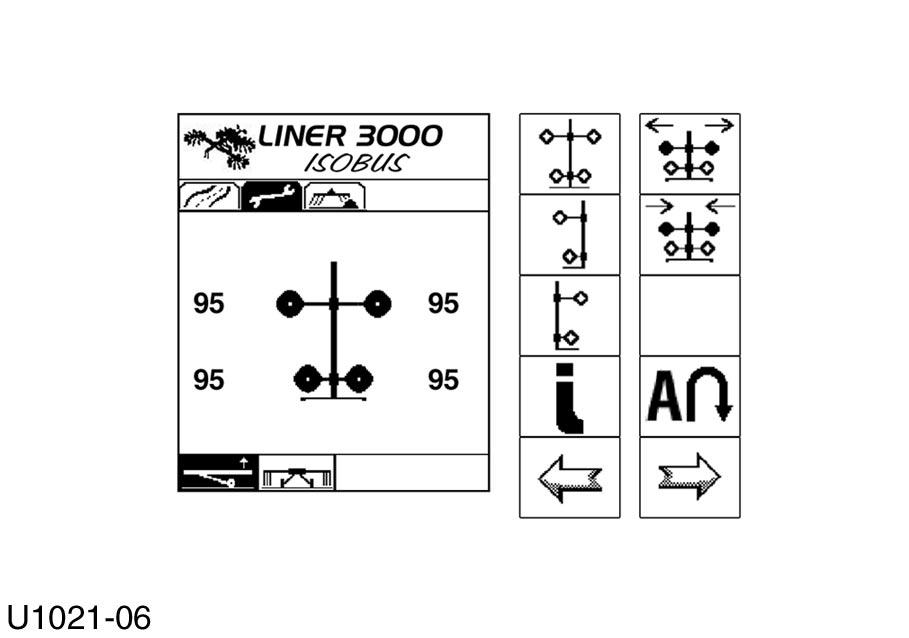

(Fig.3)
