from CLAAS COMBINE VARIANT 260 VARIANT280 ADJUSTING THE ENDLESS BELTS Assembly instructions Manual_DE_EN_
10
1 8
3
7
9
2
4
5 6
1. GENERAL NOTES
Rollers

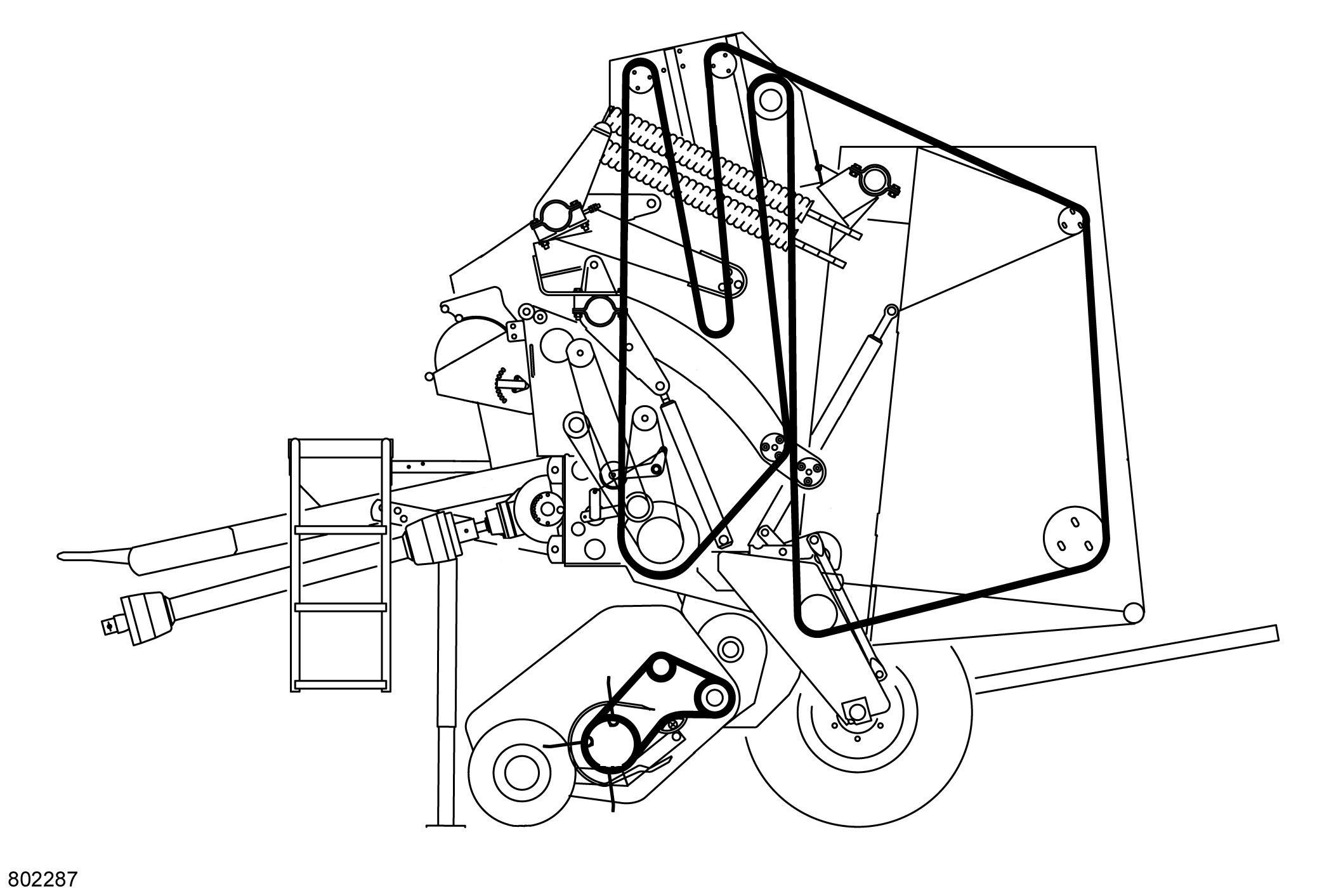

Fig. 1 shows the position of the 10 rollers on baler type Variant 260/280.
Background
Adjustment of the endless belts takes place each time the belts were changed and after each inspection of the machine.
Note!
The shortest belts are fitted on the sides. The longest belts are installed in the middle.
